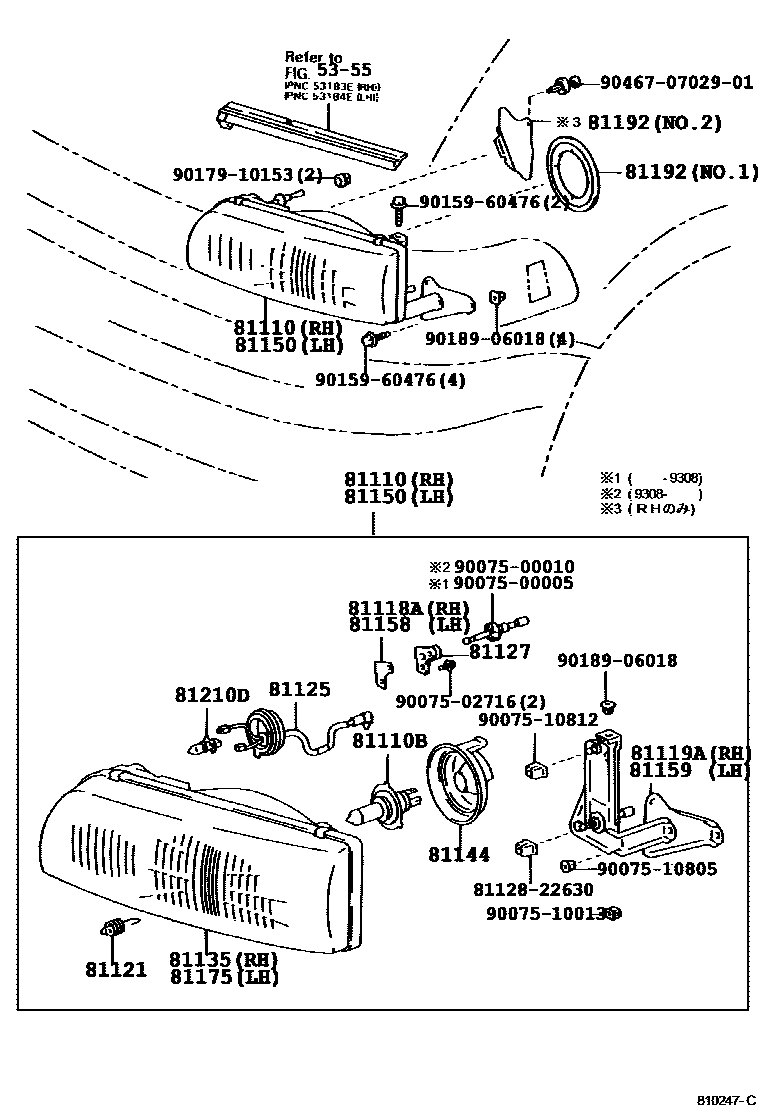

HEADLAMP

0001 1 0002 1

5355

81110HEADLAMP ASSY, RH

main81110-28410iTCR1#,2#199308-199608

main81110-28411iTCR1#,2#199608-199801

main81110-95D10iTCR1#,2#199005-199308

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13015iTCR11,21199005-199212

sub90981-13058

main90981-13055iTCR1#,2#199801-199912

sub90981-13058

main90981-22004iTCR1#,2#199212-199912

sub90981-13055

81118ABRACKET, HEADLAMP, RH

main81118-28290iTCR1#,2#199801-199912

main81118-95D01iTCR1#,2#199005-199801

81119ABRACKET ASSY, HEAD LAMP, RH

main81119-28290iTCR1#,2#199801-199912

main81119-28310iTCR1#,2#199308-199801

main81119-95D01iTCR1#,2#199005-199308

81121SPRING, HEADLAMP TENSION

main90075-25505iTCR1#,2#199005-199801

81125CORD, HEADLAMP

main81125-95D01iTCR1#,2#199005-199801

81127BEARING, HEADLAMP, NO.1

main81129-95D01iTCR1#,2#199005-199801

main81169-95D01iTCR1#,2#199005-199801

81135UNIT ASSY, HEADLAMP, RH

main81130-28290iTCR1#,2#199801-199912

main81130-28411iTCR1#,2#199608-199801

main81130-95D10iTCR1#,2#199005-199608

81144COVER, HEADLAMP, NO.1

main81139-10450iTCR1#,2#199005-199801

main90075-65002iTCR1#,2#199801-199912

81150HEADLAMP ASSY, LH

main81150-28410iTCR1#,2#199308-199608

main81150-28411iTCR1#,2#199608-199801

main81150-95D10iTCR1#,2#199005-199308

81158BRACKET, HEADLAMP, LH

main81118-95D01iTCR1#,2#199005-199801

main81158-28240iTCR1#,2#199801-199912

81159BRACKET ASSY, HEAD LAMP, LH

main81119-28290iTCR1#,2#199801-199912

main81159-28310iTCR1#,2#199308-199801

main81159-95D01iTCR1#,2#199005-199308

81175UNIT ASSY, HEADLAMP, LH

main81170-28240iTCR1#,2#199801-199912

main81170-28411iTCR1#,2#199608-199801

main81170-95D10iTCR1#,2#199005-199608

81192SEAL, HEADLAMP

main81192-28010iTCR1#,2#199005-199801

main81192-28020iTCR1#,2#199005-199912

main81192-28030iTCR1#,2#199801-199912

81210DBULB, FOG LAMP

main90080-81040iTCR1#,2#199801-199912

sub90981-13047

main90981-13027iTCR1#,2#199005-199801

8112822630NUT, HEADLAMP

main81128-22630

9007500005

main90075-00005

9007500010

main90075-00010

9007502716

main90075-02716

9007510013

main90075-10013

9007510805

main90075-10805

9007510812

main90075-10812

9015960476

main90159-60476

9017910153

main90179-10153

9018906018

main90189-06018

904670702901

main90467-0702901

27 parts on this diagram · 2 diagrams in section
