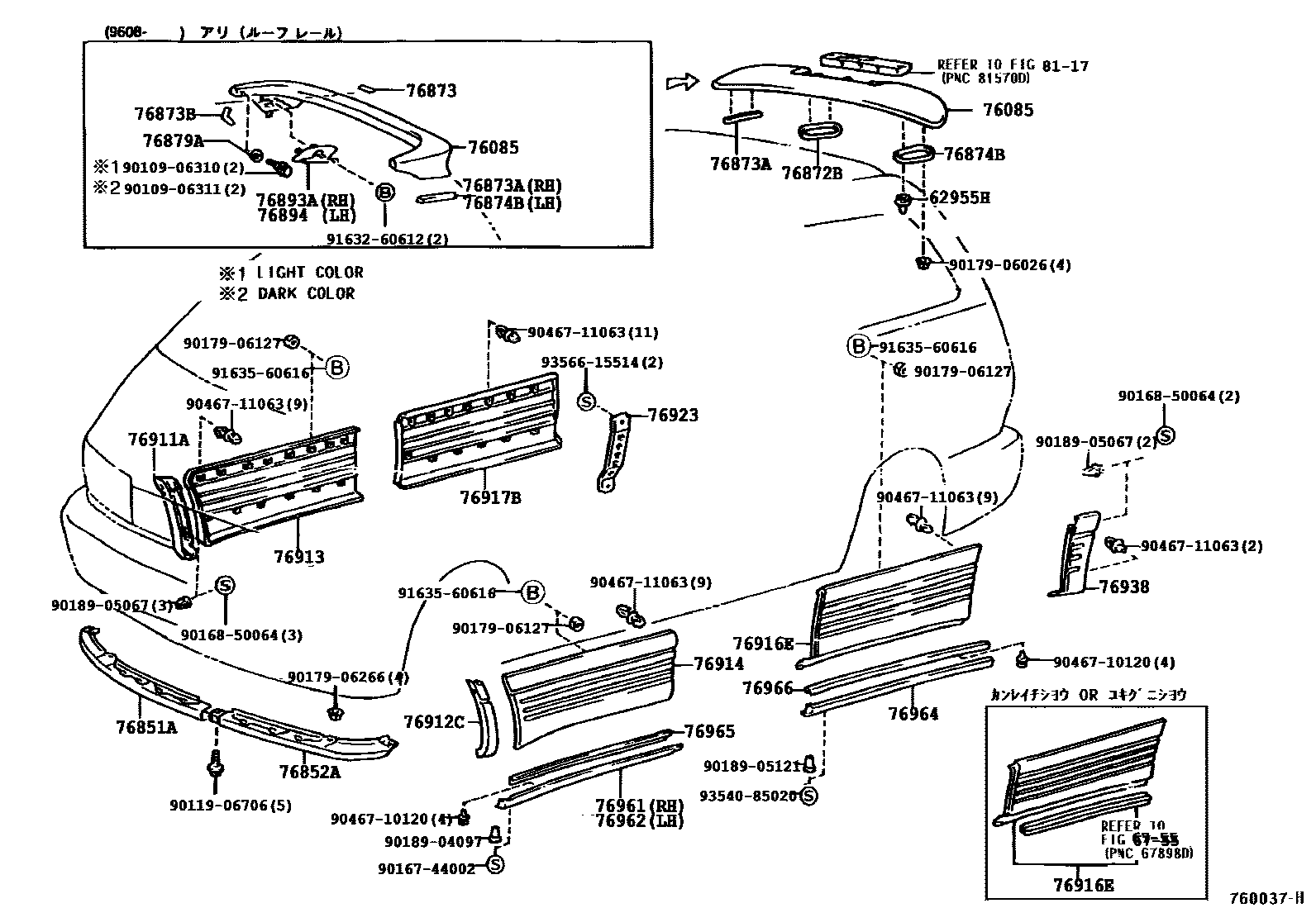

SPOILER & SIDE MUDGUARD

0001 1 0003 1

62955HRETAINER, REAR SPOILER

main62955-20040iTCR11,21199108-199111

main62955-95700iTCR1#,2#199111-199912

6755

76085SPOILER SUB-ASSY, REAR

main76085-28903iTCR1#,2#199608-199912

main76871-95901iTCR1#,2#..AERAS,G,STD199108-199912

main76871-95901iTCR10,20..V,X199608-199912

76851ACOVER, FRONT SPOILER, RH

main76851-28010iTCR1#,2#..G,V,X199408-199912

main76851-28040-A0iTCR10,20..AERAS199801-199912

WHITE PEARL,042

sub76851-28905

sub76877-28050

sub76879-44010

sub90109-06176

sub90109-06177

main76851-28040-D0iTCR10,20..AERAS199801-199912

GRAY,191

sub76851-28905

sub76877-28050

sub76879-44010

sub90109-06176

sub90109-06177

76852ACOVER, FRONT SPOILER, LH

main76852-28010iTCR1#,2#..G,V,X199408-199912

main76852-28040-A0iTCR10,20..AERAS199801-199912

WHITE PEARL,042

sub76852-28901

sub76878-28010

sub76879-44010

sub90109-06176

main76852-28040-D0iTCR10,20..AERAS199801-199912

GRAY,191

sub76852-28901

sub76878-28010

sub76879-44010

sub90109-06176

76872BPROTECTOR, REAR SPOILER, CENTER

main76872-95D00iTCR1#,2#199108-199912

76873PROTECTOR, REAR SPOILER, NO.2

main76887-28050iTCR1#,2#199608-199912

76873APROTECTOR, REAR SPOILER, RH

main76873-28080iTCR1#,2#199608-199912

main76873-95D00iTCR1#,2#199108-199912

sub76872-95D00

76873BPROTECTOR, REAR SPOILER, NO.2

main76873-28090iTCR10,20..AERAS199801-199912

main76887-28060iTCR1#,2#199608-199912

76874PROTECTOR, REAR SPOILER, NO.3

main76874-28080iTCR10,20..AERAS199801-199912

76874BPROTECTOR, REAR SPOILER, LH

main76873-95D00iTCR1#,2#199108-199912

sub76872-95D00

main76874-28070iTCR1#,2#199608-199912

76879ASPACER, REAR SPOILER

main76879-28020iTCR1#,2#199612-199912

76893ACOVER, REAR SPOILER, RH

main76893-28902iTCR1#,2#199608-199912

76894COVER, REAR SPOILER, LH

main76894-28902iTCR1#,2#199608-199912

76911AMUDGUARD, FENDER PANEL, RH

main76911-28010-A0iTCR10,20..AERAS199801-199912

WHITE PEARL,042

main76911-28010-D0iTCR10,20..AERAS199801-199912

GRAY,191

main76911-28020-A0iTCR10,20..V199704-199708

main76911-28020-A0iTCR10,20..V199709-199712

main76911-95D00-03iTCR10,20199302-199308

COOL GRAY,6L3 ,8G2 ,8H4

sub76911-95D00

main76911-95D00-13iTCR10,20199302-199308

WARM GRAY,3J7

sub76911-95D00

main76911-95D00-B0iTCR10,20199408-199608

COOL GRAY,191 ,8H4

sub76911-95D00

main76911-95D00-B0iTCR10,20199308-199408

COOL GRAY,6L3 ,8H4

sub76911-95D00

main76911-95D00-B1iTCR10,20199408-199608

WARM GRAY,046 ,193 ,3J7

sub76911-95D00

main76911-95D00-B1iTCR10,20199308-199408

WARM GRAY,3J7

sub76911-95D00

main76911-95D01-03iTCR11,21199005-199308

GRAY M,6L3 ,8G2 ,8H4

sub76911-95D01

main76911-95D01-06iTCR11,21199005-199108

BROWN M,4K9 ,4L6

sub76911-95D01

main76911-95D01-13iTCR11,21199108-199308

GRAY M,046 ,3J7 ,4K9

sub76911-95D01

main76911-95D01-13iTCR11,21199005-199108

GRAY M,046 ,3J7

sub76911-95D01

main76911-95D01-A0iTCR1#,2#..G,V199803-199901

sub76911-95D01

main76911-95D01-A0iTCR10,20..V199804-199912

sub76911-95D01

main76911-95D01-A0iTCR10,20..V199904-199912

sub76911-95D01

main76911-95D01-B2iTCR11,21199408-199608

GRAY M,191 ,8H4

sub76911-95D01

main76911-95D01-B2iTCR11,21199308-199408

GRAY M,6L3 ,8H4

sub76911-95D01

main76911-95D01-B5iTCR1#,2#..G,V199801-199912

SILVER ME.,199

sub76911-95D01

main76911-95D01-B5iTCR1#,2#..G,V199803-199901

sub76911-95D01

main76911-95D01-B7iTCR10,20..V199904-199912

sub76911-95D01

main76911-95D01-B7iTCR10,20..V199804-199912

sub76911-95D01

main76911-95D01-B8iTCR1#,2#..G,V199803-199901

sub76911-95D01

main76911-95D01-D0iTCR1#,2#..G,V199801-199912

SILVER,191 ,760

sub76911-95D01

main76911-95D01-D0iTCR10,20..V199904-199912

sub76911-95D01

main76911-95D01-D0iTCR10,20..V199708-199712

sub76911-95D01

main76911-95D01-D0iTCR1#,2#199608-199801

SILVER,191 ,8K0

sub76911-95D01

main76911-95D01-E0iTCR11,21199308-199408

GRAY M,046 ,3J7 ,4K9

sub76911-95D01

main76911-95D01-E0iTCR11,21199408-199608

GRAY M,046 ,193 ,3J7

sub76911-95D01

main76911-95D01-E1iTCR1#,2#..G,V199801-199912

GRAYISH BROWN,042 ,3J7

sub76911-95D01

main76911-95D01-E1iTCR1#,2#199608-199801

GRAYISH BROWN,042 ,193 ,3J7

sub76911-95D01

76912CMUDGUARD, FENDER PANEL, LH

main76912-28010-A0iTCR10,20..AERAS199801-199912

WHITE PEARL,042

main76912-28010-D0iTCR10,20..AERAS199801-199912

GRAY,191

main76912-28020-A0iTCR10,20..V199709-199712

main76912-28020-A0iTCR10,20..V199704-199708

main76912-95D00-03iTCR10,20199302-199308

COOL GRAY,6L3 ,8G2 ,8H4

sub76912-95D00

main76912-95D00-13iTCR10,20199302-199308

WARM GRAY,3J7

sub76912-95D00

main76912-95D00-B0iTCR10,20199408-199608

COOL GRAY,191 ,8H4

sub76912-95D00

main76912-95D00-B0iTCR10,20199308-199408

COOL GRAY,6L3 ,8H4

sub76912-95D00

main76912-95D00-B1iTCR10,20199408-199608

WARM GRAY,046 ,193 ,3J7

sub76912-95D00

main76912-95D00-B1iTCR10,20199308-199408

WARM GRAY,3J7

sub76912-95D00

main76912-95D01-03iTCR11,21199005-199308

GRAY M,6L3 ,8G2 ,8H4

sub76912-95D01

main76912-95D01-06iTCR11,21199005-199108

BROWN M,4K9 ,4L6

sub76912-95D01

main76912-95D01-13iTCR11,21199005-199108

GRAY M,046 ,3J7

sub76912-95D01

main76912-95D01-13iTCR11,21199108-199308

GRAY M,046 ,3J7 ,4K9

sub76912-95D01

main76912-95D01-A0iTCR10,20..V199804-199912

sub76912-95D01

main76912-95D01-A0iTCR1#,2#..G,V199803-199901

sub76912-95D01

main76912-95D01-A0iTCR10,20..V199904-199912

sub76912-95D01

main76912-95D01-B2iTCR11,21199308-199408

GRAY M,6L3 ,8H4

sub76912-95D01

main76912-95D01-B2iTCR11,21199408-199608

GRAY M,191 ,8H4

sub76912-95D01

main76912-95D01-B5iTCR1#,2#..G,V199801-199912

SILVER ME.,199

sub76912-95D01

main76912-95D01-B5iTCR1#,2#..G,V199803-199901

sub76912-95D01

main76912-95D01-B7iTCR10,20..V199904-199912

sub76912-95D01

main76912-95D01-B7iTCR10,20..V199804-199912

sub76912-95D01

main76912-95D01-B8iTCR1#,2#..G,V199803-199901

sub76912-95D01

main76912-95D01-D0iTCR10,20..V199904-199912

sub76912-95D01

main76912-95D01-D0iTCR1#,2#..G,V199801-199912

SILVER,191 ,760

sub76912-95D01

main76912-95D01-D0iTCR1#,2#199608-199801

SILVER,191 ,8K0

sub76912-95D01

main76912-95D01-D0iTCR10,20..V199708-199712

sub76912-95D01

main76912-95D01-E0iTCR11,21199308-199408

GRAY M,046 ,3J7 ,4K9

sub76912-95D01

main76912-95D01-E0iTCR11,21199408-199608

GRAY M,046 ,193 ,3J7

sub76912-95D01

main76912-95D01-E1iTCR1#,2#199608-199801

GRAYISH BROWN,042 ,193 ,3J7

sub76912-95D01

main76912-95D01-E1iTCR1#,2#..G,V199801-199912

GRAYISH BROWN,042 ,3J7

sub76912-95D01

76913MUDGUARD, FRONT DOOR, RH

main76913-28010-A0iTCR10,20..AERAS199801-199912

WHITE PEARL,042

main76913-28010-D0iTCR10,20..AERAS199801-199912

GRAY,191

main76913-28020-A0iTCR10,20..V199704-199708

main76913-28020-A0iTCR10,20..V199709-199712

main76913-95D00-03iTCR10,20199302-199308

COOL GRAY,6L3 ,8G2 ,8H4

sub76913-95D00

main76913-95D00-13iTCR10,20199302-199308

WARM GRAY,3J7

sub76913-95D00

main76913-95D00-B0iTCR10,20199408-199608

COOL GRAY,191 ,8H4

sub76913-95D00

main76913-95D00-B0iTCR10,20199308-199408

COOL GRAY,6L3 ,8H4

sub76913-95D00

main76913-95D00-B1iTCR10,20199308-199408

WARM GRAY,3J7

sub76913-95D00

main76913-95D00-B1iTCR10,20199408-199608

WARM GRAY,046 ,193 ,3J7

sub76913-95D00

main76913-95D01-03iTCR11,21199005-199308

GRAY M,6L3 ,8G2 ,8H4

sub76913-95D01

main76913-95D01-06iTCR11,21199005-199108

BROWN M,4K9 ,4L6

sub76913-95D01

main76913-95D01-13iTCR11,21199108-199308

GRAY M,046 ,3J7 ,4K9

sub76913-95D01

main76913-95D01-13iTCR11,21199005-199108

GRAY M,046 ,3J7

sub76913-95D01

main76913-95D01-A0iTCR10,20..V199804-199912

sub76913-95D01

main76913-95D01-A0iTCR1#,2#..G,V199803-199901

sub76913-95D01

main76913-95D01-A0iTCR10,20..V199904-199912

sub76913-95D01

main76913-95D01-B2iTCR11,21199408-199608

GRAY M,191 ,8H4

sub76913-95D01

main76913-95D01-B2iTCR11,21199308-199408

GRAY M,6L3 ,8H4

sub76913-95D01

main76913-95D01-B5iTCR1#,2#..G,V199803-199901

sub76913-95D01

main76913-95D01-B5iTCR1#,2#..G,V199801-199912

SILVER ME.,199

sub76913-95D01

main76913-95D01-B7iTCR10,20..V199804-199912

sub76913-95D01

main76913-95D01-B7iTCR10,20..V199904-199912

sub76913-95D01

main76913-95D01-B8iTCR1#,2#..G,V199803-199901

sub76913-95D01

main76913-95D01-D0iTCR10,20..V199708-199712

sub76913-95D01

main76913-95D01-D0iTCR1#,2#199608-199801

SILVER,191 ,8K0

sub76913-95D01

main76913-95D01-D0iTCR1#,2#..G,V199801-199912

SILVER,191 ,760

sub76913-95D01

main76913-95D01-D0iTCR10,20..V199904-199912

sub76913-95D01

main76913-95D01-E0iTCR11,21199408-199608

GRAY M,046 ,193 ,3J7

sub76913-95D01

main76913-95D01-E0iTCR11,21199308-199408

GRAY M,046 ,3J7 ,4K9

sub76913-95D01

main76913-95D01-E1iTCR1#,2#..G,V199801-199912

GRAYISH BROWN,042 ,3J7

sub76913-95D01

main76913-95D01-E1iTCR1#,2#199608-199801

GRAYISH BROWN,042 ,193 ,3J7

sub76913-95D01

76914MUDGUARD, FRONT DOOR, LH

main76914-28010-A0iTCR10,20..AERAS199801-199912

WHITE PEARL,042

main76914-28010-D0iTCR10,20..AERAS199801-199912

GRAY,191

main76914-28020-A0iTCR10,20..V199704-199708

main76914-28020-A0iTCR10,20..V199709-199712

main76914-95D00-03iTCR10,20199302-199308

COOL GRAY,6L3 ,8G2 ,8H4

sub76914-95D00

main76914-95D00-13iTCR10,20199302-199308

WARM GRAY,3J7

sub76914-95D00

main76914-95D00-B0iTCR10,20199408-199608

COOL GRAY,191 ,8H4

sub76914-95D00

main76914-95D00-B0iTCR10,20199308-199408

COOL GRAY,6L3 ,8H4

sub76914-95D00

main76914-95D00-B1iTCR10,20199408-199608

WARM GRAY,046 ,193 ,3J7

sub76914-95D00

main76914-95D00-B1iTCR10,20199308-199408

WARM GRAY,3J7

sub76914-95D00

main76914-95D01-03iTCR11,21199005-199308

GRAY M,6L3 ,8G2 ,8H4

sub76914-95D01

main76914-95D01-06iTCR11,21199005-199108

BROWN M,4K9 ,4L6

sub76914-95D01

main76914-95D01-13iTCR11,21199108-199308

GRAY M,046 ,3J7 ,4K9

sub76914-95D01

main76914-95D01-13iTCR11,21199005-199108

GRAY M,046 ,3J7

sub76914-95D01

main76914-95D01-A0iTCR10,20..V199804-199912

sub76914-95D01

main76914-95D01-A0iTCR10,20..V199904-199912

sub76914-95D01

main76914-95D01-A0iTCR1#,2#..G,V199803-199901

sub76914-95D01

main76914-95D01-B2iTCR11,21199308-199408

GRAY M,6L3 ,8H4

sub76914-95D01

main76914-95D01-B2iTCR11,21199408-199608

GRAY M,191 ,8H4

sub76914-95D01

main76914-95D01-B5iTCR1#,2#..G,V199801-199912

SILVER ME.,199

sub76914-95D01

main76914-95D01-B5iTCR1#,2#..G,V199803-199901

sub76914-95D01

main76914-95D01-B7iTCR10,20..V199804-199912

sub76914-95D01

main76914-95D01-B7iTCR10,20..V199904-199912

sub76914-95D01

main76914-95D01-B8iTCR1#,2#..G,V199803-199901

sub76914-95D01

main76914-95D01-D0iTCR10,20..V199904-199912

sub76914-95D01

main76914-95D01-D0iTCR1#,2#..G,V199801-199912

SILVER,191 ,760

sub76914-95D01

main76914-95D01-D0iTCR1#,2#199608-199801

SILVER,191 ,8K0

sub76914-95D01

main76914-95D01-D0iTCR10,20..V199708-199712

sub76914-95D01

main76914-95D01-E0iTCR11,21199408-199608

GRAY M,046 ,193 ,3J7

sub76914-95D01

main76914-95D01-E0iTCR11,21199308-199408

GRAY M,046 ,3J7 ,4K9

sub76914-95D01

main76914-95D01-E1iTCR1#,2#..G,V199801-199912

GRAYISH BROWN,042 ,3J7

sub76914-95D01

main76914-95D01-E1iTCR1#,2#199608-199801

GRAYISH BROWN,042 ,193 ,3J7

sub76914-95D01

76916EMUDGUARD, SLIDE DOOR, LH

main76916-28010-A0iTCR10,20..AERAS199801-199912

WHITE PEARL,042

main76916-28010-D0iTCR10,20..AERAS199801-199912

GRAY,191

main76916-28020-A0iTCR10,20..V199704-199708

main76916-28020-A0iTCR10,20..V199709-199712

main76916-28900-03iTCR11,21199308-199408

main76916-28900-03iTCR11,21199005-199308

main76916-28900-03iTCR11,21199408-199608

main76916-28900-06iTCR11,21199005-199108

main76916-28900-13iTCR11,21199408-199608

main76916-28900-13iTCR11,21199108-199408

main76916-28900-13iTCR11,21199005-199108

main76916-28900-A0iTCR10,20..V199704-199708

main76916-28900-A0iTCR10,20..V199708-199712

main76916-28900-A0iTCR1#,2#..G,V199803-199901

main76916-28900-A0iTCR10,20..V199804-199912

main76916-28900-A0iTCR10,20..V199904-199912

main76916-28900-B2iTCR1#,2#..G,V199801-199912

main76916-28900-B2iTCR1#,2#..G,V199803-199901

main76916-28900-B4iTCR10,20..V199904-199912

main76916-28900-B4iTCR10,20..V199804-199912

main76916-28900-B5iTCR1#,2#..G,V199803-199901

main76916-28900-D0iTCR1#,2#..G,V199801-199912

main76916-28900-D0iTCR10,20..V199708-199712

main76916-28900-D0iTCR1#,2#199608-199801

main76916-28900-E0iTCR1#,2#..G,V199801-199912

main76916-28900-E0iTCR1#,2#199608-199801

main76916-28901-B0iTCR10,20199408-199608

main76916-28901-B0iTCR10,20199308-199408

main76916-28901-B1iTCR10,20199408-199608

main76916-28901-B1iTCR10,20199308-199408

main76916-28902-A2iTCR10,20..AERAS199801-199912

main76916-28902-D0iTCR10,20..AERAS199801-199912

main76916-28903-A0iTCR1#,2#..G,V199804-199912

main76916-95D00-03iTCR10,20199302-199308

COOL GRAY,6L3 ,8G2 ,8H4

sub76916-95D00

main76916-95D00-13iTCR10,20199302-199308

WARM GRAY,3J7

sub76916-95D00

main76916-95D00-B0iTCR10,20199308-199408

COOL GRAY,6L3 ,8H4

sub76916-95D00

main76916-95D00-B0iTCR10,20199408-199608

COOL GRAY,191 ,8H4

sub76916-95D00

main76916-95D00-B1iTCR10,20199308-199408

WARM GRAY,3J7

sub76916-95D00

main76916-95D00-B1iTCR10,20199408-199608

WARM GRAY,046 ,193 ,3J7

sub76916-95D00

main76916-95D01-03iTCR11,21199005-199308

GRAY M,6L3 ,8G2 ,8H4

sub76916-95D01

main76916-95D01-06iTCR11,21199005-199108

BROWN M,4K9 ,4L6

sub76916-95D01

main76916-95D01-13iTCR11,21199005-199108

GRAY M,046 ,3J7

sub76916-95D01

main76916-95D01-13iTCR11,21199108-199308

GRAY M,046 ,3J7 ,4K9

sub76916-95D01

main76916-95D01-A0iTCR1#,2#..G,V199803-199901

sub76916-95D01

main76916-95D01-A0iTCR10,20..V199904-199912

sub76916-95D01

main76916-95D01-A0iTCR10,20..V199804-199912

sub76916-95D01

main76916-95D01-B2iTCR11,21199408-199608

GRAY M,191 ,8H4

sub76916-95D01

main76916-95D01-B2iTCR11,21199308-199408

GRAY M,6L3 ,8H4

sub76916-95D01

main76916-95D01-B5iTCR1#,2#..G,V199803-199901

sub76916-95D01

main76916-95D01-B5iTCR1#,2#..G,V199801-199912

SILVER ME.,199

sub76916-95D01

main76916-95D01-B7iTCR10,20..V199804-199912

sub76916-95D01

main76916-95D01-B7iTCR10,20..V199904-199912

sub76916-95D01

main76916-95D01-B8iTCR1#,2#..G,V199803-199901

sub76916-95D01

main76916-95D01-D0iTCR10,20..V199708-199712

sub76916-95D01

main76916-95D01-D0iTCR1#,2#..G,V199801-199912

SILVER,191 ,760

sub76916-95D01

main76916-95D01-D0iTCR1#,2#199608-199801

SILVER,191 ,8K0

sub76916-95D01

main76916-95D01-D0iTCR10,20..V199904-199912

sub76916-95D01

main76916-95D01-E0iTCR11,21199408-199608

GRAY M,046 ,193 ,3J7

sub76916-95D01

main76916-95D01-E0iTCR11,21199308-199408

GRAY M,046 ,3J7 ,4K9

sub76916-95D01

main76916-95D01-E1iTCR1#,2#199608-199801

GRAYISH BROWN,042 ,193 ,3J7

sub76916-95D01

main76916-95D01-E1iTCR1#,2#..G,V199801-199912

GRAYISH BROWN,042 ,3J7

sub76916-95D01

76917BMUDGUARD, QUARTER PANEL, RH

main76917-28010-A0iTCR10,20..AERAS199801-199912

WHITE PEARL,042

main76917-28010-D0iTCR10,20..AERAS199801-199912

GRAY,191

main76917-28020-A0iTCR10,20..V199709-199712

main76917-28020-A0iTCR10,20..V199704-199708

main76917-95D00-03iTCR10,20199302-199308

COOL GRAY,6L3 ,8G2 ,8H4

sub76917-95D00

main76917-95D00-13iTCR10,20199302-199308

WARM GRAY,3J7

sub76917-95D00

main76917-95D00-B0iTCR10,20199308-199408

COOL GRAY,6L3 ,8H4

sub76917-95D00

main76917-95D00-B0iTCR10,20199408-199608

COOL GRAY,191 ,8H4

sub76917-95D00

main76917-95D00-B1iTCR10,20199408-199608

WARM GRAY,046 ,193 ,3J7

sub76917-95D00

main76917-95D00-B1iTCR10,20199308-199408

WARM GRAY,3J7

sub76917-95D00

main76917-95D01-03iTCR11,21199005-199308

GRAY M,6L3 ,8G2 ,8H4

sub76917-95D01

main76917-95D01-06iTCR11,21199005-199108

BROWN M,4K9 ,4L6

sub76917-95D01

main76917-95D01-13iTCR11,21199005-199108

GRAY M,046 ,3J7

sub76917-95D01

main76917-95D01-13iTCR11,21199108-199308

GRAY M,046 ,3J7 ,4K9

sub76917-95D01

main76917-95D01-A0iTCR10,20..V199804-199912

sub76917-95D01

main76917-95D01-A0iTCR1#,2#..G,V199803-199901

sub76917-95D01

main76917-95D01-A0iTCR10,20..V199904-199912

sub76917-95D01

main76917-95D01-B2iTCR11,21199408-199608

GRAY M,191 ,8H4

sub76917-95D01

main76917-95D01-B2iTCR11,21199308-199408

GRAY M,6L3 ,8H4

sub76917-95D01

main76917-95D01-B5iTCR1#,2#..G,V199803-199901

sub76917-95D01

main76917-95D01-B5iTCR1#,2#..G,V199801-199912

SILVER ME.,199

sub76917-95D01

main76917-95D01-B8iTCR10,20..V199904-199912

sub76917-95D01

main76917-95D01-B8iTCR10,20..V199804-199912

sub76917-95D01

main76917-95D01-B9iTCR1#,2#..G,V199803-199901

sub76917-95D01

main76917-95D01-D0iTCR1#,2#199608-199801

SILVER,191 ,8K0

sub76917-95D01

main76917-95D01-D0iTCR1#,2#..G,V199801-199912

SILVER,191 ,760

sub76917-95D01

main76917-95D01-D0iTCR10,20..V199708-199712

sub76917-95D01

main76917-95D01-D0iTCR10,20..V199904-199912

sub76917-95D01

main76917-95D01-E0iTCR11,21199308-199408

GRAY M,046 ,3J7 ,4K9

sub76917-95D01

main76917-95D01-E0iTCR11,21199408-199608

GRAY M,046 ,193 ,3J7

sub76917-95D01

main76917-95D01-E1iTCR1#,2#199608-199801

GRAYISH BROWN,042 ,193 ,3J7

sub76917-95D01

main76917-95D01-E1iTCR1#,2#..G,V199801-199912

GRAYISH BROWN,042 ,3J7

sub76917-95D01

76923RETAINER, SIDE MUDGUARD

main76923-95D00iTCR1#,2#199005-199912

76938MUDGUARD, QUARTER PANEL, REAR LH

main76938-28010-A0iTCR10,20..AERAS199801-199912

WHITE PEARL,042

main76938-28010-D0iTCR10,20..AERAS199801-199912

GRAY,191

main76938-28020-A0iTCR10,20..V199709-199712

main76938-28020-A0iTCR10,20..V199704-199708

main76938-95D00-03iTCR10,20199302-199308

COOL GRAY,6L3 ,8G2 ,8H4

sub76938-95D00

main76938-95D00-13iTCR10,20199302-199308

WARM GRAY,3J7

sub76938-95D00

main76938-95D00-B0iTCR10,20199408-199608

COOL GRAY,191 ,8H4

sub76938-95D00

main76938-95D00-B0iTCR10,20199308-199408

COOL GRAY,6L3 ,8H4

sub76938-95D00

main76938-95D00-B1iTCR10,20199408-199608

WARM GRAY,046 ,193 ,3J7

sub76938-95D00

main76938-95D00-B1iTCR10,20199308-199408

WARM GRAY,3J7

sub76938-95D00

main76938-95D01-03iTCR11,21199005-199308

GRAY M,6L3 ,8G2 ,8H4

sub76938-95D01

main76938-95D01-06iTCR11,21199005-199108

BROWN M,4K9 ,4L6

sub76938-95D01

main76938-95D01-13iTCR11,21199108-199308

GRAY M,046 ,3J7 ,4K9

sub76938-95D01

main76938-95D01-13iTCR11,21199005-199108

GRAY M,046 ,3J7

sub76938-95D01

main76938-95D01-A0iTCR10,20..V199804-199912

sub76938-95D01

main76938-95D01-A0iTCR1#,2#..G,V199803-199901

sub76938-95D01

main76938-95D01-A0iTCR10,20..V199904-199912

sub76938-95D01

main76938-95D01-B2iTCR11,21199308-199408

GRAY M,6L3 ,8H4

sub76938-95D01

main76938-95D01-B2iTCR11,21199408-199608

GRAY M,191 ,8H4

sub76938-95D01

main76938-95D01-B5iTCR1#,2#..G,V199803-199901

sub76938-95D01

main76938-95D01-B5iTCR1#,2#..G,V199801-199912

SILVER ME.,199

sub76938-95D01

main76938-95D01-B8iTCR10,20..V199904-199912

sub76938-95D01

main76938-95D01-B8iTCR10,20..V199804-199912

sub76938-95D01

main76938-95D01-B9iTCR1#,2#..G,V199803-199901

sub76938-95D01

main76938-95D01-D0iTCR10,20..V199904-199912

sub76938-95D01

main76938-95D01-D0iTCR10,20..V199708-199712

sub76938-95D01

main76938-95D01-D0iTCR1#,2#199608-199801

SILVER,191 ,8K0

sub76938-95D01

main76938-95D01-D0iTCR1#,2#..G,V199801-199912

SILVER,191 ,760

sub76938-95D01

main76938-95D01-E0iTCR11,21199308-199408

GRAY M,046 ,3J7 ,4K9

sub76938-95D01

main76938-95D01-E0iTCR11,21199408-199608

GRAY M,046 ,193 ,3J7

sub76938-95D01

main76938-95D01-E1iTCR1#,2#..G,V199801-199912

GRAYISH BROWN,042 ,3J7

sub76938-95D01

main76938-95D01-E1iTCR1#,2#199608-199801

GRAYISH BROWN,042 ,193 ,3J7

sub76938-95D01

76961MUDGUARD, FRONT DOOR, LOWER RH

main76961-95D00-03iTCR10,20199302-199308

COOL GRAY,6L3 ,8G2 ,8H4

sub76961-95D00

main76961-95D00-06iTCR11,21199005-199108

BROWN GRAY,4K9 ,4L6

sub76961-95D00

main76961-95D00-13iTCR10,20199302-199308

WARM GRAY,3J7

sub76961-95D00

main76961-95D00-13iTCR11,21199005-199108

WARM GRAY,046 ,3J7

sub76961-95D00

main76961-95D00-23iTCR11,21199005-199108

GRAY,TRIM1#&046 ,3J7 ,4K9 ,4L6 ,6L3 ,8G2 ,8H4

sub76961-95D00

main76961-95D00-23iTCR11,21199108-199308

GRAY,046 ,3J7 ,4K9 ,6L3 ,8G2 ,8H4

sub76961-95D00

main76961-95D00-B0iTCR10,20199308-199408

COOL GRAY,TRIM1#&6L3 ,8H4

sub76961-95D00

main76961-95D00-B0iTCR10,20199308-199408

COOL GRAY,6L3 ,8H4

sub76961-95D00

main76961-95D00-B0iTCR1#,2#..G,V199801-199912

COOL GRAY,199

sub76961-95D00

main76961-95D00-B0iTCR10,20199408-199608

COOL GRAY,191 ,8H4

sub76961-95D00

main76961-95D00-B1iTCR10,20..AERAS199801-199912

WARM GRAY,042

sub76961-95D00

main76961-95D00-B1iTCR10,20..AERAS199801-199912

WARM GRAY,042 ,3J7

sub76961-95D00

main76961-95D00-B1iTCR10,20199308-199408

WARM GRAY,TRIM11&3J7

sub76961-95D00

main76961-95D00-B1iTCR1#,2#199408-199608

WARM GRAY,046 ,193 ,3J7

sub76961-95D00

main76961-95D00-B1iTCR1#,2#199608-199801

WARM GRAY,193 ,3J7

sub76961-95D00

main76961-95D00-B2iTCR10,20..AERAS199801-199912

sub76961-95D00

main76961-95D00-B2iTCR10,20199308-199408

COOL GRAY,3J7 ,6L3 ,8H4

sub76961-95D00

main76961-95D00-B2iTCR10,20199308-199408

COOL GRAY,TRIM1#,4#&046 ,3J7 ,4K9 ,6L3 ,8H4

sub76961-95D00

main76961-95D00-B2iTCR11,21199408-199608

COOL GRAY,TRIM1#&046 ,191 ,193 ,3J7 ,8H4

sub76961-95D00

main76961-95D00-B2iTCR10,20..V199708-199712

sub76961-95D00

main76961-95D00-B2iTCR10,20..X199608-199801

COOL GRAY,042 ,191 ,193 ,3J7 ,8K0

sub76961-95D00

main76961-95D00-B2iTCR10,20..X199608-199801

sub76961-95D00

main76961-95D00-B2iTCR1#,2#..G,V199801-199912

sub76961-95D00

main76961-95D00-B2iTCR10,20..V199804-199912

sub76961-95D00

76962MUDGUARD, FRONT DOOR, LOWER LH

main76962-95D00-03iTCR10,20199302-199308

COOL GRAY,6L3 ,8G2 ,8H4

sub76962-95D00

main76962-95D00-06iTCR11,21199005-199108

BROWN GRAY,4K9 ,4L6

sub76962-95D00

main76962-95D00-13iTCR10,20199302-199308

WARM GRAY,3J7

sub76962-95D00

main76962-95D00-13iTCR11,21199005-199108

WARM GRAY,046 ,3J7

sub76962-95D00

main76962-95D00-23iTCR11,21199108-199308

GRAY,046 ,3J7 ,4K9 ,6L3 ,8G2 ,8H4

sub76962-95D00

main76962-95D00-23iTCR11,21199005-199108

GRAY,TRIM1#&046 ,3J7 ,4K9 ,4L6 ,6L3 ,8G2 ,8H4

sub76962-95D00

main76962-95D00-B0iTCR10,20199308-199408

COOL GRAY,6L3 ,8H4

sub76962-95D00

main76962-95D00-B0iTCR11,21199308-199408

COOL GRAY,TRIM1#&6L3 ,8H4

sub76962-95D00

main76962-95D00-B0iTCR10,20199408-199608

COOL GRAY,191 ,8H4

sub76962-95D00

main76962-95D00-B0iTCR1#,2#199608-199912

COOL GRAY,191

sub76962-95D00

main76962-95D00-B0iTCR1#,2#..G,V199801-199912

COOL GRAY,191 ,199

sub76962-95D00

main76962-95D00-B1iTCR10,20..AERAS199801-199912

WARM GRAY,042

sub76962-95D00

main76962-95D00-B1iTCR1#,2#..G,V199801-199912

WARM GRAY,042 ,3J7

sub76962-95D00

main76962-95D00-B1iTCR10,20199308-199408

WARM GRAY,TRIM11&3J7

sub76962-95D00

main76962-95D00-B2iTCR10,20..AERAS199801-199912

sub76962-95D00

main76962-95D00-B2iTCR10,20..AERAS199801-199912

sub76962-95D00

main76962-95D00-B2iTCR10,20..V199804-199912

sub76962-95D00

main76962-95D00-B2iTCR10,20199308-199408

GRAY,TRIM1#,4#&046 ,3J7 ,4K9 ,6L3 ,8H4

sub76962-95D00

main76962-95D00-B2iTCR11,21199308-199408

GRAY,3J7 ,6L3 ,8H4

sub76962-95D00

main76962-95D00-B2iTCR1#,2#199408-199608

GRAY,TRIM1#&046 ,191 ,193 ,3J7 ,8H4

sub76962-95D00

main76962-95D00-B2iTCR10,20..V199708-199712

sub76962-95D00

main76962-95D00-B2iTCR1#,2#199608-199801

GRAY,042 ,193 ,3J7 ,8K0

sub76962-95D00

76964MUDGUARD, SLIDE DOOR, LOWER LH

main76964-95D00-03iTCR10,20199302-199308

COOL GRAY,6L3 ,8G2 ,8H4

sub76964-95D00

main76964-95D00-06iTCR11,21199005-199108

BROWN GRAY,4K9 ,4L6

sub76964-95D00

main76964-95D00-13iTCR10,20199302-199308

WARM GRAY,3J7

sub76964-95D00

main76964-95D00-23iTCR11,21199108-199308

GRAY,046 ,3J7 ,4K9 ,6L3 ,8G2 ,8H4

sub76964-95D00

main76964-95D00-23iTCR11,21199005-199108

GRAY,TRIM1#&046 ,3J7 ,4K9 ,4L6 ,6L3 ,8G2 ,8H4

sub76964-95D00

main76964-95D00-B0iTCR11,21199308-199408

COOL GRAY,TRIM1#&6L3 ,8H4

sub76964-95D00

main76964-95D00-B0iTCR11,21199308-199408

COOL GRAY,6L3 ,8H4

sub76964-95D00

main76964-95D00-B0iTCR10,20..AERAS199608-199912

COOL GRAY,191

sub76964-95D00

main76964-95D00-B0iTCR10,20..AERAS199801-199912

COOL GRAY,191 ,199

sub76964-95D00

main76964-95D00-B0iTCR10,20199408-199608

COOL GRAY,191 ,8H4

sub76964-95D00

main76964-95D00-B1iTCR1#,2#..G,V199801-199912

WARM GRAY,042 ,3J7

sub76964-95D00

main76964-95D00-B1iTCR10,20199308-199408

WARM GRAY,TRIM11&3J7

sub76964-95D00

main76964-95D00-B1iTCR10,20199408-199801

WARM GRAY,193 ,3J7

sub76964-95D00

main76964-95D00-B2iTCR10,20..X199308-199801

GRAY,042 ,046 ,191 ,193 ,3J7 ,8K0

sub76964-95D00

main76964-95D00-B2iTCR10,20..V199708-199712

sub76964-95D00

main76964-95D00-B2iTCR1#,2#..SPC199608-199801

sub76964-95D00

main76964-95D00-B2iTCR11,21199408-199608

GRAY,TRIM1#&046 ,191 ,193 ,3J7 ,8H4

sub76964-95D00

main76964-95D00-B2iTCR11,21199308-199408

GRAY,TRIM1#,4#&046 ,3J7 ,4K9 ,6L3 ,8H4

sub76964-95D00

main76964-95D00-B2iTCR11,21199308-199408

GRAY,3J7 ,6L3 ,8H4

sub76964-95D00

main76964-95D00-B2iTCR1#,2#..G,V199801-199912

sub76964-95D00

main76964-95D00-B2iTCR1#,2#..G,V199801-199912

sub76964-95D00

main76964-95D00-B2iTCR10,20..V199804-199912

sub76964-95D00

76965PROTECTOR, FRONT DOOR LOWER MUDGUARD

main76965-95D00iTCR1#,2#199005-199912

76966PROTECTOR, SLIDE DOOR LOWER MUDGUARD

main76966-28010iTCR1#,2#199005-199912

main76966-95D00iTCR1#,2#199005-199912

8117

9010906310

main90109-06310

9010906311

main90109-06311

9011906706

main90119-06706

9016744002

main90167-44002

9016850064

main90168-50064

9017906026

main90179-06026

9017906127

main90179-06127

9017906266

main90179-06266

9018904097

main90189-04097

9018905067

main90189-05067

9018905121

main90189-05121

9046710120

main90467-10120

9046711063

main90467-11063

9163260612

main91632-60612

9163560616

main91635-60616

9354085020

main93540-85020

9356615514

main93566-15514

45 parts on this diagram · 2 diagrams in section
