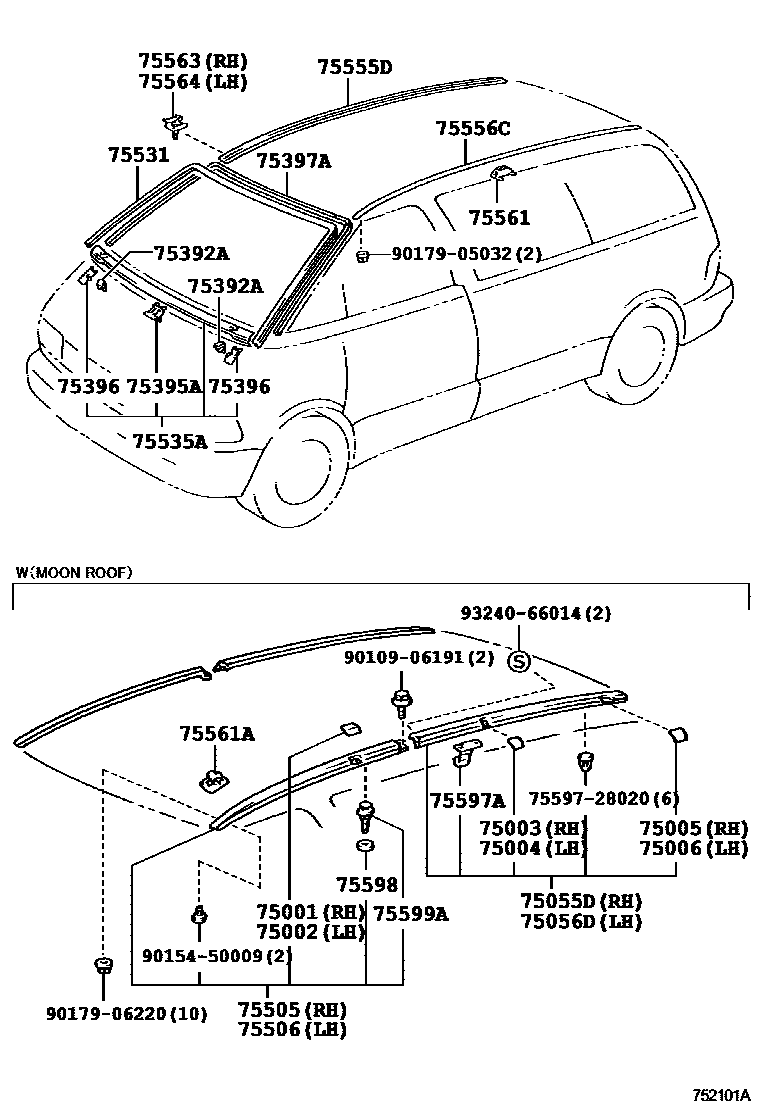

MOULDING

0001 1 0002 1

75001LID SUB-ASSY, ROOF SIDE GARNISH, NO.1 RH

main75001-28010iTCR1#,2#199005-199912

75002LID SUB-ASSY, ROOF SIDE GARNISH, NO.1 LH

main75002-28010iTCR1#,2#199005-199912

75003LID SUB-ASSY, ROOF SIDE GARNISH, NO.2 RH

main75003-28010iTCR1#,2#199005-199912

75004LID SUB-ASSY, ROOF SIDE GARNISH, NO.2 LH

main75004-28010iTCR1#,2#199005-199912

75005LID SUB-ASSY, ROOF SIDE GARNISH, NO.3 RH

main75005-28010iTCR1#,2#199005-199912

75006LID SUB-ASSY, ROOF SIDE GARNISH, NO.3 LH

main75006-28010iTCR1#,2#199005-199912

75055DGARNISH SUB-ASSY, ROOF SIDE, REAR RH

main75055-28040iTCR1#,2#199607-199912

main75055-95D00iTCR1#,2#199005-199607

75056DGARNISH SUB-ASSY, ROOF SIDE, REAR LH

main75056-28040iTCR1#,2#199607-199912

main75056-95D00iTCR1#,2#199005-199607

75392ARETAINER, OUTSIDE MOULDING, NO.1

main75392-95D00iTCR1#,2#199005-199912

75395ACLIP, OUTSIDE MOULDING, NO.1

main75395-28010iTCR1#,2#199208-199912

main75395-95D00iTCR11,21199005-199208

75396CLIP, OUTSIDE MOULDING, NO.2

main75396-28020iTCR1#,2#199208-199912

WHITE

main75396-28030iTCR1#,2#199208-199912

main75396-95D00iTCR11,21199005-199208

WHITE

main75396-95D01iTCR11,21199005-199208

75397ACLIP, OUTSIDE MOULDING, NO.3

main75397-95D00iTCR1#,2#199005-199912

75505GARNISH SUB-ASSY, ROOF SIDE, FRONT RH

main75505-28010iTCR1#,2#199112-199912

main75505-95D00iTCR11,21199005-199112

75506GARNISH SUB-ASSY, ROOF SIDE, FRONT LH

main75506-28010iTCR1#,2#199112-199912

main75506-95D00iTCR11,21199005-199112

75531MOULDING, WINDSHIELD, OUTER UPPER

main75503-28010iTCR1#,2#199005-199912

main75531-95D00iTCR1#,2#199005-199912

75535AMOULDING, WINDSHIELD, OUTSIDE LOWER

main75504-28050iTCR1#,2#199308-199912

main75504-28060iTCR1#,2#199308-199912

main75504-95D01iTCR1#,2#199005-199308

main75504-95D02iTCR1#,2#199005-199308

75555DMOULDING, ROOF DRIP SIDE FINISH, CENTER RH

main75555-28010iTCR1#,2#199201-199308

sub75555-28060

sub75563-28030

main75555-28050iTCR1#,2#199308-199912

main75555-95D00iTCR11,21199005-199201

sub75555-28060

sub75563-95D01

75556CMOULDING, ROOF DRIP SIDE FINISH, CENTER LH

main75556-28010iTCR1#,2#199201-199308

sub75556-28060

sub75564-28030

main75556-28050iTCR1#,2#199308-199912

main75556-95D00iTCR11,21199005-199201

sub75556-28060

sub75563-95D01

75561CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.1

main75561-28020iTCR1#,2#199308-199912

main75561-95D01iTCR1#,2#199005-199308

sub75561-28020

75561ACLIP, ROOF DRIP SIDE FINISH MOULDING

main75561-28040iTCR1#,2#199302-199912

main75561-95D00iTCR11,21199005-199302

sub75561-28040

75563RETAINER, ROOF DRIP SIDE FINISH MOULDING, NO.1

main75563-28030iTCR1#,2#..AERAS,STD,V,X199308-199912

75564RETAINER, ROOF DRIP SIDE FINISH MOULDING, NO.2

main75564-28030iTCR1#,2#..AERAS,STD,V,X199308-199912

75597ACLIP, ROOF SIDE GARNISH

main75597-95D00iTCR1#,2#199005-199912

75598PACKING, ROOF SIDE GARNISH

main75598-95D00iTCR1#,2#199005-199912

75599ABOLT, ROOF SIDE GARNISH

main75599-95D00iTCR1#,2#199005-199912

7559728020COVER, ROOF DRIP SIDE FINISH MOULDING JOINT, LH

main75597-28020

9010906191

main90109-06191

9015450009

main90154-50009

9017905032

main90179-05032

9017906220

main90179-06220

9324066014

main93240-66014

31 parts on this diagram · 2 diagrams in section
