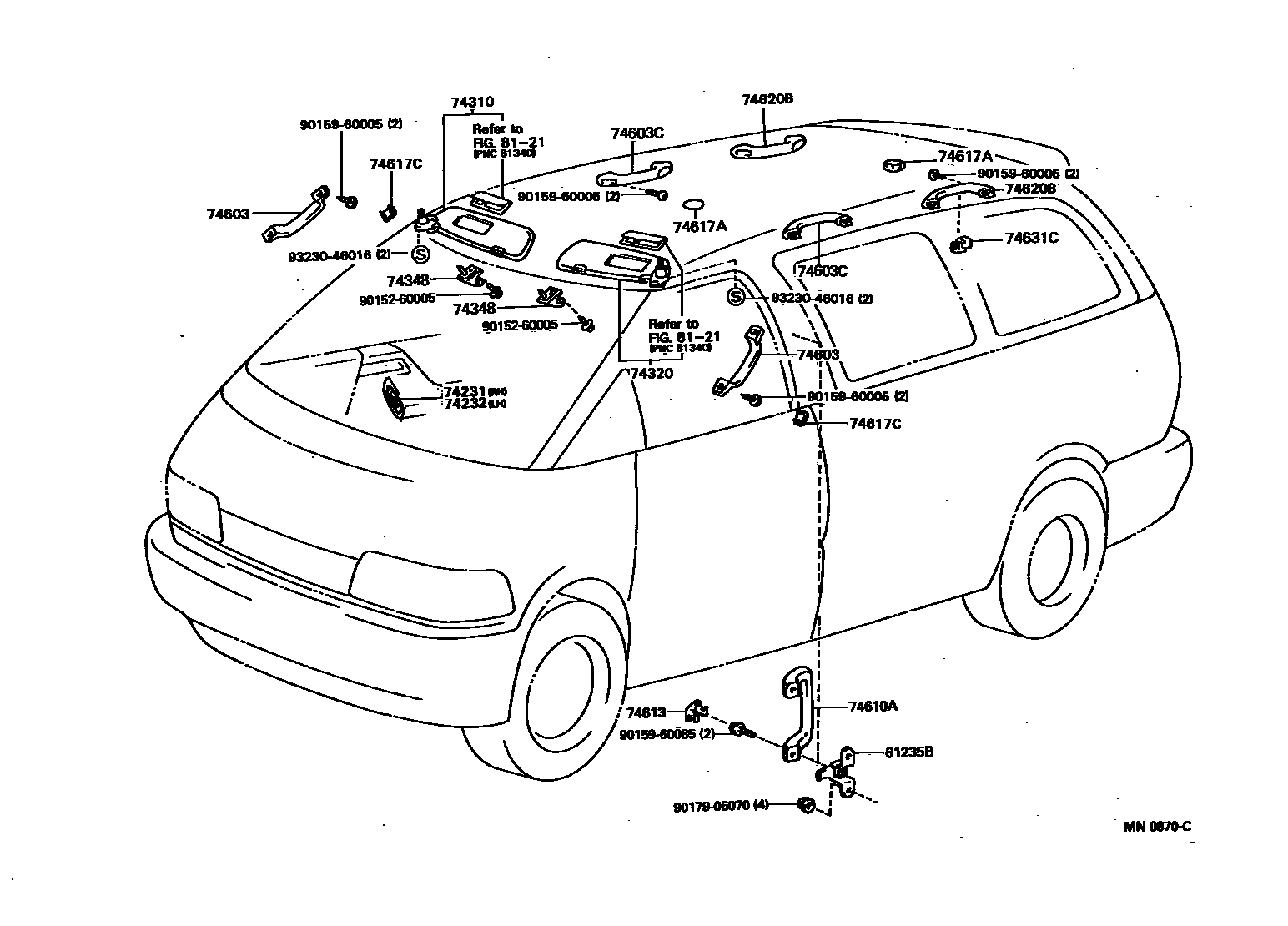

ARMREST & VISOR

61235BBRACKET, ASSIST GRIP

main61235-28010iTCR1#,2#199308-199912

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-28010-03iTCR11,21199005-199112

LIGHT GRAY,TRIM1#

sub74231-28011

main74231-28010-05iTCR11,21199005-199112

LIGHT GREIGE,TRIM4#

sub74231-28011

main74231-28011-B0iTCR1#,2#199112-199804

GRAY,TRIM1#

sub74231-28011

main74231-28011-E1iTCR11,21199112-199408

GREIGE,TRIM4#

sub74231-28011

main74231-28011-E1iTCR10,20..V199704-199708

sub74231-28011

main74231-28011-E1iTCR10,20..V199708-199712

sub74231-28011

main74231-28040-B0iTCR11,21199108-199112

sub74231-28041

main74231-28041-B1iTCR10,20..V199112-199804

sub74231-28011

main74231-28041-E2iTCR10,20..V199704-199708

sub74231-28011

main74231-28041-E2iTCR11,21199112-199408

sub74231-28011

main74231-28041-E2iTCR10,20..V199708-199712

sub74231-28011

main74231-28160iTCR10,20..AERAS199801-199804

main74231-28161iTCR10,20..AERAS199804-199912

main74231-28170iTCR10,20..AERAS199801-199804

main74231-28171iTCR10,20..AERAS199804-199912

sub74231-28161

main74231-28180iTCR11,21199801-199804

main74231-28181iTCR11,21199804-199912

main74231-28190iTCR11,21199801-199804

main74231-28191iTCR10,20..V199804-199912

sub74231-28181

main74231-28191iTCR11,21199804-199912

sub74231-28181

main74231-28220-B0iTCR10,20..V199804-199912

GRAY,TRIM1#

sub74231-28220

main74231-28220-B1iTCR1#,2#..G,V199901-199912

sub74231-28220

main74231-28230-B0iTCR10,20..V199804-199912

sub74231-28220

main74231-28230-B1iTCR1#,2#..G,V199901-199912

sub74231-28220

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-28020-B0iTCR1#,2#199112-199912

GRAY,TRIM1#

sub74232-28020

main74232-28020-B1iTCR1#,2#..G,V199901-199912

sub74232-28020

main74232-28020-E0iTCR10,20..V199704-199708

sub74232-28020

main74232-28020-E0iTCR10,20..V199708-199712

sub74232-28020

main74232-28020-E0iTCR11,21199112-199408

GREIGE,TRIM4#

sub74232-28020

main74232-28090iTCR10,20..AERAS199801-199804

main74232-28091iTCR10,20..AERAS199804-199912

main74232-28100iTCR11,21199801-199804

main74232-28101iTCR11,21199804-199912

main74232-28110-B0iTCR10,20..V199801-199804

GRAY,TRIM1#

main74232-95D01-03iTCR11,21199005-199112

LIGHT GRAY,TRIM1#

sub74232-28020

main74232-95D01-05iTCR11,21199005-199112

LIGHT GREIGE,TRIM4#

sub74232-28020

74310VISOR ASSY, RH

main74310-28320-B0iTCR1#199108-199308

sub74310-28325

main74310-28320-E0iTCR11199108-199308

sub74310-28325

main74310-28322-B2iTCR1#199308-199507

sub74310-28325

main74310-28322-E3iTCR11199308-199408

sub74310-28325

main74310-28323-B2iTCR1#199507-199608

sub74310-28325

main74310-28324-B2iTCR1#199608-199708

LIGHT GRAY,TRIM1#

sub74310-28325

main74310-28324-E4iTCR10..V199709-199712

sub74310-28325

main74310-28324-E4iTCR10..V199704-199708

sub74310-28325

main74310-28325-B2iTCR1#199708-199801

LIGHT GRAY,TRIM1#

main74310-28330-B0iTCR2#199108-199308

sub74310-28335

main74310-28330-E0iTCR21199108-199308

sub74310-28335

main74310-28332-B2iTCR2#199308-199507

sub74310-28335

main74310-28332-E2iTCR21199308-199408

sub74310-28335

main74310-28333-B2iTCR2#199507-199608

main74310-28334-B2iTCR2#199608-199708

LIGHT GRAY,TRIM1#

sub74310-28335

main74310-28334-E3iTCR20..V199708-199712

sub74310-28335

main74310-28334-E3iTCR20..V199704-199708

sub74310-28335

main74310-28335-B2iTCR2#199708-199801

LIGHT GRAY,TRIM1#

main74310-28570-B0iTCR1#199108-199308

LIGHT GRAY,TRIM1#

sub74310-28573

main74310-28570-E0iTCR11199108-199308

LIGHT GREIGE,TRIM4#

sub74310-28573

main74310-28572-B2iTCR1#199308-199507

GRAY,TRIM1#

main74310-28572-E2iTCR11199308-199408

GREIGE,TRIM4#

main74310-28573-B2iTCR1#199507-199608

GRAY,TRIM1#

main74310-28580-B0iTCR2#199108-199308

LIGHT GRAY,TRIM1#

sub74310-28583

main74310-28580-E0iTCR21199108-199308

LIGHT GREIGE,TRIM4#

sub74310-28583

main74310-28582-B2iTCR2#199308-199507

GRAY,TRIM1#

sub74310-28583

main74310-28582-E2iTCR21199308-199408

GREIGE,TRIM4#

sub74310-28583

main74310-28583-B2iTCR2#199507-199608

GRAY,TRIM1#

main74310-2J010-B0iTCR1#199801-199912

LT. GRAY,TRIM1#

main74310-2J010-E0iTCR10..V199810-199912

main74310-2J020-B0iTCR2#199801-199912

LT. GRAY,TRIM1#

main74310-2J020-E0iTCR20..V199810-199912

main74310-95D10-03iTCR11199005-199108

LIGHT GRAY,TRIM1#

main74310-95D10-05iTCR11199005-199108

LIGHT GREIGE,TRIM4#

main74310-95D11-03iTCR21199005-199108

LIGHT GRAY,TRIM1#

main74310-95D11-05iTCR21199005-199108

LIGHT GREIGE,TRIM4#

74320VISOR ASSY, LH

main74320-28311-B2iTCR1#,2#199308-199608

GRAY,TRIM1#

sub74320-28313

main74320-28311-E2iTCR11,21199308-199408

GREIGE,TRIM4#

sub74320-28313

main74320-28312-B2iTCR1#,2#199608-199708

LIGHT GRAY,TRIM1#

sub74320-28313

main74320-28312-E3iTCR10,20..V199708-199712

sub74320-28313

main74320-28312-E3iTCR10,20..V199704-199708

sub74320-28313

main74320-28313-B2iTCR1#,2#199708-199801

LIGHT GRAY,TRIM1#

sub74320-28313

main74320-28440-B0iTCR1#,2#199801-199912

LT. GRAY,TRIM1#

main74320-28440-E0iTCR10,20..V199810-199912

main74320-95D05-03iTCR1#,2#199005-199308

LIGHT GRAY,TRIM1#

main74320-95D05-05iTCR11,21199005-199308

LIGHT GREIGE,TRIM4#

74348HOLDER, VISOR

main74348-12020-43iTCR1#,2#199005-199308

LIGHT GRAY,TRIM1#

sub74348-12020

sub74348-60010

sub74348-26020

main74348-12020-45iTCR11,21199005-199308

LIGHT GREIGE,TRIM4#

sub74348-12020

sub74348-60010

sub74348-26020

main74348-12020-B8iTCR1#,2#199308-199509

GRAY,TRIM1#

sub74348-12020

sub74348-60010

sub74348-26020

main74348-12020-L1iTCR11,21199308-199408

GREIGE,TRIM4#

sub74348-12020

sub74348-60010

sub74348-26020

main74348-26020-B1iTCR1#,2#199509-199801

LT.GRAY,TRIM1#

sub74348-26020

main74348-26020-B4iTCR1#,2#199801-199912

LT.GRAY,TRIM1#

sub74348-26020

main74348-26020-E1iTCR10,20..V199708-199712

sub74348-26020

main74348-26020-E1iTCR10,20..V199704-199708

sub74348-26020

main74348-26020-E1iTCR10,20..V199810-199912

sub74348-26020

74603GRIP SUB-ASSY, ASSIST, FRONT

main74603-28030-B0iTCR1#,2#199108-199801

LIGHT GRAY,TRIM1#

sub74603-44010

sub74603-28030

main74603-28030-B2iTCR1#,2#199801-199912

LT.GRAY,TRIM1#

sub74603-44010

sub74603-28030

main74603-28030-E0iTCR10,20..V199704-199708

sub74603-44010

sub74603-28030

main74603-28030-E0iTCR11,21199108-199408

LIGHT GREIGE,TRIM4#

sub74603-44010

sub74603-28030

main74603-28030-E0iTCR10,20..V199708-199712

sub74603-44010

sub74603-28030

main74603-28030-E0iTCR10,20..V199810-199912

sub74603-44010

sub74603-28030

74603CGRIP SUB-ASSY, ASSIST

main74603-95D00-03iTCR1#,2#199005-199308

LIGHT GRAY,TRIM1#

sub74603-95D00

main74603-95D00-05iTCR11,21199005-199308

LIGHT GREIGE,TRIM4#

sub74603-95D00

main74603-95D00-B0iTCR1#,2#199801-199912

LT.GRAY,TRIM1#

sub74603-95D00

main74603-95D00-B8iTCR1#,2#199308-199801

GRAY,TRIM1#

sub74603-95D00

main74603-95D00-L1iTCR11,21199308-199408

GREIGE,TRIM4#

sub74603-95D00

main74603-95D00-L1iTCR10,20..V199810-199912

sub74603-95D00

main74603-95D00-L1iTCR10,20..V199704-199708

sub74603-95D00

main74603-95D00-L1iTCR10,20..V199708-199712

sub74603-95D00

main74603-95D01-03iTCR1#,2#199005-199308

sub74603-95D01

main74603-95D01-05iTCR11,21199005-199308

sub74603-95D01

main74603-95D01-B0iTCR1#,2#199801-199912

sub74603-95D01

main74603-95D01-B8iTCR1#,2#199308-199801

sub74603-95D01

main74603-95D01-L1iTCR11,21199308-199408

sub74603-95D01

main74603-95D01-L1iTCR10,20..V199810-199912

sub74603-95D01

main74603-95D01-L1iTCR10,20..V199708-199712

sub74603-95D01

main74603-95D01-L1iTCR10,20..V199704-199708

sub74603-95D01

74610AGRIP SUB-ASSY, ASSIST

main74610-28020-B0iTCR1#,2#199308-199801

GRAY,TRIM1#

sub74610-28020

main74610-28020-B1iTCR1#,2#199801-199912

LT.GRAY,TRIM1#

sub74610-28020

main74610-28020-E0iTCR10,20..V199704-199708

sub74610-28020

main74610-28020-E0iTCR11,21199308-199408

GREIGE,TRIM4#

sub74610-28020

main74610-28020-E0iTCR10,20..V199708-199712

sub74610-28020

main74610-28020-E0iTCR10,20..V199810-199912

sub74610-28020

74613PLUG, ASSIST GRIP

main74617-28040-B0iTCR1#,2#199308-199801

GRAY,TRIM1#,LOWER

sub74617-28040

main74617-28040-B1iTCR1#,2#199801-199912

LT.GRAY,TRIM1#,LOWER

sub74617-28040

main74617-28040-E0iTCR11,21199308-199408

GREIGE,TRIM4#,LOWER

sub74617-28040

main74617-28040-E0iTCR10,20..V199704-199708

sub74617-28040

main74617-28040-E0iTCR10,20..V199708-199712

sub74617-28040

main74617-28040-E0iTCR10,20..V199810-199912

sub74617-28040

main74617-28050-B0iTCR1#,2#199308-199801

GRAY,TRIM1#,UPPER

sub74617-28050

main74617-28050-B1iTCR1#,2#199801-199912

LT.GRAY,TRIM1#,UPPER

sub74617-28050

main74617-28050-E0iTCR10,20..V199704-199708

sub74617-28050

main74617-28050-E0iTCR11,21199308-199408

GREIGE,TRIM4#,UPPER

sub74617-28050

main74617-28050-E0iTCR10,20..V199810-199912

sub74617-28050

main74617-28050-E0iTCR10,20..V199708-199712

sub74617-28050

74617APLUG, ASSIST GRIP

main74617-95D00-03iTCR1#,2#199005-199308

LIGHT GRAY,TRIM1#

sub74617-95D00

main74617-95D00-05iTCR11,21199005-199308

LIGHT GREIGE,TRIM4#

sub74617-95D00

main74617-95D00-B1iTCR1#,2#199801-199912

LT.GRAY,TRIM1#

sub74617-95D00

main74617-95D00-B8iTCR1#,2#199308-199801

GRAY,TRIM1#

sub74617-95D00

main74617-95D00-L1iTCR10,20..V199708-199712

sub74617-95D00

main74617-95D00-L1iTCR10,20..V199704-199708

sub74617-95D00

main74617-95D00-L1iTCR10,20..V199810-199912

sub74617-95D00

main74617-95D00-L1iTCR11,21199308-199408

GREIGE,TRIM4#

sub74617-95D00

74617CPLUG, ASSIST GRIP

main74617-28030-B0iTCR1#,2#199108-199801

LIGHT GRAY,TRIM1#

sub74617-28030

main74617-28030-B2iTCR1#,2#199801-199912

LT.GRAY,TRIM1#

sub74617-28030

main74617-28030-E0iTCR11,21199108-199408

LIGHT GREIGE,TRIM4#

sub74617-28030

main74617-28030-E0iTCR10,20..V199810-199912

sub74617-28030

main74617-28030-E0iTCR10,20..V199704-199708

sub74617-28030

main74617-28030-E0iTCR10,20..V199708-199712

sub74617-28030

74620BGRIP ASSY, ASSIST, REAR

main74603-95D00-03iTCR1#,2#199005-199308

LIGHT GRAY,TRIM1#

sub74603-95D00

main74603-95D00-05iTCR11,21199005-199308

LIGHT GREIGE,TRIM4#

sub74603-95D00

main74603-95D00-B0iTCR1#,2#199801-199912

LT.GRAY,TRIM1#

sub74603-95D00

main74603-95D00-B8iTCR1#,2#199308-199801

GRAY,TRIM1#

sub74603-95D00

main74603-95D00-L1iTCR10,20..V199704-199708

sub74603-95D00

main74603-95D00-L1iTCR11,21199308-199408

GREIGE,TRIM4#

sub74603-95D00

main74603-95D00-L1iTCR10,20..V199708-199712

sub74603-95D00

main74603-95D00-L1iTCR10,20..V199810-199912

sub74603-95D00

74631CHOOK, COAT

main74631-14010-50iTCR11,21199005-199308

LIGHT GREIGE,TRIM4#

sub74631-14010

sub74631-20040

main74631-14010-53iTCR1#,2#199005-199308

GRAY,TRIM1#

sub74631-14010

sub74631-20040

8121

9015260005

main90152-60005

9015960005

main90159-60005

9015960085

main90159-60085

9017906070

main90179-06070

9323046016

main93230-46016

20 parts on this diagram · 1 diagram in section
