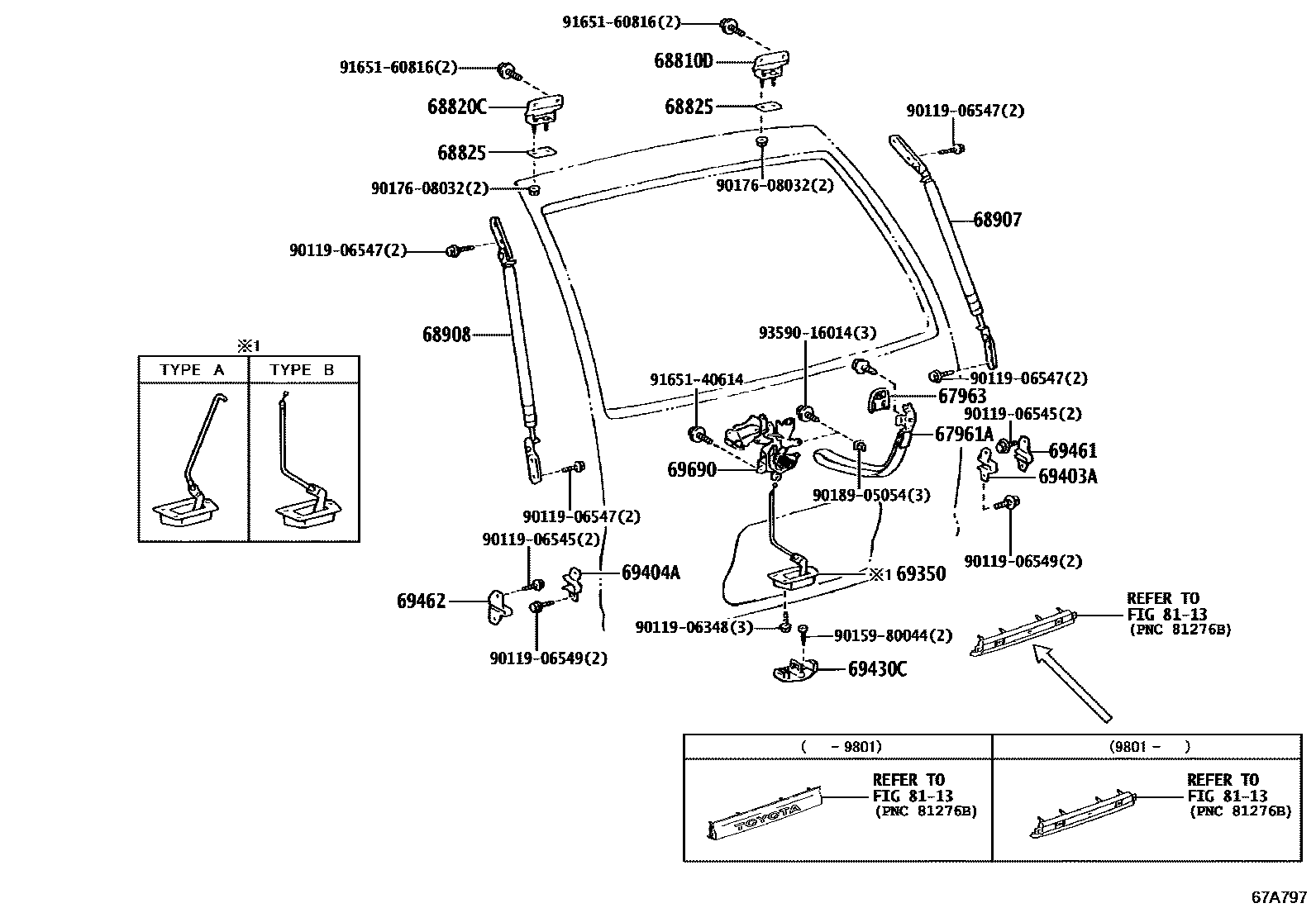

BACK DOOR LOCK & HINGE

67961ASTRAP, BACK DOOR PULL

main67908-28010-B0iTCR1#,2#199308-199912

BLUISH GRAY,TRIM1#

sub67908-28010

main67908-28010-E1iTCR11,21199308-199408

MI.GRAIGE,TRIM4#

sub67908-28010

main67908-28010-E1iTCR10,20..V199708-199712

sub67908-28010

main67908-28010-E1iTCR10,20..V199704-199708

sub67908-28010

main67908-28010-E2iTCR10,20..V199810-199912

sub67908-28010

67963COVER, BACK DOOR STRAP

main67963-28010-B0iTCR1#,2#199308-199912

BLUISH GRAY,TRIM1#

sub67963-28010

main67963-28010-E0iTCR10,20..V199704-199708

sub67963-28010

main67963-28010-E0iTCR11,21199308-199408

MI.GRAIGE,TRIM4#

sub67963-28010

main67963-28010-E0iTCR10,20..V199708-199712

sub67963-28010

main67963-28010-E0iTCR10,20..V199810-199912

sub67963-28010

68810DHINGE ASSY, BACK DOOR, RH

main68810-28010iTCR1#,2#199302-199912

main68810-95D01iTCR11,21199005-199302

sub68810-28010

68820CHINGE ASSY, BACK DOOR, LH

main68820-28010iTCR1#,2#199302-199912

main68820-95D00iTCR11,21199005-199302

sub68820-28010

68825PLATE, BACK DOOR HINGE

main68825-95700iTCR1#,2#199005-199912

68907STAY SUB-ASSY, BACK DOOR DAMPER, RH

main68907-0W130iTCR1#,2#199406-199612

sub68907-28110

main68907-0W140iTCR1#,2#199406-199612

sub68907-28080

main68907-28080iTCR1#,2#199208-199912

main68907-28090iTCR10,20199802-199912

main68907-28110iTCR1#,2#199208-199912

main68907-95D02iTCR11,21199005-199108

main68907-95D04iTCR11,21199108-199208

sub68907-28080

main68907-95D04iTCR11,21199005-199108

sub68907-28080

68908STAY SUB-ASSY, BACK DOOR DAMPER, LH

main68908-0W130iTCR1#,2#199406-199612

sub68908-28110

main68908-0W140iTCR1#,2#199406-199612

sub68908-28080

main68908-28080iTCR1#,2#199208-199406

main68908-28080iTCR1#,2#199612-199912

main68908-28090iTCR10,20199802-199912

main68908-28110iTCR1#,2#199208-199912

main68908-95D02iTCR11,21199005-199108

main68908-95D04iTCR11,21199108-199208

sub68908-28080

main68908-95D04iTCR11,21199005-199108

sub68908-28080

69350LOCK ASSY, BACK DOOR

main69350-95D00iTCR1#,2#199506-199912

main69350-95D01iTCR1#,2#199005-199506

69403ASTOPPER SUB-ASSY, BACK DOOR SIDE FEMALE, RH

main69403-95D00iTCR1#,2#199005-199912

69404ASTOPPER SUB-ASSY, BACK DOOR SIDE FEMALE, LH

main69404-95D00iTCR1#,2#199005-199912

69430CSTRIKER ASSY, BACK DOOR LOCK

main69430-95D00iTCR1#,2#199005-199912

69461STOPPER, BACK DOOR SIDE MALE, RH

main69461-28010iTCR1#,2#199412-199912

main69461-95D00iTCR1#,2#199005-199412

69462STOPPER, BACK DOOR SIDE MALE, LH

main69462-28010iTCR1#,2#199412-199912

main69462-95D00iTCR1#,2#199005-199412

69690CONTROL ASSY, BACK DOOR REMOTE

main69690-28070iTCR10,20..V199708-199712

main69690-28070iTCR1#,2#199608-199912

main69690-28070iTCR10,20..V199704-199708

main69690-95D01iTCR10,20199506-199912

main69690-95D04iTCR1#,2#..G,X199302-199506

main69690-95D05iTCR11,21199005-199408

8113

9011906348

main90119-06348

9011906545

main90119-06545

9011906547

main90119-06547

9011906549

main90119-06549

9015980044

main90159-80044

9017608032

main90176-08032

9018905054

main90189-05054

9165140614

main91651-40614

9165160816

main91651-60816

9359016014

main93590-16014

25 parts on this diagram · 1 diagram in section
