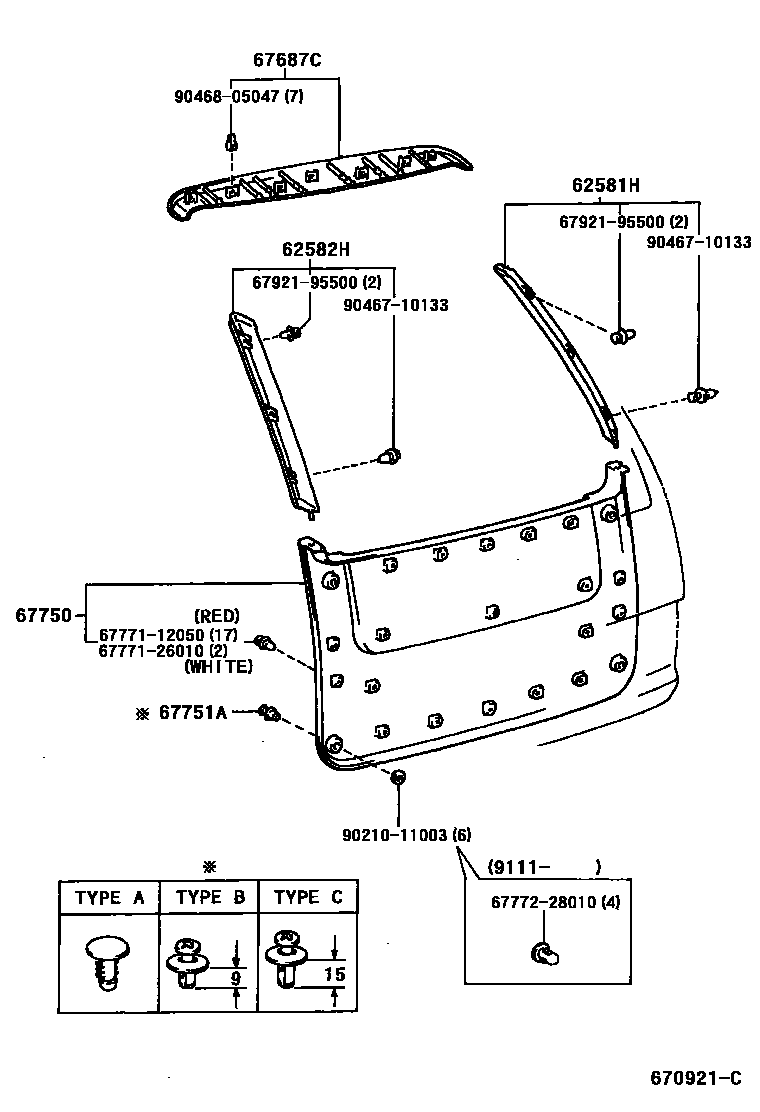

BACK DOOR PANEL & GLASS

0001 1 0002 1

62581HGARNISH, REAR WINDOW SIDE, RH

main62581-95D00-03iTCR10,20199302-199308

LIGHT GRAY,TRIM1#

sub62581-95D00

sub62581-95D02

main62581-95D00-B0iTCR10,20199801-199912

LT.GRAY,TRIM1#

sub62581-95D00

sub62581-95D02

main62581-95D00-B8iTCR10,20199308-199801

GRAY,TRIM1#

sub62581-95D00

sub62581-95D02

main62581-95D00-L1iTCR10,20..V199810-199912

sub62581-95D00

sub62581-95D02

main62581-95D02-03iTCR11,21199005-199308

LIGHT GRAY,TRIM1#

sub62581-95D02

sub62581-28030

main62581-95D02-03iTCR10,20199302-199308

sub62581-95D02

sub62581-28030

main62581-95D02-05iTCR11,21199005-199308

LIGHT GREIGE,TRIM4#

sub62581-95D02

sub62581-28030

main62581-95D02-B0iTCR1#,2#199801-199912

sub62581-95D02

sub62581-28030

main62581-95D02-B8iTCR10,20..V199608-199801

sub62581-95D02

sub62581-28030

main62581-95D02-B8iTCR10,20..X199308-199801

GRAY,TRIM1#

sub62581-95D02

sub62581-28030

main62581-95D02-B8iTCR11,21199308-199801

sub62581-95D02

sub62581-28030

main62581-95D02-L1iTCR10,20..V199708-199712

sub62581-95D02

sub62581-28030

main62581-95D02-L1iTCR10,20..V199704-199708

sub62581-95D02

sub62581-28030

main62581-95D02-L1iTCR10,20..V199810-199912

sub62581-95D02

sub62581-28030

main62581-95D02-L1iTCR11,21199308-199408

GREIGE,TRIM4#

sub62581-95D02

sub62581-28030

62582HGARNISH, REAR WINDOW SIDE, LH

main62582-95D00-03iTCR10,20199302-199308

LIGHT GRAY,TRIM1#

sub62582-95D00

sub62582-28010

main62582-95D00-B0iTCR10,20199801-199912

LT.GRAY,TRIM1#

sub62582-95D00

sub62582-28010

main62582-95D00-B8iTCR10,20199308-199801

GRAY,TRIM1#

sub62582-95D00

sub62582-28010

main62582-95D00-L1iTCR10,20..V199810-199912

sub62582-95D00

sub62582-28010

main62582-95D01-03iTCR10,20199302-199308

sub62582-95D01

sub62582-95D00

main62582-95D01-03iTCR11,21199005-199308

LIGHT GRAY,TRIM1#

sub62582-95D01

sub62582-95D00

main62582-95D01-05iTCR11,21199005-199308

LIGHT GREIGE,TRIM4#

sub62582-95D01

sub62582-95D00

main62582-95D01-B0iTCR1#,2#199801-199912

sub62582-95D01

sub62582-95D00

main62582-95D01-B8iTCR11,21199801-199912

GRAY,TRIM11

sub62582-95D01

sub62582-95D00

main62582-95D01-B8iTCR11,21199308-199801

GRAY,TRIM1#

sub62582-95D01

sub62582-95D00

main62582-95D01-B8iTCR11,21199308-199801

sub62582-95D01

sub62582-95D00

main62582-95D01-B8iTCR10,20..V199608-199801

sub62582-95D01

sub62582-95D00

main62582-95D01-B8iTCR11,21199801-199912

sub62582-95D01

sub62582-95D00

main62582-95D01-L1iTCR10,20..V199708-199712

sub62582-95D01

sub62582-95D00

main62582-95D01-L1iTCR11,21199308-199408

GREIGE,TRIM4#

sub62582-95D01

sub62582-95D00

main62582-95D01-L1iTCR10,20..V199704-199708

sub62582-95D01

sub62582-95D00

main62582-95D01-L1iTCR10,20..V199810-199912

sub62582-95D01

sub62582-95D00

67687CGARNISH, BACK WINDOW

main67687-95D00-03iTCR1#,2#199005-199308

LIGHT GRAY,TRIM1#

sub67687-95D00

main67687-95D00-05iTCR11,21199005-199308

LIGHT GREIGE,TRIM4#

sub67687-95D00

main67687-95D00-B0iTCR1#,2#199801-199912

LT.GRAY,TRIM1#

sub67687-95D00

main67687-95D00-B8iTCR1#,2#199308-199801

GRAY,TRIM1#

sub67687-95D00

main67687-95D00-L1iTCR10,20..V199810-199912

sub67687-95D00

main67687-95D00-L1iTCR11,21199308-199408

GREIGE,TRIM4#

sub67687-95D00

main67687-95D00-L1iTCR10,20..V199704-199708

sub67687-95D00

main67687-95D00-L1iTCR10,20..V199708-199712

sub67687-95D00

67750BOARD ASSY, BACK DOOR TRIM

main67750-28030-B0iTCR10,20..V,X199308-199912

GRAY,TRIM1#

main67750-28030-E0iTCR10,20..V199810-199912

main67750-28030-E0iTCR10,20..V199708-199712

main67750-28030-E0iTCR10,20..V199704-199708

main67750-28040-B0iTCR10,20..V199804-199912

sub67750-28040

main67750-28040-B0iTCR10,20..AERAS199801-199912

GRAY,TRIM1#

sub67750-28040

main67750-28040-B0iTCR10,20..V,X199608-199912

sub67750-28040

main67750-28040-E0iTCR10,20..V199810-199912

sub67750-28040

main67750-28040-E0iTCR10,20..V199704-199708

sub67750-28040

main67750-28040-E0iTCR10,20..V199708-199712

sub67750-28040

main67750-28060-B0iTCR11,21199308-199408

GRAY,TRIM1#

main67750-28060-E0iTCR11,21199308-199408

GREIGE,TRIM4#

main67750-28061-B1iTCR11,21199408-199608

BLUISH GRAY,TRIM1#

main67750-28062-B2iTCR11,21199608-199801

BLUISH GRAY,TRIM1#

main67750-28063-B3iTCR11,21199801-199912

BLUISH GRAY,TRIM1#

main67750-28070-C0iTCR11,21199901-199912

main67750-95D01-03iTCR10,20199302-199308

GRAY,TRIM1#

sub67750-28030

sub67761-28010

main67750-95D03-03iTCR11,21199005-199308

LIGHT GRAY,TRIM1#

sub67750-28060

sub67761-28010

main67750-95D03-05iTCR11,21199005-199308

LIGHT GREIGE,TRIM4#

sub67750-28060

sub67761-28010

67751ACLIP(FOR BACK DOOR TRIM BOARD)

main90467-08144-03iTCR11,21199005-199111

sub90467-08144

main90467-08144-05iTCR11,21199005-199111

sub90467-08144

main90467-08157-B0iTCR1#,2#199111-199912

sub90467-08157

main90467-08157-E1iTCR11,21199111-199408

sub90467-08157

main90467-08157-E1iTCR10,20..V199704-199708

sub90467-08157

main90467-08157-E1iTCR10,20..V199708-199712

sub90467-08157

main90467-08157-E1iTCR10,20..V199810-199912

sub90467-08157

main90467-10034-23iTCR11,21199005-199111

sub90467-10034

main90467-10034-35iTCR11,21199005-199111

sub90467-10034

6777112050WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-12050

6777126010WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-26010

6777228010WEATHERSTRIP, BACK DOOR TRIM, LH

main67772-28010

6792195500RETAINER, FRONT DOOR SCUFF PLATE

main67921-95500

9021011003

main90210-11003

9046710133

main90467-10133

9046805047

main90468-05047

12 parts on this diagram · 2 diagrams in section
