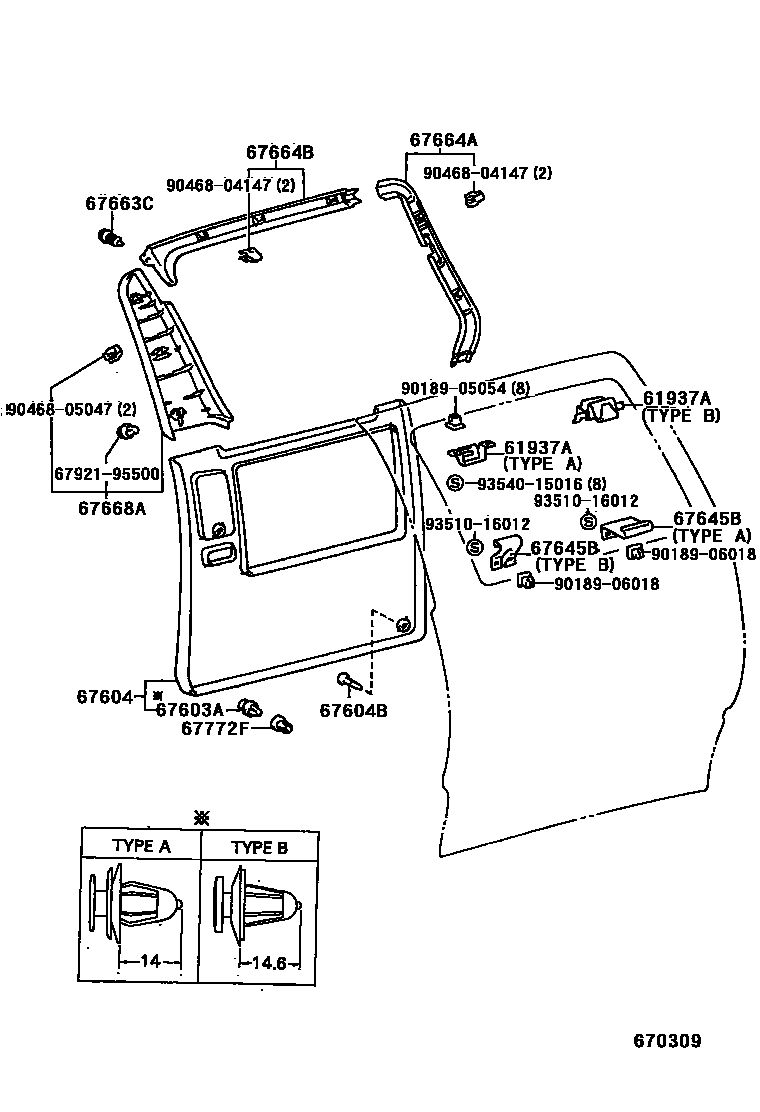

REAR DOOR PANEL & GLASS

0001 1 0002 1

61937ABRACKET, SIDE WINDOW GARNISH

main61937-95D00iTCR1#,2#199005-199912

main61937-95D01iTCR1#,2#199005-199912

67603ARETAINER(FOR REAR DOOR TRIM BOARD)

main67771-12050iTCR11,21199005-199108

main67771-12050iTCR11,21199108-199211

main67921-95D03iTCR1#,2#199108-199912

main90467-08179iTCR1#,2#199211-199912

main90467-08179iTCR1#,2#199308-199912

67604BOARD SUB-ASSY, REAR DOOR TRIM, LH

main67690-28060-B0iTCR10,20199308-199408

sub67690-28150

main67690-28061-B2iTCR10,20199408-199608

main67690-28070-B0iTCR11,21199308-199408

main67690-28070-E0iTCR11,21199308-199408

main67690-28071-B1iTCR11,21199408-199608

main67690-28072-B2iTCR11,21199608-199801

main67690-28073-B3iTCR11,21199801-199912

BLUISH GRAY,TRIM1#

main67690-28080-B0iTCR10,20199408-199608

GRAY,TRIM1#

sub67690-28061

main67690-28090-B0iTCR10,20..V199608-199801

BLUISH GRAY,TRIM1#

sub67690-28100

main67690-28100-B0iTCR10,20..V199608-199801

sub67690-28100

main67690-28100-E0iTCR10,20..V199704-199708

sub67690-28100

main67690-28110-B0iTCR11,21199408-199608

BLUISH GRAY,TRIM1#

sub67690-28071

main67690-28111-B1iTCR11,21199608-199801

BLUISH GRAY,TRIM1#

sub67690-28072

main67690-28141-B2iTCR10,20..V199801-199912

BLUISH GRAY,TRIM1#

main67690-28150-B0iTCR10,20..X199608-199801

sub67690-28150

main67690-28150-B1iTCR10,20..AERAS199801-199912

BLUISH GRAY,TRIM1#

sub67690-28150

main67690-28160-B0iTCR10,20..X199608-199801

BLUISH GRAY,TRIM1#

sub67690-28150

main67690-28200-E0iTCR10,20..V199708-199712

main67690-28220-B1iTCR10,20..V199804-199912

main67690-28220-E0iTCR10,20..V199810-199912

main67690-28240-C1iTCR1#,2#..G,V199901-199912

main67690-28250-B0iTCR10,20..V199904-199912

main67690-95D01-03iTCR10,20199302-199308

LIGHT GRAY,TRIM1#

sub67690-95D01

sub67690-28060

main67690-95D01-B1iTCR10,20199308-199408

GRAY,TRIM1#

sub67690-95D01

sub67690-28060

main67690-95D02-03iTCR11,21199005-199308

LIGHT GRAY,TRIM1#

sub67690-95D02

sub67690-28070

main67690-95D02-05iTCR11,21199005-199308

LIGHT GREIGE,TRIM4#

sub67690-95D02

sub67690-28070

main67690-95D02-B2iTCR11,21199308-199408

GRAY,TRIM1#

sub67690-95D02

sub67690-28070

main67690-95D02-E2iTCR11,21199308-199408

GREIGE,TRIM4#

sub67690-95D02

sub67690-28070

67604BCLIP(FOR SLIDE DOOR TRIM BOARD)

main90467-07043-30iTCR11,21199005-199308

LIGHT GREIGE,TRIM4#

sub90467-07043

main90467-07043-53iTCR1#,2#199005-199308

GRAY,TRIM1#

sub90467-07043

main90467-07043-B0iTCR1#,2#199308-199912

GRAY,TRIM1#

sub90467-07043

main90467-07043-E2iTCR11,21199308-199408

GREIGE,TRIM4#

sub90467-07043

main90467-07043-E2iTCR10,20..V199704-199708

sub90467-07043

main90467-07043-E2iTCR10,20..V199708-199712

sub90467-07043

main90467-07043-E2iTCR10,20..V199810-199912

sub90467-07043

67645BBRACKET, SLIDE DOOR TRIM BASE

main67645-95D14iTCR1#,2#199005-199912

main67645-95D16iTCR1#,2#199005-199912

67663CCLIP(FOR DOOR FRAME GARNISH)

main90467-06011-01iTCR11,21199005-199408

BLACK,TRIM1#,4#

sub90467-06011

sub71769-58010

main90467-06011-01iTCR1#,2#..AERAS,G,V,X199302-199912

BLACK,TRIM1#

sub90467-06011

sub71769-58010

main90467-06011-01iTCR10,20..V199810-199912

sub90467-06011

sub71769-58010

67664AGARNISH, DOOR FRAME, LH

main67664-95D01-03iTCR1#,2#199005-199308

LIGHT GRAY,TRIM1#

sub67664-95D01

main67664-95D01-05iTCR11,21199005-199308

LIGHT GREIGE,TRIM4#

sub67664-95D01

main67664-95D01-B0iTCR1#,2#199801-199912

LT.GRAY,TRIM1#

sub67664-95D01

main67664-95D01-B8iTCR1#,2#199308-199801

GRAY,TRIM1#

sub67664-95D01

main67664-95D01-L1iTCR10,20..V199708-199712

sub67664-95D01

main67664-95D01-L1iTCR10,20..V199704-199708

sub67664-95D01

main67664-95D01-L1iTCR11,21199308-199408

GREIGE,TRIM4#

sub67664-95D01

main67664-95D01-L1iTCR10,20..V199810-199912

sub67664-95D01

67664BGARNISH, DOOR FRAME, UPPER LH

main67664-95D00-03iTCR1#,2#199005-199308

LIGHT GRAY,TRIM1#

sub67664-95D00

main67664-95D00-05iTCR11,21199005-199308

LIGHT GREIGE,TRIM4#

sub67664-95D00

main67664-95D00-B0iTCR1#,2#199801-199912

LT.GRAY,TRIM1#

sub67664-95D00

main67664-95D00-B8iTCR1#,2#199308-199801

GRAY,TRIM1#

sub67664-95D00

main67664-95D00-L1iTCR10,20..V199810-199912

sub67664-95D00

main67664-95D00-L1iTCR11,21199308-199408

GREIGE,TRIM4#

sub67664-95D00

main67664-95D00-L1iTCR10,20..V199708-199712

sub67664-95D00

main67664-95D00-L1iTCR10,20..V199704-199708

sub67664-95D00

67668AGARNISH, SLIDE DOOR WINDOW, LH

main67668-95D00-03iTCR1#,2#199005-199308

LIGHT GRAY,TRIM1#

sub67668-95D00

sub67668-95D01

main67668-95D00-05iTCR11,21199005-199308

LIGHT GREIGE,TRIM4#

sub67668-95D00

sub67668-95D01

main67668-95D00-10iTCR1#,2#199308-199801

GRAY,TRIM1#

sub67668-95D00

sub67668-95D01

main67668-95D00-41iTCR10,20..V199704-199708

sub67668-95D00

sub67668-95D01

main67668-95D00-41iTCR11,21199308-199408

GREIGE,TRIM4#

sub67668-95D00

sub67668-95D01

main67668-95D00-41iTCR10,20..V199708-199712

sub67668-95D00

sub67668-95D01

main67668-95D00-41iTCR10,20..V199810-199912

sub67668-95D00

sub67668-95D01

main67668-95D00-B0iTCR1#,2#199801-199912

LT. BLUISH GRAY,TRIM1#

sub67668-95D00

sub67668-95D01

main67668-95D01-B1iTCR10,20..V199904-199912

sub67668-95D01

67772FCAP, REAR DOOR TRIM RETAINER

main67772-95J02iTCR1#,2#199005-199912

6792195500RETAINER, FRONT DOOR SCUFF PLATE

main67921-95500

9018905054

main90189-05054

9018906018

main90189-06018

9046804147

main90468-04147

9046805047

main90468-05047

9351016012

main93510-16012

9354015016

main93540-15016

17 parts on this diagram · 2 diagrams in section
