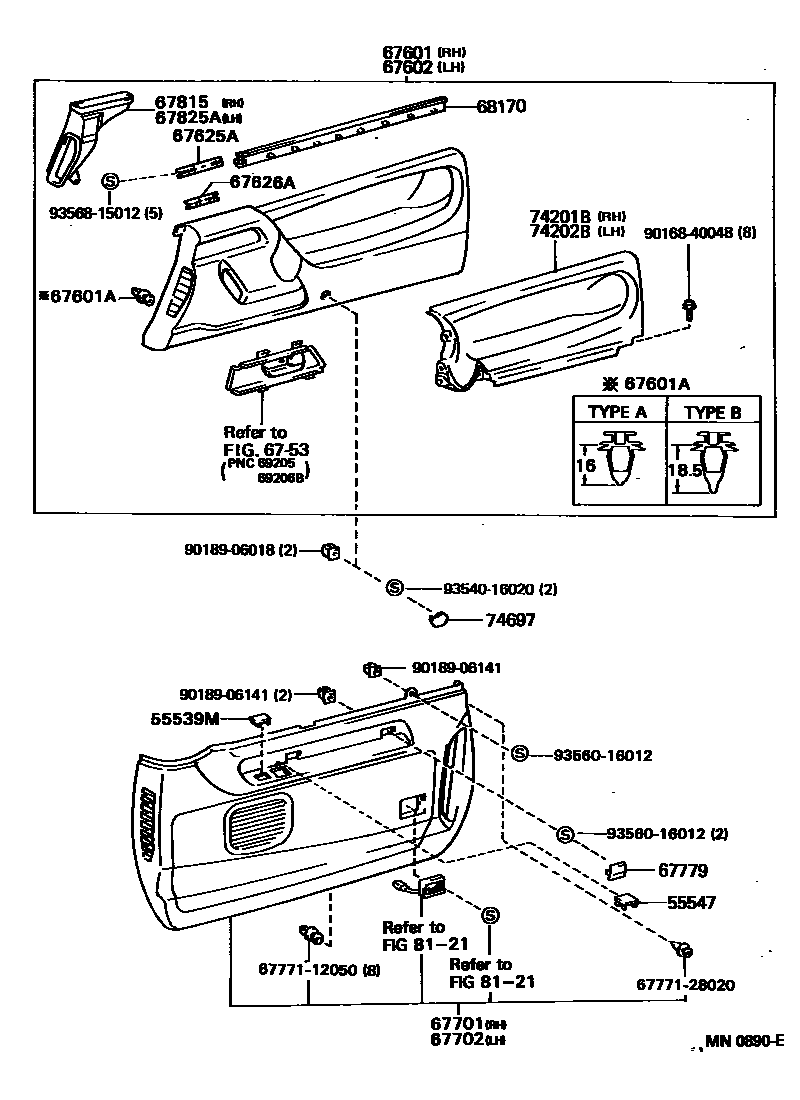

FRONT DOOR PANEL & GLASS

0001 1 0002 1

55539MCOVER, SPARE SWITCH HOLE

main55539-20080-05iTCR11,21199108-199308

GREIGE,TRIM4#

sub55539-20080¥440

sub55539-12130¥440

sub55539-32010¥460

main55539-20080-23iTCR1#,2#199108-199308

LIGHT GRAY,TRIM1#

sub55539-20080¥440

sub55539-12130¥440

sub55539-32010¥460

main55539-20080-B1iTCR1#,2#199308-199407

GRAY,TRIM1#

sub55539-20080¥440

sub55539-12130¥440

sub55539-32010¥460

main55539-20080-E2iTCR11,21199308-199407

GREIGE,TRIM4#

sub55539-20080¥440

sub55539-12130¥440

sub55539-32010¥460

main55539-28090-B0iTCR1#,2#199407-199912

GRAY,TRIM1#

sub55539-28090¥440

sub55539-32010¥460

main55539-28090-E0iTCR10,20..V199810-199912

sub55539-28090¥440

sub55539-32010¥460

main55539-28090-E0iTCR10,20..V199708-199712

sub55539-28090¥440

sub55539-32010¥460

main55539-28090-E0iTCR10,20..V199704-199708

sub55539-28090¥440

sub55539-32010¥460

55547COVER, REMOTE CONTROL MIRROR HOLE

main55547-28010-03iTCR11,21199005-199012

LIGHY GRAY,TRIM1#

sub55547-28010¥520

sub55547-28020¥850

main55547-28010-05iTCR11,21199005-199012

LIGHT GREIGE,TRIM4#

sub55547-28010¥520

sub55547-28020¥850

main55547-28020-03iTCR1#,2#199012-199308

GRAY,TRIM1#

sub55547-28020¥850

main55547-28020-03iTCR1#,2#199108-199308

sub55547-28020¥850

main55547-28020-05iTCR11,21199012-199308

GREIGE,TRIM4#

sub55547-28020¥850

main55547-28020-05iTCR11,21199108-199308

sub55547-28020¥850

main55547-28020-B0iTCR1#,2#199308-199408

sub55547-28020¥850

main55547-28020-B0iTCR1#,2#199308-199912

GRAY,TRIM1#

sub55547-28020¥850

main55547-28020-E2iTCR11,21199308-199408

GREIGE,TRIM4#

sub55547-28020¥850

main55547-28020-E2iTCR11,21199308-199408

sub55547-28020¥850

main55547-28020-E2iTCR10,20..V199704-199708

sub55547-28020¥850

main55547-28020-E2iTCR10,20..V199708-199712

sub55547-28020¥850

main55547-28020-E2iTCR10,20..V199810-199912

sub55547-28020¥850

6753

67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH

main67610-28151-B1iTCR10,20199408-199608

GRAY,TRIM1#

sub67610-28151¥28,600

main67610-28370-B0iTCR11,21199308-199408

BLUISH GRAY,TRIM1#

main67610-28370-E0iTCR11,21199308-199408

MI. GREIGE,TRIM4#

main67610-28371-B1iTCR11,21199408-199608

BLUISH GRAY,TRIM1#

main67610-28372-B2iTCR11,21199608-199801

BLUISH GRAY,TRIM1#

main67610-28373-B3iTCR11,21199801-199912

GRAY,TRIM1#

main67610-28380-B0iTCR10,20199308-199408

BLUISH GRAY,TRIM1#

sub67610-28380¥28,600

main67610-28381-B6iTCR10,20..X199608-199801

BLUISH GRAY,TRIM1#

sub67610-28381¥28,700

main67610-28590-B0iTCR10,20..V199608-199801

GRAY,TRIM1#

main67610-28601-B1iTCR10,20..V199801-199912

GRAY,TRIM1#

main67610-28680-E0iTCR10,20..V199704-199708

main67610-28730-B0iTCR10,20..AERAS199801-199912

GRAY,TRIM1#

main67610-28750-E0iTCR10,20..V199708-199712

main67610-28780-B1iTCR10,20..V199804-199912

main67610-28780-E0iTCR10,20..V199810-199912

main67610-95D08-03iTCR10,20199302-199308

LIGHT GRAY,TRIM1#

main67610-95D10-03iTCR11,21199005-199308

LIGHT GRAY,TRIM1#

main67610-95D10-05iTCR11,21199005-199308

LIGHT GREIGE,TRIM4#

main67650-28010-C0iTCR1#,2#..G,V199901-199912

main67650-28020-B0iTCR10,20..V199904-199912

67601ARETAINER(FOR FRONT DOOR TRIM BOARD)

main67771-12050iTCR1#,2#¥160199005-199912

main67771-28030iTCR1#,2#¥220199005-199912

67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH

main67620-28151-B1iTCR10,20199408-199608

GRAY,TRIM1#

sub67620-28151¥28,600

main67620-28370-B0iTCR11,21199308-199408

BLUISH GRAY,TRIM1#

main67620-28370-E0iTCR11,21199308-199408

MI. GREIGE,TRIM4#

main67620-28371-B1iTCR11,21199408-199608

BLUISH GRAY,TRIM1#

main67620-28372-B2iTCR11,21199608-199801

BLUISH GRAY,TRIM1#

main67620-28373-B3iTCR11,21199801-199912

GRAY,TRIM1#

main67620-28380-B0iTCR10,20199308-199408

BLUISH GRAY,TRIM1#

sub67620-28380¥28,600

main67620-28381-B6iTCR10,20..X199608-199801

BLUISH GRAY,TRIM1#

sub67620-28381¥28,700

main67620-28590-B0iTCR10,20..V199608-199801

GRAY,TRIM1#

main67620-28601-B1iTCR10,20..V199801-199912

GRAY,TRIM1#

main67620-28680-E0iTCR10,20..V199704-199708

main67620-28730-B0iTCR10,20..AERAS199801-199912

GRAY,TRIM1#

main67620-28750-E0iTCR10,20..V199708-199712

main67620-28780-B1iTCR10,20..V199804-199912

main67620-28780-E0iTCR10,20..V199810-199912

main67620-95D06-03iTCR10,20199302-199308

LIGHT GRAY,TRIM1#

main67620-95D08-03iTCR11,21199005-199308

LIGHT GRAY,TRIM1#

main67620-95D08-05iTCR11,21199005-199308

LIGHT GREIGE,TRIM4#

main67660-28010-C0iTCR1#,2#..G,V199901-199912

main67660-28020-B0iTCR10,20..V199904-199912

67625ABRACKET, FRONT DOOR TRIM, NO.1

main67625-95D02iTCR1#,2#¥440199005-199912

67626ABRACKET, DOOR TRIM, NO.2

main67626-95D00iTCR1#,2#¥380199005-199912

67701COVER SUB-ASSY, FRONT DOOR TRIM, RH

main67701-28010-03iTCR11,21199012-199108

LIGHT GRAY,TRIM1#

main67701-28010-05iTCR11,21199012-199108

LIGHT GREIGE,TRIM4#

main67701-28080-B0iTCR1#,2#199108-199308

GRAY,TRIM1#

sub67701-28080¥24,300

sub67701-28081¥24,600

main67701-28080-B1iTCR11,21199308-199605

GRAY,TRIM1#

sub67701-28080¥24,300

sub67701-28081¥24,600

main67701-28080-B2iTCR10,20199308-199605

GRAY,TRIM1#

sub67701-28080¥24,300

sub67701-28081¥24,600

main67701-28080-E1iTCR11,21199108-199308

GREIGE,TRIM4#

sub67701-28080¥24,300

sub67701-28081¥24,600

main67701-28080-E2iTCR11,21199308-199408

GREIGE,TRIM4#

sub67701-28080¥24,300

sub67701-28081¥24,600

main67701-28081-B2iTCR1#,2#199605-199912

BLUISH GRAY,TRIM1#

sub67701-28081¥24,600

main67701-28081-E3iTCR10,20..V199704-199708

sub67701-28081¥24,600

main67701-28081-E3iTCR10,20..V199708-199712

sub67701-28081¥24,600

main67701-28081-E3iTCR10,20..V199810-199912

sub67701-28081¥24,600

main67701-95D01-03iTCR11,21199005-199012

LIGHT GRAY,TRIM1#

sub67701-28010¥15,700

main67701-95D01-05iTCR11,21199005-199012

LIGHT GREIGE,TRIM4#

sub67701-28010¥15,700

67702COVER SUB-ASSY, FRONT DOOR TRIM, LH

main67702-28080-B0iTCR1#,2#199108-199308

GRAY,TRIM1#

sub67702-28080¥24,300

sub67702-28081¥24,600

main67702-28080-B1iTCR11,21199308-199510

GRAY,TRIM1#

sub67702-28080¥24,300

sub67702-28081¥24,600

main67702-28080-B2iTCR10,20199308-199605

GRAY,TRIM1#

sub67702-28080¥24,300

sub67702-28081¥24,600

main67702-28080-E1iTCR11,21199108-199308

GREIGE,TRIM4#

sub67702-28080¥24,300

sub67702-28081¥24,600

main67702-28080-E2iTCR11,21199308-199408

GREIGE,TRIM4#

sub67702-28080¥24,300

sub67702-28081¥24,600

main67702-28081-B2iTCR1#,2#199510-199912

BLUISH GRAY,TRIM1#

sub67702-28081¥24,600

main67702-28081-E3iTCR10,20..V199704-199708

sub67702-28081¥24,600

main67702-28081-E3iTCR10,20..V199810-199912

sub67702-28081¥24,600

main67702-28081-E3iTCR10,20..V199708-199712

sub67702-28081¥24,600

main67702-95D01-03iTCR11,21199005-199108

LIGHT GRAY,TRIM1#

main67702-95D01-05iTCR11,21199005-199108

LIGHT GREIGE,TRIM4#

67779CAP, FRONT DOOR TRIM POCKET

main67779-95D00-03iTCR1#,2#199005-199308

GRAY,TRIM1#

sub67779-95D00¥350

main67779-95D00-05iTCR11,21199005-199308

GREIGE,TRIM4#

sub67779-95D00¥350

main67779-95D00-B0iTCR1#,2#199308-199912

GRAY,TRIM1#

sub67779-95D00¥350

main67779-95D00-E2iTCR10,20..V199708-199712

sub67779-95D00¥350

main67779-95D00-E2iTCR11,21199308-199408

GREIGE,TRIM4#

sub67779-95D00¥350

main67779-95D00-E2iTCR10,20..V199704-199708

sub67779-95D00¥350

main67779-95D00-E2iTCR10,20..V199810-199912

sub67779-95D00¥350

67815DUCT, DOOR VENTILATION, RH

main67815-95D00iTCR1#,2#¥1,970199005-199912

67825ADUCT, DOOR VENTILATION, LH

main67825-95D00iTCR1#,2#¥1,970199005-199912

68170WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER

main68170-95D01iTCR1#,2#¥4,600199005-199912

main68220-95D01iTCR1#,2#¥4,600199005-199912

74201BPANEL SUB-ASSY, FRONT ARMREST, UPPER RH

main74201-28041-B1iTCR10,20199408-199608

GRAY,TRIM1#

main74201-28050-B0iTCR10,20..V199608-199801

BLUISH GRAY,TRIM1#

main74201-28050-E0iTCR10,20..V199704-199708

main74201-28060-B0iTCR11,21199408-199608

BLUISH GRAY,TRIM1#

main74201-28061-B1iTCR11,21199608-199801

BLUISH GRAY,TRIM1#

main74201-28062-B2iTCR11,21199801-199912

BLUISH GRAY,TRIM1#

main74201-28081-B1iTCR10,20..V199801-199912

BLUISH GRAY,TRIM1#

main74201-28090-B0iTCR10,20..AERAS,X199608-199912

BLUISH GRAY,TRIM1#

main74201-28130-E0iTCR10,20..V199708-199712

main74201-28150-B0iTCR10,20..V199804-199912

main74201-28150-E0iTCR10,20..V199810-199912

main74201-28160-C0iTCR1#,2#..G,V199901-199912

main74201-28170-B0iTCR10,20..V199904-199912

main74201-95D01-03iTCR10,20199302-199308

LIGHT GRAY,TRIM1#

sub74201-95D01¥13,500

main74201-95D01-B1iTCR10,20199308-199408

GRAY,TRIM1#

sub74201-95D01¥13,500

main74201-95D02-03iTCR11,21199005-199308

LIGHT GRAY,TRIM1#

sub74201-95D02¥13,500

main74201-95D02-05iTCR11,21199005-199308

LIGHT GREIGE,TRIM4#

sub74201-95D02¥13,500

main74201-95D02-B2iTCR11,21199308-199408

GRAY,TRIM1#

sub74201-95D02¥13,500

main74201-95D02-E2iTCR11,21199308-199408

GREIGE,TRIM4#

sub74201-95D02¥13,500

74202BPANEL SUB-ASSY, FRONT ARMREST, UPPER LH

main74202-28041-B1iTCR10,20199408-199608

GRAY,TRIM1#

main74202-28050-B0iTCR10,20..V199608-199801

BLUISH GRAY,TRIM1#

main74202-28050-E0iTCR10,20..V199704-199708

main74202-28060-B0iTCR11,21199408-199608

BLUISH GRAY,TRIM1#

main74202-28061-B1iTCR11,21199608-199801

BLUISH GRAY,TRIM1#

main74202-28062-B2iTCR11,21199801-199912

BLUISH GRAY,TRIM1#

main74202-28081-B1iTCR10,20..V199801-199912

BLUISH GRAY,TRIM1#

main74202-28090-B0iTCR10,20..AERAS,X199608-199912

BLUISH GRAY,TRIM1#

main74202-28130-E0iTCR10,20..V199708-199712

main74202-28150-B0iTCR10,20..V199804-199912

main74202-28150-E0iTCR10,20..V199810-199912

main74202-28160-C0iTCR1#,2#..G,V199901-199912

main74202-28170-B0iTCR10,20..V199904-199912

main74202-95D01-03iTCR10,20199302-199308

LIGHT GRAY,TRIM1#

sub74202-95D01¥13,500

main74202-95D01-B1iTCR10,20199308-199408

GRAY,TRIM1#

sub74202-95D01¥13,500

main74202-95D02-03iTCR11,21199005-199308

LIGHT GRAY,TRIM1#

sub74202-95D02¥13,500

main74202-95D02-05iTCR11,21199005-199308

LIGHT GREIGE,TRIM4#

sub74202-95D02¥13,500

main74202-95D02-B2iTCR11,21199308-199408

GRAY,TRIM1#

sub74202-95D02¥13,500

main74202-95D02-E2iTCR11,21199308-199408

GREIGE,TRIM4#

sub74202-95D02¥13,500

74697PLUG, DOOR ASSIST GRIP, RH

main74697-28020-B0iTCR1#,2#199401-199912

GRAY,TRIM1#

sub74697-28020¥120

main74697-28020-E0iTCR10,20..V199810-199912

sub74697-28020¥120

main74697-28020-E0iTCR11,21199401-199408

GREIGE,TRIM4#

sub74697-28020¥120

main74697-28020-E0iTCR10,20..V199704-199708

sub74697-28020¥120

main74697-28020-E0iTCR10,20..V199708-199712

sub74697-28020¥120

main74697-95D00-03iTCR1#,2#199005-199308

GRAY,TRIM1#

sub74697-28020¥120

main74697-95D00-05iTCR11,21199005-199308

GREIGE,TRIM4#

sub74697-28020¥120

main74697-95D00-B0iTCR1#,2#199308-199401

GRAY,TRIM1#

sub74697-28020¥120

main74697-95D00-E1iTCR11,21199308-199401

GREIGE,TRIM4#

sub74697-28020¥120

8121

6777112050WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-12050¥160

6777128020WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-28020¥220

9016840048

main90168-40048¥60

9018906018

main90189-06018¥80

9018906141

main90189-06141¥130

9354016020

main93540-16020¥80

9356016012

main93560-16012¥60

9356815012

main93568-15012¥110

26 parts on this diagram · 2 diagrams in section
