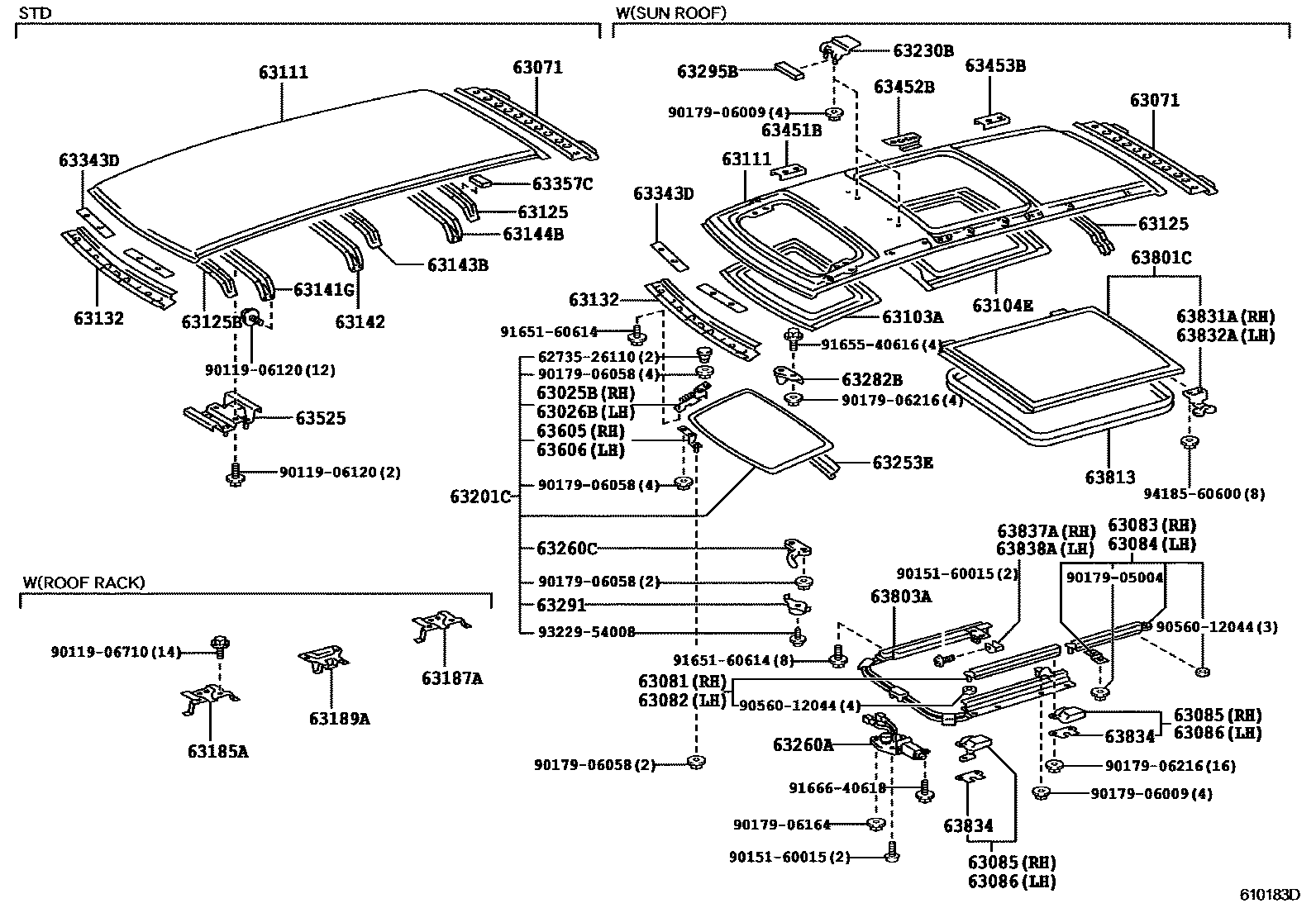

ROOF PANEL & BACK PANEL

0001 1 0002 1 0003 1

63025BLINK SUB-ASSY, TILT ROOF, RH

main63025-28040iTCR1#,2#199801-199912

main63025-95D00iTCR1#,2#199005-199801

63026BLINK SUB-ASSY, TILT ROOF, LH

main63026-28040iTCR1#,2#199801-199912

main63026-95D00iTCR1#,2#199005-199801

63071FRAME SUB-ASSY, BACK DOOR OPENING, UPPER

main63071-95D00iTCR1#,2#199005-199912

63081RAIL SUB-ASSY, REAR SLIDE ROOF, FRONT RH

main63081-28010iTCR1#,2#199608-199912

main63081-28020iTCR1#,2#199608-199912

main63081-95D00iTCR1#,2#199005-199608

63082RAIL SUB-ASSY, REAR SLIDE ROOF, FRONT LH

main63082-28010iTCR1#,2#199608-199912

main63082-28020iTCR1#,2#199608-199912

main63082-95D00iTCR1#,2#199005-199608

63083RAIL SUB-ASSY, REAR SLIDE ROOF, REAR RH

main63083-28020iTCR1#,2#199608-199912

main63083-28030iTCR1#,2#199608-199912

main63083-95D00iTCR1#,2#199005-199608

63084RAIL SUB-ASSY, REAR SLIDE ROOF, REAR LH

main63084-28020iTCR1#,2#199608-199912

main63084-28030iTCR1#,2#199608-199912

main63084-95D00iTCR1#,2#199005-199608

63085GUIDE SUB-ASSY, REAR SLIDE ROOF LIFT, RH

main63085-28010iTCR1#,2#199608-199912

main63085-28020iTCR1#,2#199608-199912

main63085-95D00iTCR1#,2#199005-199608

FRONT

main63085-95D01iTCR1#,2#199005-199608

REAR

main63085-95D01iTCR1#,2#199608-199912

63086GUIDE SUB-ASSY, REAR SLIDE ROOF LIFT, LH

main63086-28010iTCR1#,2#199608-199912

main63086-28020iTCR1#,2#199608-199912

main63086-95D00iTCR1#,2#199005-199608

FRONT

main63086-95D01iTCR1#,2#199005-199608

REAR

main63086-95D01iTCR1#,2#199608-199912

63103AREINFORCEMENT SUB-ASSY, ROOF PANEL

main63103-95D00iTCR1#,2#199005-199912

63104EREINFORCEMENT SUB-ASSY, ROOF PANEL, REAR

main63104-28030iTCR1#,2#199608-199912

main63104-95D00iTCR1#,2#199005-199608

sub63104-28030

63111PANEL, ROOF

main63111-28050iTCR1#,2#199207-199801

sub63111-28051

sub63132-28050

sub63132-28060

main63111-28051iTCR1#,2#199801-199912

main63111-28081iTCR1#,2#199801-199912

main63111-28130iTCR1#,2#199608-199801

main63111-28150iTCR1#,2#199608-199801

main63111-28161iTCR1#,2#199801-199912

main63111-95D01iTCR11,21199005-199207

sub63111-28050

sub75555-28010

sub75556-28010

sub90179-05020

main63111-95D02iTCR1#,2#199005-199608

sub63111-28150

sub90333-25003

63125REINFORCEMENT, ROOF PANEL, NO.2

main63125-95D00iTCR1#,2#199005-199912

main63125-95D01iTCR1#,2#199005-199912

63125BREINFORCEMENT, ROOF PANEL, FRONT

main63122-95D00iTCR1#,2#199005-199912

63132PANEL, WINDSHIELD HEADER, INNER

main63132-28060iTCR1#,2#199801-199912

main63132-95D01iTCR1#,2#199005-199801

sub63132-28060

63141GREINFORCEMENT, ROOF PANEL, NO.1

main63141-95D01iTCR1#,2#199005-199912

63142REINFORCEMENT, ROOF PANEL, NO.2

main63142-95D00iTCR1#,2#199005-199912

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-95D00iTCR1#,2#199005-199912

63144BREINFORCEMENT, ROOF PANEL, NO.4

main63144-95D00iTCR1#,2#199005-199912

63185ABRACKET, ROOF RACK, FRONT RH

main63185-28010iTCR1#,2#199005-199912

63187ABRACKET, ROOF RACK, REAR

main63187-28010iTCR1#,2#199005-199912

63189ABRACKET, ROOF RACK, CENTER

main63189-28010iTCR1#,2#199005-199912

63201CGLASS SUB-ASSY, TILT ROOF

main63201-28040iTCR11,21199005-199308

main63201-28050iTCR11,21199005-199308

main63201-28190iTCR1#,2#199308-199608

sub63201-28290

main63201-28290iTCR1#,2#199608-199801

main63201-28300iTCR1#,2#199801-199912

main63201-95D01iTCR10,20199302-199308

63230BPANEL ASSY, ROOF WIND DEFLECTOR

main63230-28010iTCR1#,2#199005-199912

63253EDAM, ROOF WINDOW, NO.3

main63253-28010iTCR1#,2#199005-199305

sub63253-28011

main63253-28011iTCR1#,2#199305-199912

63260AGEAR SUB-ASSY, SLIDING ROOF DRIVE

main63260-28050iTCR1#,2#199104-199608

main63260-28080iTCR1#,2#199608-199912

main63260-95D00iTCR11,21199005-199104

sub63260-28050

63260CHANDLE ASSY, TILT ROOF LOCK

main63260-95D02iTCR1#,2#199005-199912

63282BSTRIKER, TILT ROOF LOCK

main63282-95D00iTCR1#,2#199005-199912

63291GARNISH, ROOF WINDOW LOCK, OUTER

main63291-95D00iTCR1#,2#199005-199912

63295BPAD, ROOF WIND DEFLECTOR PANEL

main63295-28020iTCR1#,2#199005-199912

63343DPAD, ROOF SILENCER, NO.3

main63343-95D00iTCR1#,2#199005-199912

63357CSILENCER, ROOF

main63357-28010iTCR1#,2#199308-199912

63451BREINFORCEMENT, ROOF RACK, NO.1

main63451-28020iTCR1#,2#199005-199912

63452BREINFORCEMENT, ROOF RACK, NO.2

main63452-28010iTCR1#,2#199005-199912

63453BREINFORCEMENT, ROOF RACK, NO.3

main63453-28010iTCR1#,2#199005-199608

main63453-28010iTCR1#,2#199608-199912

main63453-28030iTCR1#,2#199608-199912

63525BRACKET, TELEVISION RACK, NO.1

main63525-28010iTCR1#,2#199108-199912

63605HINGE SUB-ASSY, TILT ROOF, RH

main63605-28060iTCR1#,2#199801-199912

main63605-95D00iTCR1#,2#199005-199801

63606HINGE SUB-ASSY, TILT ROOF, LH

main63606-28060iTCR1#,2#199801-199912

main63606-95D00iTCR1#,2#199005-199801

63801CGLASS SUB-ASSY, REAR SLIDE ROOF

main63801-28010iTCR11,21199005-199308

sub63801-28020

main63801-28020iTCR11,21199005-199308

main63801-28060iTCR1#,2#199308-199608

main63801-28090iTCR1#,2#199608-199801

main63801-28100iTCR1#,2#199801-199912

main63801-95D00iTCR10,20199302-199308

63803ACABLE SUB-ASSY, REAR SLIDE ROOF DRIVE

main63803-28040iTCR1#,2#199806-199912

main63803-95D00iTCR1#,2#199005-199806

63813WEATHERSTRIP, REAR SLIDE ROOF

main63813-28020iTCR1#,2#199205-199801

main63813-28050iTCR1#,2#199801-199912

main63813-95D00iTCR11,21199005-199205

sub63813-28020

63831ASHOE, REAR SLIDE ROOF, RH

main60383-28010iTCR1#,2#199801-199912

main60383-28020iTCR1#,2#199005-199801

63832ASHOE, REAR SLIDE ROOF, LH

main60384-28010iTCR1#,2#199801-199912

main60384-28020iTCR1#,2#199005-199801

63834PACKING, REAR SLIDE ROOF GUIDE

main63834-28010iTCR1#,2#199608-199912

main63834-95D00iTCR1#,2#199005-199608

main63834-95D00iTCR1#,2#199608-199912

63837AGARNISH, REAR SLIDE ROOF, RH

main63837-95D00iTCR1#,2#199005-199912

63838AGARNISH, REAR SLIDE ROOF, LH

main63838-95D00iTCR1#,2#199005-199912

6273526110RETAINER, QUARTER WINDOW HINGE

main62735-26110

9011906120

main90119-06120

9011906710

main90119-06710

9015160015

main90151-60015

9017905004

main90179-05004

9017906009

main90179-06009

9017906058

main90179-06058

9017906164

main90179-06164

9017906216

main90179-06216

9056012044

main90560-12044

9165160614

main91651-60614

9165540616

main91655-40616

9166640618

main91666-40618

9322954008

main93229-54008

9418560600

main94185-60600

61 parts on this diagram · 3 diagrams in section
