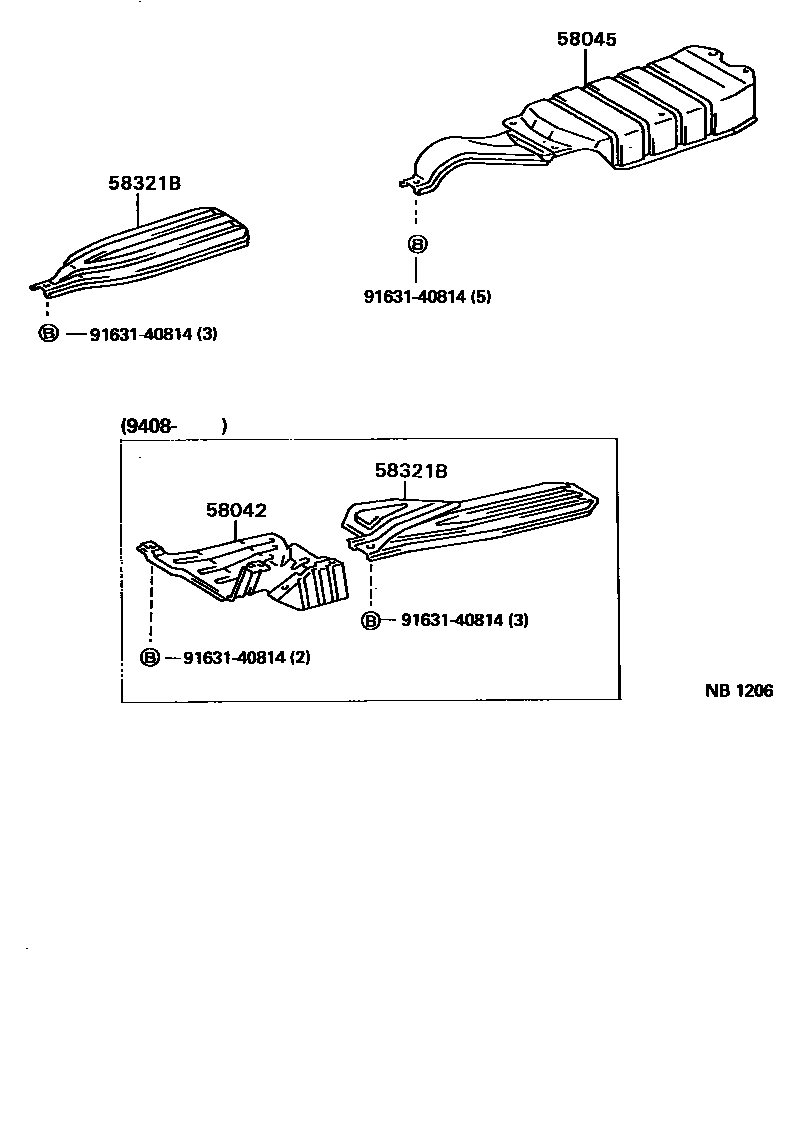

FLOOR INSULATOR

0001 1 0002 1

58042INSULATOR SUB-ASSY, FRONT FLOOR HEAT, NO.2

main58042-28010iTCR1#,2#199408-199912

58045INSULATOR SUB-ASSY, REAR FLOOR HEAT

main58045-95D00iTCR1#,2#..EFI199005-199801

58321BINSULATOR, REAR FLOOR HEAT, NO.1

main58041-28020iTCR1#,2#199408-199912

main58321-95D02iTCR1#,2#199005-199408

9163140814

main91631-40814

4 parts on this diagram · 2 diagrams in section
