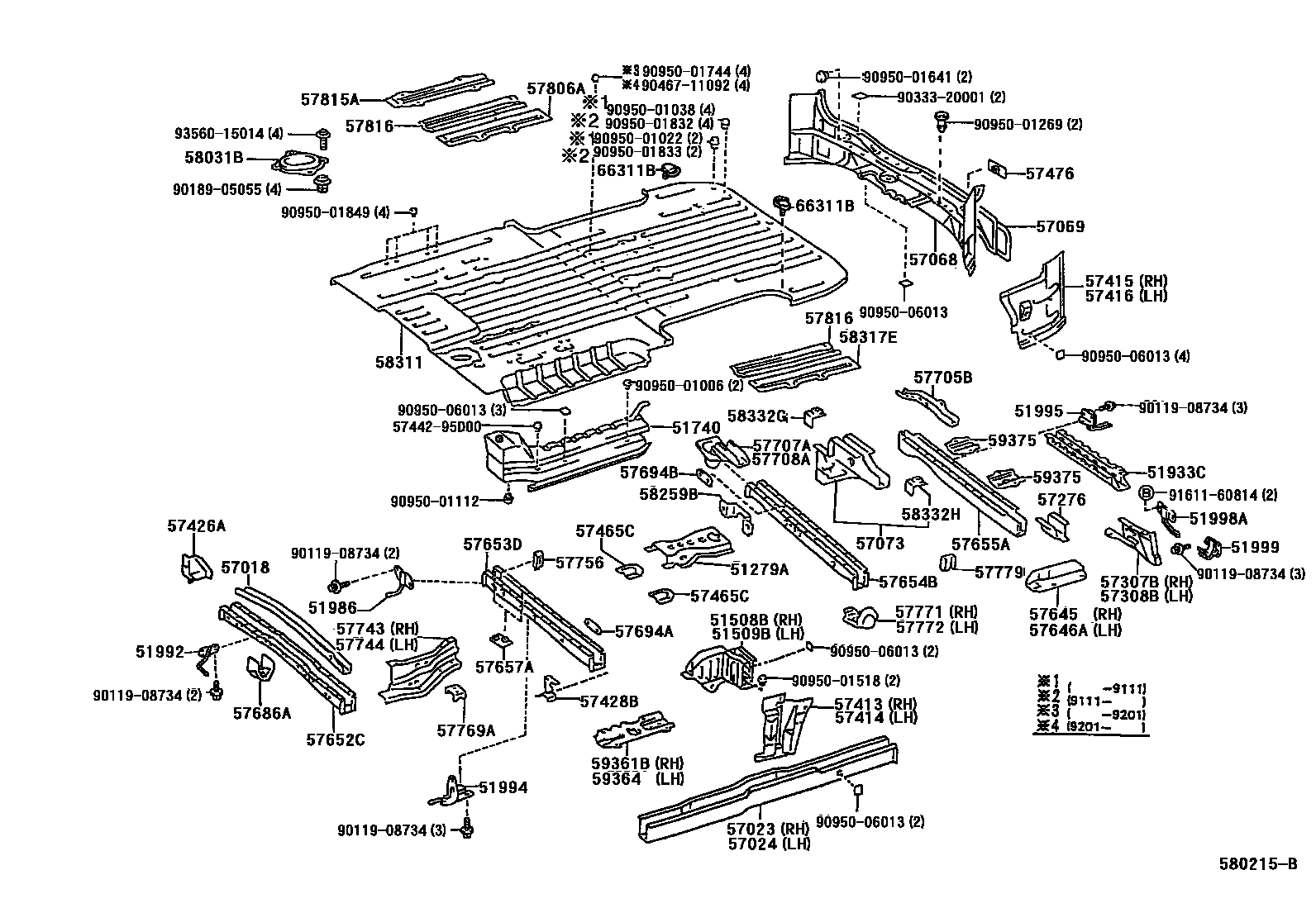

REAR FLOOR PANEL & REAR FLOOR MEMBER
51279ABRACKET, DIFFERENTIAL SUPPORT
51508BBRACKET SUB-ASSY, LOWER CONTROL LINK, RH
51509BBRACKET SUB-ASSY, LOWER CONTROL LINK, LH
51740STEP ASSY, REAR FLOOR, LH
51933CSTOPPER, SPARE WHEEL
51986HANGER, EXHAUST PIPE SUPPORT, NO.3
51992HANGER, EXHAUST PIPE SUPPORT, NO.2
51994HANGER, EXHAUST PIPE, NO.4
51995HANGER, EXHAUST PIPE, NO.5
51998AHANGER, EXHAUST PIPE SUPPORT, NO.6
51999HANGER, EXHAUST PIPE SUPPORT, NO.7
57018BRACKET SUB-ASSY, CROSSMEMBER FLOOR, NO.1
57023MEMBER SUB-ASSY, REAR SIDE, RH
57024MEMBER SUB-ASSY, REAR SIDE, LH
57068MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, INNER
57069MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, OUTER
57073BRACKET SUB-ASSY, LATERAL ROD
57276GUSSET, REAR FLOOR CROSSMEMBER, NO.4
57307BOUTRIGGER SUB-ASSY, NO.4 RH
57308BOUTRIGGER SUB-ASSY, NO.4 LH
57413RAIL, FLOOR SIDE, CENTER RH
57414RAIL, FLOOR SIDE, CENTER LH
57415RAIL, FLOOR SIDE, REAR RH
57416RAIL, FLOOR SIDE, REAR LH
57426APLATE, REAR STEP, FRONT LH
57428BPLATE, REAR STEP, REAR LH
57465CRETAINER, BELT ANCHOR, NO.2
57476PLATE, FRONT FLOOR CROSSMEMBER, LH
57645REINFORCEMENT, REAR SIDE MEMBER, RH
57646AREINFORCEMENT, REAR SIDE MEMBER, LH
57652CMEMBER, REAR FLOOR CROSS, NO.1
57653DMEMBER, REAR FLOOR CROSS, NO.2
57654BMEMBER, REAR FLOOR CROSS, NO.3
57655AMEMBER, REAR FLOOR CROSS, NO.4
57657ABRACKET, EXHAUST PIPE MOUNTING, NO.2
57686ABRACKET, FUEL TANK MOUNTING, REAR RH
57694AREINFORCEMENT, FUEL TANK SUPPORT, NO.2
57694BREINFORCEMENT, FUEL TANK SUPPORT, NO.3
57705BREINFORCEMENT SUB-ASSY, REAR ABSORBER MOUNTING, RH
57707APLATE SUB-ASSY, REAR SPRING, RH
57708APLATE SUB-ASSY, REAR SPRING, LH
57743BRACKET, UPPER CONTROL LINK, INNER RH
57744BRACKET, UPPER CONTROL LINK, INNER LH
57756PLATE, REAR FLOOR NO.2 CROSSMEMBER
57769AREINFORCEMENT, UPPER CONTROL LINK BRACKET
57771PLATE, REAR SPRING, RH
57772PLATE, REAR SPRING, LH
57779RETAINER, UPPER CONTROL LINK, UPPER
57806AREINFORCE SUB-ASSY, NO.1 SEAT LEG, REAR NO.2
57815AREINFORCEMENT, BELT ANCHOR, RH
57816REINFORCE SUB-ASSY, BELT ANCHOR, NO.2 LH
58031BCOVER SUB-ASSY, REAR FLOOR SERVICE HOLE
58259BREINFORCEMENT, PARKING BRAKE CABLE, NO.1
58311PAN, REAR FLOOR
58317ERETAINER, REAR SEAT, NO.2
58332GBRACKET, REAR FLOOR HEAT INSULATOR, NO.4
58332HBRACKET, REAR FLOOR HEAT INSULATOR, NO.4
59361BRETAINER, REAR SEAT, NO.1 A
59364RETAINER, REAR SEAT, NO.1 D
59375RETAINER, REAR SEAT, NO.4
66311BHOOK, ROPE
5744295D00PLUG, STEP PANEL HOLE
9011908734
9018905055
9033320001
9046711092
9095001006
9095001022
9095001038
9095001112
9095001269
9095001518
9095001641
9095001744
9095001832
9095001833
9095001849
9095006013
9161160814
9356015014
80 parts on this diagram · 1 diagram in section
