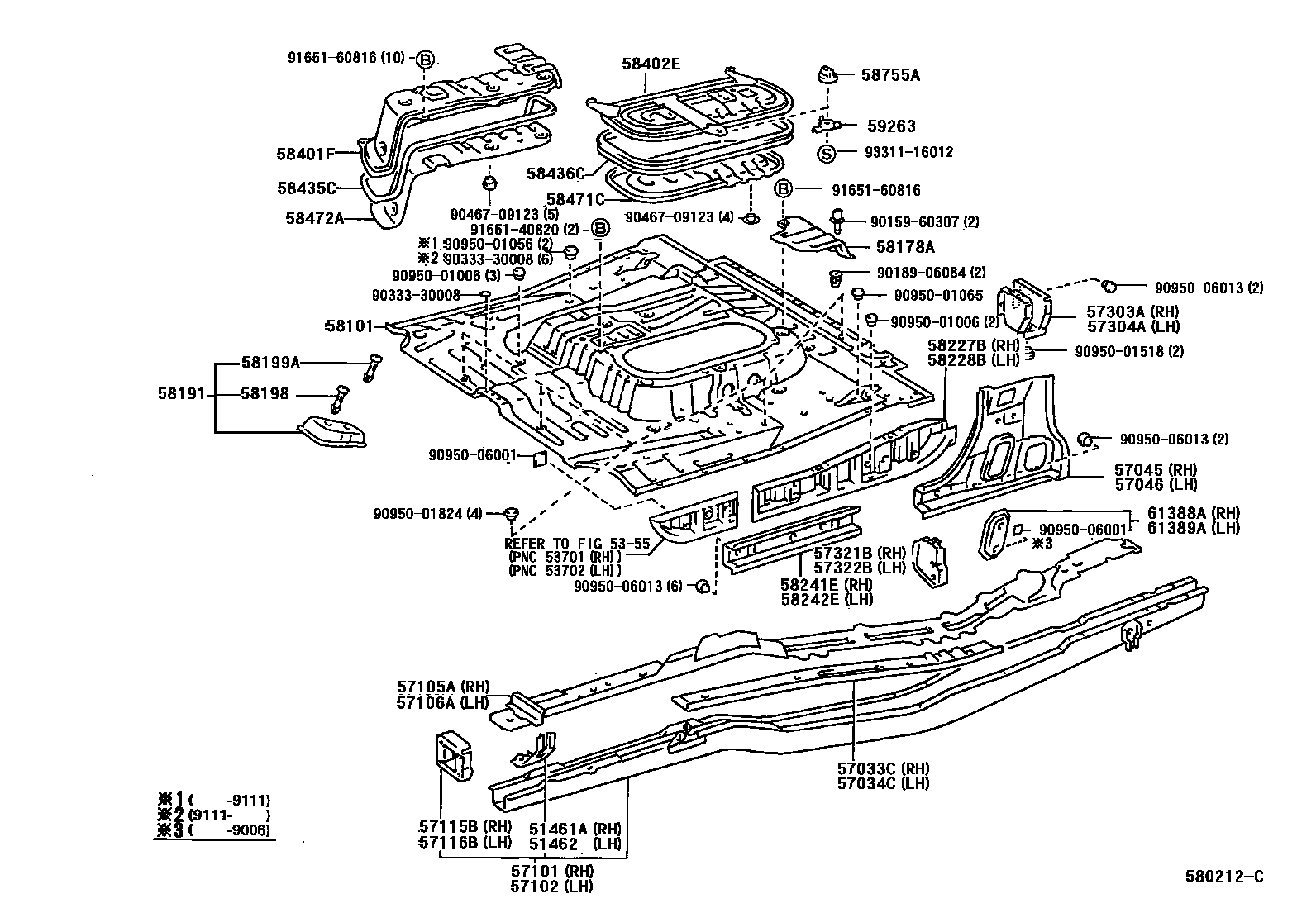

FRONT FLOOR PANEL & FRONT FLOOR MEMBER
51461ABRACKET, RADIATOR MOUNTING, LOWER RH
51462BRACKET, RADIATOR MOUNTING, LOWER LH
5355
57033CREINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.3 RH
57034CREINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.3 LH
57045PLATE SUB-ASSY, FLOOR SIDE RAIL, RH
57046PLATE SUB-ASSY, FLOOR SIDE RAIL, LH
57101MEMBER SUB-ASSY, FRONT SIDE, RH
57102MEMBER SUB-ASSY, FRONT SIDE, LH
57105APLATE SUB-ASSY, FRONT SIDE MEMBER, RH
57106APLATE SUB-ASSY, FRONT SIDE MEMBER, LH
57115BPLATE, FRONT SIDE MEMBER, NO.1 RH
57116BPLATE, FRONT SIDE MEMBER, NO.1 LH
57303AOUTRIGGER SUB-ASSY, NO.2 RH
57304AOUTRIGGER SUB-ASSY, NO.2 LH
57321BOUTRIGGER, NO.5, RH
57322BOUTRIGGER, NO.5, LH
58101PAN SUB-ASSY, FRONT FLOOR
58178AEXTENSION, FRONT FLOOR PANEL, LH
58191FOOTREST, FRONT FLOOR
58198CLIP, FOOTREST
58199ACLIP, FOOTREST, NO.2
58227BPLATE, FRONT FLOOR PANEL SIDE, RH
58228BPLATE, FRONT FLOOR PANEL SIDE, LH
58241EPANEL, FLOOR SIDE, FRONT RH
58242EPANEL, FLOOR SIDE, FRONT LH
58401FCOVER SUB-ASSY, ENGINE SERVICE HOLE, RH
58402ECOVER SUB-ASSY, ENGINE SERVICE HOLE, LH
58435CPACKING, ENGINE SERVICE HOLE COVER, RH
58436CPACKING, ENGINE SERVICE HOLE COVER, LH
58471CSILENCER, ENGINE MAIN COVER
58472ASILENCER, ENGINE SUB COVER
58755AHANDLE, ENGINE SERVICE COVER CATCH
59263HOOK, ENGINE COVER LOCK
61388APLATE, CENTER BODY PILLAR END, RH
61389APLATE, CENTER BODY PILLAR END, LH
9015960307
9018906084
9033330008
9046709123
9095001006
9095001056
9095001065
9095001518
9095001824
9095006001
9095006013
9165140820
9165160816
9331116012
50 parts on this diagram · 1 diagram in section
