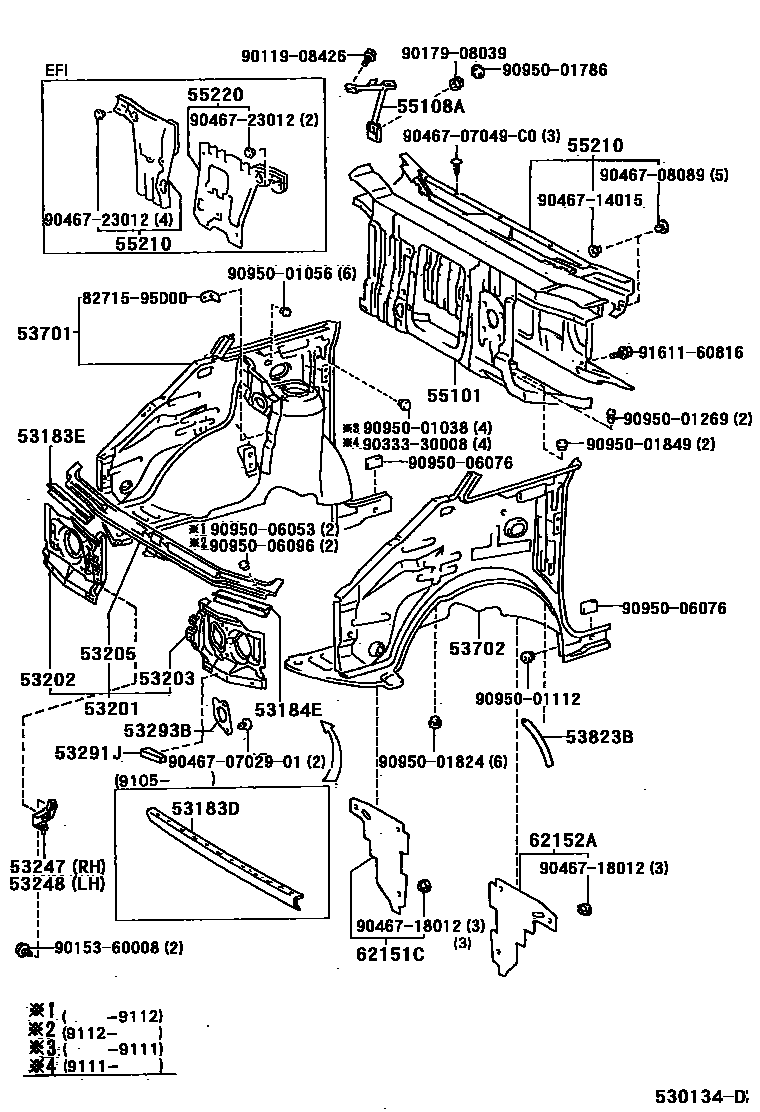

FRONT FENDER APRON & DASH PANEL

53183DSEAL, HEADLAMP COVER TO HOOD

main53183-28020iTCR1#,2#199105-199912

53183ESEAL, HEADLAMP COVER, RH

main53183-28010iTCR11,21199005-199105

53184ESEAL, HEADLAMP COVER, LH

main53184-28010iTCR11,21199005-199105

53201SUPPORT SUB-ASSY, RADIATOR

main53210-28050iTCR1#,2#..SPC199408-199801

sub53210-28060

main53210-28060iTCR1#,2#..EFI199308-199801

main53210-28070iTCR1#,2#199801-199912

53202SUPPORT SUB-ASSY, RADIATOR, RH

main53202-28010iTCR1#,2#199005-199308

main53202-28020iTCR1#,2#199308-199801

main53202-28050iTCR1#,2#199801-199912

53203SUPPORT SUB-ASSY, RADIATOR, LH

main53203-28010iTCR1#,2#199005-199308

main53203-28020iTCR1#,2#199308-199801

main53203-28050iTCR1#,2#199801-199912

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53205-28020iTCR11,21199005-199108

sub53205-28040

sub90179-06236

main53205-28040iTCR1#,2#199108-199308

main53205-28080iTCR1#,2#..SPC199408-199912

sub53205-28090

main53205-28090iTCR1#,2#..EFI199308-199801

53247BRACKET, HEADLAMP MOUNTING, INNER RH

main53247-28020iTCR1#,2#199801-199912

53248BRACKET, HEADLAMP MOUNTING, INNER LH

main53248-28010iTCR1#,2#199801-199912

53291JSEAL, RADIATOR SUPPORT

main53291-28020iTCR1#,2#..SPC199408-199912

53293BSEAL, RADIATOR SUPPORT SERVICE HOLE

main53293-28010iTCR1#,2#199005-199801

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-28100iTCR10,20199302-199308

sub53701-28390

sub90333-30002

main53701-28110iTCR11,21199108-199308

sub53701-28400

sub90333-30002

main53701-28190iTCR10,20199302-199308

sub53701-28420

sub90333-30002

main53701-28300iTCR1#,2#199308-199404

sub53701-28310

sub90333-40001

main53701-28310iTCR11,21199308-199408

main53701-28330iTCR1#,2#199308-199404

sub53701-28340

main53701-28360iTCR11,21199308-199408

main53701-28470iTCR11,21199408-199608

main53701-28490iTCR10,20199404-199608

main53701-28500iTCR1#,2#..EFI199404-199508

main53701-28650iTCR10,20..X199608-199801

sub53701-28660

main53701-28690iTCR1#,2#199608-199912

main53701-28691iTCR1#,2#199805-199806

sub53701-28690

main53701-95D02iTCR11,21199005-199108

sub53701-28240

main53701-95D06iTCR11,21199005-199108

sub53701-28250

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-28090iTCR10,20199302-199308

sub53702-28400

sub90333-30002

main53702-28100iTCR11,21199108-199308

sub53702-28410

sub90333-30002

main53702-28140iTCR10,20199302-199308

sub53702-28430

sub90333-30002

main53702-28230iTCR1#,2#199308-199404

sub53702-28270

sub90333-40001

main53702-28260iTCR11,21199308-199408

main53702-28270iTCR11,21199308-199408

main53702-28280iTCR1#,2#199308-199404

sub53702-28260

sub90333-40001

main53702-28520iTCR11,21199408-199508

main53702-28530iTCR11,21199408-199608

main53702-28540iTCR1#,2#..EFI199404-199608

main53702-28550iTCR1#,2#..EFI199404-199508

main53702-28620iTCR10,20..X199608-199801

main53702-28630iTCR1#,2#..SPC199608-199912

main53702-95D11iTCR11,21199005-199108

sub53702-28170

main53702-95D12iTCR11,21199005-199108

sub53702-28180

53823BPROTECTOR, FRONT SIDE PANEL, NO.2

main53823-28010iTCR1#,2#199008-199912

55101PANEL SUB-ASSY, DASH

main55101-28670iTCR11,21199108-199201

sub55101-2R080

sub90333-30002

main55101-28671iTCR11,21199201-199308

sub55101-2R090

sub90333-30002

main55101-28672iTCR11,21199308-199408

sub55101-2J340

main55101-28672iTCR10,20199308-199608

sub55101-2J340

main55101-28680iTCR11,21199108-199201

sub55101-2R100

sub90333-30002

main55101-28681iTCR11,21199201-199308

sub55101-2R110

sub90333-30002

main55101-28681iTCR10,20199302-199308

sub55101-2R110

sub90333-30002

main55101-28682iTCR11,21199308-199408

sub55101-2J350

main55101-28682iTCR10,20199308-199608

sub55101-2J350

main55101-28690iTCR11,21199108-199201

sub55101-2J880

sub90333-30002

main55101-28691iTCR10,20199302-199308

sub55101-2J890

sub90333-30002

main55101-28691iTCR11,21199201-199308

sub55101-2J890

sub90333-30002

main55101-28692iTCR11,21199308-199408

main55101-28692iTCR10,20199308-199608

main55101-28701iTCR10,20199302-199308

sub55101-2R130

sub90333-30002

main55101-28702iTCR10,20199308-199608

sub55101-28692

main55101-28711iTCR10,20199302-199308

sub55101-2R020

sub90333-30002

main55101-28712iTCR10,20199308-199608

sub55101-2J350

main55101-28712iTCR11,21199308-199408

sub55101-2J350

main55101-28721iTCR10,20199302-199308

sub55101-2R150

sub90333-30002

main55101-28722iTCR10,20199308-199608

sub55101-2J350

main55101-2J061iTCR10,20199308-199608

sub55101-2J340

main55101-2J070iTCR10,20199302-199308

sub55101-2R180

sub90333-30002

main55101-2J071iTCR10,20199308-199608

sub55101-2J350

main55101-2R190iTCR11,21199408-199608

sub55101-2R210

main55101-2R200iTCR11,21199408-199608

sub55101-2R220

main55101-2R210iTCR11,21199408-199608

main55101-2R220iTCR11,21199408-199608

main55101-2R560iTCR10,20..X199608-199801

sub55101-2R600

main55101-2R590iTCR1#,2#..SPC199608-199912

main55101-2R640iTCR1#,2#..SPC199608-199912

main55101-2R680iTCR10,20..X199608-199801

main55101-95D13iTCR11,21199005-199108

sub55101-2J820

sub90333-30002

main55101-95D15iTCR11,21199005-199108

sub55101-2J830

sub90333-30002

55108ABRACE SUB-ASSY, PEDAL SUPPORT TO COWL

main55108-28020iTCR1#,2#..EFI199103-199801

main55108-28040iTCR1#,2#..SPC199408-199912

55210INSULATOR ASSY, DASH PANEL

main55210-28040iTCR11,21199408-199608

main55210-28080iTCR1#,2#..SPC199608-199912

main55210-95D01iTCR1#,2#..EFI199005-199801

55220INSULATOR ASSY, DASH PANEL, NO.2

main55220-28020iTCR1#,2#..EFI199402-199608

main55220-28030iTCR10,20..X199608-199801

main55220-95D01iTCR1#,2#199005-199402

62151CPAD, COWL SIDE SILENCER, RH

main62151-28030iTCR1#,2#..SPC199408-199912

62152APAD, COWL SIDE SILENCER, LH

main62152-28030iTCR1#,2#..SPC199408-199912

8271595D00BRACKET,WIRING HARNESS CLAMP

main82715-95D00

9011908426

main90119-08426

9015360008

main90153-60008

9017908039

main90179-08039

9033330008

main90333-30008

904670702901

main90467-0702901

9046707049C0

main90467-07049C0

9046708089

main90467-08089

9046714015

main90467-14015

9046718012

main90467-18012

9046723012

main90467-23012

9095001038

main90950-01038

9095001056

main90950-01056

9095001112

main90950-01112

9095001269

main90950-01269

9095001786

main90950-01786

9095001824

main90950-01824

9095001849

main90950-01849

9095006053

main90950-06053

9095006076

main90950-06076

9095006096

main90950-06096

9161160816

main91611-60816

42 parts on this diagram · 1 diagram in section
