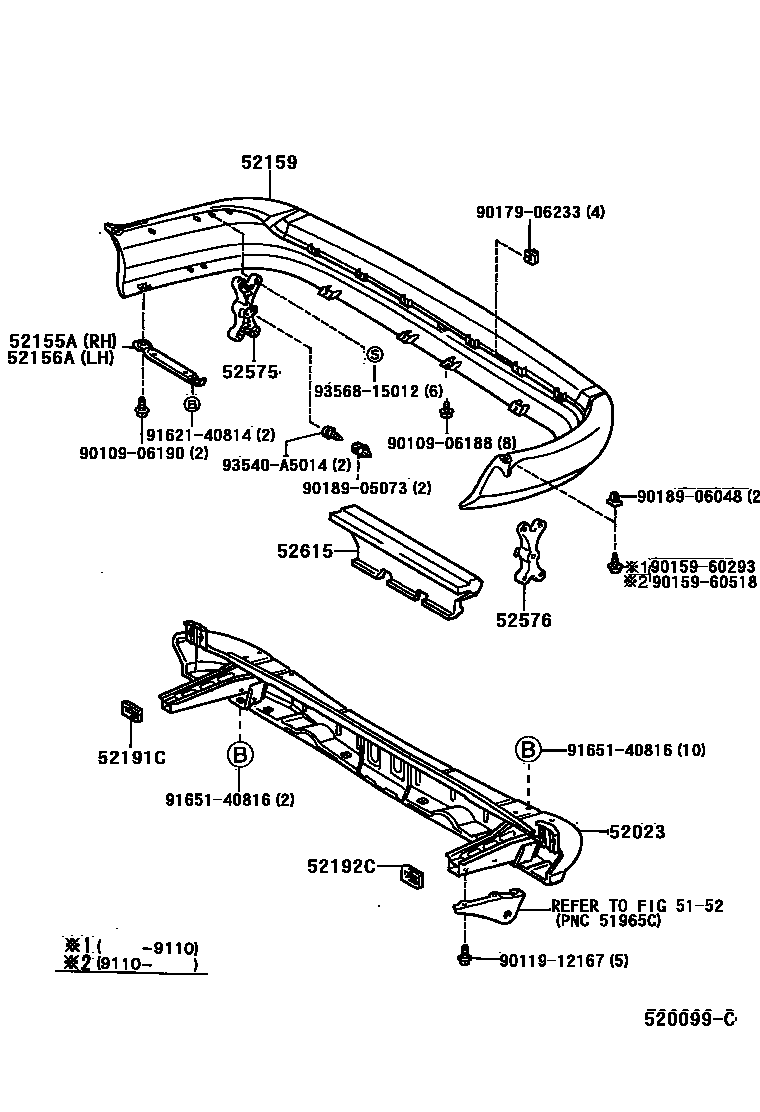

REAR BUMPER & BUMPER STAY

5152

52023REINFORCEMENT SUB-ASSY, REAR BUMPER

main52023-95D01iTCR1#,2#199005-199912

52155ASUPPORT, REAR BUMPER SIDE, RH

main52155-95D00iTCR1#,2#199005-199912

52156ASUPPORT, REAR BUMPER SIDE, LH

main52155-95D00iTCR1#,2#199005-199912

52159COVER, REAR BUMPER

main52159-28030-B0iTCR11,21199308-199408

sub52159-28906

main52159-28030-B0iTCR11,21199108-199308

sub52159-28906

main52159-28030-B0iTCR11,21199408-199608

sub52159-28906

main52159-28030-E0iTCR11,21199108-199408

sub52159-28906

main52159-28030-E0iTCR11,21199408-199608

sub52159-28906

main52159-28150-A0iTCR10,20..AERAS199801-199912

WHITE PEARL,042

sub52159-28947

sub52159-28909

main52159-28150-D0iTCR10,20..AERAS199801-199912

GRAY,191

sub52159-28947

sub52159-28909

main52159-28180-B0iTCR1#,2#..G,V199801-199912

sub52159-28910

main52159-28180-D0iTCR1#,2#..SPC199608-199801

sub52159-28910

main52159-28180-D0iTCR1#,2#..G,V199801-199912

sub52159-28910

main52159-28180-D0iTCR10,20..V199904-199912

sub52159-28910

main52159-28180-E0iTCR1#,2#..G,V199801-199912

sub52159-28910

main52159-28180-E0iTCR1#,2#..SPC199608-199801

sub52159-28910

main52159-95D02-03iTCR10,20199302-199308

COOL GRAY,6L3 ,8G2 ,8H4

sub52159-95D02

main52159-95D02-13iTCR10,20199302-199308

WARM GRAY,3J7

sub52159-95D02

main52159-95D02-B0iTCR10,20199308-199408

COOL GRAY,6L3 ,8H4

sub52159-95D02

main52159-95D02-B0iTCR10,20199408-199608

COOL GRAY,191 ,8H4

sub52159-95D02

main52159-95D02-B0iTCR1#,2#..G,V199801-199912

sub52159-95D02

main52159-95D02-B1iTCR10,20199308-199408

WARM GRAY,3J7

sub52159-95D02

main52159-95D02-B1iTCR10,20199408-199608

WARM GRAY,046 ,193 ,3J7

sub52159-95D02

main52159-95D03-03iTCR11,21199005-199108

sub52159-28902

main52159-95D03-06iTCR11,21199005-199108

sub52159-28902

main52159-95D03-13iTCR11,21199005-199108

sub52159-28902

main52159-95D04-03iTCR11,21199408-199608

GRAY M,191 ,8H4

sub52159-95D02

main52159-95D04-03iTCR11,21199005-199308

GRAY M,6L3 ,8G2 ,8H4

sub52159-95D02

main52159-95D04-03iTCR11,21199308-199408

GRAY M,6L3 ,8H4

sub52159-95D02

main52159-95D04-06iTCR11,21199005-199108

BROWN M,4K9 ,4L6

sub52159-95D02

main52159-95D04-13iTCR11,21199108-199408

GRAY M,046 ,3J7 ,4K9

sub52159-95D02

main52159-95D04-13iTCR11,21199005-199108

GRAY M,046 ,3J7

sub52159-95D02

main52159-95D04-13iTCR11,21199408-199608

GRAY M,046 ,193 ,3J7

sub52159-95D02

main52159-95D04-A0iTCR10,20..V199904-199912

sub52159-95D02

main52159-95D04-A0iTCR10,20..V199704-199708

sub52159-95D02

main52159-95D04-A0iTCR10,20..V199804-199912

sub52159-95D02

main52159-95D04-A0iTCR10,20..V199708-199712

sub52159-95D02

main52159-95D04-B3iTCR1#,2#..G,V199801-199912

sub52159-95D02

main52159-95D04-B5iTCR10,20..V199804-199912

sub52159-95D02

main52159-95D04-B5iTCR10,20..V199904-199912

sub52159-95D02

main52159-95D04-B6iTCR1#,2#..G,V199803-199912

sub52159-95D02

main52159-95D04-D0iTCR1#,2#..G,V199801-199912

sub52159-95D02

main52159-95D04-D0iTCR10,20..V199904-199912

sub52159-95D02

main52159-95D04-D0iTCR1#,2#199608-199801

sub52159-95D02

main52159-95D04-D0iTCR10,20..V199708-199712

sub52159-95D02

main52159-95D04-E1iTCR1#,2#199608-199801

sub52159-95D02

main52159-95D04-E1iTCR1#,2#..G,V199801-199912

sub52159-95D02

52191CSEAL, REAR BUMPER ARM, RH

main52191-95D00iTCR1#,2#199005-199912

52192CSEAL, REAR BUMPER ARM, LH

main52191-95D00iTCR1#,2#199005-199912

52575RETAINER, REAR BUMPER SIDE, RH

main52575-95D00iTCR1#,2#199005-199912

52576RETAINER, REAR BUMPER SIDE, LH

main52575-95D00iTCR1#,2#199005-199912

52615ABSORBER, REAR BUMPER ENERGY

main52615-28030iTCR1#,2#199801-199912

main52615-95D00iTCR1#,2#..G,STD,V,X199005-199810

sub52615-28030

9010906188

main90109-06188

9010906190

main90109-06190

9011912167

main90119-12167

9015960293

main90159-60293

9015960518

main90159-60518

9017906233

main90179-06233

9018905073

main90189-05073

9018906048

main90189-06048

9162140814

main91621-40814

9165140816

main91651-40816

93540A5014

main93540-A5014

9356815012

main93568-15012

22 parts on this diagram · 1 diagram in section
