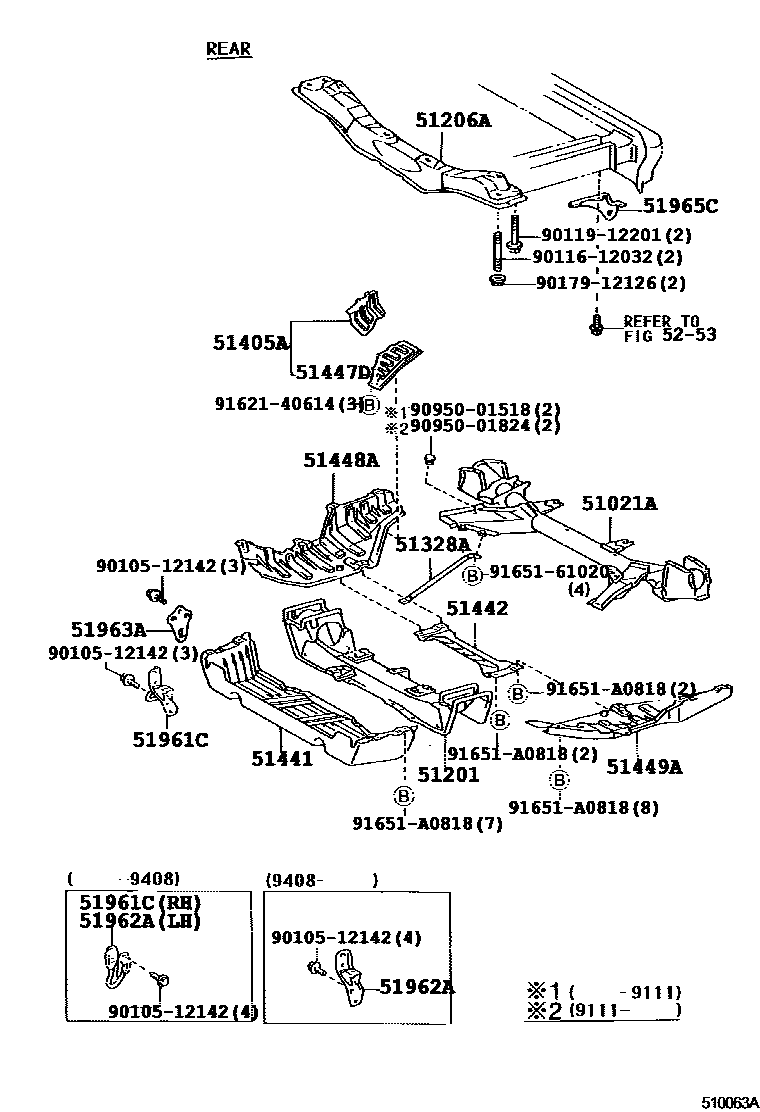

SUSPENSION CROSSMEMBER & UNDER COVER

51021AMEMBER SUB-ASSY, ENGINE FRONT SUPPORT

main51021-28060iTCR1#199404-199912

sub51021-95D00

main51021-28070iTCR2#199404-199912

sub51021-95D01

main51021-95D00iTCR1#199005-199404

main51021-95D01iTCR2#199005-199404

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-28090iTCR1#..SPC199408-199912

sub51201-28100

main51201-28100iTCR2#..SPC199408-199912

main51201-28160iTCR1#..EFI199308-199801

sub51201-28170

main51201-28170iTCR2#..EFI199308-199801

main51201-95D04iTCR1#199005-199308

sub51201-28200

sub52383-28030

sub52384-28020

main51201-95D05iTCR2#199005-199308

sub51201-28210

sub52383-28030

sub52384-28020

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-95D00iTCR11,21199005-199912

51328ASUPPORT, FRONT SUSPENSION MEMBER, FRONT

main51328-95D00iTCR1#,2#199005-199912

51405ACOVER SUB-ASSY, ENGINE UNDER, NO.1

main51405-28060iTCR1#,2#199408-199912

51441COVER, ENGINE UNDER, NO.1

main51441-28080iTCR1#,2#..SPC199408-199912

main51441-95D01iTCR1#,2#..EFI199005-199801

51442COVER, ENGINE UNDER, NO.2

main51442-28090iTCR1#,2#199412-199912

main51442-95D01iTCR1#,2#199005-199412

51447DCOVER, ENGINE UNDER, NO.4 CENTER

main51447-28040iTCR1#,2#199408-199912

51448ACOVER, ENGINE SIDE UNDER, RH

main51448-28010iTCR1#,2#199408-199912

main51448-95D00iTCR1#,2#199005-199408

sub51448-28010

51449ACOVER, ENGINE SIDE UNDER, LH

main51449-95D01iTCR1#,2#199005-199912

sub51449-28020

51961CHOOK, FRONT

main51961-28030iTCR1#,2#..G,V,X199408-199912

main51961-28060iTCR10,20..AERAS199801-199912

main51961-95D00iTCR1#,2#199005-199408

51962AHOOK, FRONT LH

main51961-95D00iTCR1#,2#199005-199408

main51964-28050iTCR1#,2#199408-199912

51963AHOOK, TRANSPORT, FRONT RH

main51963-28040iTCR1#,2#199005-199408

51965CHOOK, REAR

main51965-28050iTCR1#,2#199308-199912

main51965-95D00iTCR1#,2#199005-199308

5253

9010512142

main90105-12142

9011612032

main90116-12032

9011912201

main90119-12201

9017912126

main90179-12126

9095001518

main90950-01518

9095001824

main90950-01824

9162140614

main91621-40614

9165161020

main91651-61020

91651A0818

main91651-A0818

24 parts on this diagram · 1 diagram in section
