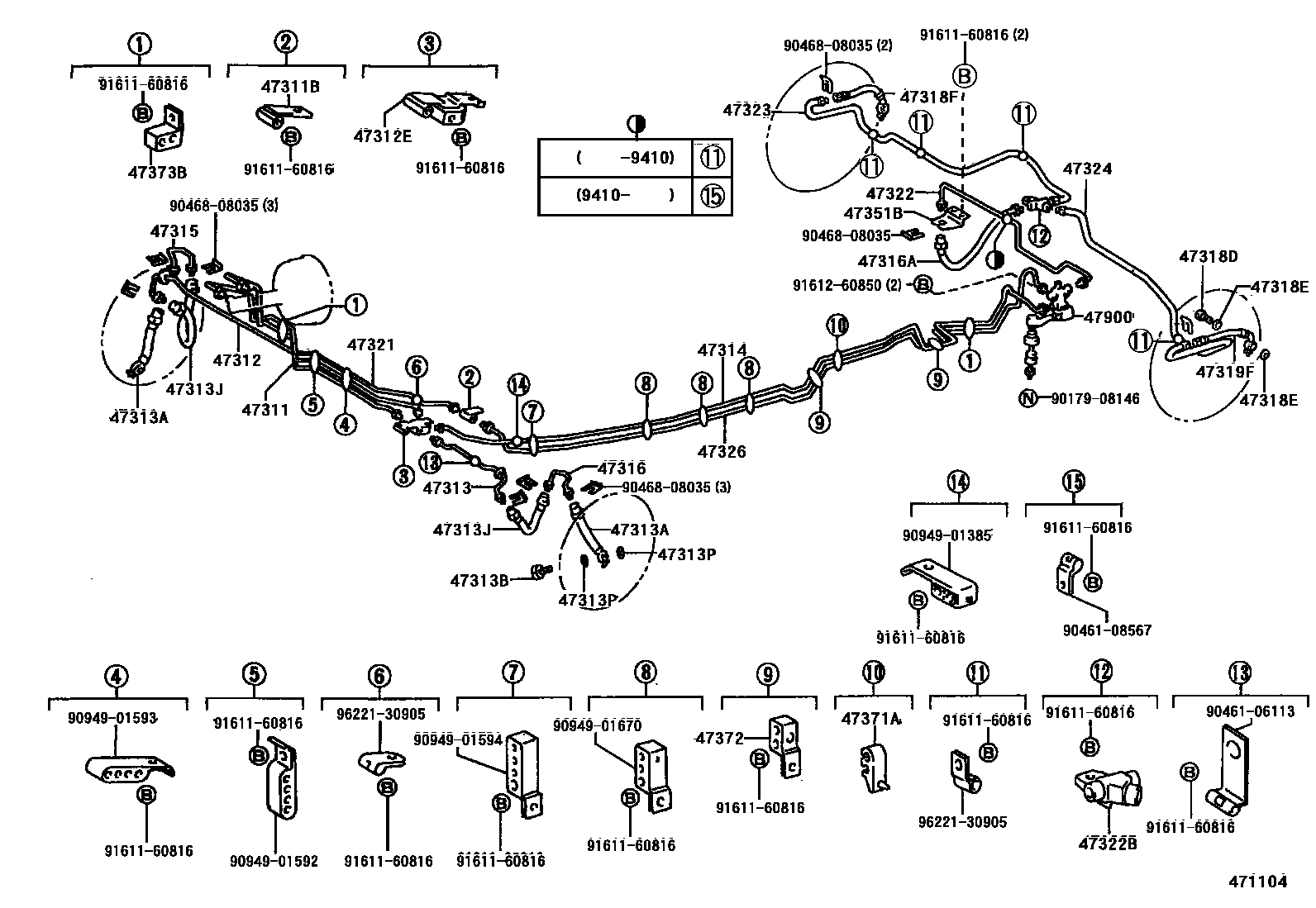

BRAKE TUBE & CLAMP

0001 1 0002 1��(ABS) 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1��(ABS) 0009 1��(ABS) 0010 1��(ABS) 0011 1 0012 1

47311TUBE, FRONT BRAKE, NO.1

main47311-28250iTCR10,20199302-199608

main47311-28260iTCR10,20199302-199408

main47311-28260iTCR11,21199005-199408

main47311-28400iTCR11,21199408-199608

main47311-28410iTCR10,20199408-199608

main47311-28411iTCR10,20..X199608-199801

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90412-10006iTCR10,20199302-199608

main90412-10178iTCR11,21199005-199801

main90412-10178iTCR10,20199302-199608

47312TUBE, FRONT BRAKE, NO.2

main47312-28140iTCR1#,2#199005-199408

main47312-28151iTCR10,20199302-199608

main47312-28230iTCR11,21199408-199608

main47312-28231iTCR1#,2#..SPC199608-199912

main47312-28250iTCR10,20199408-199608

main47312-28251iTCR10,20..X199608-199801

47312EWAY, NO.2(FOR FRONT BRAKE TUBE)

main90413-10248iTCR1#,2#199005-199306

main90414-10040iTCR10,20199302-199306

main90904-12033iTCR1#,2#..SPC199408-199912

main90904-13010iTCR10,20199306-199608

main90904-13010iTCR11,21199306-199408

main90904-14002iTCR10,20199306-199608

47313TUBE, FRONT BRAKE, NO.3

main47313-28140iTCR10,20199302-199608

main47313-28150iTCR1#,2#199005-199408

main47313-28230iTCR11,21199408-199608

main47313-28231iTCR1#,2#..SPC199608-199611

main47313-28232iTCR1#,2#..SPC199611-199912

main47313-28240iTCR10,20199408-199608

main47313-28241iTCR10,20..X199608-199801

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02604iTCR1#,2#199005-199608

main90947-02882iTCR1#,2#199608-199912

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10015iTCR1#,2#199005-199912

47313JHOSE, FLEXIBLE, NO.2(FOR FRONT)

main90947-02618iTCR11,21199005-199201

sub90947-02720

main90947-02720iTCR1#,2#199201-199912

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main90430-10074iTCR1#,2#199005-199912

47314TUBE, FRONT BRAKE, NO.4

main47314-28160iTCR10,20199302-199608

main47314-28170iTCR11,21199005-199108

main47314-28171iTCR11,21199108-199408

main47314-28230iTCR11,21199408-199608

47315TUBE, FRONT BRAKE, NO.5

main47315-28110iTCR1#,2#199005-199912

47316TUBE, FRONT BRAKE, NO.6

main47316-28030iTCR1#,2#199005-199912

47316AHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

main90947-02617iTCR10,20199302-199608

main90947-02883iTCR10,20199608-199912

47318TUBE, FRONT BRAKE, NO.8

main47318-28020iTCR1#,2#..EFI199005-199801

main47318-28060iTCR1#,2#..SPC199408-199912

47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)

main90401-10015iTCR1#,2#199005-199912

main90401-10058iTCR10,20199803-199912

47318EGASKET(FOR REAR FLEXIBLE HOSE)

main47389-50020iTCR10,20199803-199912

main90430-10074iTCR11,21199005-199912

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-02605iTCR11,21199005-199608

main90947-02606iTCR10,20199302-199608

sub90947-02898

main90947-02881iTCR11,21199608-199912

main90947-02898iTCR10,20199608-199801

main90947-02A39iTCR10,20199801-199912

47319TUBE, FRONT BRAKE, NO.9

main47319-28030iTCR11,21199408-199608

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-02605iTCR11,21199005-199608

main90947-02606iTCR10,20199302-199608

sub90947-02898

main90947-02881iTCR11,21199608-199912

main90947-02898iTCR10,20199608-199801

main90947-02A40iTCR10,20199801-199912

47321TUBE, REAR BRAKE, NO.1

main47321-28250iTCR10,20199302-199608

main47321-28260iTCR1#,2#199005-199408

main47321-28400iTCR11,21199408-199608

main47321-28401iTCR1#,2#..SPC199608-199912

main47321-28410iTCR10,20199408-199608

main47321-28411iTCR10,20..X199608-199801

47322TUBE, REAR BRAKE, NO.2

main47322-28150iTCR10,20199302-199410

main47322-28151iTCR10,20199410-199608

main47322-28160iTCR11,21199005-199608

47322BWAY, NO.2(FOR REAR BRAKE TUBE)

main90413-10245iTCR10,20199302-199912

main90413-10246iTCR11,21199005-199912

47323TUBE, REAR BRAKE, NO.3

main47323-28200iTCR10,20199302-199912

main47323-28210iTCR11,21199005-199408

sub47323-28330

main47323-28330iTCR11,21199408-199912

47324TUBE, REAR BRAKE, NO.4

main47324-28130iTCR10,20199302-199912

main47324-28140iTCR11,21199005-199912

47326TUBE, REAR BRAKE, NO.6

main47326-28091iTCR10,20199302-199608

main47326-28100iTCR11,21199005-199108

main47326-28101iTCR11,21199108-199408

main47326-28170iTCR11,21199408-199608

main47326-28171iTCR10,20..SPC199608-199912

main47326-28180iTCR11,21199608-199912

main47326-28200iTCR10,20..X199608-199801

47351BBRACKET, FLEXIBLE HOSE, NO.1

main47351-28060iTCR10,20199302-199912

47371ACLAMP, BRAKE TUBE, NO.1

main47371-28010iTCR1#,2#199005-199912

47372CLAMP, BRAKE TUBE, NO.2

main47372-25010iTCR1#,2#199005-199608

47373BCLAMP, BRAKE TUBE, NO.3

main47373-25010iTCR1#,2#199005-199912

47900VALVE ASSY, LOAD SENSING W/SPRING

main47900-28311iTCR10,20199302-199608

sub47900-28313

main47900-28340iTCR11,21199005-199608

sub47900-28341

9017908146

main90179-08146

9046106113

main90461-06113

9046108567

main90461-08567

9046808035

main90468-08035

9094901385

main90949-01385

9094901592

main90949-01592

9094901593

main90949-01593

9094901594

main90949-01594

9094901670

main90949-01670

9161160816

main91611-60816

9161260850

main91612-60850

9622130905

main96221-30905
