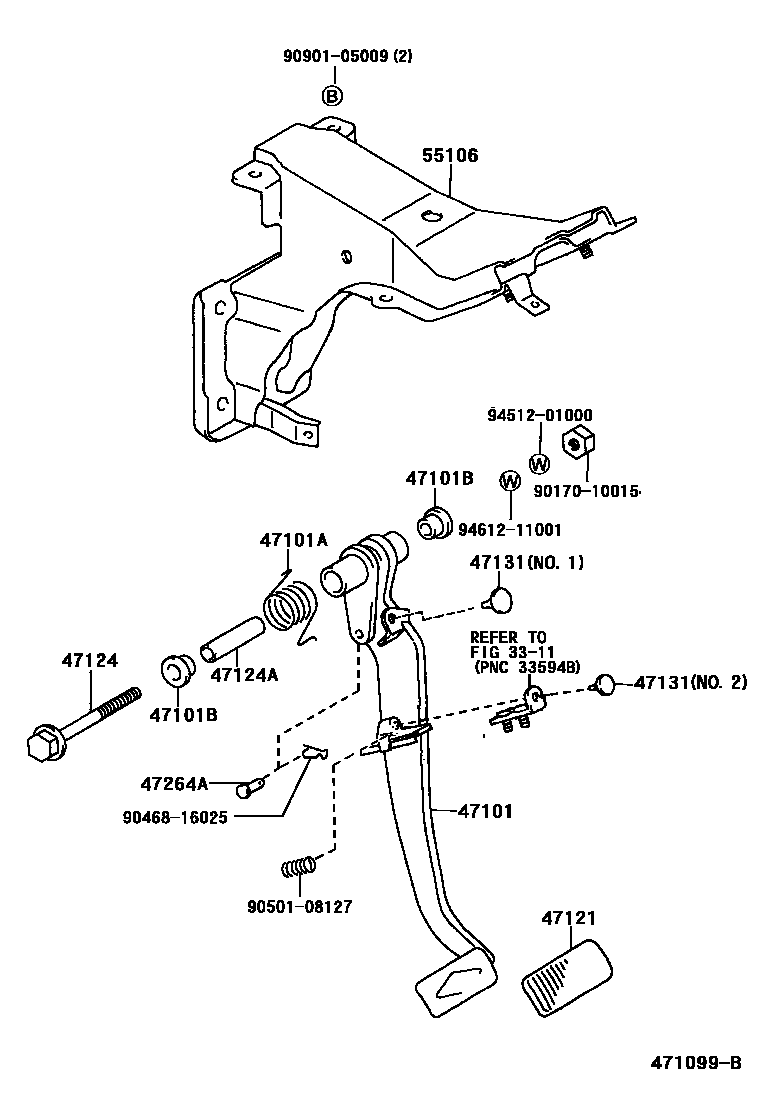

BRAKE PEDAL & BRACKET

0001 1 0002 1

3311

47101PEDAL SUB-ASSY, BRAKE

main47101-28150iTCR1#,2#199005-199608

main47101-28180iTCR1#,2#199608-199912

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90508-45004iTCR11,21199005-199108

main90949-03005iTCR1#,2#199108-199608

main90949-03029iTCR1#,2#199608-199912

47101BBUSH(FOR BRAKE PEDAL)

main90386-13015iTCR1#,2#199005-199912

47121PAD, BRAKE PEDAL

main47121-12011iTCR1#,2#199005-199912

sub47121-12020

47124SHAFT, BRAKE PEDAL

main90101-10043iTCR11,21199005-199108

main90105-10017iTCR1#,2#199108-199912

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main90387-10002iTCR1#,2#199005-199912

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06032iTCR11,21199005-199011

sub90541-06036

main90541-06032iTCR1#,2#199011-199308

sub90541-06036

main90541-06036iTCR1#,2#199308-199912

main90541-06049iTCR1#,2#199011-199912

47264APIN(FOR PUSH ROD)

main90240-10037iTCR1#,2#199005-199912

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-28170iTCR11,21199408-199608

main55106-28190iTCR10,20..X199608-199801

main55106-28200iTCR1#,2#..SPC199608-199912

main55106-95D01iTCR1#,2#..EFI199005-199608

9017010015

main90170-10015

9046816025

main90468-16025

9050108127

main90501-08127

9090105009

main90901-05009

9451201000

main94512-01000

9461211001

main94612-11001

16 parts on this diagram · 2 diagrams in section
