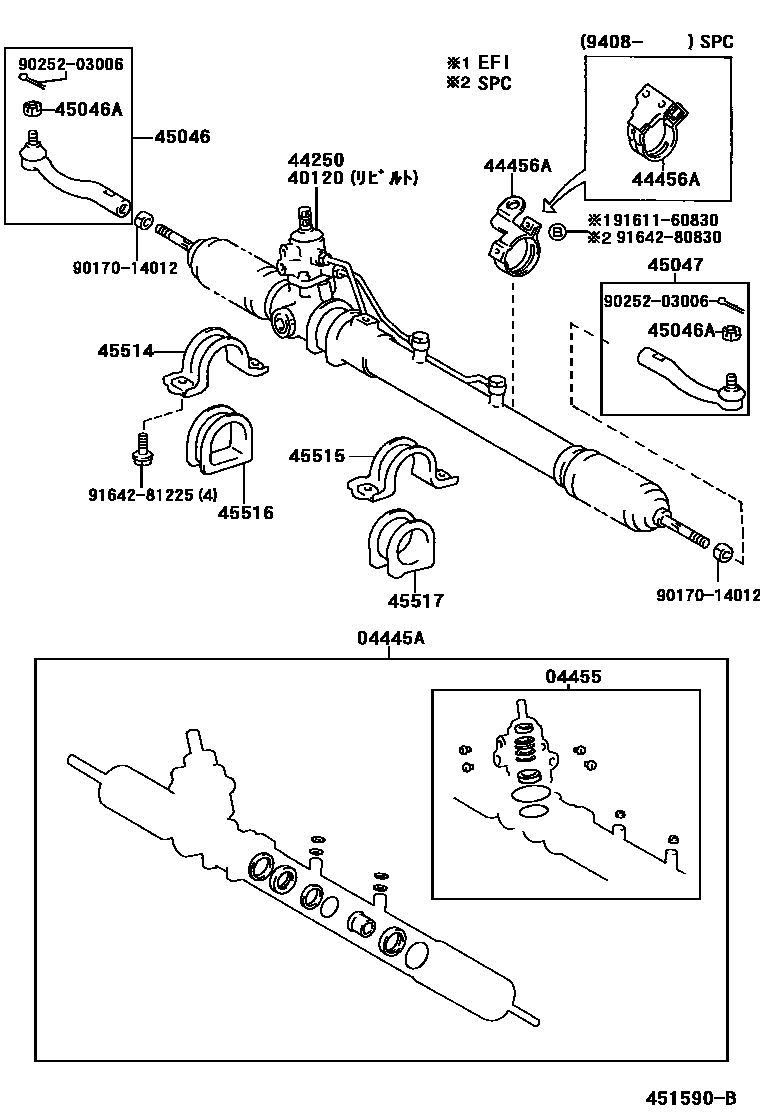

FRONT STEERING GEAR & LINK

0001 1 0002 1 0003 1

04445AGASKET KIT, POWER STEERING GEAR(FOR RACK & PINION)

main04445-28030iTCR1#,2#..EFI199005-199801

main04445-28060iTCR1#,2#..SPC199408-199912

04455GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE

main04455-28020iTCR1#,2#..EFI199005-199801

sub04455-20120

main04455-28040iTCR1#,2#..SPC199408-199912

40120GEAR ASSY,POWER STEERING,REBUILT

main40120-28180iTCR11,21199005-199108

main40120-28181iTCR1#,2#..EFI199108-199608

main40120-28183iTCR10,20..X199608-199801

main40120-28300iTCR11,21199408-199608

main40120-28302iTCR1#,2#199801-199912

44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)

main44250-28180iTCR11,21199005-199108

main44250-28181iTCR1#,2#..EFI199108-199608

main44250-28182iTCR10,20..X199608-199610

sub44250-28183

main44250-28183iTCR10,20..X199610-199801

main44250-28300iTCR11,21199408-199608

main44250-28301iTCR1#,2#..SPC199608-199610

sub44250-28302

main44250-28302iTCR1#,2#..SPC199610-199912

44456ARETAINER, POWER STEERING TUBE SUPPORT, NO.1

main44456-26020iTCR1#,2#..EFI199005-199608

main44456-28021iTCR10,20..X199608-199801

main44456-28030iTCR1#,2#..SPC199408-199912

45046END SUB-ASSY, TIE ROD, RH

main45046-29235iTCR1#,2#199005-199912

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028iTCR1#,2#199005-199912

45047END SUB-ASSY, TIE ROD, LH

main45047-29065iTCR1#,2#199005-199912

45514BRACKET, STEERING RACK HOUSING, NO.1

main45514-28030iTCR1#,2#199005-199912

45515BRACKET, STEERING RACK HOUSING, NO.2

main45515-28040iTCR1#,2#199005-199912

45516GROMMET, STEERING RACK HOUSING, NO.1

main45516-28030iTCR1#,2#199005-199912

45517GROMMET, STEERING RACK HOUSING, NO.2

main45517-28020iTCR1#,2#199005-199912

9017014012

main90170-14012

9025203006

main90252-03006

9161160830

main91611-60830

9164280830

main91642-80830

9164281225

main91642-81225

17 parts on this diagram · 3 diagrams in section
