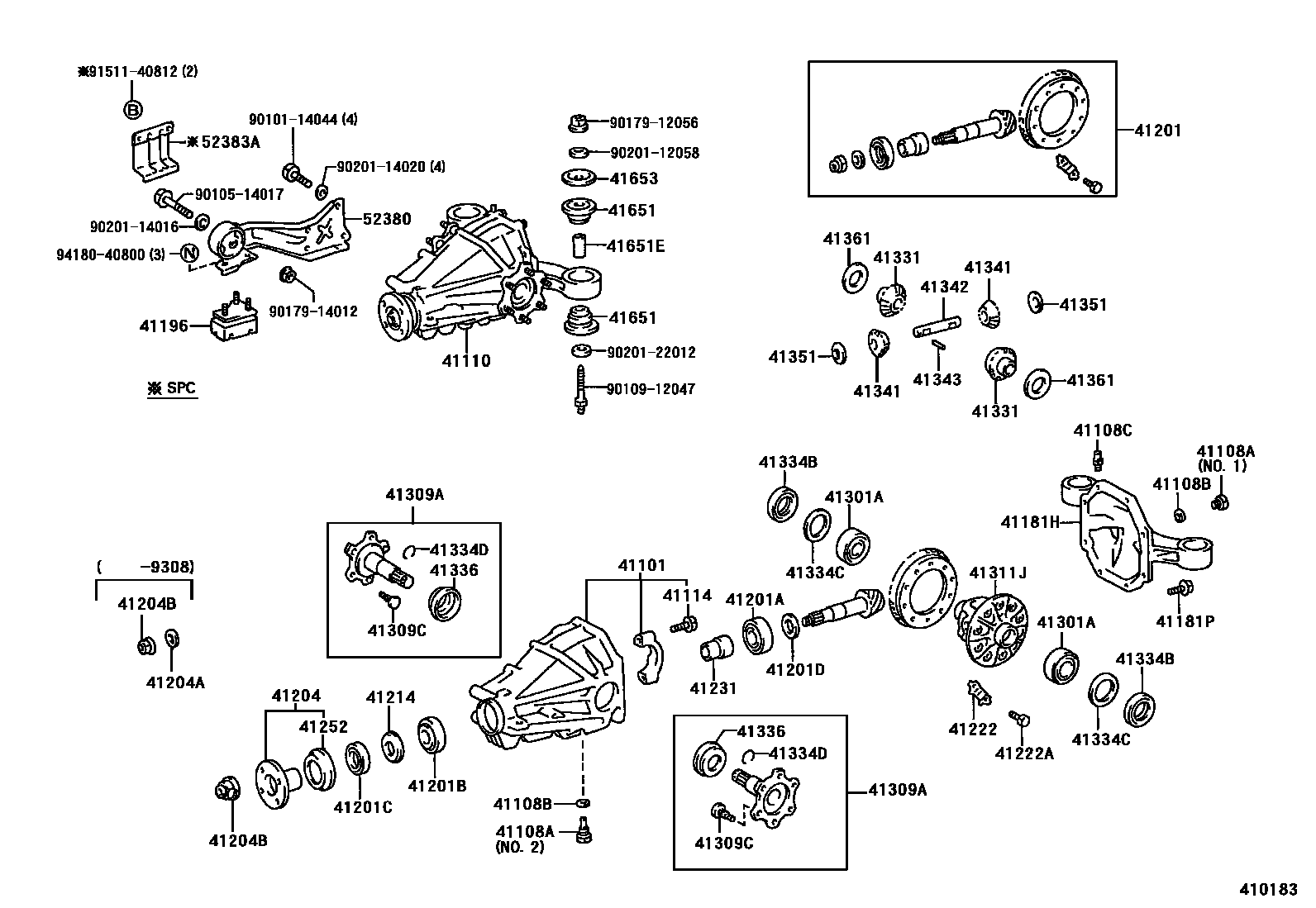

REAR AXLE HOUSING & DIFFERENTIAL

0001 1 0002 1 0003 1

41101CARRIER SUB-ASSY, DIFFERENTIAL, REAR

main41101-28030iTCR11,21199005-199912

main41101-30031iTCR10,20199302-199912

41108APLUG (FOR REAR DIFFERENTIAL CARRIER COVER)

main90341-18006iTCR11,21199005-199912

main90341-18030iTCR11,21199005-199912

41108BGASKET (FOR REAR DIFFERENTIAL CARRIER COVER)

main12157-10010iTCR11,21199005-199912

41108CPLUG, BREATHER (FOR REAR DIFFERENTIAL CARRIER COVER)

main90930-03031iTCR11,21199005-199912

41110CARRIER ASSY, DIFFERENTIAL, REAR

main41110-28070iTCR10,20..X199302-199801

main41110-28180iTCR11,21199608-199912

main41110-28200iTCR11,21199005-199408

main41110-28360iTCR11,21199408-199608

main41110-35290iTCR10,20..SPC199608-199912

41114BOLT, REAR DIFFERENTIAL BEARING CAP

main90105-12053iTCR10,20199302-199912

main90105-12163iTCR11,21199005-199912

41181HCOVER, REAR DIFFERENTIAL CARRIER

main41181-28030iTCR11,21199005-199912

41181PBOLT (FOR REAR DIFFERENTIAL CARRIER COVER SETTING)

main90105-10328iTCR11,21199310-199912

main90119-10307iTCR11,21199005-199310

41196DAMPER, REAR DIFFERENTIAL DYNAMIC

main41196-28020iTCR11,21199005-199108

main41196-28060iTCR11,21199408-199912

41201FINAL GEAR KIT, DIFFERENTIAL, REAR

main41201-80003iTCR1#,2#..SPC199608-199912

sub41201-80109

main41201-80004iTCR1#,2#..EFI199005-199801

main41201-80061iTCR11,21199408-199608

sub41201-80107

41201ABEARING (FOR REAR DRIVE PINION REAR)

main90366-35023iTCR1#,2#..G,STD,X199005-199912

main90366-35073iTCR10,20..SPC199302-199912

41201BBEARING (FOR REAR DRIVE PINION FRONT)

main90366-30022iTCR1#,2#..G,STD,X199005-199912

sub90366-30078

main90366-30055iTCR10,20..V199302-199912

41201CSEAL, OIL (FOR REAR DIFFERENTIAL CARRIER)

main90311-38010iTCR11,21199005-199912

main90311-38047iTCR10,20199512-199912

main90311-38133iTCR10,20199302-199512

sub90311-38047

41201DWASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION)

main90201-35396iTCR1#,2#199005-199912

main90201-35397iTCR1#,2#199005-199912

main90201-35398iTCR1#,2#199005-199912

main90201-35399iTCR1#,2#199005-199912

main90201-35400iTCR1#,2#199005-199912

main90201-35401iTCR1#,2#199005-199912

main90201-35402iTCR1#,2#199005-199912

main90201-35403iTCR1#,2#199005-199912

main90201-35404iTCR1#,2#199005-199912

main90201-35434iTCR1#,2#199005-199309

sub90201-35515

main90201-35435iTCR1#,2#199005-199309

sub90201-35516

main90201-35436iTCR1#,2#199005-199309

sub90201-35517

main90201-35437iTCR1#,2#199005-199309

sub90201-35518

main90201-35438iTCR1#,2#199005-199912

main90201-35439iTCR1#,2#199005-199912

main90201-35440iTCR1#,2#199005-199912

main90201-35441iTCR1#,2#199005-199912

main90201-35515iTCR1#,2#199309-199912

main90201-35516iTCR1#,2#199309-199912

main90201-35517iTCR1#,2#199309-199912

main90201-35518iTCR1#,2#199309-199912

41204FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR

main41204-35050iTCR1#,2#199005-199912

41204AWASHER, PLATE (FOR REAR DRIVE PINION)

main90201-18485iTCR1#,2#199005-199308

41204BNUT (FOR REAR DRIVE PINION)

main90179-18001iTCR1#,2#199005-199308

main90179-18020iTCR10,20199304-199912

41214SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL

main41214-30021iTCR1#,2#199005-199912

41222PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK

main41222-35030iTCR1#,2#199005-199912

41222ABOLT (FOR REAR DIFFERENTIAL RING GEAR SET)

main90101-11353iTCR1#,2#199005-199912

41231SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING

main41231-22010iTCR1#,2#199005-199912

41252DEFLECTOR, DUST (FOR REAR DIFFERENTIAL)

main41252-30010iTCR1#,2#199005-199912

41301ABEARING(FOR REAR DIFFERENTIAL CASE)

main90368-45066iTCR10,20199302-199912

main90368-50006iTCR11,21199005-199912

41309ASHAFT SUB-ASSY, REAR DIFFERENTIAL SIDE GEAR

main41309-28020iTCR11,21199005-199912

41309CBOLT (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT)

main90114-10028iTCR11,21199005-199912

41311JCASE, REAR DIFFERENTIAL

main41311-22060iTCR11,21199005-199912

main41311-30050iTCR10,20199302-199912

sub41311-28010

41331GEAR, REAR DIFFERENTIAL SIDE

main41331-14040iTCR11,21199111-199912

sub41331-14041

main41331-22041iTCR11,21199005-199111

sub41331-14040

main41331-30030iTCR10,20199302-199912

41334BSEAL, OIL (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT)

main90311-38011iTCR11,21199005-199912

41334CWASHER, PLATE (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT)

main90201-65007iTCR11,21199005-199912

main90201-65008iTCR11,21199005-199912

main90201-65009iTCR11,21199005-199912

main90201-65010iTCR11,21199005-199912

main90201-65011iTCR11,21199005-199912

main90201-65012iTCR11,21199005-199912

main90201-65013iTCR11,21199005-199912

main90201-65014iTCR11,21199005-199912

main90201-65015iTCR11,21199005-199912

main90201-65016iTCR11,21199005-199912

main90201-65017iTCR11,21199005-199912

main90201-65018iTCR11,21199005-199912

main90201-65019iTCR11,21199005-199912

main90201-65020iTCR11,21199005-199912

main90201-65021iTCR11,21199005-199912

main90201-65022iTCR11,21199005-199912

main90201-65023iTCR11,21199005-199912

main90201-65024iTCR11,21199005-199912

main90201-65025iTCR11,21199005-199912

main90201-65026iTCR11,21199005-199912

main90201-65027iTCR11,21199005-199912

main90201-65028iTCR11,21199005-199912

main90201-65029iTCR11,21199005-199912

41334DRING, SHAFT SNAP (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT)

main90521-29002iTCR11,21199005-199912

41336COVER, DUST(FOR REAR DIFFERENTIAL SIDE GEAR SHAFT)

main41336-22010iTCR11,21199005-199912

41341PINION, REAR DIFFERENTIAL

main41341-30020iTCR1#,2#199005-199912

sub41341-30050

41342SHAFT, REAR DIFFERENTIAL PINION

main41342-22020iTCR1#,2#199005-199912

sub41342-22021

41343PIN, REAR DIFFERENTIAL PINION SHAFT

main90250-06058iTCR1#,2#199005-199912

41351WASHER, REAR DIFFERENTIAL PINION THRUST

main41351-30060iTCR1#,2#199005-199912

41361WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1

main41361-30040iTCR1#,2#199005-199912

main41361-30050iTCR1#,2#199005-199912

main41361-30060iTCR1#,2#199005-199912

main41361-30070iTCR1#,2#199005-199912

41651CUSHION, REAR DIFFERENTIAL MOUNT, NO.1

main41651-28030iTCR11,21199005-199912

41651ECOLLAR (FOR REAR DIFFERENTIAL MOUNT CUSHION)

main90387-22007iTCR11,21199005-199912

41653STOPPER, REAR DIFFERENTIAL MOUNT, UPPER

main41653-28010iTCR11,21199005-199912

52380SUPPORT, REAR DIFFERENTIAL, NO.1

main52380-28010iTCR11,21199005-199408

main52380-28020iTCR11,21199408-199912

52383APROTECTOR, REAR DIFFERNTIAL SUPPORT

main52383-28040iTCR11,21199408-199912

9010114044

main90101-14044

9010514017

main90105-14017

9010912047

main90109-12047

9017912056

main90179-12056

9017914012

main90179-14012

9020112058

main90201-12058

9020114016

main90201-14016

9020114020

main90201-14020

9020122012

main90201-22012

9151140812

main91511-40812

9418040800

main94180-40800

52 parts on this diagram · 3 diagrams in section
