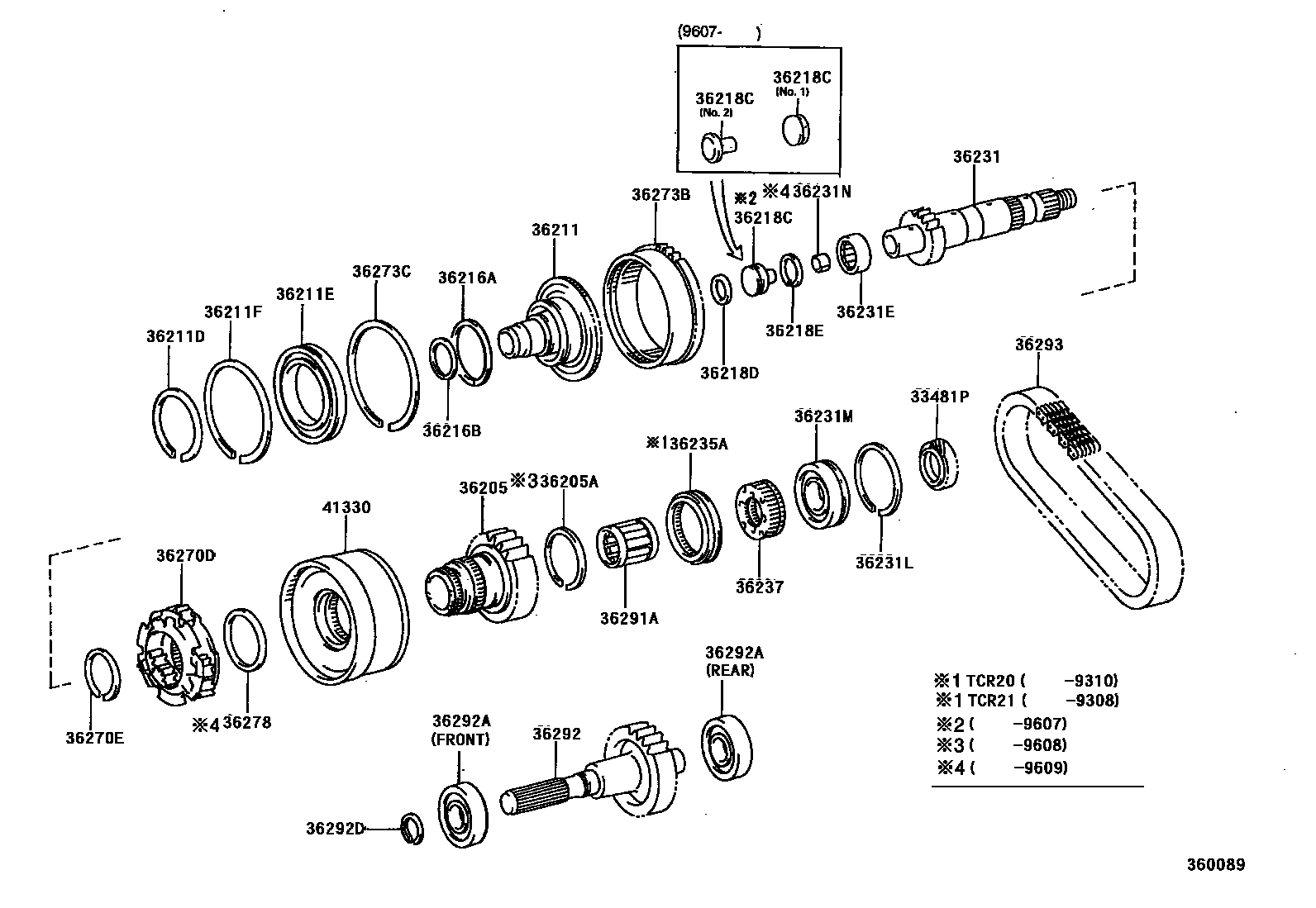

TRANSFER GEAR
33481PGEAR, SPEEDOMETER DRIVE (FOR TRANSFER)
36205ARING, SHAFT SNAP
36211SHAFT, TRANSFER INPUT
36211DRING, HOLE SNAP (FOR TRANSFER INPUT SHAFT)
36211EBEARING, RADIAL BALL (FOR TRANSFER INPUT SHAFT)
36211FRING, SHAFT SNAP (FOR TRANSFER INPUT SHAFT)
36216ARING, TRANSFER INPUT SHAFT SEAL, NO.1
36216BRING, TRANSFER INPUT SHAFT SEAL, NO.2
36218CPLUG, TRANSFER INPUT SHAFT
36218DRING, O (FOR TRANSFER INPUT SHAFT PLUG)
36218ERING, HOLE SNAP (FOR TRANSFER INPUT SHAFT PLUG)
36231SHAFT, TRANSFER OUTPUT, REAR
36231EBEARING, NEEDLE ROLLER (FOR TRANSFER OUTPUT SHAFT FRONT)
36231LRING, SHAFT SNAP (FOR TRANSFER OUTPUT SHAFT REAR)
36231MBEARING, RADIAL BALL (FOR TRANSFER OUTPUT SHAFT REAR)
36231NPIN, SLOTTED SPRING (FOR TRANSFER OUTPUT SHAFT REAR)
36235ASLEEVE (FOR TRANSFER IDLER GEAR)
36270ERING, SHAFT SNAP (FOR MANUAL TRANSFER PLANETARY GEAR)
36273BGEAR, MANUAL TRANSFER PLANETARY RING
36273CRING, HOLE SNAP (FOR MANUAL TRANSFER PLANETARY RING GEAR)
36278WASHER, MANUAL TRANSFER PLANETARY CARRIER
36291ABEARING (FOR TRANSFER DRIVE SPROCKET)
36292DRING SHAFT SNAP(FOR TRANSFER DRIVEN SPROCKET)
36293CHAIN, TRANSFER FRONT DRIVE
41330COUPLING ASSY, CENTER DIFFERENTIAL CONTROL
sub41330-28021
sub41330-28022
sub41330-26010
sub41330-28032
30 parts on this diagram · 1 diagram in section
