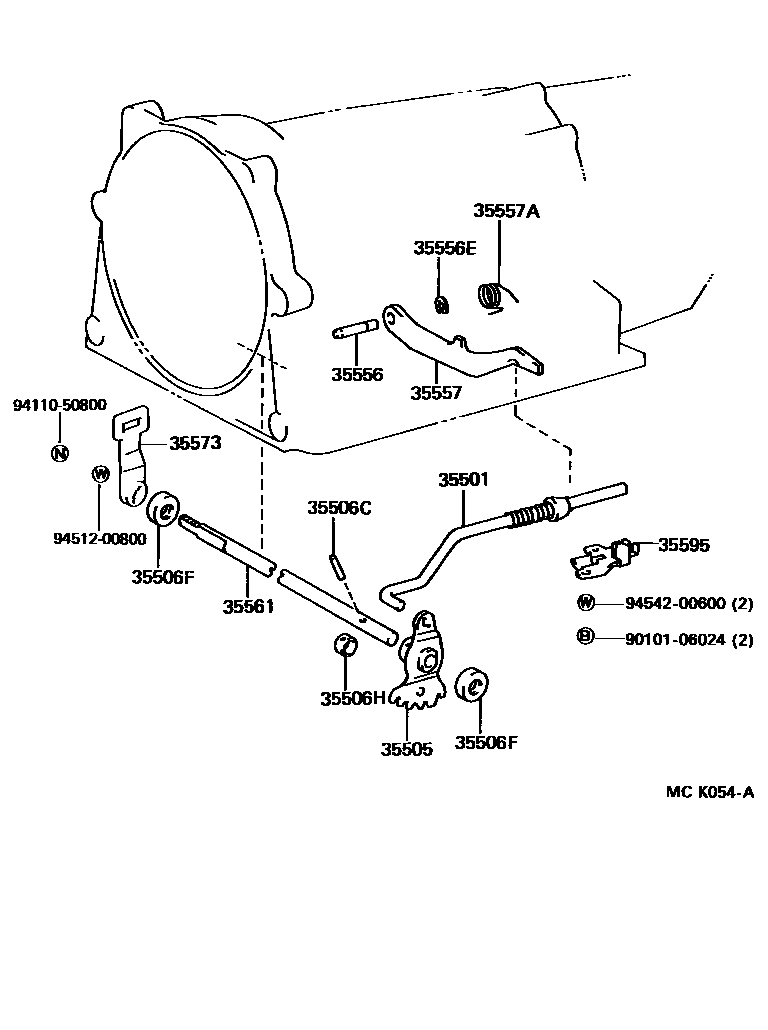

THROTTLE LINK & VALVE LEVER (ATM)

0001 1A46DE,A46DF 0002 1A46DE,A46DF 0003 1A340E,A340F 0004 1A340E,A340F

35501ROD SUB-ASSY, PARKING LOCK

main35501-26020iTCR1#,2#..EFI199005-199801

main35501-30010iTCR11,21199408-199608

main35501-60010iTCR1#,2#..SPC199608-199912

35505LEVER SUB-ASSY, MANUAL VALVE

main35505-28010iTCR1#,2#..EFI199005-199801

main35505-50010iTCR1#,2#..SPC199408-199912

35506CPIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER SHAFT)

main90254-04011iTCR1#,2#..EFI199005-199801

35506FSEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)

main90311-11001iTCR11,21199005-199107

sub90311-11003

main90311-11003iTCR1#,2#..EFI199107-199801

main90311-12002iTCR1#,2#..SPC199408-199912

35506HSPACER (FOR MANUAL VALVE LEVER SHAFT)

main90560-20003iTCR1#,2#..EFI199005-199801

sub90560-20025

35556SHAFT, PARKING LOCK PAWL

main35556-26010iTCR1#,2#..EFI199005-199801

main35556-30020iTCR1#,2#..SPC199408-199912

35556ERING, E (FOR PARKING LOCK PAWL SHAFT)

main90523-08021iTCR1#,2#199005-199912

35557PAWL, PARKING LOCK

main35557-26010iTCR1#,2#..EFI199005-199511

sub35557-26020

main35557-26020iTCR10,20..X199511-199801

main35557-30020iTCR11,21199408-199608

main35557-60020iTCR1#,2#..SPC199608-199912

35557ASPRING, TORSION (FOR PARKING LOCK PAWL)

main90508-21001iTCR1#,2#..EFI199005-199801

main90508-21002iTCR1#,2#..SPC199408-199912

35561SHAFT, MANUAL VALVE LEVER

main35561-30060iTCR1#,2#..EFI199005-199801

main35561-35010iTCR1#,2#..SPC199408-199912

35573LEVER, TRANSMISSION CONTROL SHAFT, LH

main35573-28010iTCR1#,2#..EFI199005-199801

main35573-28020iTCR1#,2#..SPC199408-199912

35595BRACKET, PARKING LOCK PAWL

main35595-30010iTCR11,21199408-199608

main35595-40010iTCR1#,2#..EFI199005-199801

main35595-60010iTCR1#,2#..SPC199608-199912

9010106024

main90101-06024

9411050800

main94110-50800

9451200800

main94512-00800

9454200600

main94542-00600

16 parts on this diagram · 4 diagrams in section
