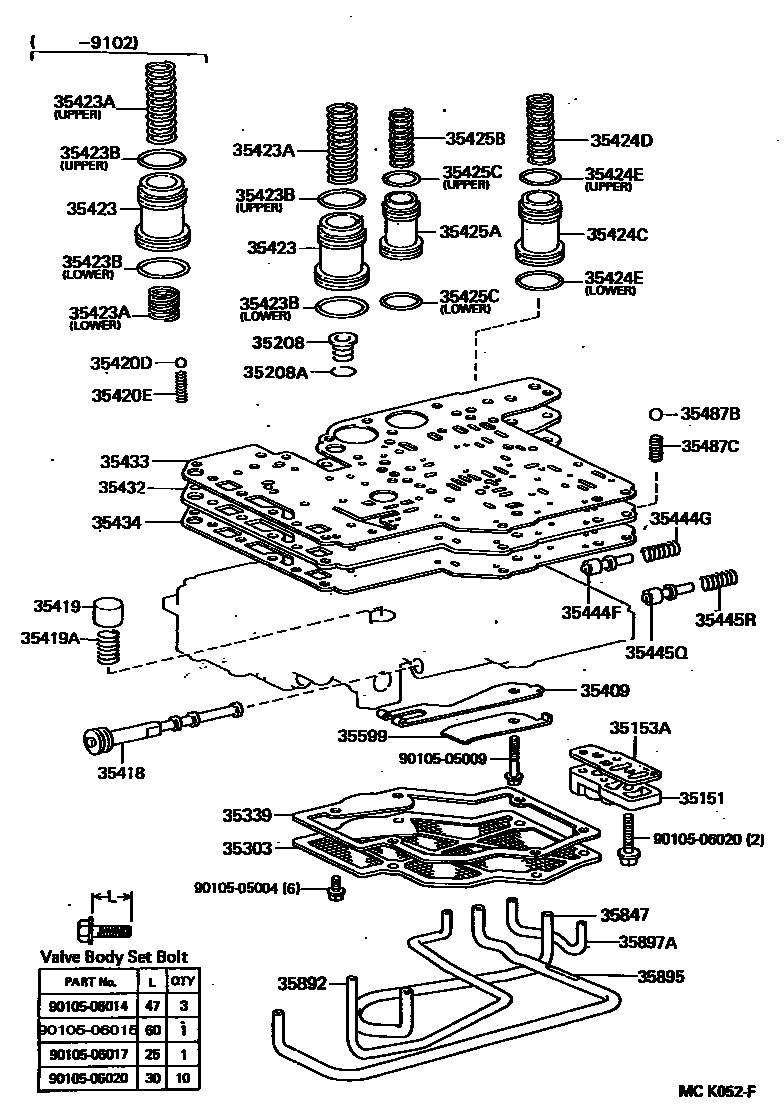

VALVE BODY & OIL STRAINER (ATM)

0001 1A46DE,A46DF 0002 1A46DE,A46DF 0003 1A46DE,A46DF 0004 1A340E,A340F 0005 1A340E,A340F 0006 1A340E,A340F 0007 1A340E,A340F

35151COVER, TRANSMISSION CASE, LOWER

main35151-30020iTCR1#,2#..EFI¥1,440199005-199801

35153AGASKET, TRANSMISSION CASE LOWER COVER

main35153-30010iTCR1#,2#..EFI¥240199005-199801

35208SPRING SUB-ASSY, B-2 ACCUMULATOR

main35208-26010iTCR1#,2#..EFI¥240199102-199801

main35208-30010iTCR1#,2#..SPC¥180199408-199912

35208ARING, HOLE SNAP (FOR B-2 ACCUMULATOR SPRING)

main90521-22004iTCR1#,2#¥100199102-199912

35303STRAINER SUB-ASSY, OIL

main35303-30060iTCR1#,2#..EFI¥2,240199005-199801

35339GASKET, OIL STRAINER

main35339-28030iTCR1#,2#..EFI¥460199012-199801

main35339-30060iTCR11,21¥380199005-199012

sub35339-28030¥460

35409SPRING SUB-ASSY, MANUAL DETENT

main35409-22020iTCR1#,2#..SPC¥870199408-199912

main35409-28010iTCR1#,2#..EFI¥870199005-199801

35418VALVE, MANUAL

main35418-30060iTCR1#,2#..EFI¥2,390199005-199801

main35418-30070iTCR2#..SPC¥3,670199408-199912

35419VALVE, CHECK, NO.1

main35419-12030iTCR1#,2#..SPC¥770199408-199906

main35419-22010iTCR1#,2#..EFI¥880199005-199801

35419ASPRING, COMPRESSION (FOR CHECK VALVE)

main90501-11039iTCR1#,2#..SPC¥140199408-199912

main90501-15015iTCR1#,2#..EFI¥140199005-199503

main90501-16083iTCR10,20..X¥200199503-199801

35420BODY ASSY, LOWER VALVE

main35420-28190iTCR10,20..X¥65,400199707-199709

main35420-28200iTCR10,20..X¥65,400199709-199801

main35420-30172iTCR1#,2#..EFI¥74,200199005-199707

35420DBALL (FOR LOWER VALVE BODY)

main35496-22030iTCR1#,2#..EFI¥390199005-199801

35420ESPRING (FOR LOWER VALVE BODY)

main90501-04727iTCR1#,2#..EFI¥220199005-199801

35423PISTON, B-2 ACCUMULATOR

main35421-22040iTCR11,21199005-199102

main35421-26010iTCR1#,2#..EFI¥1,350199102-199801

main35423-30030iTCR1#,2#..SPC¥1,490199408-199912

35423ASPRING, COMPRESSION (FOR B-2 ACCUMULATOR PISTON)

main90501-19007iTCR11,21¥200199005-199102

main90501-19008iTCR11,21¥250199005-199102

main90501-21014iTCR1#,2#..EFI¥260199102-199801

main90501-25026iTCR1#,2#..SPC¥270199408-199912

35423BRING, O (FOR B-2 ACCUMULATOR PISTON)

main90301-23010iTCR1#,2#..SPC¥130199707-199912

main90301-23194iTCR10,20..X¥400199005-199801

main90301-29187iTCR1#,2#..EFI¥620199005-199801

main90301-31002iTCR1#,2#..SPC¥270199408-199707

sub90301-31010¥160

main90301-31010iTCR1#,2#..SPC¥160199707-199912

35424CPISTON, C-1 ACCUMULATOR

main35421-22030iTCR1#,2#..EFI¥1,270199005-199801

35424DSPRING, COMPRESSION (FOR C-1 ACCUMULATOR PISTON)

main90501-20063iTCR1#,2#..EFI¥300199005-199801

35424ERING, O (FOR C-1 ACCUMULATOR PISTON)

main90301-22185iTCR1#,2#..EFI¥400199005-199801

main90301-26190iTCR1#,2#..EFI¥490199005-199801

35425SEAT, PRESSURE REGULATOR VALVE SLEEVE

main35425-14010iTCR1#,2#..EFI¥200199005-199801

35425APISTON, C-2 ACCUMULATOR

main35425-30020iTCR1#,2#..SPC¥1,130199408-199912

main35441-30010iTCR1#,2#..EFI¥1,240199005-199801

35425BSPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON)

main90501-21008iTCR1#,2#..SPC¥260199408-199912

main90501-23093iTCR1#,2#..SPC¥290199408-199912

main90501-27013iTCR1#,2#..EFI¥300199005-199801

35425CRING, O (FOR C-2 ACCUMULATOR PISTON)

main90301-18186iTCR1#,2#..EFI¥390199005-199801

sub90301-18010¥270

main90301-25003iTCR1#,2#..SPC¥270199408-199707

sub90301-25010¥180

main90301-25010iTCR1#,2#..SPC¥180199707-199912

main90301-26190iTCR1#,2#..EFI¥490199005-199801

main90301-31002iTCR1#,2#..SPC¥270199408-199707

sub90301-31010¥160

main90301-31010iTCR1#,2#..SPC¥160199707-199912

35432PLATE, VALVE BODY, NO.1

main35432-22100iTCR11,21¥3,030199005-199102

main35432-22101iTCR1#,2#¥3,450199102-199402

main35432-22102iTCR1#,2#..EFI¥3,450199402-199608

sub35432-22103¥3,480

main35432-22103iTCR10,20..X¥3,480199608-199801

main35432-28050iTCR2#..SPC¥3,470199408-199912

main35432-30291iTCR1#..SPC¥4,130199408-199912

35433GASKET, VALVE BODY, NO.1

main35433-22040iTCR1#,2#..EFI¥1,150199306-199610

sub35433-22041¥1,160

main35433-22041iTCR10,20..X¥1,160199610-199801

main35433-30064iTCR1#,2#..SPC¥760199408-199912

main35433-30072iTCR1#,2#¥1,080199005-199306

sub35433-22040¥1,150

35434GASKET, VALVE BODY, NO.2

main35434-22040iTCR1#,2#..EFI¥1,150199306-199610

sub35434-22041¥1,160

main35434-22041iTCR10,20..X¥1,160199610-199801

main35434-30062iTCR1#,2#¥1,080199005-199306

sub35434-22040¥1,150

main35434-30076iTCR1#,2#..SPC¥780199408-199912

35444FVALVE, INTERMEDIATE COAST MODULATOR

main35444-22010iTCR1#,2#..EFI¥850199005-199801

35444GSPRING (FOR INTERMEDIATE COAST MODULATOR VALVE)

main90501-09686iTCR1#,2#..EFI¥220199005-199801

35445QVALVE, LOW COAST MODULATOR

main35444-22010iTCR1#,2#..EFI¥850199005-199801

main35445-30011iTCR1#,2#..SPC¥720199408-199912

35445RSPRING, COMPRESSION (FOR LOW COAST MODULATOR VALVE)

main90501-08101iTCR1#,2#..SPC¥100199408-199912

main90501-08725iTCR1#,2#..EFI¥230199005-199801

35487BBALL, CHECK, NO.4

main35487-30010iTCR1#,2#..EFI¥320199005-199801

35487CSPRING, COMPRESSION (FOR CHECK BALL)

main90504-05006iTCR1#,2#..EFI¥170199005-199801

35599COVER, MANUAL DETENT SPRING

main35599-22020iTCR1#,2#..SPC¥400199408-199912

main35599-28010iTCR1#,2#..EFI¥410199005-199801

main35599-30020iTCR2#..SPC¥370199408-199706

35847TUBE, TRANSMISSION LUBE APPLY

main35847-30010iTCR1#,2#..EFI¥850199005-199801

35892TUBE, OVERDRIVE BRAKE

main35892-26010iTCR10,20..X¥1,160199703-199801

main35892-30030iTCR1#,2#..EFI¥1,140199005-199703

sub35892-26010¥1,160

35895TUBE, FRONT CLUTCH APPLY

main35895-30030iTCR1#,2#..EFI¥1,450199005-199801

35897ATUBE, 1ST & REVERSE BRAKE, NO.1

main35897-30010iTCR1#,2#..EFI¥940199005-199801

main35897-30020iTCR2#..SPC¥930199408-199912

9010505004

main90105-05004¥80

9010505009

main90105-05009¥80

9010506014

main90105-06014¥220

9010506015

main90105-06015¥180

9010506017

main90105-06017¥140

9010506020

main90105-06020¥200

43 parts on this diagram · 7 diagrams in section
