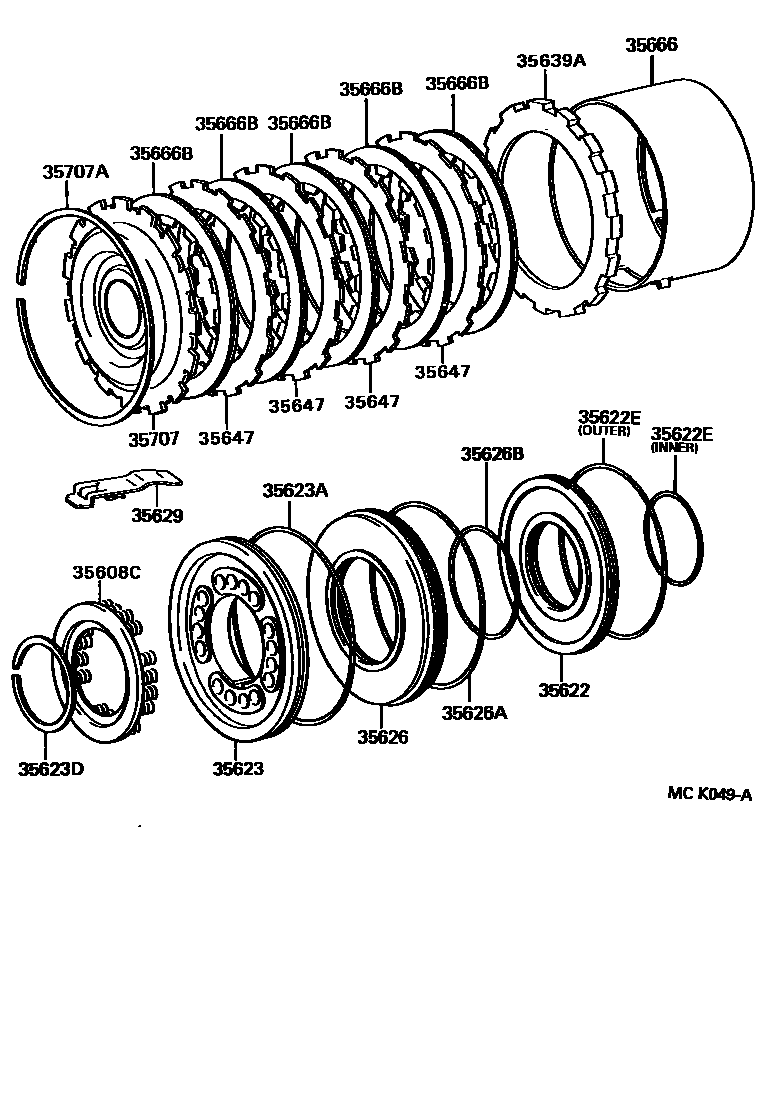

BRAKE NO.3, 1ST & REVERSE BRAKE (ATM)

0001 1A46DE,A46DF 0002 1A340E,A340F

35608CSPRING SUB-ASSY, NO.3 BRAKE PISTON RETURN

main35608-20020iTCR1#,2#..EFI199005-199801

35622PISTON, BRAKE, NO.2

main35622-22010iTCR1#,2#..EFI199005-199801

main35622-30010iTCR1#,2#..SPC199408-199912

35622ERING, O (FOR BRAKE PISTON NO.2)

main90301-57188iTCR1#,2#199005-199912

main90301-99193iTCR1#,2#199005-199912

35623PISTON, BRAKE, NO.3

main35623-22010iTCR1#,2#..EFI199005-199801

35623ARING, O (FOR BRAKE PISTON NO.3 )

main90301-99192iTCR1#,2#..EFI199005-199801

35623DRING, SHAFT SNAP (FOR BRAKE)

main90520-52262iTCR1#,2#..EFI199005-199801

35626SLEEVE, BRAKE REACTION

main35626-22010iTCR1#,2#..EFI199005-199801

main35626-30020iTCR1#,2#..SPC199408-199912

35626ARING (FOR BRAKE REACTION SLEEVE OUTER)

main90301-99200iTCR1#,2#..EFI199005-199801

sub90301-99109

35626BRING (FOR BRAKE REACTION SLEEVE INNER)

main90301-68191iTCR1#,2#199005-199912

sub90301-67005

35629SPRING (1ST & REVS BRAKE PLATE STOPPER)

main35629-22010iTCR1#,2#..EFI199005-199801

35639APLATE, CLUTCH PRESSURE (FOR BRAKE)

main35639-22010iTCR1#,2#..EFI199005-199801

35647PLATE, CLUTCH, NO.2

main35647-22010iTCR1#,2#..EFI199005-199801

35666TUBE, BRAKE APPLY

main35666-30010iTCR1#,2#..EFI199005-199801

35666BDISC, CLUTCH (FOR BRAKE)

main35633-30050iTCR11,21199005-199109

sub35633-30060

main35633-30060iTCR1#,2#..EFI199109-199801

35707RACE SUB-ASSY, 1 WAY CLUTCH, INNER

main35707-30030iTCR1#,2#..EFI199005-199801

35707ARING, HOLE SNAP (FOR 1 WAY CLUTCH INNER RACE)

main90521-99140iTCR1#,2#..EFI199005-199801

16 parts on this diagram · 2 diagrams in section
