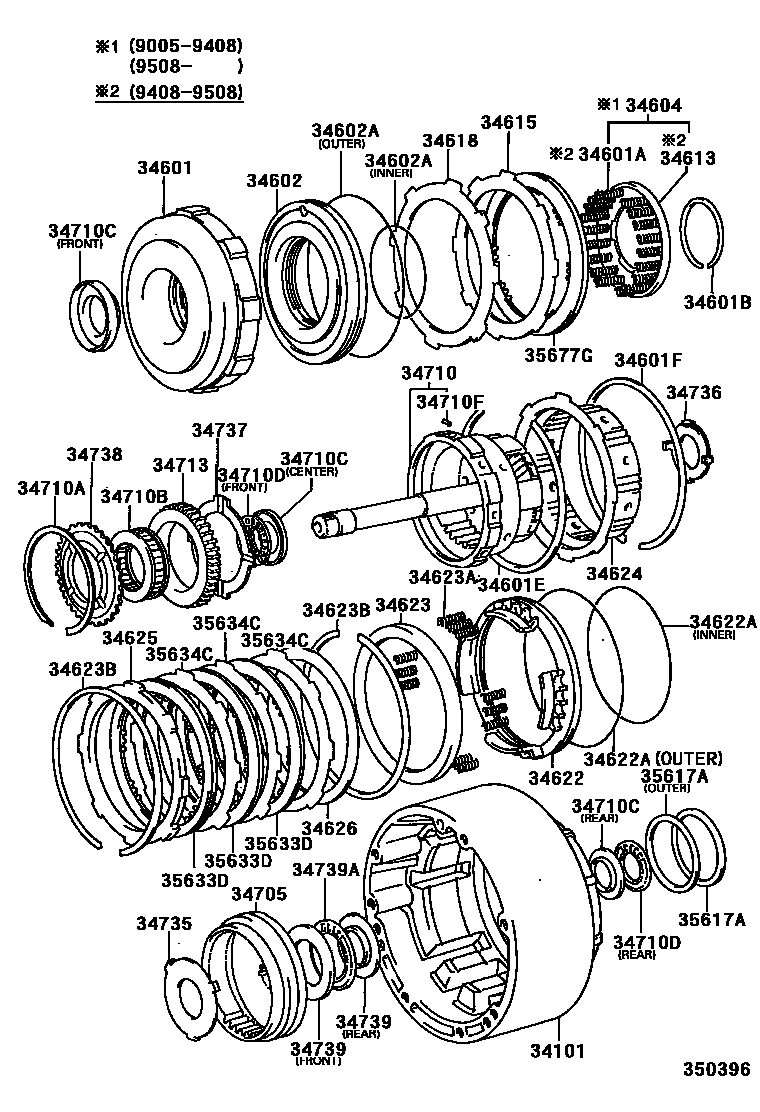

OVERDRIVE GEAR (ATM)

0001 1A46DE,A46DF 0002 1A340E,A340F

34101CASE SUB-ASSY, OVERDRIVE

main34101-30062iTCR1#,2#..EFI199005-199801

sub34101-22020

sub35617-43010

34601DRUM SUB-ASSY, OVERDRIVE DIRECT CLUTCH

main34601-28010iTCR1#,2#199005-199408

main34601-30022iTCR10,20..X199408-199801

main34601-30030iTCR1#,2#..SPC199408-199912

34601ASPRING, COMPRESSION (FOR OVERDRIVE DIRECT CLUTCH)

main90501-11023iTCR10,20199408-199508

34601BRING, SHAFT SNAP (FOR OVERDRIVE DIRECT CLUTCH)

main90520-52262iTCR1#,2#..EFI199005-199801

34601ERING, HOLE SNAP, NO.1 (FOR OVERDRIVE)

main90521-99146iTCR1#,2#..EFI199005-199801

34601FRING, HOLE SNAP, NO.2 (FOR OVERDRIVE)

main90521-99001iTCR1#,2#..EFI199005-199801

34602PISTON SUB-ASSY, OVERDRIVE DIRECT CLUTCH

main34602-30020iTCR1#,2#..SPC199408-199912

main34602-30030iTCR1#,2#..EFI199005-199801

34602ARING, O (FOR OVERDRIVE DIRECT CLUTCH PISTON)

main90301-57188iTCR1#,2#..EFI199005-199801

main90301-65005iTCR1#,2#..SPC199408-199707

sub90301-65006

main90301-65006iTCR1#,2#..SPC199707-199912

main90301-99016iTCR1#,2#..EFI199005-199801

main90301-99036iTCR1#,2#..SPC199408-199707

sub90301-99086

main90301-99086iTCR1#,2#..SPC199707-199912

34604SPRING SUB-ASSY, OVERDRIVE CLUTCH RETURN

main34604-22010iTCR1#,2#199005-199801

main34604-30010iTCR1#,2#..SPC199408-199912

34613SEAT, OVERDRIVE DIRECT CLUTCH RETURN SPRING

main34613-30010iTCR10,20199408-199508

34615FLANGE, OVERDRIVE CLUTCH

main34615-30020iTCR1#,2#..SPC199408-199912

sub34615-50050

main34615-30030iTCR1#,2#..SPC199408-199912

sub34615-50040

main34615-30040iTCR1#,2#..SPC199408-199912

sub34615-50030

main34615-30050iTCR1#,2#..SPC199408-199912

sub34615-22030

main34615-30060iTCR1#,2#..SPC199408-199912

sub34615-22020

main34615-30070iTCR1#,2#..SPC199408-199912

sub34615-22010

main35675-22010iTCR1#,2#..EFI199005-199801

sub35675-22140

34618PLATE, OVERDRIVE DIRECT CLUTCH CUSHION

main34618-30010iTCR1#,2#..EFI199005-199801

34622PISTON, OVERDRIVE BRAKE

main34622-30030iTCR2#..SPC199408-199912

main34622-30040iTCR1#,2#..EFI199005-199801

main34622-30070iTCR1#..SPC199408-199912

34622ARING, O (FOR OVERDRIVE BRAKE PISTON)

main90301-99008iTCR1#,2#..EFI199005-199801

sub90301-99103

main90301-99009iTCR1#,2#..EFI199005-199801

sub90301-99111

main90301-99035iTCR2#..SPC199408-199912

sub90301-99087

main90301-99037iTCR2#..SPC199408-199912

main90301-99063iTCR1#..SPC199408-199707

sub90301-99090

main90301-99064iTCR1#..SPC199408-199707

sub90301-99088

main90301-99088iTCR1#..SPC199707-199912

main90301-99090iTCR1#..SPC199707-199912

34623SEAT, OVERDRIVE BRAKE RETURN SPRING

main34623-30020iTCR1#,2#..EFI199005-199801

34623ASPRING, COMPRESSION (FOR OVERDRIVE BRAKE RETURN SPRING SEAT)

main90501-11023iTCR1#,2#..EFI199005-199801

34623BRING, HOLE SNAP (FOR OVERDRIVE BRAKE RETURN SPRING SEAT)

main90521-99004iTCR1#,2#199005-199801

34624HUB, OVERDRIVE BRAKE

main34624-26010iTCR1#,2#..EFI199308-199801

main34624-32010iTCR1#,2#199005-199308

sub34624-26010

34625FLANGE, OVERDRIVE BRAKE, NO.1

main34625-26010iTCR1#,2#..EFI199005-199801

sub34625-22020

main34625-30120iTCR1#,2#..SPC199408-199912

sub34625-22050

main34625-30130iTCR1#,2#..SPC199408-199912

sub34625-22040

main34625-30140iTCR1#,2#..SPC199408-199912

sub34625-50040

main34625-30150iTCR1#,2#..SPC199408-199912

sub34625-50030

main34625-30160iTCR1#,2#..SPC199408-199912

sub34625-50020

main34625-30170iTCR1#,2#..SPC199408-199912

sub34625-22030

main34625-30180iTCR1#,2#..SPC199408-199912

sub34625-22060

34626PLATE, OVERDRIVE BRAKE CUSHION

main34626-30050iTCR1#,2#..EFI199005-199801

34705GEAR SUB-ASSY, OVERDRIVE PLANETARY RING

main34705-30021iTCR1#,2#..EFI199005-199801

34710GEAR ASSY, OVERDRIVE PLANETARY

main34710-14011iTCR10,20..X199408-199801

main34710-22030iTCR2#..SPC199408-199912

sub34710-22031

sub34732-22011

sub35789-30052

sub90374-31008

main34710-28030iTCR1#,2#199005-199408

main34710-30030iTCR1#..SPC199408-199912

sub34710-30031

sub34732-22011

sub35789-30052

sub90374-31008

34710ARING, HOLE SNAP(FOR OVERDRIVE PLANETARY GEAR)

main90521-99003iTCR1#,2#..EFI199005-199801

34710BCLUTCH, 1WAY, NO.1(FOR OVERDRIVE)

main35791-28010iTCR1#,2#199005-199408

main35791-30030iTCR10,20..X199408-199801

34710CRACE, THRUST BEARING(FOR OVERDRIVE PLANETARY GEAR)

main34739-30031iTCR10,20..X199408-199801

main34739-30041iTCR1#,2#..EFI199005-199801

main35789-22010iTCR1#,2#..EFI199005-199801

main35789-30050iTCR1#,2#..SPC199408-199912

34710DBEARING, THRUST NEEDLE ROLLER(FOR OVERDRIVE PLANETARY GEAR)

main90374-23012iTCR1#,2#..EFI199005-199801

main90374-24001iTCR10,20..X199408-199801

main90374-25005iTCR1#,2#..SPC199408-199912

main90374-28008iTCR1#,2#..SPC199408-199906

main90374-31005iTCR1#,2#199906-199912

main90374-37003iTCR1#,2#199005-199408

34710FPIN, STRAIGHT(FOR OVERDRIVE PLANETARY GEAR)

main90250-03024iTCR1#,2#..EFI199005-199801

34713RACE, 1 WAY CLUTCH OUTER (FOR OVERDRIVE)

main34713-28010iTCR1#,2#199005-199408

main34713-30020iTCR10,20..X199408-199801

main34713-32010iTCR1#,2#..SPC199408-199912

34735WASHER, OVERDRIVE PLANETARY GEAR THRUST, NO.1

main34735-30020iTCR1#,2#..EFI199005-199801

34736WASHER, OVERDRIVE PLANETARY GEAR THRUST, NO.2

main34736-30010iTCR1#,2#..EFI199005-199801

34737WASHER, OVERDRIVE PLANETARY GEAR THRUST, NO.3

main34737-28010iTCR1#,2#199005-199408

main34737-30020iTCR10,20..X199408-199801

main34737-30030iTCR1#,2#..SPC199408-199912

34738WASHER, OVERDRIVE PLANETARY GEAR THRUST, NO.4

main34738-28010iTCR1#,2#199005-199408

main34738-30020iTCR10,20..X199408-199801

34739RACE, THRUST BEARING(FOR OVERDRIVE)

main34739-30020iTCR1#,2#..EFI199005-199801

main35789-22030iTCR1#,2#..EFI199005-199801

34739ABEARING, THRUST NEEDLE ROLLER(FOR OVERDRIVE)

main90374-28014iTCR1#,2#..EFI199005-199801

35617ARING, CLUTCH DRUM OIL SEAL (FOR OVERDRIVE)

main35617-16010iTCR1#,2#..EFI199005-199801

main35617-30020iTCR1#,2#..SPC199408-199912

35633DDISC, CLUTCH (FOR OVERDRIVE DIRECT CLUTCH)

main35633-30040iTCR1#,2#..SPC199408-199912

sub35633-14010

main35677-30040iTCR1#,2#..EFI199005-199608

sub35677-43010

main35677-43010iTCR10,20..X199608-199801

35634CPLATE, CLUTCH (FOR OVERDRIVE DIRECT CLUTCH)

main34616-30010iTCR1#,2#..SPC199408-199912

main34634-30010iTCR10,20..X199005-199801

main35634-30080iTCR10,20199005-199801

35677GDISC, CLUTCH, NO.3 (FOR OVERDRIVE)

main35677-30030iTCR10,20199408-199508

sub35677-30160

main35677-30120iTCR11,21199005-199206

sub35677-30140

main35677-30140iTCR1#,2#199206-199801

38 parts on this diagram · 2 diagrams in section
