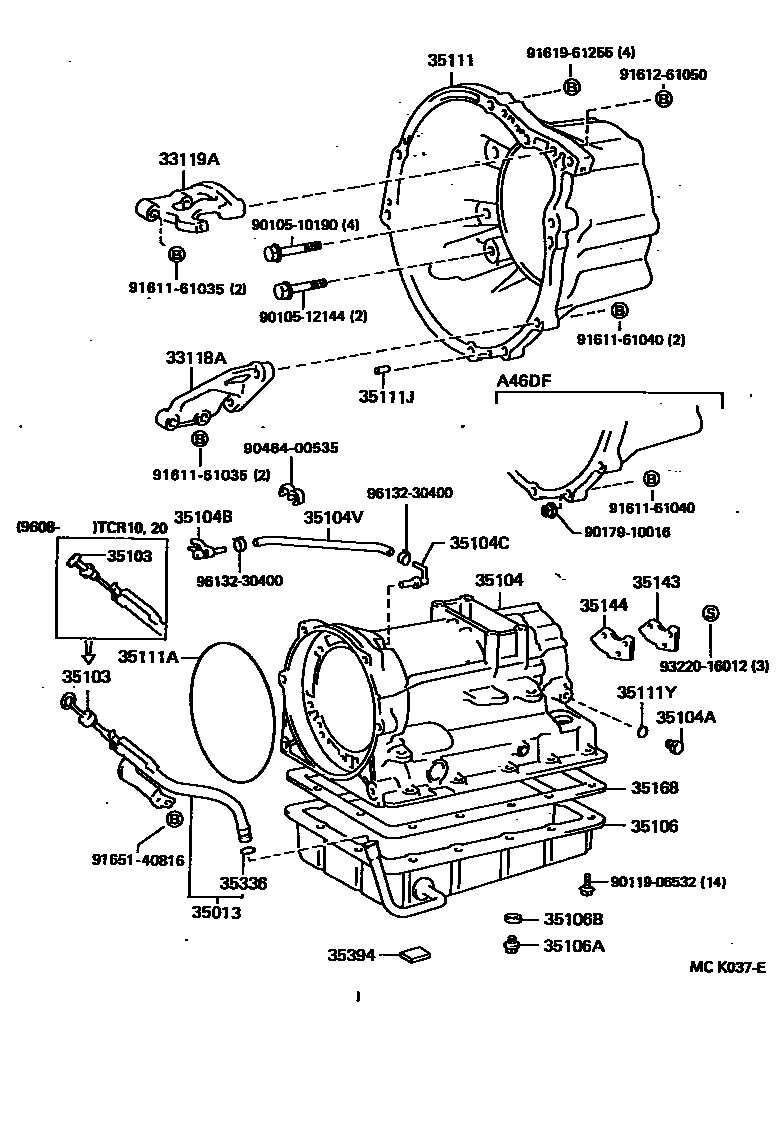

TRANSMISSION CASE & OIL PAN (ATM)

0001 1A46DE,A46DF 0002 1A340E 0003 1A340E,A340F

33118APLATE, STIFFENER, RH(ATM)

main33118-28030iTCR1#..EFI199005-199801

main33118-28050iTCR1#..SPC199408-199912

33119APLATE, STIFFENER, LH(ATM)

main33119-28030iTCR1#,2#199005-199801

sub33119-28031

main33119-28031iTCR1#,2#199801-199912

35013TUBE SUB-ASSY, TRANSMISSION OIL FILLER

main35013-28060iTCR11,21199005-199112

sub35013-28061

sub35103-28031

main35013-28061iTCR1#,2#..EFI199112-199608

main35013-28062iTCR10,20..X199608-199801

main35013-28110iTCR11,21199408-199608

main35013-28111iTCR1#,2#..SPC199608-199912

35103GAGE SUB-ASSY, TRANSMISSION OIL LEVEL

main35103-28030iTCR11,21199005-199112

sub35103-28031

main35103-28031iTCR1#,2#..EFI199112-199608

main35103-28032iTCR10,20..X199608-199801

main35103-28090iTCR11,21199408-199608

main35103-28091iTCR1#,2#..SPC199608-199912

35104CASE SUB-ASSY, AUTOMATIC TRANSMISSION

main35104-28010iTCR1#199005-199408

sub35104-28011

main35104-28011iTCR10..X199408-199801

main35104-28020iTCR2#199005-199408

sub35104-28021

main35104-28021iTCR20..X199408-199801

main35104-28040iTCR1#,2#..SPC199408-199912

35104APLUG, AUTOMATIC TRANSMISSION CASE

main90341-08001iTCR1#,2#199005-199912

35104BPLUG, BREATHER, NO.1 (ATM)

main90930-03098iTCR2#..SPC199408-199912

main90930-03099iTCR1#,2#..EFI199005-199801

main90930-03099iTCR2#..SPC199408-199912

main90930-03108iTCR1#..SPC199408-199912

35104CPLUG, BREATHER, NO.2 (ATM)

main90930-03122iTCR1#,2#..EFI199005-199801

35104VHOSE (FOR BREATHER PLUG)

main90445-11084iTCR11,21199005-199204

sub90445-11090

main90445-11096iTCR1#,2#..EFI199204-199801

main90445-11118iTCR2#..SPC199408-199912

35106PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL

main35106-28010iTCR1#..EFI199005-199411

main35106-28020iTCR1#,2#..SPC199408-199912

main35106-28040iTCR10..X199411-199801

sub35106-28010

main35107-28030iTCR2#..EFI199005-199411

sub35107-28050

main35107-28050iTCR20..X199411-199801

35106APLUG SUB-ASSY, DRAIN (ATM)

main90341-10006iTCR1#,2#199005-199912

sub90341-10011

35106BGASKET, DRAIN PLUG (ATM)

main35178-30010iTCR1#,2#199005-199912

35111HOUSING, AUTOMATIC TRANSMISSION

main35111-28020iTCR1#,2#199005-199401

sub35111-28060

main35111-28050iTCR1#,2#..SPC199408-199912

main35111-28060iTCR1#,2#..EFI199401-199801

35111ARING, O (FOR AUTOMATIC TRANSMISSION HOUSING)

main90301-99054iTCR1#,2#..EFI199005-199801

35111JPIN, STRAIGHT (FOR AUTOMATIC TRANSMISSION CASE)

main90250-10026iTCR1#,2#199005-199912

35111YRING, O (FOR AUTOMATIC TRANSMISSION CASE)

main90301-06196iTCR1#,2#199005-199912

35143COVER, TRANSMISSION CASE, REAR

main35143-22010iTCR1#,2#..EFI199005-199801

35144GASKET, TRANSMISSION CASE REAR COVER

main35144-22010iTCR11,21199005-199012

sub35144-28010

main35144-28010iTCR1#,2#..EFI199012-199801

35168GASKET, AUTOMATIC TRANSMISSION OIL PAN

main35168-22011iTCR1#,2#..EFI199005-199801

35336RING, O (FOR TRANSMISSION OIL FILLER TUBE)

main90301-09173iTCR1#,2#199005-199912

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-30011iTCR11,21199005-199912

9010510190

main90105-10190

9010512144

main90105-12144

9011906532

main90119-06532

9017910016

main90179-10016

9046400535

main90464-00535

9161161035

main91611-61035

9161161040

main91611-61040

9161261050

main91612-61050

9161961255

main91619-61255

9165140816

main91651-40816

9322016012

main93220-16012

9613230400

main96132-30400

33 parts on this diagram · 3 diagrams in section
