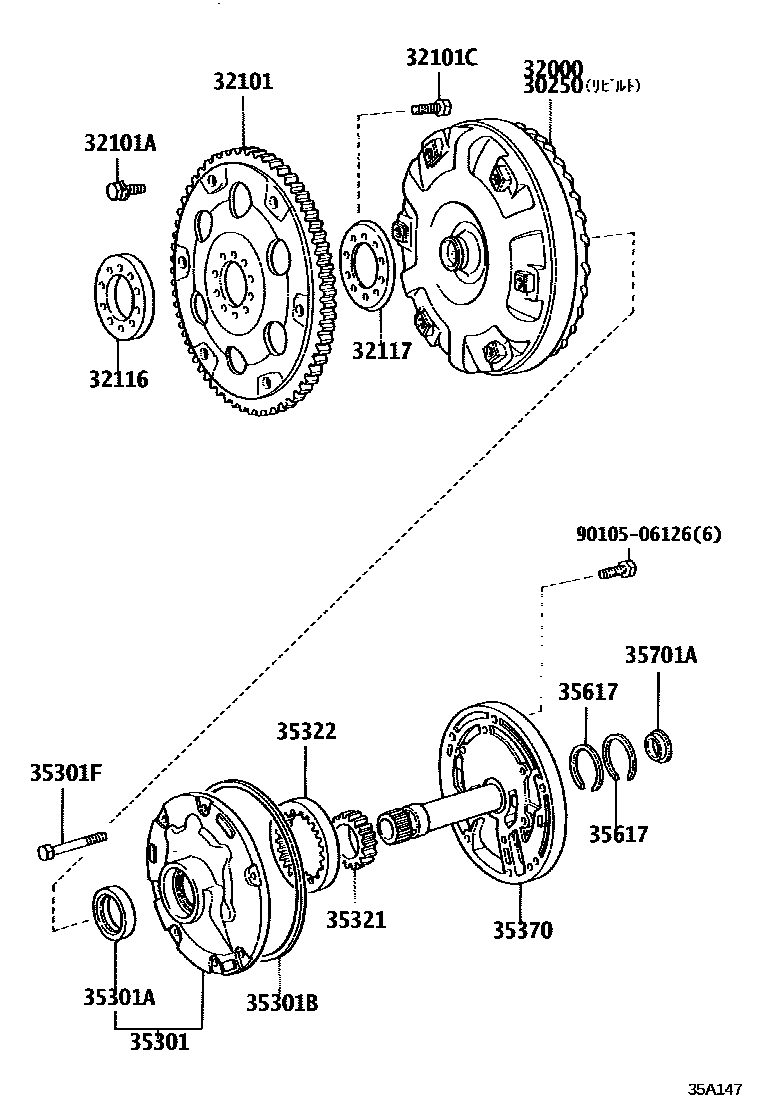

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

0001 1A46DE,A46DF 0002 1A340E,A340F

30250CONVERTER ASSY, TORQUE, REBUILT

main30250-28030iTCR1#,2#199308-199408

main30250-28060iTCR10,20..X199408-199801

main30250-28080iTCR1#,2#..SPC199608-199912

32000CONVERTER ASSY, TORQUE

main32000-28030iTCR1#,2#199005-199408

main32000-28060iTCR10,20..X199408-199801

main32000-28070iTCR11,21199408-199608

main32000-28080iTCR1#,2#..SPC199608-199912

32101GEAR SUB-ASSY, DRIVE PLATE & RING

main32101-26010iTCR1#,2#199005-199912

32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90119-09009iTCR1#,2#199005-199912

main90119-09010iTCR1#,2#199005-199912

32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90105-10276iTCR1#,2#199005-199912

32116SPACER, DRIVE PLATE, FRONT

main32116-26010iTCR1#,2#199005-199912

32117SPACER, DRIVE PLATE, REAR

main32117-26010iTCR1#,2#199005-199912

35301BODY SUB-ASSY, FRONT OIL PUMP

main35301-14010iTCR1#,2#..EFI199005-199801

main35301-30040iTCR1#,2#..SPC199408-199912

35301ASEAL, OIL (FOR FRONT OIL PUMP)

main90311-38020iTCR1#,2#..EFI199005-199801

main90311-38029iTCR1#,2#..SPC199408-199912

sub90311-38020

35301BRING, O (FOR FRONT OIL PUMP BODY)

main90301-99010iTCR1#,2#..EFI199005-199801

main90301-99033iTCR1#,2#..SPC199408-199912

35301FBOLT (FOR FRONT OIL PUMP SETTING)

main90105-08091iTCR1#,2#..SPC199408-199912

main90105-08137iTCR1#,2#..EFI199005-199801

35321GEAR, FRONT OIL PUMP DRIVE

main35321-12070iTCR1#,2#..SPC199408-199912

main35321-12080iTCR1#,2#..SPC199408-199912

main35321-12090iTCR1#,2#..SPC199408-199912

main35321-12100iTCR1#,2#..SPC199408-199912

main35321-12110iTCR1#,2#..SPC199408-199912

main35321-14010iTCR2#199005-199308

sub35321-22020

sub35321-22030

sub35321-22040

sub35321-22050

sub35321-22060

main35321-22020iTCR1#,2#..EFI199005-199801

main35321-22030iTCR1#,2#..EFI199005-199801

main35321-22040iTCR1#,2#..EFI199005-199801

main35321-22050iTCR1#,2#..EFI199005-199801

main35321-22060iTCR1#,2#..EFI199005-199801

35322GEAR, FRONT OIL PUMP DRIVEN

main35322-12060iTCR1#,2#..SPC199408-199912

main35322-12070iTCR1#,2#..SPC199408-199912

main35322-12080iTCR1#,2#..SPC199408-199912

main35322-12090iTCR1#,2#..SPC199408-199912

main35322-12100iTCR1#,2#..SPC199408-199912

main35322-14010iTCR2#199005-199308

sub35322-22020

sub35322-22030

sub35322-22040

sub35322-22050

sub35322-22060

main35322-22020iTCR1#,2#..EFI199005-199801

main35322-22030iTCR1#,2#..EFI199005-199801

main35322-22040iTCR1#,2#..EFI199005-199801

main35322-22050iTCR1#,2#..EFI199005-199801

main35322-22060iTCR1#,2#..EFI199005-199801

35370SHAFT ASSY, STATOR

main35370-14012iTCR1#,2#..EFI199005-199801

main35370-30031iTCR1#,2#..SPC199408-199912

35617RING, CLUTCH DRUM OIL SEAL

main35617-30020iTCR1#,2#..SPC199408-199912

main35617-32010iTCR1#,2#..EFI199005-199801

35701ABEARING, THRUST (FOR INPUT SHAFT FRONT)

main90374-25003iTCR1#,2#..EFI199005-199801

9010506126

main90105-06126

17 parts on this diagram · 2 diagrams in section
