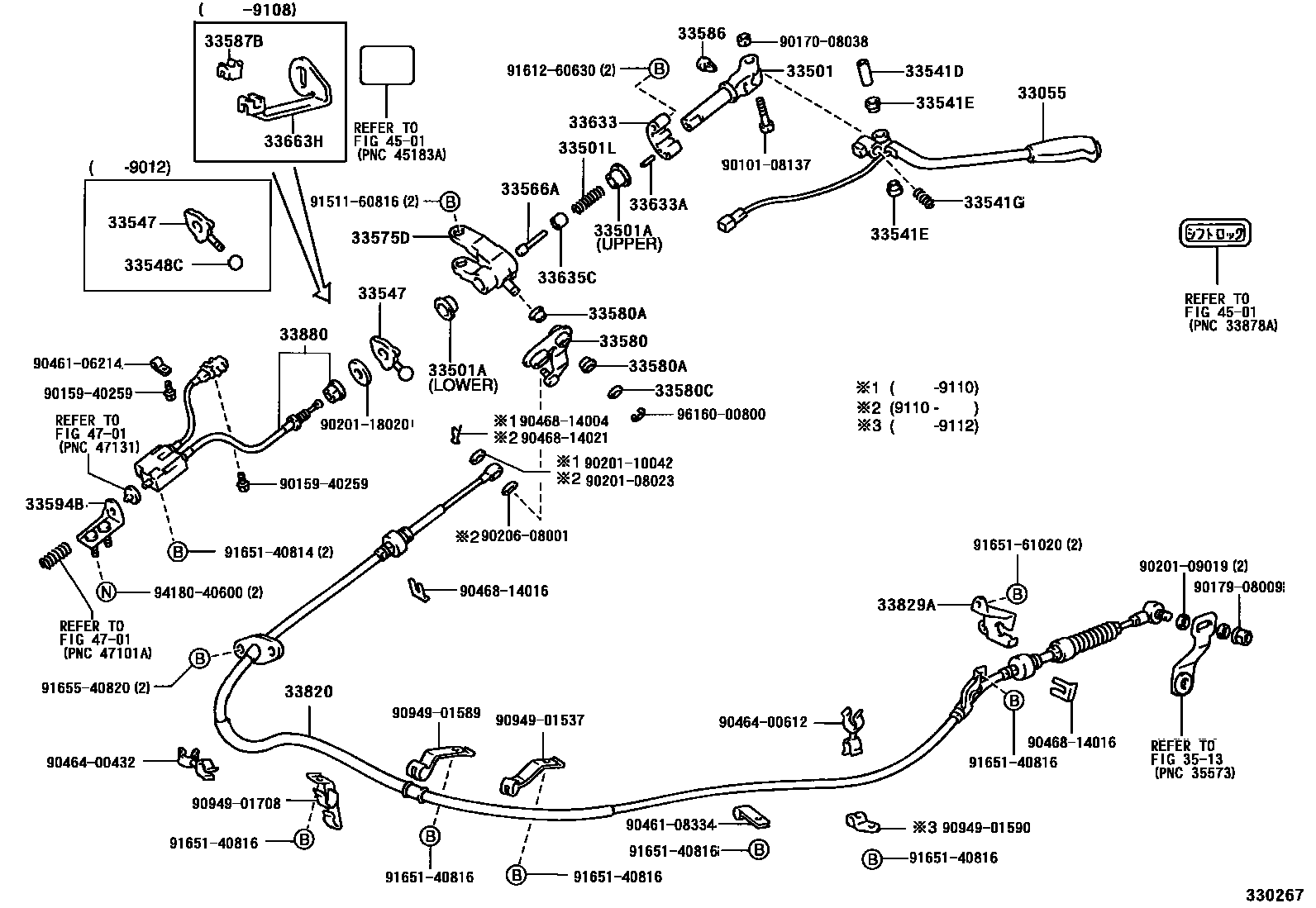

CONTROL SHAFT & CROSSSHAFT

0001 1 0002 1

33055LEVER SUB-ASSY, COLUMN SHIFT

main33055-28091iTCR11,21199005-199108

main33055-28092iTCR1#,2#199108-199608

main33055-28190iTCR1#,2#199608-199801

sub33055-28191

sub33586-28012

main33055-28191iTCR1#,2#199801-199912

33501SHAFT SUB-ASSY, CONTROL (FOR COLUMN SHIFT)

main33501-28160iTCR1#,2#199005-199912

33501ABUSH (FOR COLUMN SHIFT CONTROL SHAFT)

main90386-18003iTCR1#,2#199005-199912

main90386-18004iTCR1#,2#199005-199912

33501LSPRING, COMPRESSION (FOR COLUMN SHIFT CONTROL SHAFT)

main90501-06077iTCR1#,2#199108-199912

main90501-07097iTCR11,21199005-199108

33541DCOLLAR (FOR COLUMN SHIFT LEVER)

main90387-08112iTCR1#,2#199005-199912

33541EBUSH (FOR COLUMN SHIFT LEVER)

main90386-12013iTCR1#,2#199005-199303

main90386-12034iTCR1#,2#199303-199912

33541GSPRING, COMPRESSION (FOR COLUMN SHIFT LEVER)

main90501-16130iTCR11,21199005-199301

sub90905-01008

sub33586-28011

main90905-01008iTCR1#,2#199301-199912

33547LEVER, COLUMN SHIFT, NO.3

main33547-28010iTCR11,21199005-199012

sub33547-28011

main33547-28011iTCR11,21199012-199108

main33547-28040iTCR1#,2#199108-199912

33548CBUSH, SHIFT LEVER (FOR COLUMN SHIFT)

main33548-28010iTCR11,21199005-199012

sub33547-28011

33566APIN, SHIFT LEVER STOP (FOR COLUMN SHIFT)

main33566-28010iTCR1#,2#199005-199912

33575DRETAINER, CONTROL SHIFT LEVER (FOR COLUMN SHIFT)

main33575-28040iTCR1#,2#199005-199912

33580BELLCRANK ASSY, SHIFTING (FOR COLUMN SHIFT)

main33580-28020iTCR1#,2#199005-199912

33580ABUSH (FOR SHIFTING BELLCRANK)

main90386-10017iTCR1#,2#199005-199912

33580CWASHER, PLATE (FOR SHIFTING BELL CRANK)

main90201-10119iTCR1#,2#199005-199912

33586STOPPER, CONTROL SHIFT LEVER

main33586-28010iTCR11,21199005-199301

sub33586-28011

main33586-28011iTCR1#,2#199301-199801

sub33586-28012

main33586-28012iTCR1#,2#199801-199912

33587BBUSH, LEVER SELECTING

main33587-28031iTCR11,21199005-199108

33594BPLATE, SHIFT LOCK (FOR COLUMN SHIFT)

main33594-28010iTCR1#,2#199005-199912

33633PLATE, COLUMN SHIFT LEVER DETENT

main33633-28111iTCR1#,2#199005-199912

33633APIN, SLOTTED SPRING(FOR COLUMN SHIFT LEVER DETENT PLATE)

main90254-04036iTCR1#,2#199005-199912

33635CGUIDE, WIRE

main33635-28040iTCR1#,2#199005-199912

33663HLEVER, TRANSMISSION CONTROL (FOR COLUMN SHIFT)

main33663-28020iTCR11,21199005-199108

33820CABLE ASSY, TRANSMISSION CONTROL (FOR COLUMN SHIFT)

main33820-28220iTCR11,21199005-199112

main33820-28221iTCR1#,2#..EFI199112-199801

main33820-28270iTCR1#,2#..SPC199408-199912

33829ASUPPORT, TRANSMISSION CONTROL CABLE

main33829-28010iTCR1#,2#..EFI199005-199801

main33829-28060iTCR1#,2#..SPC199408-199912

33880CABLE ASSY, PARKING LOCK (FOR COLUMN SHIFT)

main33880-28020iTCR11,21199005-199108

sub33880-28021

main33880-28021iTCR1#,2#199108-199912

3513

4501

4701

9010108137

main90101-08137

9015940259

main90159-40259

9017008038

main90170-08038

9017908009

main90179-08009

9020108023

main90201-08023

9020109019

main90201-09019

9020110042

main90201-10042

9020118020

main90201-18020

9020608001

main90206-08001

9046106214

main90461-06214

9046108334

main90461-08334

9046400432

main90464-00432

9046400612

main90464-00612

9046814004

main90468-14004

9046814016

main90468-14016

9046814021

main90468-14021

9094901537

main90949-01537

9094901589

main90949-01589

9094901590

main90949-01590

9094901708

main90949-01708

9151160816

main91511-60816

9161260630

main91612-60630

9165140814

main91651-40814

9165140816

main91651-40816

9165161020

main91651-61020

9165540820

main91655-40820

9418040600

main94180-40600

9616000800

main96160-00800

55 parts on this diagram · 2 diagrams in section
