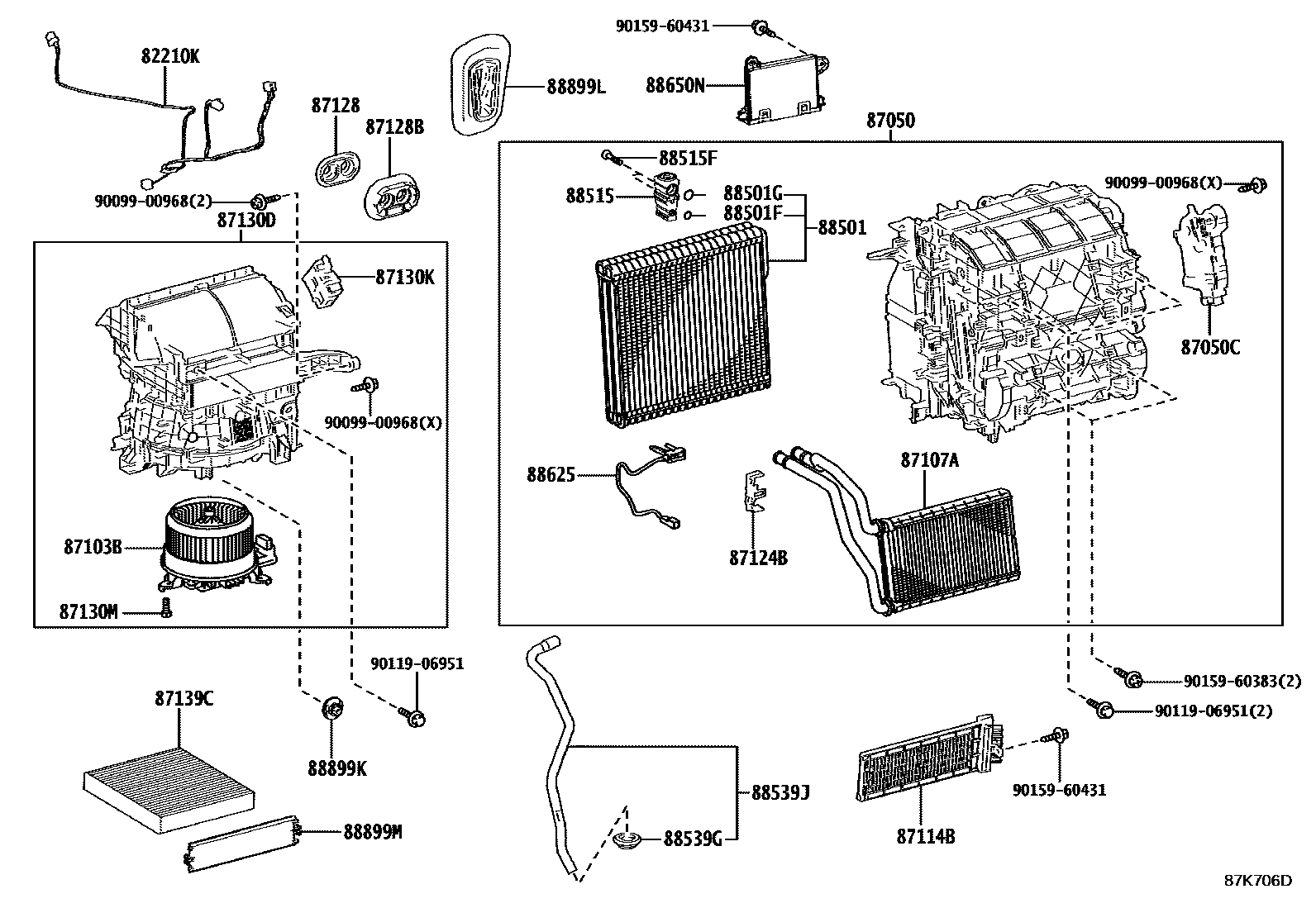

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1���� 0002 1����(��������) 0003 1��,��(�����) 0004 1��,��(�����)

82210KHARNESS ASSY, AIR CONDITIONER

main82212-V1030iMZRA95..IV5;MZRA92..08S..SG;MZRA9#,ZWR9#..G,Z202201-202501

main82212-12130iMZRA92..08S..SG202201-202501

87050RADIATOR ASSY, AIR CONDITIONER

main87050-10040supersedes 87050-V1020iZWR90,95..Z202201-202501

main87050-12D90supersedes 87050-V1030iMZRA92..08S..SG202201-202501

87050CDAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1

main87106-48170supersedes 87106-42240iMZRA92..08S..X;MZRA92..07S..(SG,X);MZRA90,95,97,ZWR9#..(SG,X)..CBU202201

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-52170iMZRA9#,ZWR9#202201-202303

main87103-52290iMZRA92..08S..X;MZRA92..07S..(SG,X);MZRA90,95,97,ZWR9#..(SG,SZ,X)..CBU202303

main87103-58070iMZRA92..08S..SG202201-202501

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-47070iMZRA95..IV5;MZRA92..08S..SG;MZRA9#,ZWR9#..G,Z202201-202501

87114BCOVER, HEATER

main87114-48110iMZRA95..IV5;MZRA92..08S..SG;MZRA9#,ZWR9#..G,Z202201-202501

87124BCLAMP, HEATER

main87124-33070iMZRA95..IV5;MZRA92..08S..SG;MZRA9#,ZWR9#..G,Z202201-202501

87128GROMMET, HEATER

main87128-28010iMZRA95..IV5;MZRA92..08S..SG;MZRA9#,ZWR9#..G,Z202201-202501

87128BGROMMET, HEATER, NO.2

main87128-28020iMZRA92..08S..X;MZRA92..07S..(SG,X);MZRA90,95,97,ZWR9#..(SG,SZ,X)..CBU202201

87130DBLOWER ASSY

main87130-28610iMZRA9#,ZWR9#202201-202302

main87130-V1010iMZRA95..IV5;MZRA92..08S..SG;MZRA9#,ZWR9#..G,Z202303-202501

main87130-47300iMZRA92..08S..SG202201-202501

87130KDAMPER SERVO SUB-ASSY, BLOWER, NO.1

main87106-33330iMZRA92..08S..X;MZRA92..07S..(SG,X);MZRA90,95,97,ZWR9#..(SG,SZ,X)..CBU202201

main87106-28250iMZRA92..08S..SG202201-202501

87130MSCREW(FOR BLOWER)

main87193-87101×3iMZRA92..08S..X;MZRA92..07S..(SG,X);MZRA90,95,97,ZWR9#..(SG,SZ,X)..CBU202201

87139CFILTER, CLEAN AIR

main87139-28020iMZRA95..IV5;MZRA92..08S..SG;MZRA9#,ZWR9#..G,Z202201-202501

main87139-58010iMZRA95..IV5;MZRA92..08S..SG;MZRA9#,ZWR9#..G,Z202201-202501

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-10180iZWR9#..SG,SZ,X202201

main88501-12540iMZRA9#..G,Z;MZRA95..IV5;MZRA92..08S..SG202201-202501

88501FO-RING, COOLER EVAPORATOR NO.1(DISCHARGE)

main90099-14120iMZRA92..08S..X;MZRA92..07S..(SG,X);MZRA90,95,97,ZWR9#..(SG,SZ,X)..CBU202201

88501GO-RING, COOLER EVAPORATOR NO.1(SUCTION)

main90099-14121iMZRA92..08S..X;MZRA92..07S..(SG,X);MZRA90,95,97,ZWR9#..(SG,SZ,X)..CBU202201

88515VALVE, COOLER EXPANSION

main88515-58050iMZRA92..08S..X;MZRA92..07S..(SG,X);MZRA90,95,97,ZWR9#..(SG,SZ,X)..CBU202201

main88515-33080iMZRA92..08S..SG202201-202501

88515FBOLT(FOR COOLER EXPANSION VALVE)

main90099-04542×2iMZRA92..08S..X;MZRA92..07S..(SG,X);MZRA90,95,97,ZWR9#..(SG,SZ,X)..CBU202201

88539GGROMMET (FOR COOLER UNIT DRAIN HOSE)

main90099-32129iMZRA92..08S..X;MZRA92..07S..(SG,X);MZRA90,95,97,ZWR9#..(SG,SZ,X)..CBU202201

88539JHOSE, DRAIN COOLER

main88539-V1030iMZRA92..08S..X;MZRA92..07S..(SG,X);MZRA90,95,97,ZWR9#..(SG,SZ,X)..CBU202201

88625THERMISTOR, COOLER, NO.1

main88620-28050iMZRA95..IV5;MZRA92..08S..SG;MZRA9#,ZWR9#..G,Z202201-202501

88650NAMPLIFIER ASSY, AIR CONDITIONER

main88650-28E10iMZRA9#,ZWR9#202201-202404

main88650-28E20iMZRA95..IV5;MZRA92..08S..SG;MZRA9#,ZWR9#..G,Z202404-202501

88899KPLATE, COVER

main88899-52160iMZRA95..IV5;MZRA92..08S..SG;MZRA9#,ZWR9#..G,Z202201-202501

88899LPARTS, COOLING UNIT

main88899-10120iMZRA95..IV5;MZRA92..08S..SG;MZRA9#,ZWR9#..G,Z202201-202501

88899MPLATE, COVER(FOR AIR FILTER)

main88899-47120iMZRA95..IV5;MZRA92..08S..SG;MZRA9#,ZWR9#..G,Z202201-202501

9009900968

main90099-00968

9011906951

main90119-06951

9015960383

main90159-60383

9015960431

main90159-60431
