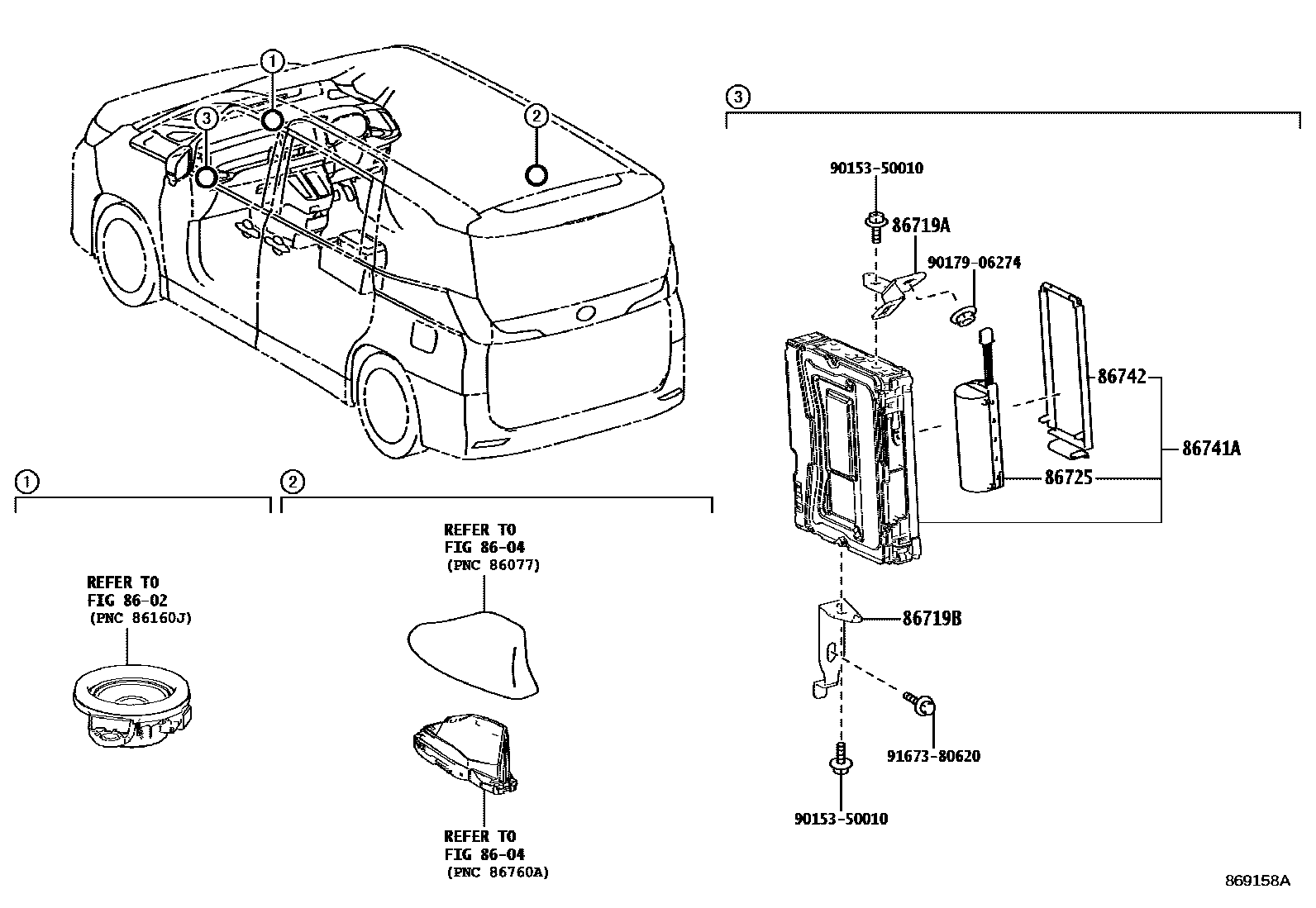

TELEPHONE & MAYDAY

8602

8604

86719ABRACKET, TELEPHONE NO.1

main86719-V1010iMZRA95..IV5;MZRA92..08S..SG;MZRA9#,ZWR9#..G,Z202201-202605

86719BBRACKET, TELEPHONE NO.2

main86719-V1020iMZRA95..IV5;MZRA92..08S..SG;MZRA9#,ZWR9#..G,Z202201-202605

86725BATTERY, MOBILEPHONE

main86725-78020iMZRA95..IV5;MZRA92..08S..SG;MZRA9#,ZWR9#..G,Z202201-202605

86741ATRANSCEIVER, TELEMATICS

main86741-28030iMZRA95..IV5;MZRA92..08S..SG;MZRA9#,ZWR9#..G,Z202201-202605

86742COVER, TRANSCEIVER

main86742-26010iMZRA95..IV5;MZRA92..08S..SG;MZRA9#,ZWR9#..G,Z202201-202605

9015350010

main90153-50010

9017906274

main90179-06274

9167380620

main91673-80620

10 parts on this diagram · 1 diagram in section
