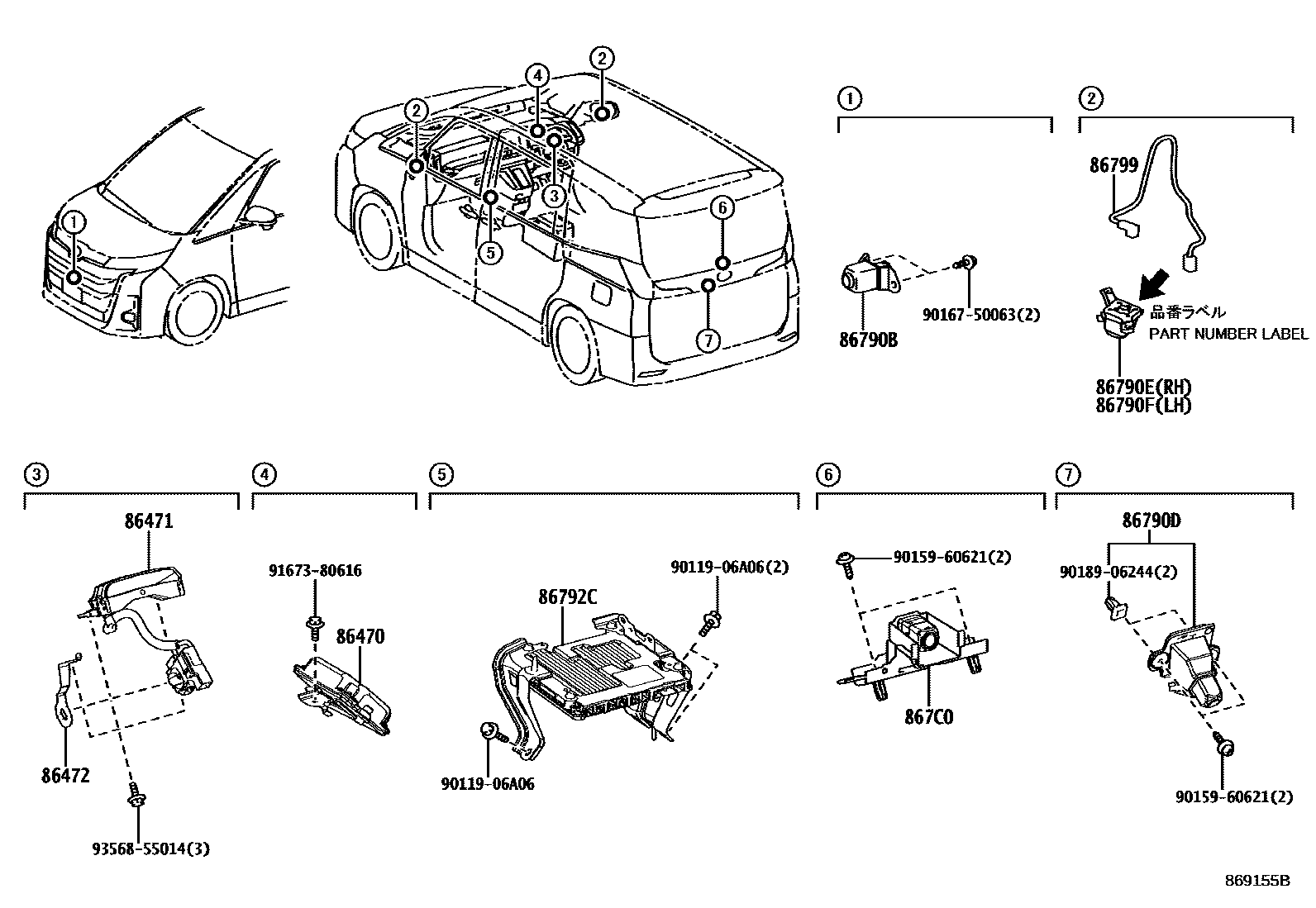

CAMERA & REAR MONITOR DISPLAY

86470COMPUTER ASSY, DRIVER MONITOR

main86470-V1010iMZRA9#,ZWR9#..G,SG,SZ,Z202201-202404

main86470-V1011iMZRA92..07S..SG;MZRA90,95,ZWR9#..(SG,SZ)..CBU202404-202502

86471CAMERA, DRIVER MONITOR

main86471-V1010iMZRA92..08S..SG;MZRA95..SG..IV5;MZRA9#,ZWR9#..G,Z202201-202501

86472BRACKET, DRIVER MONITOR

main86472-V1010iMZRA92..08S..SG;MZRA95..SG..IV5;MZRA9#,ZWR9#..G,Z202201-202501

86790BCAMERA ASSY, TELEVISION, FR

main86790-28470iMZRA9#,ZWR9#..G,SG,SZ,Z202201-202310

main86790-28471iMZRA9#,ZWR9#..G,SG,SZ,Z202310-202412

main86790-28472iMZRA92..07S..SG;MZRA90,95,ZWR9#..(SG,SZ)..CBU202501

86790DCAMERA ASSY, TELEVISION, RR

main867B0-28010iZWR90,95..SZ,Z202201-202404

main867B0-28020iMZRA90,95..SZ,Z202201-202404

main867B0-V1010iZWR9#..G202404-202501

main867B0-V1020iMZRA9#..G;MZRA95..IV5;MZRA92..08S..SG202404-202501

main86790-28320iMZRA9#,ZWR9#..G,SG,SZ,Z202201-202310

main86790-28321iMZRA9#,ZWR9#..G,SG,SZ,Z202310-202408

main86790-28322iMZRA92..08S..SG;MZRA95..SG..IV5;MZRA9#,ZWR9#..G,Z202409-202501

86790ECAMERA ASSY, TELEVISION, SIDE RH

main86790-28460iMZRA9#,ZWR9#..G,SG,SZ,Z202201-202310

main86790-28461iMZRA9#,ZWR9#..G,SG,SZ,Z202310-202408

main86790-28462iMZRA92..08S..SG;MZRA95..SG..IV5;MZRA9#,ZWR9#..G,Z202409-202501

86790FCAMERA ASSY, TELEVISION, SIDE LH

main86790-28450iMZRA9#,ZWR9#..G,SG,SZ,Z202201-202310

main86790-28451iMZRA9#,ZWR9#..G,SG,SZ,Z202310-202408

main86790-28452iMZRA92..08S..SG;MZRA95..SG..IV5;MZRA9#,ZWR9#..G,Z202409-202501

86792CCOMPUTER, PARKING ASSIST

main86792-28340iMZRA9#,ZWR9#..NOAH..(G,SG,SZ,Z)202201-202310

main86792-28341iMZRA9#,ZWR9#..NOAH..(G,SG,SZ,Z)202310-202404

main86792-28350iMZRA90,92,95,ZWR9#..VOXY202201-202310

main86792-28351iMZRA90,92,95,ZWR9#..VOXY202310-202404

main86792-V1010iMZRA9#,ZWR9#..G,Z;MZRA92..NOAH..08S..SG;MZRA95..NOAH..SG..IV5202404-202501

main86792-V1020iMZRA92..VOXY..07S;MZRA90,95,ZWR9#..VOXY..CBU202404

86799WIRE, TELEVISION CAMERA

main86799-V1010×2iMZRA92..07S..SG;MZRA90,95,ZWR9#..(SG,SZ)..CBU202201

867C0CAMERA ASSY, INNER MIRROR

main867C0-V1010iMZRA90,95,ZWR90,95..Z202201-202501

9011906A06

main90119-06A06

9015960621

main90159-60621

9016750063

main90167-50063

9018906244

main90189-06244

9167380616

main91673-80616

9356855014

main93568-55014

16 parts on this diagram · 1 diagram in section
