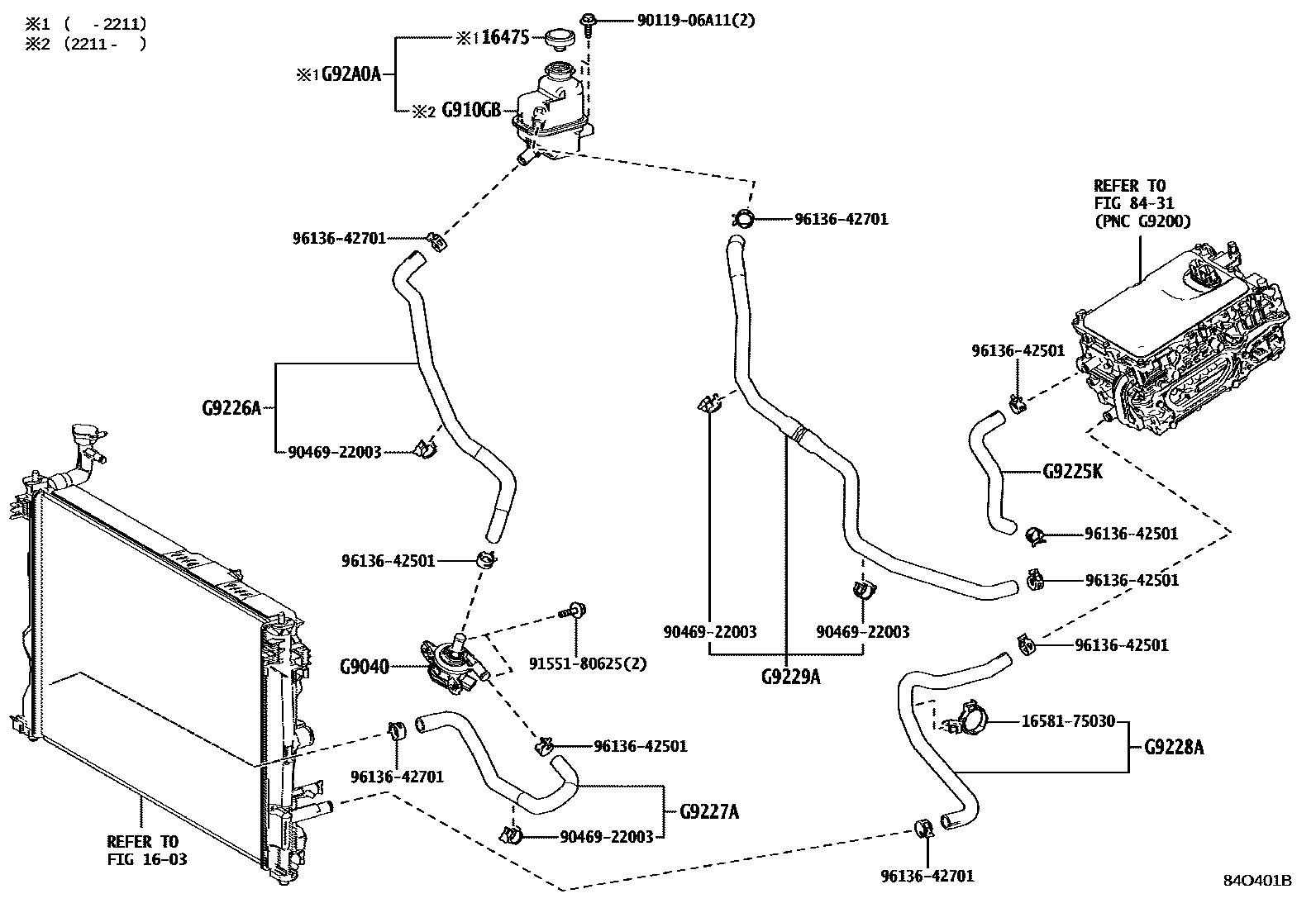

INVERTER COOLING

0001 1 0002 1

1603

16475CAP, RESERVE TANK

main16475-28140i2ZRFXE..ZWR9#..G,Z202201-202501

8431

G9040INVERTER WATER PUMP ASSY(W/MOTOR)

mainG904028020iZWR9#202201-202312

subG9040-48060

mainG904048060iZWR9#..G,Z202401-202605

G910GBTANK SUB-ASSY, INVERTER RESERVE W/O CAP

mainG910G76030iZWR9#..G,Z202211-202501

G9225KHOSE, INVERTER COOLING, NO.1

mainG9225V1010iZWR9#..G,Z202201-202501

G9226AHOSE, INVERTER COOLING, NO.2

mainG9226V1010iZWR9#..G,Z202201-202501

G9227AHOSE, INVERTER COOLING, NO.3

mainG922733020iZWR9#202201-202211

subG9227-33021

mainG922733021iZWR9#..G,Z202212-202501

G9228AHOSE, INVERTER COOLING, NO.4

mainG9228V1010iZWR9#..G,Z202201-202501

G9229AHOSE, INVERTER COOLING, NO.5

mainG9229V1010iZWR9#..G,Z202201-202501

G92A0ATANK ASSY, INVERTER RESERVE

mainG91H076010iZWR9#202201-202210

1658175030CLAMP, HOSE(FOR WATER HOSE)

main16581-75030

9011906A11

main90119-06A11

9046922003

main90469-22003

9155180625

main91551-80625

9613642501

main96136-42501

9613642701

main96136-42701

17 parts on this diagram · 2 diagrams in section
