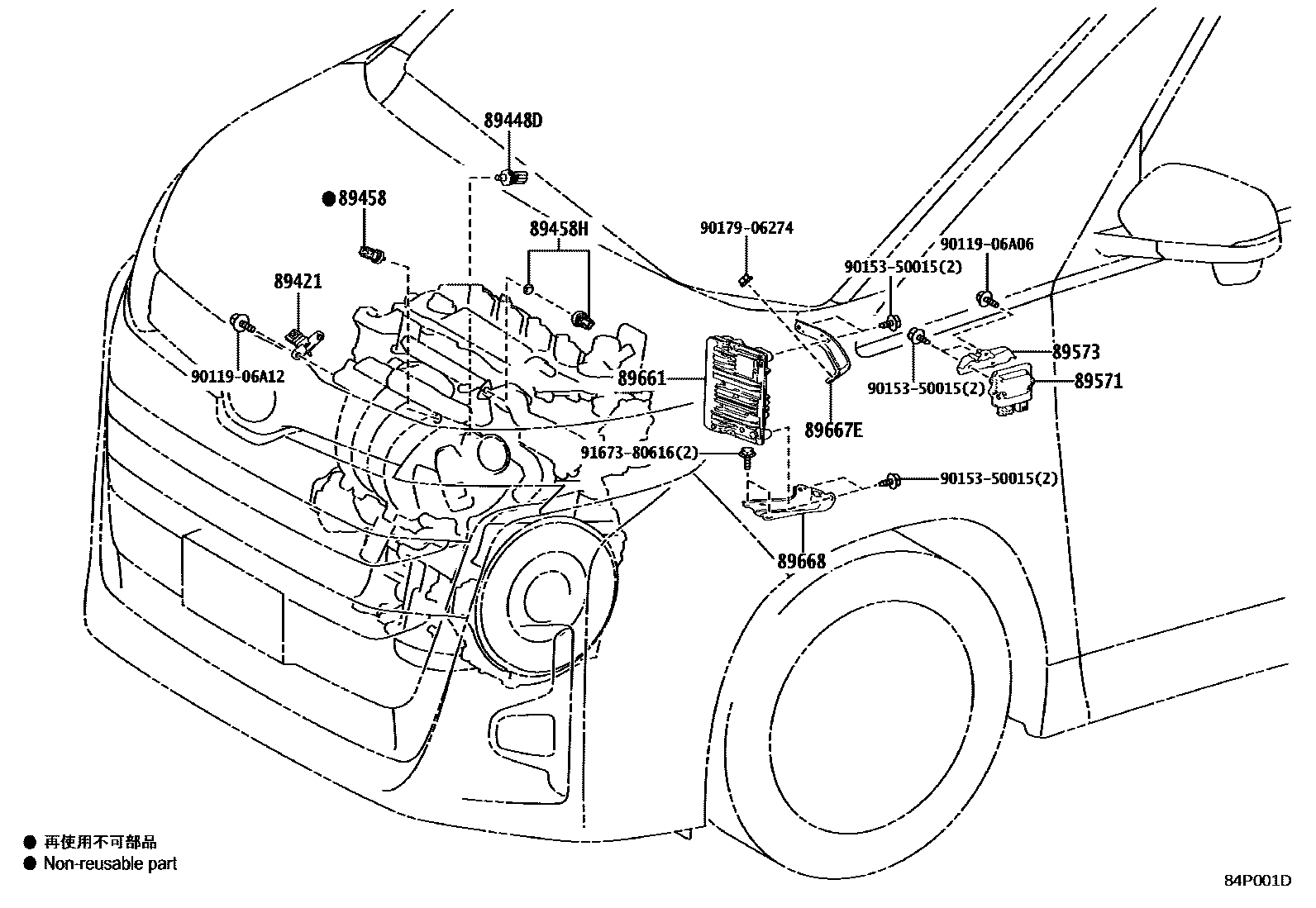

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1

89421SENSOR ASSY, VACUUM (FOR E.F.I.)

main89421-26030iZWR9#..G,Z202201-202605

main89421-33010iMZRA9#..G,Z;MZRA95..IV5;MZRA92..08S..SG202201-202605

89448DSENSOR, OIL PRESSURE & TEMPERATURE

main89448-33010iMZRA92..08S..X;MZRA92..07S..(SG,X);MZRA90,95,97..(SG,SZ,X)..CBU202201-202605

89458SENSOR, FUEL PRESSURE

main89458-33030iMZRA9#..G,Z;MZRA95..IV5;MZRA92..08S..SG202201-202605

89458HSENSOR, FUEL PRESSURE, NO.2

main89458-33041iMZRA9#202201-202212

main89458-33042iMZRA9#..G,Z;MZRA95..IV5;MZRA92..08S..SG202301-202605

89571COMPUTER, FUEL PUMP CONTROL

main89571-42010iMZRA9#..G,Z;MZRA95..IV5;MZRA92..08S..SG202201-202605

89573BRACKET, FUEL PUMP CONTROL COMPUTER

main89573-28010iMZRA9#..G,Z;MZRA95..IV5;MZRA92..08S..SG202201-202605

89661COMPUTER, ENGINE CONTROL

main89661-28K30iZWR9#202201-202404

main89661-28K40iZWR9#..G,Z202404-202502

main89661-28K50iMZRA90,92202201-202404

main89661-28K60iMZRA95,97202201-202404

main89661-28K80iMZRA92..08S..X;MZRA90..SG,SZ,X;MZRA92..07S..(SG,X)202404-202502

main89661-28K90iMZRA95,97..(SG,SZ,X)..CBU202404-202502

89667EBRACKET, ENGINE CONTROL COMPUTER, NO.1

main89667-28170iMZRA92..08S..X;MZRA92..07S..(SG,X);MZRA90,95,97..(SG,SZ,X)..CBU202201-202605

main89667-28180iZWR9#..G,Z202201-202605

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-28170iMZRA9#..G,Z;MZRA95..IV5;MZRA92..08S..SG202201-202605

main89668-28180iZWR9#..G,Z202201-202605

9011906A06

main90119-06A06

9011906A12

main90119-06A12

9015350015

main90153-50015

9017906274

main90179-06274

9167380616

main91673-80616

14 parts on this diagram · 2 diagrams in section
