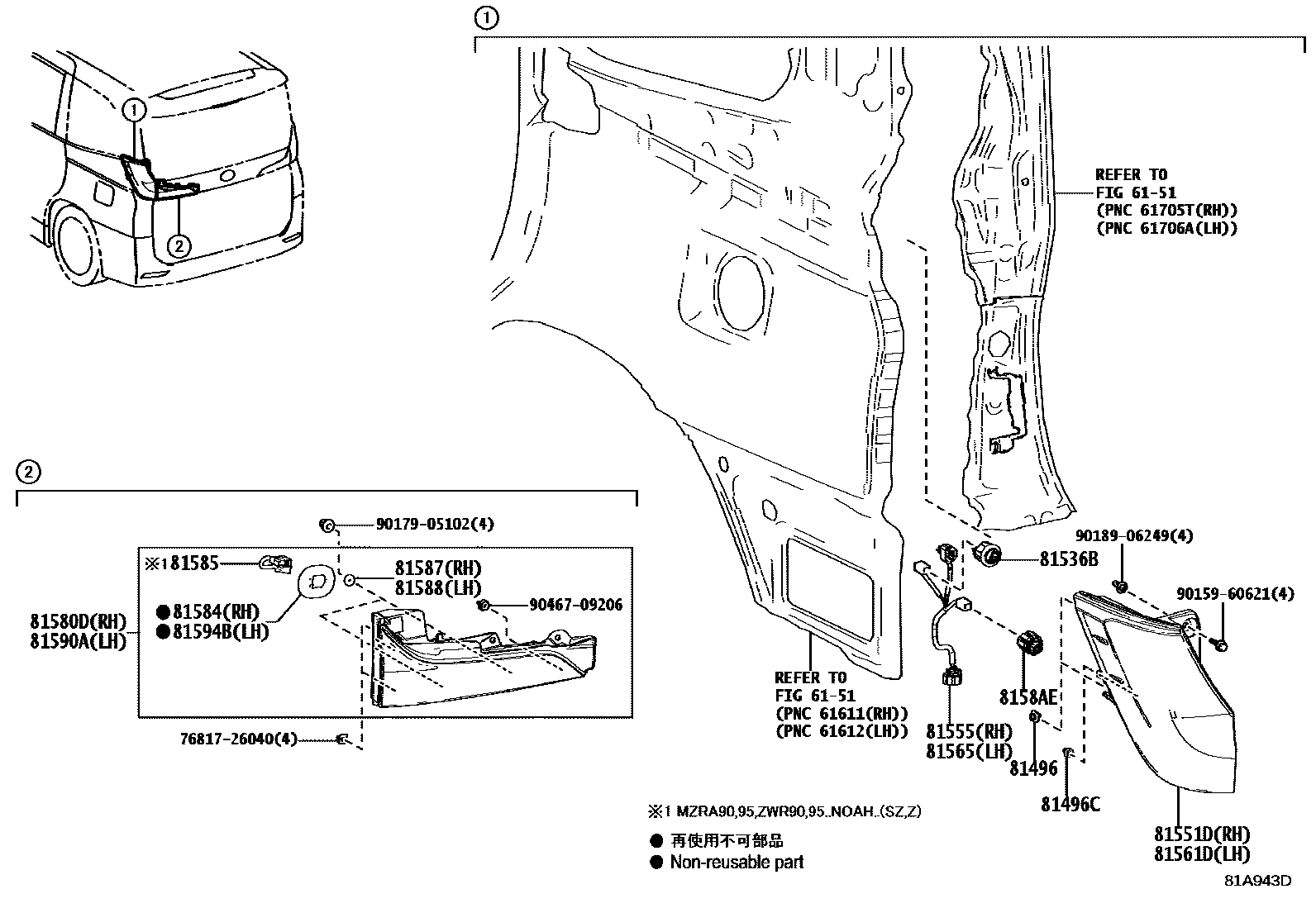

REAR COMBINATION LAMP

0001 1 0002 1

6151

81496GUIDE, REAR COMBINATION LAMP

main81496-50010×4iMZRA92..08S..X;MZRA92..07S..(SG,X);MZRA90,95,97,ZWR9#..(SG,SZ,X)..CBU202201

81496CGUIDE, REAR COMBINATION LAMP, NO.2

main81496-52020×2iMZRA95..IV5;MZRA92..08S..SG;MZRA9#,ZWR9#..G,Z202201-202501

81536BLED, REAR TURN SIGNAL LAMP

main81161-48J00×2iMZRA9#,ZWR9#..NOAH202201-202204

main81965-48030×2iMZRA9#,ZWR9#..G,Z;MZRA95..NOAH..IV5;MZRA92..NOAH..08S..SG202204-202501

81551DLENS & BODY, REAR COMBINATION LAMP, RH

main81551-V1010iMZRA9#,ZWR9#..G;MZRA95..NOAH..IV5;MZRA92..NOAH..08S..SG202201-202501

main81551-V1020iMZRA92..VOXY..08S;MZRA95..VOXY..IV5202201-202501

main81551-V1050iMZRA90,95,ZWR90,95..Z202201-202501

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-V1010iMZRA92..X;MZRA92..NOAH..07S..SG;MZRA90,95,97,ZWR9#..NOAH..(SG,SZ,X)..CBU202201

main81555-V1020iMZRA92..VOXY..07S;MZRA90,95,ZWR9#..VOXY..CBU202201

81561DLENS & BODY, REAR COMBINATION LAMP, LH

main81561-V1010iMZRA92..X;MZRA92..NOAH..07S..SG;MZRA90,95,97,ZWR9#..NOAH..(SG,X)..CBU202201

main81561-V1020iMZRA92..VOXY..07S;MZRA90,95,ZWR9#..VOXY..CBU202201

main81561-V1050iMZRA90,95,ZWR90,95..Z202201-202501

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-V1010iMZRA92..X;MZRA92..NOAH..07S..SG;MZRA90,95,97,ZWR9#..NOAH..(SG,SZ,X)..CBU202201

main81555-V1020iMZRA92..VOXY..08S;MZRA95..VOXY..IV5202201-202501

81580DLAMP ASSY, REAR, RH

main81580-V1010iMZRA9#,ZWR9#..G;MZRA95..NOAH..IV5;MZRA92..NOAH..08S..SG202201-202501

main81580-V1020iMZRA90,95,ZWR90,95..Z202201-202501

main81580-V1030iMZRA92..VOXY..08S;MZRA95..VOXY..IV5202201-202501

81584PACKING, REAR LAMP RH

main81582-V1020iMZRA9#,ZWR9#..G,Z;MZRA95..NOAH..IV5;MZRA92..NOAH..08S..SG202201-202501

main81582-V1030iMZRA92..VOXY..08S;MZRA95..VOXY..IV5202201-202501

81585SOCKET & WIRE, REAR LAMP

main81585-V1020×2iMZRA90,95,ZWR90,95..NOAH..SZ202201

main81585-V1030×2iMZRA92..VOXY..07S;MZRA90,95,ZWR9#..VOXY..CBU202201

81587PROTECTOR, REAR LAMP, RH

main81558-24040×2iMZRA92..VOXY..07S;MZRA90,95,ZWR9#..VOXY..CBU202201

81588PROTECTOR, REAR LAMP, LH

main81558-24040×3iMZRA92..VOXY..08S;MZRA95..VOXY..IV5202201-202501

8158AELED, BACK-UP LAMP

main8158A-12260×2iMZRA95..IV5;MZRA92..08S..SG;MZRA9#,ZWR9#..G,Z202201-202501

81590ALAMP ASSY, REAR, LH

main81590-V1010iMZRA92..X;MZRA92..NOAH..07S..SG;MZRA90,95,97,ZWR9#..NOAH..(SG,X)..CBU202201

main81590-V1020iMZRA90,95,ZWR90,95..NOAH..SZ202201

main81590-V1030iMZRA92..VOXY..08S;MZRA95..VOXY..IV5202201-202501

81594BPACKING, REAR LAMP LH

main81582-V1020iMZRA9#,ZWR9#..G,Z;MZRA95..NOAH..IV5;MZRA92..NOAH..08S..SG202201-202501

main81592-V1030iMZRA92..VOXY..08S;MZRA95..VOXY..IV5202201-202501

7681726040CLIP, BACK DOOR OUTSIDE GARNISH

main76817-26040

9015960621

main90159-60621

9017905102

main90179-05102

9018906249

main90189-06249

9046709206

main90467-09206

21 parts on this diagram · 2 diagrams in section
