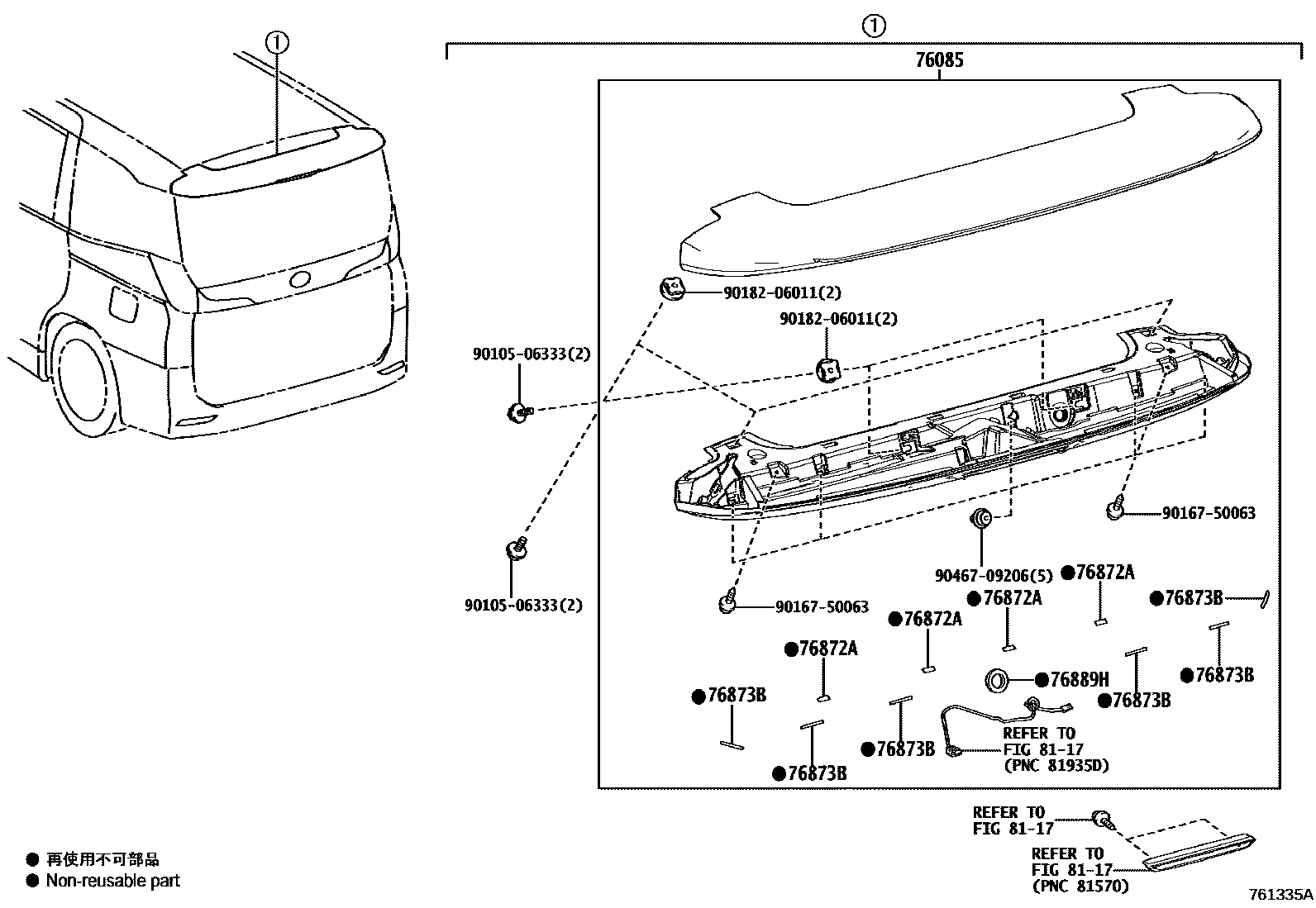

SPOILER & SIDE MUDGUARD

0001 1 0002 1��(�����������) 0003 1��(�����������)

76085SPOILER SUB-ASSY, REAR

main76085-V1900-A0iMZRA92..08S..X;MZRA92..07S..(SG,X);MZRA90,95,97,ZWR9#..(SG,SZ,X)..CBU202201-202502

WHITE PEARL CS,070

main76085-V1900-B0iMZRA95..IV5;MZRA92..08S..SG;MZRA9#,ZWR9#..G,Z202201-202501

METAL STREAM ME,1K0

main76085-V1900-B1iMZRA92..VOXY..07S;MZRA90,95,ZWR9#..VOXY..CBU202201-202502

MASSIVE GRAY,1L6

main76085-V1900-C0iMZRA92..08S..X;MZRA92..07S..(SG,X);MZRA90,95,97,ZWR9#..(SG,SZ,X)..CBU202201-202501

ATTITUDE BLACK MC,218

main76085-V1900-C1iMZRA92..08S..X;MZRA92..07S..(SG,X);MZRA90,95,97,ZWR9#..(SG,SZ,X)..CBU202201-202502

SPARKLING BLACK PEARL CS,220

main76085-V1900-C2iMZRA92..07S..SG;MZRA90,95,ZWR9#..(SG,SZ)..CBU202201-202501

GLITTER BLACK GF,226

main76085-V1900-D0iMZRA92..NOAH..07S..SG;MZRA90,95,ZWR9#..NOAH..(SG,SZ)..CBU202201-202502

RED M.M,3R3

main76085-V1900-E0iMZRA9#,ZWR9#..X..CBU202201-202502

STEEL BLONDE ME,4X1

76872APROTECTOR, REAR SPOILER, NO.1

main76872-V1010iMZRA95..IV5;MZRA92..08S..SG;MZRA9#,ZWR9#..G,Z202201-202501

76873BPROTECTOR, REAR SPOILER, NO.2

main76873-V1010iMZRA95..IV5;MZRA92..08S..SG;MZRA9#,ZWR9#..G,Z202201-202501

76889HSEAL, REAR SPOILER, NO.1

main76889-V1010iMZRA95..IV5;MZRA92..08S..SG;MZRA9#,ZWR9#..G,Z202201-202501

8117

9010506333

main90105-06333

9016750063

main90167-50063

9018206011

main90182-06011

9046709206

main90467-09206

9 parts on this diagram · 3 diagrams in section
