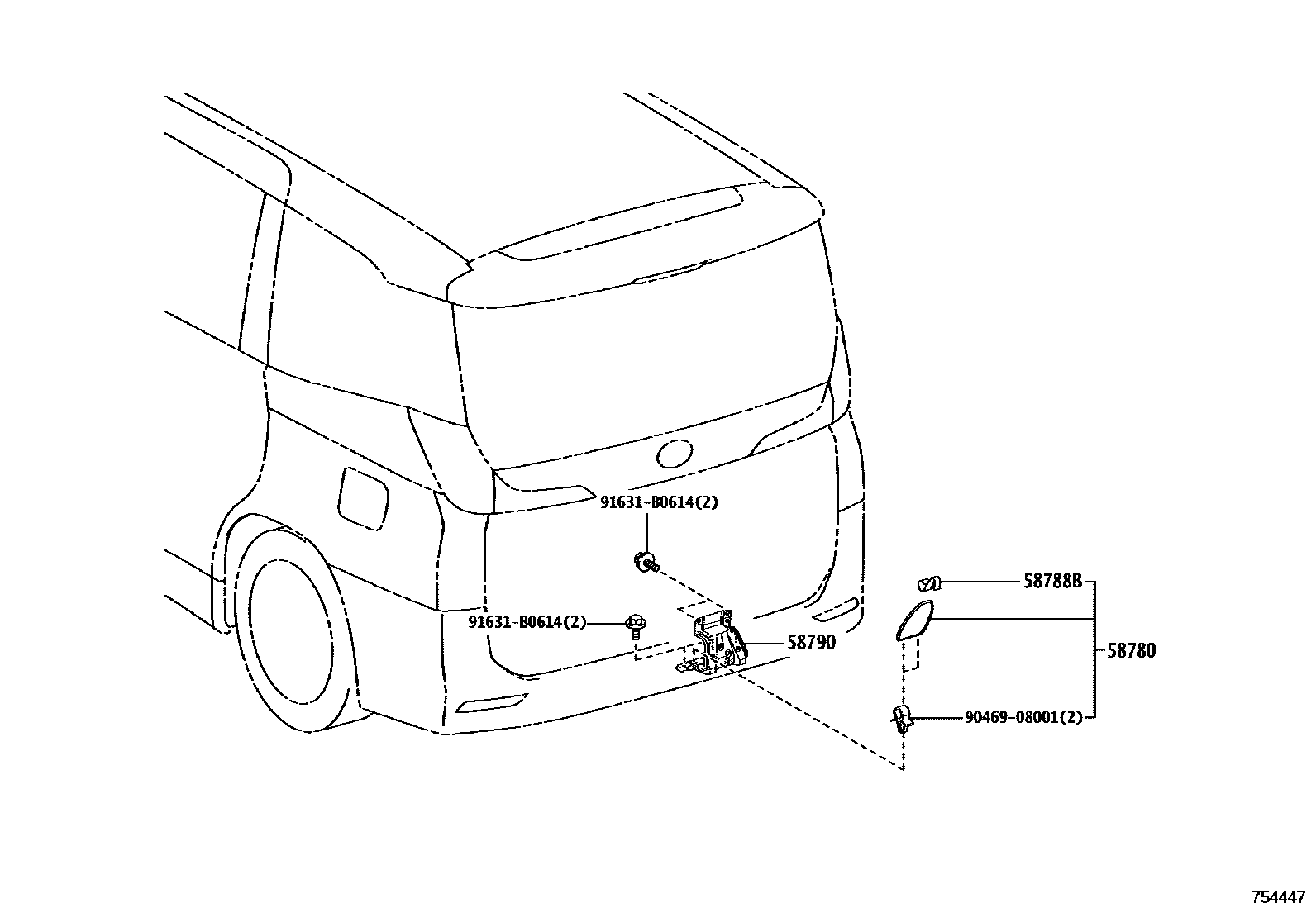

TOOL BOX & LICENSE PLATE BRACKET

0001 1 0002 1

58780BAND ASSY, TOOL BOX

main58780-28090iMZRA95..G,Z202201-202501

main58780-28090iMZRA95..G,Z202201-202501

main58780-28090iMZRA95..G,Z202201-202501

main58780-28090iMZRA90,ZWR90,95..G,Z202201-202501

main58780-95J01iMZRA95..IV5;MZRA92..08S..SG;MZRA92,97,ZWR92..G202201-202501

main58780-95J01iMZRA95..IV5;MZRA92..08S..SG;MZRA92,97,ZWR92..G202201-202501

main58780-95J01iMZRA95..IV5;MZRA92..08S..SG;MZRA92,97,ZWR92..G202201-202501

58788BHOOK, TOOL BOX BAND, NO.1

main58788-95J01iMZRA90,95,ZWR90,95..(SG,SZ,X)..CBU202201-202501

main58788-95J01iMZRA90,95,ZWR90,95..(SG,SZ,X)..CBU202201-202501

main58788-95J01iMZRA90,95,ZWR90,95..(SG,SZ,X)..CBU202201-202501

main58788-95J01iMZRA90,95,ZWR90,95..(SG,SZ,X)..CBU202201-202501

main58788-95J01iMZRA90,95,ZWR90,95..(SG,SZ,X)..CBU202201-202501

58790CARRIER ASSY, JACK

main58790-28070iMZRA90,ZWR90,95..G,Z202201-202501

main58790-28070iMZRA90,95,ZWR90,95..G,Z202201-202501

main58790-28070iMZRA90,95,ZWR90,95..G,Z202201-202501

main58790-28070iMZRA90,95,ZWR90,95..G,Z202201-202501

main58790-V1010iMZRA95..IV5;MZRA92..08S..SG;MZRA92,97,ZWR92..G202201-202501

main58790-V1010iMZRA95..IV5;MZRA92..08S..SG;MZRA92,97,ZWR92..G202201-202501

main58790-V1010iMZRA95..IV5;MZRA92..08S..SG;MZRA92,97,ZWR92..G202201-202501

9046908001

main90469-08001

91631B0614

main91631-B0614

5 parts on this diagram · 2 diagrams in section
