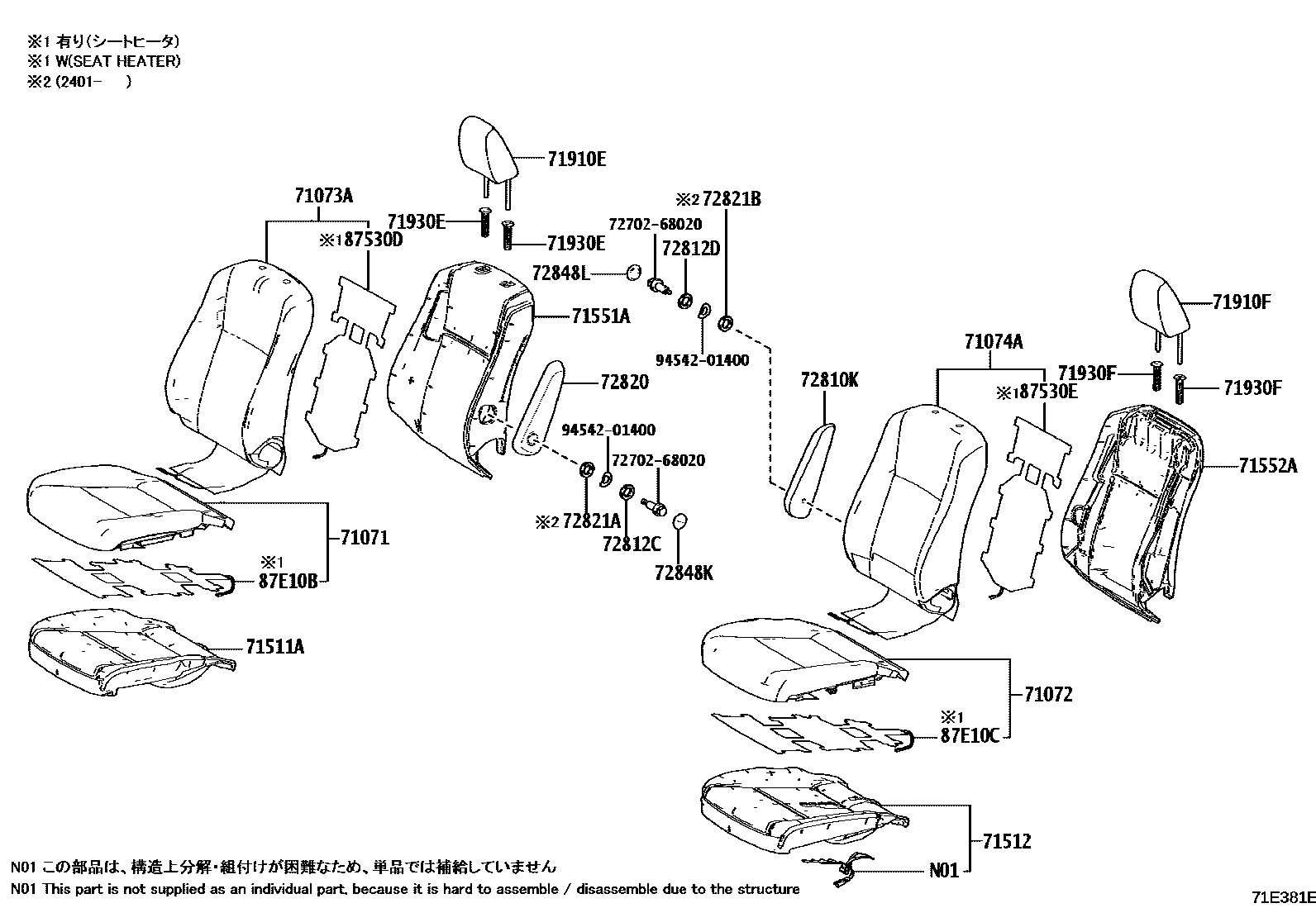

FRONT SEAT & SEAT TRACK

0001 1 0002 1������ 0003 1������ 0004 1������� 0005 1������� 0006 1�������������������� 0007 1�������������������� 0008 1�������������������� 0009 1�������������������� 0010 1�������������������� 0011 1����������

71071COVER SUB-ASSY, FRONT SEAT CUSHION, RH

main71071-V1060-C1iMZRA95..X..IV5202201-202501

BLACK,TRIM1#

main71071-V1090-C1iMZRA90,95,ZWR90,95..NOAH..(SZ,Z)202201-202305

BLACK,TRIM2#

main71071-V1090-C3iMZRA90,95,ZWR90,95..Z202305-202502

BLACK,TRIM2#

main71071-V1090-E1iMZRA90,95,ZWR90,95..Z202201-202305

DK.CHESTNUT,TRIM4#

main71071-V1090-E3iMZRA90,95,ZWR90,95..Z202305-202501

DK.CHESTNUT,TRIM4#

main71071-V1100-C1iMZRA90,95,ZWR90,95..VOXY..SZ202201-202502

BLACK,TRIM2#

main71071-V1080-A2iMZRA90,95,ZWR90..08S..G202201-202501

main71071-V1080-C2iMZRA90,95,ZWR90..08S..SG..CBU202201-202502

71072COVER SUB-ASSY, FRONT SEAT CUSHION, LH

main71072-V1030-C1iMZRA9#,ZWR9#..X..CBU202201-202501

BLACK,TRIM1#

main71072-V1060-C1iMZRA90,95,ZWR90,95..NOAH..(SZ,Z)202201-202305

BLACK,TRIM2#

main71072-V1060-C3iMZRA90,95,ZWR90,95..Z202305-202502

BLACK,TRIM2#

main71072-V1060-E1iMZRA90,95,ZWR90,95..Z202201-202305

DARK CHESTNUT,TRIM4#

main71072-V1060-E3iMZRA90,95,ZWR90,95..Z202305-202501

DK.CHESTNUT,TRIM4#

main71072-V1070-C1iMZRA90,95,ZWR90,95..VOXY..SZ202201-202502

BLACK,TRIM2#

main71072-V1050-A2iMZRA90,95,ZWR90..08S..G202201-202501

main71072-V1050-C2iMZRA90,95,ZWR90..08S..SG..CBU202201-202502

71073ACOVER SUB-ASSY, FRONT SEATBACK, RH

main71073-V1060-C0iMZRA9#,ZWR9#..X..CBU202201-202501

BLACK,TRIM1#

main71073-V1090-C0iMZRA90,95,ZWR90,95..Z202201-202502

BLACK,TRIM2#

main71073-V1090-E0iMZRA90,95,ZWR90,95..Z202201-202501

DK.CHESTNUT,TRIM4#

main71073-V1100-C0iMZRA90,95,ZWR90,95..VOXY..SZ202201-202502

BLACK,TRIM2#

main71073-V1080-A0iMZRA90,95,ZWR90..08S..G202201-202501

main71073-V1080-C0iMZRA9#,ZWR9#..G;MZRA92..08S..SG;MZRA95..SG..IV5202201-202501

71074ACOVER SUB-ASSY, FRONT SEATBACK, LH

main71074-V1030-C0iMZRA90,95,ZWR90..08S..X..CBU202201

main71074-V1080-C0iMZRA90,95,ZWR90,95..Z202201-202502

BLACK,TRIM2#

main71074-V1080-E0iMZRA90,95,ZWR90,95..Z202201-202501

DK.CHESTNUT,TRIM4#

main71074-V1090-C0iMZRA90,95,ZWR90,95..VOXY..SZ202201-202502

BLACK,TRIM2#

main71074-V1140-C0iMZRA95..X..IV5202201-202501

BLACK,TRIM1#

main71074-V1050-A0iMZRA9#,ZWR9#..07S..G202201-202501

main71074-V1050-C0iMZRA9#,ZWR9#..07S..G202201-202501

main71074-V1070-A0iMZRA90,95,ZWR90..08S..G202201-202501

main71074-V1070-C0iMZRA92..08S..SG;MZRA95..SG..IV5;MZRA90,95,ZWR90..08S..G202201-202501

71511APAD, FRONT SEAT CUSHION, RH

main71511-V1020iMZRA95..IV5;MZRA92..08S..SG;MZRA9#,ZWR9#..G,Z202201-202501

71512PAD, FRONT SEAT CUSHION, LH

main71502-V1020iMZRA95..IV5;MZRA92..08S..SG;MZRA9#,ZWR9#..G,Z202201-202501

main71502-V1010iMZRA90..08S..X;MZRA90..07S..SG;MZRA95..07S..(SG,X)202201

71551APAD, FRONT SEATBACK, RH

main71551-V1040iMZRA95..IV5;MZRA92..08S..SG;MZRA9#,ZWR9#..G,Z202201-202501

71552APAD, FRONT SEATBACK, LH

main71552-V1020iMZRA9#,ZWR9#..07S..(G,Z)202201-202501

main71552-V1020iMZRA90,95,ZWR90..08S..X..CBU202201

main71552-V1030iMZRA95..IV5;MZRA92..08S..SG;MZRA90,95,ZWR90..08S..G202201-202501

main71552-V1010iMZRA90..07S..G202201-202501

71910EHEADREST ASSY, FRONT SEAT, RH

main71910-28F70-C1iMZRA95..X..IV5202201-202501

BLACK,TRIM1#

main71910-28F80-A2iMZRA9#,ZWR9#..G202201-202501

FROMAGE,TRIM0#

main71910-28F80-C1iMZRA9#,ZWR9#..G;MZRA92..08S..SG;MZRA95..SG..IV5202201-202501

BLACK,TRIM2#

main71910-28F90-C1iMZRA90,95,ZWR90,95..Z202201-202501

BLACK,TRIM2#

main71910-28F90-E1iMZRA90,95,ZWR90,95..Z202201-202501

DARK CHESTNUT,TRIM4#

71910FHEADREST ASSY, FRONT SEAT, LH

main71910-28F70-C1iMZRA9#,ZWR9#..X..CBU202201-202501

BLACK,TRIM1#

main71910-28F80-A2iMZRA9#,ZWR9#..G202201-202501

FROMAGE,TRIM0#

main71910-28F80-C1iMZRA9#,ZWR9#..G;MZRA92..08S..SG;MZRA95..SG..IV5202201-202501

BLACK,TRIM2#

main71910-28F90-C1iMZRA90,95,ZWR90,95..SZ202201-202501

BLACK,TRIM2#

main71910-28F90-E1iMZRA90,95,ZWR90,95..Z202201-202501

DARK CHESTNUT,TRIM4#

71930ESUPPORT ASSY, FRONT SEAT HEADREST, RH

main71930-28050-C0iMZRA9#,ZWR9#..G202201-202501

main71930-28050-C0iMZRA90,95,ZWR90,95..Z202201-202501

main71931-28060-C0iMZRA90,95,ZWR90,95..Z202201-202501

71930FSUPPORT ASSY, FRONT SEAT HEADREST, LH

main71930-28050-C0iMZRA92..07S..SG;MZRA90,95,ZWR9#..(SG,SZ)..CBU202201

main71930-28050-C0iMZRA9#,ZWR9#..G202201-202501

main71931-28060-C0iMZRA92..07S..SG;MZRA90,95,ZWR9#..(SG,SZ)..CBU202201-202501

main71930-47050-C5iMZRA92..07S..SG202201

main71931-47030-C4iMZRA90..07S..G202201-202501

72810KARMREST ASSY, FRONT SEAT, RH(FOR LH SEAT)

main72880-V1040-C0iMZRA95..X..IV5202201-202501

BLACK,TRIM1#

main72880-V1050-C0iMZRA9#,ZWR9#..G202201-202501

BLACK,TRIM2#

main72880-V1050-E0iMZRA90,95,ZWR90,95..Z202201-202501

DK.CHESTNUT,TRIM4#

72812CPLATE, FRONT SEAT ARMREST, NO.1 RH

main72812-V1010iMZRA95..IV5;MZRA92..08S..SG;MZRA9#,ZWR9#..G,Z202401-202501

main90201-15015iMZRA9#,ZWR9#202201-202401

72812DPLATE, FRONT SEAT ARMREST, NO.1 LH

main72812-V1010iMZRA92..08S..X;MZRA92..07S..(SG,X);MZRA90,95,97,ZWR9#..(SG,SZ,X)..CBU202401-202501

main90201-15015iMZRA9#,ZWR9#202201-202401

72820ARMREST ASSY, FRONT SEAT, LH(FOR RH SEAT)

main72890-V1040-C0iMZRA95..X..IV5202201-202501

BLACK,TRIM1#

main72890-V1050-C0iMZRA9#,ZWR9#..G202201-202501

BLACK,TRIM2#

main72890-V1050-E0iMZRA90,95,ZWR90,95..Z202201-202501

DK.CHESTNUT,TRIM4#

72821APLATE, SEAT ARMREST, RH

main72821-26040iMZRA95..IV5;MZRA92..08S..SG;MZRA9#,ZWR9#..G,Z202401-202501

72821BPLATE, SEAT ARMREST, LH

main72821-26040iMZRA95..IV5;MZRA92..08S..SG;MZRA9#,ZWR9#..G,Z202401-202501

72848KCAP, SEAT ARMREST, NO.1(FOR RH SEAT)

main72848-28030-C3iMZRA92..07S..SG;MZRA90,95,ZWR9#..(SG,SZ)..CBU202201-202501

BLACK,TRIM2#

sub72848-28030

main72848-28030-L2iMZRA90,95,ZWR90,95..Z202201-202501

DARK CHESTNUT,TRIM4#

sub72848-28030

72848LCAP, SEAT ARMREST, NO.1(FOR LH SEAT)

main72848-28030-C3iMZRA9#,ZWR9#..G202201-202501

BLACK,TRIM2#

sub72848-28030

main72848-28030-L2iMZRA90,95,ZWR90,95..Z202201-202501

DARK CHESTNUT,TRIM4#

sub72848-28030

87530DHEATER ASSY, FRONT SEATBACK, RH

main87530-28060iMZRA9#,ZWR9#..G;MZRA92..08S..SG;MZRA95..SG..IV5202201-202501

main87530-28060iMZRA90,95,ZWR90,95..SZ202201

87530EHEATER ASSY, FRONT SEATBACK, LH

main87530-28060iMZRA9#,ZWR9#..G;MZRA92..08S..SG;MZRA95..SG..IV5202201-202501

main87530-28060iMZRA90,95,ZWR90,95..SZ202201

87E10BHEATER ASSY, FRONT SEAT CUSHION, RH

main87510-28250iMZRA9#,ZWR9#..G;MZRA92..08S..SG;MZRA95..SG..IV5202201-202501

main87510-28250iMZRA90,95,ZWR90,95..SZ202201

87E10CHEATER ASSY, FRONT SEAT CUSHION, LH

main87510-28260iMZRA9#,ZWR9#..G;MZRA92..08S..SG;MZRA95..SG..IV5202201-202501

main87510-28260iMZRA90,95,ZWR90,95..SZ202201

7270268020BRACKET SUB-ASSY, REAR SEATBACK STRIKER

main72702-68020

9454201400

main94542-01400

26 parts on this diagram · 11 diagrams in section
