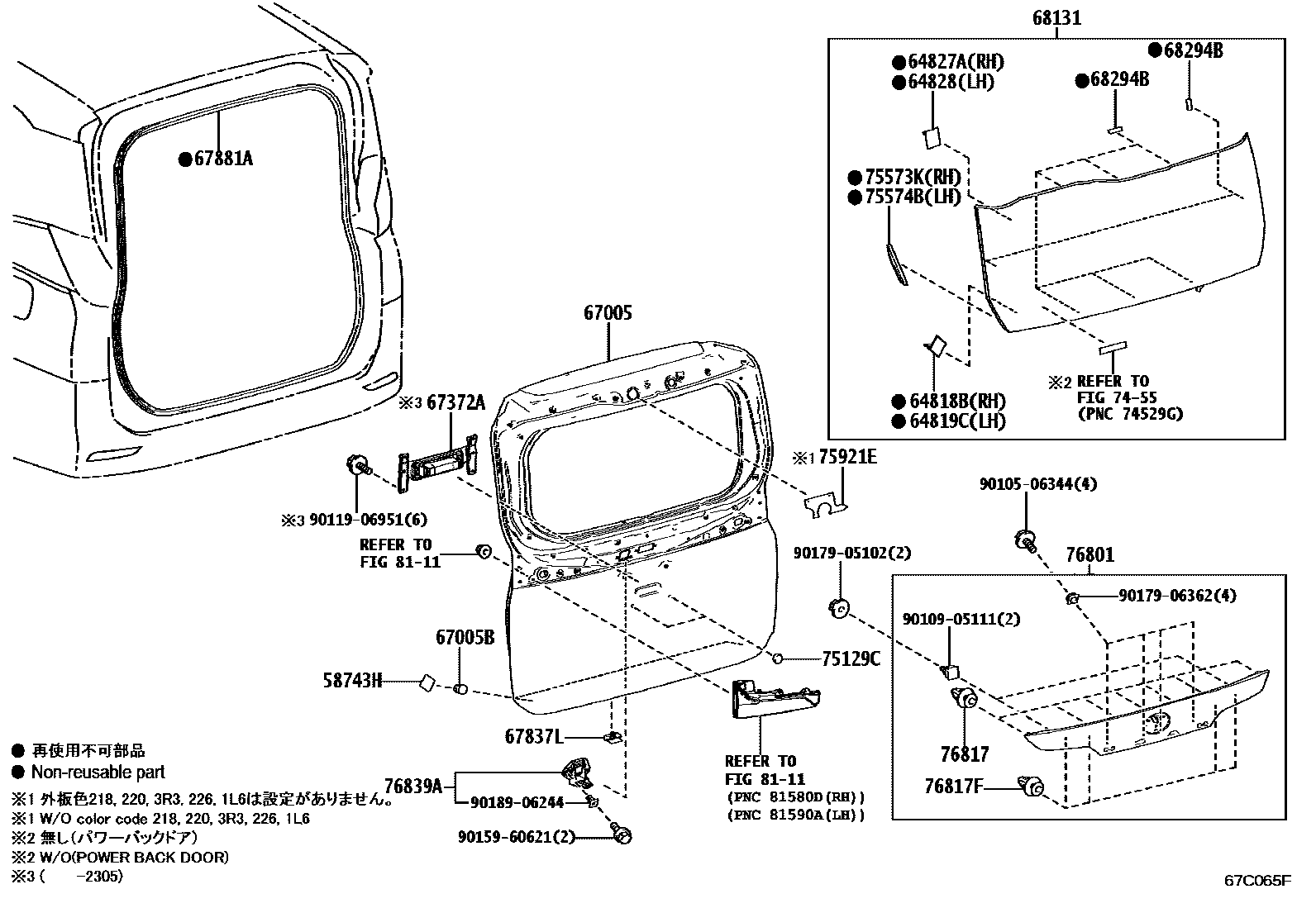

BACK DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR PANEL 0003 1DOOR TRIM

58743HPROTECTOR, BACK DOOR PANEL

main58743-28020×2iMZRA95..IV5;MZRA92..08S..SG;MZRA9#,ZWR9#..G,Z202201-202501

64818BSPACER, BACK DOOR GLASS, NO.1

main64818-V1010iMZRA95..IV5;MZRA92..08S..SG;MZRA9#,ZWR9#..G,Z202201-202501

64819CSPACER, BACK DOOR GLASS, NO.2

main64819-V1010iMZRA95..IV5;MZRA92..08S..SG;MZRA9#,ZWR9#..G,Z202201-202501

64827ACLIP, BACK WINDOW GLASS, RH

main64827-V1010iMZRA95..IV5;MZRA92..08S..SG;MZRA9#,ZWR9#..G,Z202201-202501

64828CLIP, BACK WINDOW GLASS, LH

main64828-V1010iMZRA95..IV5;MZRA92..08S..SG;MZRA9#,ZWR9#..G,Z202201-202501

67005PANEL SUB-ASSY, BACK DOOR

main67005-V1010iMZRA95..IV5;MZRA92..08S..SG;MZRA9#,ZWR9#..G,Z202201-202501

main67005-V1030iMZRA90,95..VOXY..CBU202201-202305

main67005-V1020iZWR90,95..Z202201-202501

main67005-V1040iMZRA90,95..SZ,Z202201-202305

67005BCUSHION(FOR BACK DOOR PANEL)

main90541-09142×2iMZRA95..IV5;MZRA92..08S..SG;MZRA9#,ZWR9#..G,Z202201-202501

67372AWEIGHT, BACK DOOR

main67372-V1010iMZRA90,95..NOAH..(SZ,Z)202201-202305

67837LSEAL, DOOR DUST PROOF

main67837-48050iMZRA92..08S..X;MZRA92..07S..(SG,X);MZRA90,95,97,ZWR9#..(SG,SZ,X)..CBU202201

67881AWEATHERSTRIP, BACK DOOR

main67881-28180iMZRA95..IV5;MZRA92,97,ZWR92202201-202309

main67881-28181iMZRA92..08S..X;MZRA92,97,ZWR92..07S..(SG,X)202310

main67881-28190iMZRA90,95,ZWR90,95..CBU202201-202309

main67881-28191iMZRA90,95,ZWR90,95..(SG,SZ,X)..CBU202310

68131GLASS, BACK DOOR

main68105-V1010iMZRA95..IV5;MZRA92..08S..SG;MZRA92,97,ZWR92..G202201-202501

main68105-V1040iMZRA90,95,ZWR90,95..G,Z202201-202501

main68105-V1030iMZRA90,95,ZWR90,95..SZ202201-202502

main68105-V1050iMZRA90,95,ZWR90,95..SZ202201-202502

68294BDAM, BACK DOOR GLASS ADHESIVE

main68294-26030×8iMZRA95..IV5;MZRA92..08S..SG;MZRA9#,ZWR9#..G,Z202201-202501

7455

75129CCUSHION, REAR LICENCE PLATE

main75129-26010×2iMZRA92..08S..X;MZRA92..07S..(SG,X);MZRA90,95,97,ZWR9#..(SG,SZ,X)..CBU202201

75573KMOULDING, BACK WINDOW, OUTSIDE RH

main75573-V1010iMZRA92..08S..X;MZRA92..07S..(SG,X);MZRA90,95,97,ZWR9#..(SG,SZ,X)..CBU202201

75574BMOULDING, BACK WINDOW, OUTSIDE LH

main75574-V1010iMZRA95..IV5;MZRA92..08S..SG;MZRA9#,ZWR9#..G,Z202201-202501

75921ETAPE, BLACK OUT, NO.1 RH

main75921-V1010iMZRA92..08S..X;MZRA92..07S..(SG,X);MZRA90,95,97,ZWR9#..(SG,SZ,X)..CBU202201

76801GARNISH SUB-ASSY, BACK DOOR, OUTSIDE

main76801-V1010iMZRA9#,ZWR9#..G,Z;MZRA95..NOAH..IV5;MZRA92..NOAH..08S..SG202201-202501

main76801-V1030iMZRA90,92,95,ZWR9#..VOXY202201-202212

main76801-V1031iMZRA92..VOXY..08S;MZRA95..VOXY..IV5202301-202501

76817CLIP, BACK DOOR OUTSIDE GARNISH

main90467-09206iMZRA92..VOXY..08S;MZRA95..VOXY..IV5202201-202501

76817FCLIP, BACK DOOR OUTSIDE GARNISH, NO.2

main90467-09232×4iMZRA92..VOXY..07S;MZRA90,95,ZWR9#..VOXY..CBU202201

76839ACOVER, BACK DOOR GARNISH

main76839-V1010supersedes 76839-V1010iMZRA95..IV5;MZRA92..08S..SG;MZRA9#,ZWR9#..G;MZRA90..NOAH..07S..SG202201-202501

8111

9010506344

main90105-06344

9010905111

main90109-05111

9011906951

main90119-06951

9015960621

main90159-60621

9017905102

main90179-05102

9017906362

main90179-06362

9018906244

main90189-06244

29 parts on this diagram · 3 diagrams in section
