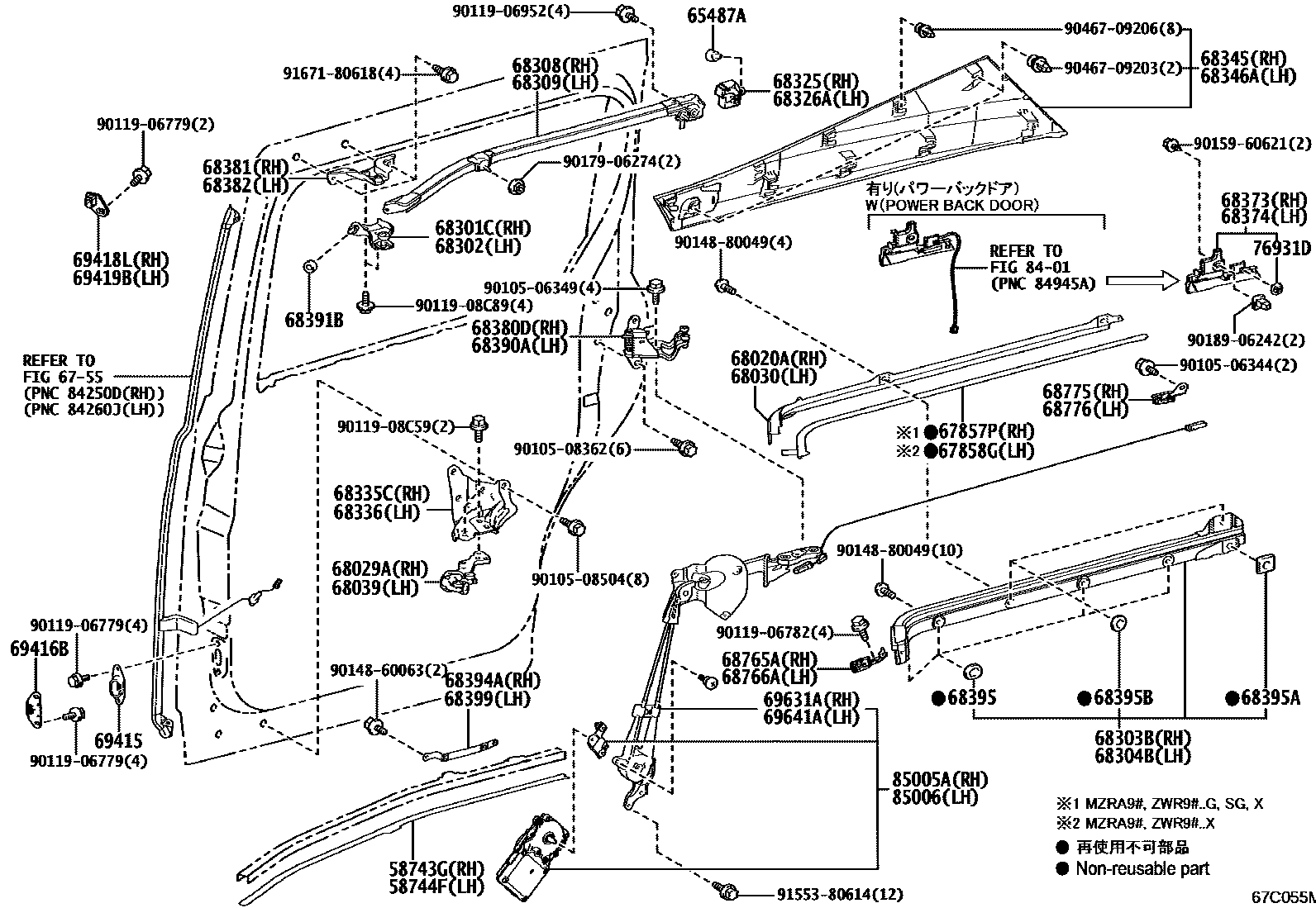

SLIDE ROLLER & RAIL

58743GPROTECTOR, SLIDE DOOR PANEL, RH

main58743-V1010iMZRA9#,ZWR9#..X..CBU202501-202502

main58743-V1010iMZRA92..08S;MZRA95..IV5;MZRA92..07S..(G,X);MZRA90,95,97,ZWR9#..(G,X,Z)..CBU202201-202501

58744FPROTECTOR, SLIDE DOOR PANEL, LH

main58744-V1010iMZRA9#,ZWR9#..X..CBU202501-202502

main58744-V1010iMZRA92..08S;MZRA95..IV5;MZRA92..07S..(G,X);MZRA90,95,97,ZWR9#..(G,X,Z)..CBU202201-202501

65487ACLIP, CORNER PROTECTOR

main65487-28010iMZRA92..08S;MZRA95..IV5;MZRA92..07S..(G,X);MZRA90,95,97,ZWR9#..(G,X,Z)..CBU202201-202501

main65487-28010iMZRA9#,ZWR9#..X..CBU202501-202502

6755

67857PPROTECTOR, REAR DOOR PANEL, RH

main67857-V1010iMZRA92..08S;MZRA95..IV5;MZRA92..07S..(G,X);MZRA90,95,97,ZWR9#..(G,X)..CBU202201-202501

main67857-V1010iMZRA9#,ZWR9#..X..CBU202501-202502

67858GPROTECTOR, REAR DOOR PANEL, LH

main67858-V1010iMZRA9#,ZWR9#..X202201-202501

68020AGUIDE ASSY, SLIDE DOOR CABLE, RH

main68020-V1010iMZRA90,95,ZWR90,95..G202201-202501

main68020-V1010iMZRA90,95,ZWR90,95..G202201-202501

main68020-V1010iMZRA90,95,ZWR90,95..G202201-202501

main68020-V1010iMZRA92..08S..SG;MZRA95..SG..IV5;MZRA92,97,ZWR92..G202201-202501

68029ABASE SUB-ASSY, SLIDE DOOR LOWER ROLLER, RH

main68029-V1010iMZRA95..IV5;MZRA92..08S..SG;MZRA9#,ZWR9#..G,Z202201-202501

68030GUIDE ASSY, SLIDE DOOR CABLE

main68030-V1010iMZRA92..08S..SG;MZRA95..SG..IV5;MZRA9#,ZWR9#..G,Z202201-202502

main68030-V1010iMZRA92..07S..SG;MZRA90,95,ZWR9#..(SG,SZ)..CBU202201

68039BASE SUB-ASSY, SLIDE DOOR LOWER ROLLER, LH

main68039-V1010iMZRA95..IV5;MZRA92..08S..SG;MZRA9#,ZWR9#..G,Z202201-202501

68301CROLLER SUB-ASSY, SLIDE DOOR, UPPER RH

main68301-V1010iMZRA95..IV5;MZRA92..08S..SG;MZRA9#,ZWR9#..G,Z202201-202501

68302ROLLER SUB-ASSY, SLIDE DOOR, UPPER LH

main68302-V1010iMZRA95..IV5;MZRA92..08S..SG;MZRA9#,ZWR9#..G,Z202201-202501

68303BRAIL SUB-ASSY, SLIDE DOOR, CENTER RH

main68303-V1010iMZRA95..IV5;MZRA92..08S..SG;MZRA9#,ZWR9#..G,Z202201-202501

68304BRAIL SUB-ASSY, SLIDE DOOR, CENTER LH

main68304-V1010iMZRA95..IV5;MZRA92..08S..SG;MZRA9#,ZWR9#..G,Z202201-202501

68308RAIL SUB-ASSY, SLIDE DOOR, UPPER RH

main68308-V1010iMZRA95..IV5;MZRA92..08S..SG;MZRA9#,ZWR9#..G,Z202201-202501

68309RAIL SUB-ASSY, SLIDE DOOR, UPPER LH

main68309-V1010iMZRA95..IV5;MZRA92..08S..SG;MZRA9#,ZWR9#..G,Z202201-202501

68325CUSHION, SLIDE DOOR UPPER RAIL, RH

main68325-V1010iMZRA9#,ZWR9#..X..CBU202501-202502

main68325-V1010iMZRA92..07S..SG;MZRA90,95,ZWR9#..(SG,SZ)..CBU202201-202501

68326ACUSHION, SLIDE DOOR UPPER RAIL, LH

main68326-V1010iMZRA9#,ZWR9#..X..CBU202501-202502

main68326-V1010iMZRA92..08S;MZRA95..IV5;MZRA92..07S..(G,X);MZRA90,95,97,ZWR9#..(G,X,Z)..CBU202201-202501

68335CARM, SLIDE DOOR LOWER ROLLER, RH

main68335-V1010iMZRA95..IV5;MZRA92..08S..SG;MZRA9#,ZWR9#..G,Z202201-202501

68336ARM, SLIDE DOOR LOWER ROLLER, LH

main68336-V1010iMZRA95..IV5;MZRA92..08S..SG;MZRA9#,ZWR9#..G,Z202201-202501

68345COVER, SLIDE DOOR CENTER RAIL

main60835-V1010-A0iMZRA92..08S..X;MZRA92..07S..(SG,X);MZRA90,95,97,ZWR9#..(SG,SZ,X)..CBU202201-202502

WHITE PEARL CS.,070

main60835-V1010-B0iMZRA92..08S..X;MZRA92..07S..(SG,X);MZRA90,95,97,ZWR9#..(SG,SZ,X)..CBU202201-202501

METAL STREAM ME,1K0

main60835-V1010-B1iMZRA92..VOXY..08S;MZRA95..VOXY..IV5202201-202502

MASSIVE GRAY,1L6

main60835-V1010-C0iMZRA95..IV5;MZRA92..08S..SG;MZRA9#,ZWR9#..G,Z202201-202501

ATTITUDE BLACK MC.,218

main60835-V1010-C1iMZRA95..IV5;MZRA92..08S..SG;MZRA9#,ZWR9#..G,Z202201-202502

SPARKLING BLACK PEARL CS.,220

main60835-V1010-C2iMZRA92..07S..SG;MZRA90,95,ZWR9#..(SG,SZ)..CBU202201-202501

GLITTER BLACK GF.,226

main60835-V1010-D0iMZRA92..NOAH..07S..SG;MZRA90,95,ZWR9#..NOAH..(SG,SZ)..CBU202201-202502

RED M.M.,3R3

main60835-V1010-E0iMZRA9#,ZWR9#..X..CBU202201-202502

STEEL BLONDE ME.,4X1

68346ACOVER, SLIDE DOOR CENTER RAIL, LH

main60836-V1010-A0iMZRA92..08S..X;MZRA92..07S..(SG,X);MZRA90,95,97,ZWR9#..(SG,SZ,X)..CBU202201-202502

WHITE PEARL CS.,070

main60836-V1010-B0iMZRA95..IV5;MZRA92..08S..SG;MZRA9#,ZWR9#..G,Z202201-202501

METAL STREAM ME,1K0

main60836-V1010-B1iMZRA92..VOXY..08S;MZRA95..VOXY..IV5202201-202502

MASSIVE GRAY,1L6

main60836-V1010-C0iMZRA92..08S..X;MZRA92..07S..(SG,X);MZRA90,95,97,ZWR9#..(SG,SZ,X)..CBU202201-202501

ATTITUDE BLACK MC.,218

main60836-V1010-C1iMZRA95..IV5;MZRA92..08S..SG;MZRA9#,ZWR9#..G,Z202201-202502

SPARKLING BLACK PEARL CS.,220

main60836-V1010-C2iMZRA92..08S..SG;MZRA95..SG..IV5202201-202501

GLITTER BLACK GF.,226

main60836-V1010-D0iMZRA92..NOAH..07S..SG;MZRA90,95,ZWR9#..NOAH..(SG,SZ)..CBU202201-202502

RED M.M.,3R3

main60836-V1010-E0iMZRA9#,ZWR9#..X..CBU202201-202502

STEEL BLONDE ME.,4X1

68373MOULDING, SLIDE RAIL END, RH

main68373-V1010iMZRA92..07S..SG;MZRA90,95,ZWR9#..(SG,SZ)..CBU202201-202501

main68373-V1010iMZRA9#,ZWR9#..X..CBU202501-202502

68374MOULDING, SLIDE RAIL END, LH

main68374-V1010iMZRA92..08S;MZRA95..IV5;MZRA92..07S..(G,X);MZRA90,95,97,ZWR9#..(G,X,Z)..CBU202201-202501

main68374-V1010iMZRA9#,ZWR9#..X..CBU202501-202502

68380DHINGE ASSY, SLIDE DOOR, CENTER RH

main68380-V1010iMZRA92..08S..X;MZRA92..07S..(SG,X);MZRA90,95,97,ZWR9#..(SG,SZ,X)..CBU202201-202501

68381ARM, SLIDE DOOR UPPER ROLLER, RH

main68381-V1010iMZRA92..08S..X;MZRA92..07S..(SG,X);MZRA90,95,97,ZWR9#..(SG,SZ,X)..CBU202201-202501

68382ARM, SLIDE DOOR UPPER ROLLER, LH

main68382-V1010iMZRA92..08S..X;MZRA92..07S..(SG,X);MZRA90,95,97,ZWR9#..(SG,SZ,X)..CBU202201-202501

68390AHINGE ASSY, SLIDE DOOR, CENTER LH

main68390-V1010iMZRA92..08S..X;MZRA92..07S..(SG,X);MZRA90,95,97,ZWR9#..(SG,SZ,X)..CBU202201-202501

68391BCUSHION, SLIDE DOOR UPPER ROLLER

main68391-28040iMZRA9#,ZWR9#..X..CBU202501-202502

main68391-28040iMZRA92..08S;MZRA95..IV5;MZRA92..07S..(G,X);MZRA90,95,97,ZWR9#..(G,X,Z)..CBU202201-202501

68394APLATE, SLIDE DOOR LOWER RAIL, RH

main68394-V1010iMZRA92..08S;MZRA95..IV5;MZRA92..07S..(G,X);MZRA90,95,97,ZWR9#..(G,X,Z)..CBU202201-202501

main68394-V1010iMZRA9#,ZWR9#..X..CBU202501-202502

68395PACKING, SLIDE DOOR CENTER RAIL

main68395-28100iMZRA92..08S..X;MZRA92..07S..(SG,X);MZRA90,95,97,ZWR9#..(SG,SZ,X)..CBU202201-202501

68395APACKING, SLIDE DOOR CENTER RAIL

main68395-28120iMZRA95..IV5;MZRA92..08S..SG;MZRA9#,ZWR9#..G,Z202201-202501

68395BPACKING, SLIDE DOOR CENTER RAIL

main68395-52020iMZRA92..08S..X;MZRA92..07S..(SG,X);MZRA90,95,97,ZWR9#..(SG,SZ,X)..CBU202201-202501

68399PLATE, SLIDE DOOR LOWER RAIL, LH

main68399-V1010iMZRA9#,ZWR9#..X..CBU202501-202502

main68399-V1010iMZRA92..07S..SG;MZRA90,95,ZWR9#..(SG,SZ)..CBU202201-202501

68765ABRACKET, SLIDE DOOR, CENTER NO.1 RH

main68765-V1010iMZRA90,95,ZWR90,95..Z202201-202501

main68765-V1010iMZRA90,95,ZWR90,95..Z202201-202501

main68765-V1010iMZRA90,95,ZWR90,95..Z202201-202501

main68765-V1010iMZRA95..X..IV5;MZRA90,95,ZWR90,95..G202201-202501

68766ABRACKET, SLIDE DOOR, CENTER NO.1 LH

main68766-V1010iMZRA92..08S..SG;MZRA95..SG..IV5;MZRA9#,ZWR9#..G,Z202201-202502

main68766-V1010iMZRA92..07S..SG;MZRA90,95,ZWR9#..(SG,SZ)..CBU202201

68775BRACKET, SLIDE DOOR, CENTER NO.2 RH

main68775-V1010iMZRA90,95,ZWR90,95..SG..CBU202201-202501

main68775-V1010iMZRA90,95,ZWR90,95..Z202201-202501

main68775-V1010iMZRA90,95,ZWR90,95..Z202201-202501

main68775-V1010iMZRA90,95,ZWR90,95..Z202201-202501

68776BRACKET, SLIDE DOOR, CENTER NO.2 LH

main68776-V1010iMZRA92..08S..SG;MZRA95..SG..IV5;MZRA9#,ZWR9#..G,Z202201-202502

main68776-V1010iMZRA92..07S..SG;MZRA90,95,ZWR9#..(SG,SZ)..CBU202201

69415STOPPER, SLIDE DOOR DOWN FEMALE

main69415-58020iMZRA92..08S;MZRA95..IV5;MZRA92..07S..(G,X);MZRA90,95,97,ZWR9#..(G,X,Z)..CBU202201-202501

main69415-58020iMZRA9#,ZWR9#..X..CBU202501-202502

69416BSTOPPER, SLIDE DOOR DOWN MALE

main69046-28020iMZRA92..08S;MZRA95..IV5;MZRA92..07S..(G,X);MZRA90,95,97,ZWR9#..(G,X,Z)..CBU202201-202501

main69046-28020iMZRA9#,ZWR9#..X..CBU202501-202502

69418LSTOP, SLIDE DOOR OPEN, RH

main69418-28122iMZRA92..08S;MZRA95..IV5;MZRA92..07S..(G,X);MZRA90,95,97,ZWR9#..(G,X,Z)..CBU202201-202501

main69418-28122iMZRA9#,ZWR9#..X..CBU202501-202502

69419BSTOP, SLIDE DOOR OPEN, LH

main69419-28062iMZRA92..08S;MZRA95..IV5;MZRA92..07S..(G,X);MZRA90,95,97,ZWR9#..(G,X,Z)..CBU202201-202501

main69419-28062iMZRA9#,ZWR9#..X..CBU202501-202502

69631ACONTROL, SLIDE DOOR ATTACHMENT, RH

main69631-V1010iMZRA90,95,ZWR90,95..Z202201-202501

main69631-V1010iMZRA90,95,ZWR90,95..Z202201-202501

main69631-V1010iMZRA90,95,ZWR90,95..Z202201-202501

main69631-V1010iMZRA90,95,ZWR90,95..Z202201-202501

69641ACONTROL, SLIDE DOOR ATTACHMENT, LH

main69641-V1010iMZRA92..08S..SG;MZRA95..SG..IV5;MZRA9#,ZWR9#..G,Z202201-202502

main69641-V1010iMZRA92..07S..SG;MZRA90,95,ZWR9#..(SG,SZ)..CBU202201

76931DRETAINER, SLIDE RAIL END MOULDING

main76931-26010iMZRA92..08S;MZRA95..IV5;MZRA92..07S..(G,X);MZRA90,95,97,ZWR9#..(G,X,Z)..CBU202201-202501

main76931-26010iMZRA9#,ZWR9#..X..CBU202501-202502

8401

85005AMOTOR UNIT, SLIDE DOOR, RH

main85005-V1020iMZRA90,95,ZWR90,95..SZ,Z202201-202403

sub85005-V1021

main85005-V1020iMZRA90,95,ZWR90,95..SZ,Z202201-202403

sub85005-V1021

main85005-V1020iMZRA90,95,ZWR90,95..SZ,Z202201-202403

sub85005-V1021

main85005-V1020iMZRA90,95,ZWR90,95..SZ,Z202201-202403

sub85005-V1021

main85005-V1021iMZRA90,95,ZWR90,95..Z202404-202501

main85005-V1021iMZRA90,95,ZWR90,95..Z202404-202501

main85005-V1021iMZRA90,95,ZWR90,95..Z202404-202501

main85005-V1021iMZRA90,95,ZWR90,95..Z202404-202501

85006MOTOR UNIT, SLIDE DOOR, LH

main85006-V1020iMZRA9#,ZWR9#..G,SG,SZ,Z202201-202403

sub85006-V1021

main85006-V1021iMZRA92..08S..SG;MZRA95..SG..IV5;MZRA9#,ZWR9#..G,Z202404-202502

main85006-V1021iMZRA92..07S..SG;MZRA90,95,ZWR9#..(SG,SZ)..CBU202404

9010506344

main90105-06344

9010506349

main90105-06349

9010508362

main90105-08362

9010508504

main90105-08504

9011906779

main90119-06779

9011906782

main90119-06782

9011906952

main90119-06952

9011908C59

main90119-08C59

9011908C89

main90119-08C89

9014860063

main90148-60063

9014880049

main90148-80049

9015960621

main90159-60621

9017906274

main90179-06274

9018906242

main90189-06242

9046709203

main90467-09203

9046709206

main90467-09206

9155380614

main91553-80614

9167180618

main91671-80618

66 parts on this diagram · 1 diagram in section
