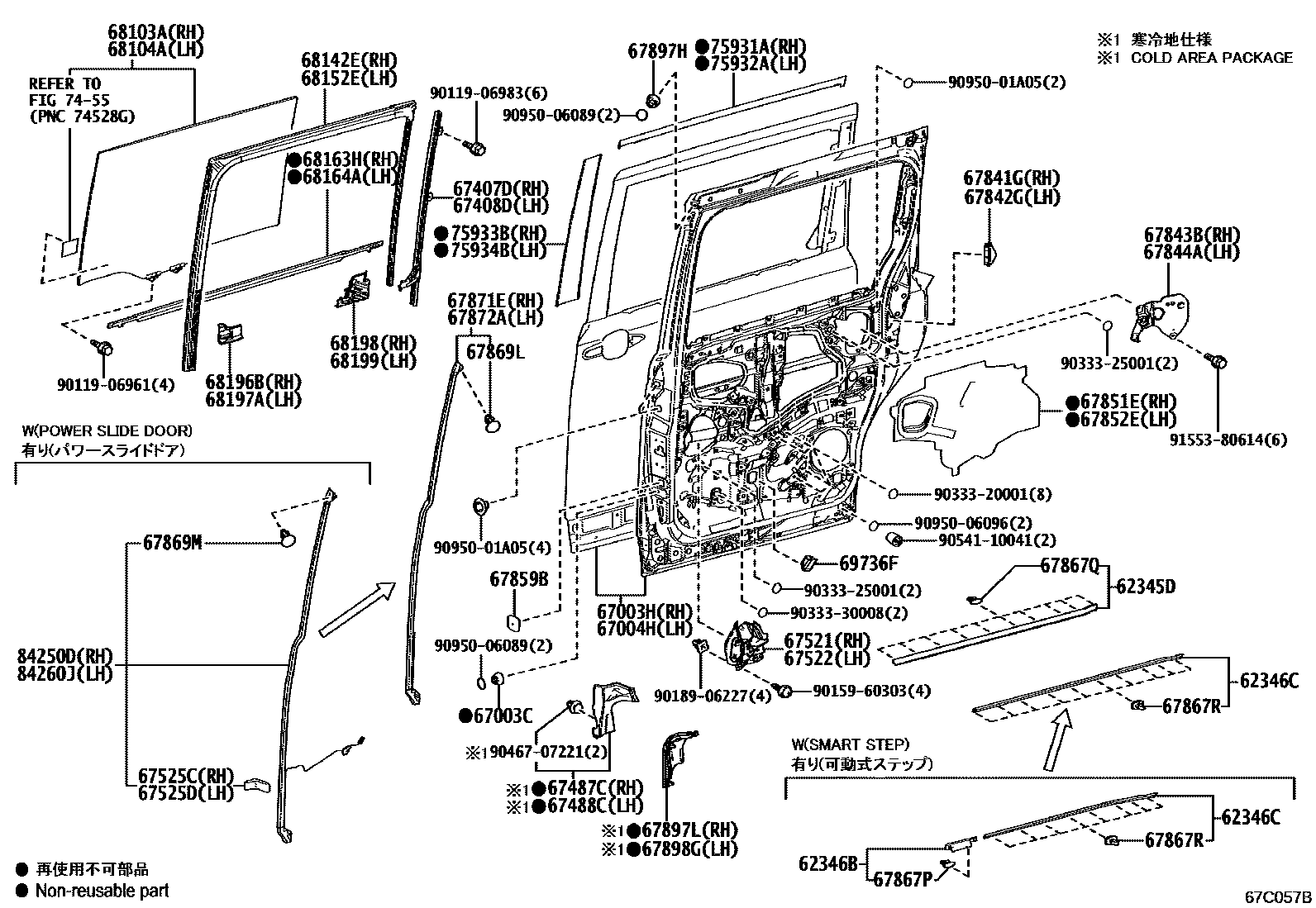

REAR DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

62345DWEATHERSTRIP, SLIDE DOOR, NO.3 RH

main62345-V1010iMZRA92..08S..X;MZRA92..07S..(SG,X);MZRA90,95,97,ZWR9#..(SG,SZ,X)..CBU202201

62346BWEATHERSTRIP, SLIDE DOOR, NO.3 LH

main62346-V1030iMZRA9#,ZWR9#202201-202307

main62346-V1031iMZRA95..IV5;MZRA92..08S..SG;MZRA9#,ZWR9#..G,Z202308-202501

62346CWEATHERSTRIP, SLIDE DOOR, NO.3 LH

main62346-V1020supersedes 62346-V1010iMZRA95..IV5;MZRA92..08S..SG;MZRA9#,ZWR9#..G,Z202201-202501

67003CCUSHION, REAR DOOR PANEL

main90541-08032×2iMZRA92..08S;MZRA95..IV5;MZRA92..07S..(G,X);MZRA90,95,97,ZWR9#..(G,X,Z)..CBU202201-202501

67003HDOOR SUB-ASSY, SLIDE, RH

main67003-V1030supersedes 67003-V1010iMZRA95..IV5;MZRA92..08S..SG;MZRA9#,ZWR9#..G202201-202501

main67003-V1040supersedes 67003-V1020iMZRA92..08S..SG;MZRA95..SG..IV5;MZRA92,97,ZWR92..G202201-202501

67004HDOOR SUB-ASSY, SLIDE, LH

main67004-V1030supersedes 67004-V1010iMZRA92..08S..SG;MZRA95..SG..IV5;MZRA9#,ZWR9#..G,Z202201-202501

main67004-V1040supersedes 67004-V1010iMZRA95..X..IV5202201-202501

main67004-V1050supersedes 67004-V1010iMZRA92..08S..SG;MZRA95..SG..IV5;MZRA9#,ZWR9#..G,Z202201-202501

main67004-V1060supersedes 67004-V1010iMZRA9#,ZWR9#..X..CBU202201-202502

67407DGUIDE SUB-ASSY, REAR DOOR WINDOW, REAR RH

main67407-V1010iMZRA95..IV5;MZRA92..08S..SG;MZRA9#,ZWR9#..G,Z202201-202501

67408DGUIDE SUB-ASSY, REAR DOOR WINDOW, REAR LH

main67408-V1010iMZRA95..IV5;MZRA92..08S..SG;MZRA9#,ZWR9#..G,Z202201-202501

67487CSEAL, REAR DOOR REAR GUIDE, RH

main67487-V1010iMZRA95..IV5;MZRA92..08S..SG;MZRA9#,ZWR9#..G,Z202201-202501

67488CSEAL, REAR DOOR REAR GUIDE, LH

main67488-V1010iMZRA95..IV5;MZRA92..08S..SG;MZRA9#,ZWR9#..G,Z202201-202501

67521COVER SUB-ASSY, SLIDE DOOR PANEL, RH

main67521-V1010iMZRA95..IV5;MZRA92..08S..SG;MZRA9#,ZWR9#..G,Z202201-202501

67522COVER SUB-ASSY, SLIDE DOOR PANEL, LH

main67522-V1010iMZRA95..IV5;MZRA92..08S..SG;MZRA9#,ZWR9#..G,Z202201-202501

67525CCOVER, SLIDE DOOR PANEL, LOWER RH

main67525-V1010iMZRA90,95,ZWR90,95..SZ202201

67525DCOVER, SLIDE DOOR PANEL, LOWER LH

main67526-V1010iMZRA92..08S..SG;MZRA95..SG..IV5;MZRA9#,ZWR9#..G,Z202201-202501

67841GCOVER, SLIDE DOOR SERVICE HOLE, RH

main67841-V1010iMZRA92..07S..SG;MZRA90,95,ZWR9#..SG..CBU202201

67842GCOVER, SLIDE DOOR SERVICE HOLE, LH

main67842-V1010iMZRA9#,ZWR9#..X202201-202501

67843BCOVER, REAR DOOR SERVICE HOLE, NO.2 RH

main67843-V1010iMZRA92..08S;MZRA95..IV5;MZRA92..07S..(G,X);MZRA90,95,97,ZWR9#..(G,X)..CBU202201-202501

67844ACOVER, REAR DOOR SERVICE HOLE, NO.2 LH

main67844-V1010iMZRA9#,ZWR9#..X202201-202501

67851ECOVER, SLIDE DOOR SERVICE HOLE, RH

main67851-V1010iMZRA9#,ZWR9#202201-202312

main67851-V1011iMZRA9#,ZWR9#202401-202402

main67851-V1012iMZRA9#,ZWR9#202403-202406

main67851-V1013iMZRA95..IV5;MZRA92..08S..SG;MZRA9#,ZWR9#..G,Z202407-202501

67852ECOVER, SLIDE DOOR SERVICE HOLE, LH

main67852-V1010iMZRA9#,ZWR9#202201-202312

main67852-V1011iMZRA9#,ZWR9#202401-202402

main67852-V1012iMZRA9#,ZWR9#202403-202406

main67852-V1013iMZRA95..IV5;MZRA92..08S..SG;MZRA9#,ZWR9#..G,Z202407-202501

67859BCOVER, REAR DOOR LOWER HOLE

main67859-V1010×2iMZRA9#,ZWR9#..G;MZRA92..08S..SG;MZRA95..SG..IV5202201-202501

67867PRETAINER, SLIDE DOOR WEATHERSTRIP, NO.1

main67867-50140×3iMZRA92..08S..X;MZRA92..07S..(SG,X);MZRA90,95,97,ZWR9#..(SG,SZ,X)..CBU202201

67867QRETAINER, SLIDE DOOR WEATHERSTRIP, NO.2

main67867-76010×10iMZRA92..08S..X;MZRA92..07S..(SG,X);MZRA90,95,97,ZWR9#..(SG,SZ,X)..CBU202201

67867RRETAINER, SLIDE DOOR WEATHERSTRIP, NO.3

main67867-76010×8supersedes 67867-50140iMZRA92..08S..X;MZRA92..07S..(SG,X);MZRA90,95,97,ZWR9#..(SG,SZ,X)..CBU202201

67869LCLIP, REAR DOOR WEATHERSTRIP

main67869-28020×2supersedes 67869-28020iMZRA92..07S..SG;MZRA90,95,ZWR9#..SG..CBU202201

67869MCLIP, DOOR WEATHERSTRIP

main67869-28020×2iMZRA92..07S..SG;MZRA90,95,ZWR9#..SG..CBU202201

67871EWEATHERSTRIP, SLIDE DOOR, NO.1 RH

main67865-V1010iMZRA95..IV5;MZRA92..08S..SG;MZRA9#,ZWR9#..G202201-202501

67872AWEATHERSTRIP, SLIDE DOOR, NO.1 LH

main67866-V1010iMZRA95..X..IV5202201-202501

67897HCUSHION, REAR DOOR

main90541-09141×2iMZRA92..07S..SG;MZRA90,95,ZWR9#..(SG,SZ)..CBU202201

67897LWEATHERSTRIP, REAR DOOR, NO.4 RH

main67897-V1010iMZRA92..08S..X;MZRA92..07S..(SG,X);MZRA90,95,97,ZWR9#..(SG,SZ,X)..CBU202201

67898GWEATHERSTRIP, REAR DOOR, NO.4 LH

main67898-V1010iMZRA92..08S..X;MZRA92..07S..(SG,X);MZRA90,95,97,ZWR9#..(SG,SZ,X)..CBU202201

68103AGLASS SUB-ASSY, SLIDE DOOR, RH

main68103-V1010iMZRA9#,ZWR9#202201-202406

main68103-V1011iMZRA95..IV5;MZRA92..08S..SG;MZRA9#,ZWR9#..G,Z202406-202501

68104AGLASS SUB-ASSY, SLIDE DOOR, LH

main68104-V1010iMZRA9#,ZWR9#202201-202406

sub69332-V1011

main68104-V1011iMZRA92..08S..X;MZRA92..07S..(SG,X);MZRA90,95,97,ZWR9#..(SG,SZ,X)..CBU202406

68142ERUN, SLIDE DOOR GLASS, RH

main68142-28140iMZRA92..08S..X;MZRA92..07S..(SG,X);MZRA90,95,97,ZWR9#..(SG,SZ,X)..CBU202201

68152ERUN, SLIDE DOOR GLASS, LH

main68152-28110iMZRA95..IV5;MZRA92..08S..SG;MZRA9#,ZWR9#..G,Z202201-202501

68163HWEATHERSTRIP, REAR DOOR GLASS, OUTER RH

main68163-V1010iMZRA95..IV5;MZRA92..08S..SG;MZRA9#,ZWR9#..G202201-202501

main68163-V1020iMZRA90,95,ZWR90,95..Z202201-202501

68164AWEATHERSTRIP, REAR DOOR GLASS, OUTER LH

main68164-V1010iMZRA92..08S..X;MZRA92..07S..(SG,X);MZRA90,95,97,ZWR9#..(SG,X)..CBU202201

main68164-V1020iMZRA90,95,ZWR90,95..SZ202201

68196BSEAL, REAR DOOR BELT, FRONT RH

main68196-V1010iMZRA95..IV5;MZRA92..08S..SG;MZRA9#,ZWR9#..G,Z202201-202501

68197ASEAL, REAR DOOR BELT, FRONT LH

main68197-V1010iMZRA95..IV5;MZRA92..08S..SG;MZRA9#,ZWR9#..G,Z202201-202501

68198SEAL, REAR DOOR BELT, REAR RH

main68198-V1010iMZRA95..IV5;MZRA92..08S..SG;MZRA9#,ZWR9#..G,Z202201-202501

68199SEAL, REAR DOOR BELT, REAR LH

main68199-V1010iMZRA95..IV5;MZRA92..08S..SG;MZRA9#,ZWR9#..G,Z202201-202501

69736FGUIDE, SLIDE DOOR LOCKING LINK

main69736-15010×2iMZRA92..07S..SG;MZRA90,95,ZWR9#..(SG,SZ)..CBU202201

7455

75931ATAPE, BLACK OUT, OUTER UPPER RH

main75931-V1010iMZRA92..08S..X;MZRA92..07S..(SG,X);MZRA90,95,97,ZWR9#..(SG,SZ,X)..CBU202201

75932ATAPE, BLACK OUT, OUTER UPPER LH

main75932-V1010iMZRA92..08S..X;MZRA92..07S..(SG,X);MZRA90,95,97,ZWR9#..(SG,SZ,X)..CBU202201

75933BTAPE, BLACK OUT, OUTER FRONT RH

main75933-V1010iMZRA95..IV5;MZRA92..08S..SG;MZRA9#,ZWR9#..G,Z202201-202501

75934BTAPE, BLACK OUT, OUTER FRONT LH

main75934-V1010iMZRA95..IV5;MZRA92..08S..SG;MZRA9#,ZWR9#..G,Z202201-202501

84250DSENSOR ASSY, POWER SLIDE DOOR, RH

main84250-V1010iMZRA90,95,ZWR90,95..SZ202201

84260JSENSOR ASSY, POWER SLIDE DOOR, LH

main84260-V1010iMZRA92..08S..SG;MZRA95..SG..IV5;MZRA9#,ZWR9#..G,Z202201-202501

9011906961

main90119-06961

9011906983

main90119-06983

9015960303

main90159-60303

9018906227

main90189-06227

9033320001

main90333-20001

9033325001

main90333-25001

9033330008

main90333-30008

9046707221

main90467-07221

9054110041

main90541-10041

9095001A05

main90950-01A05

9095006089

main90950-06089

9095006096

main90950-06096

9155380614

main91553-80614

62 parts on this diagram · 2 diagrams in section
