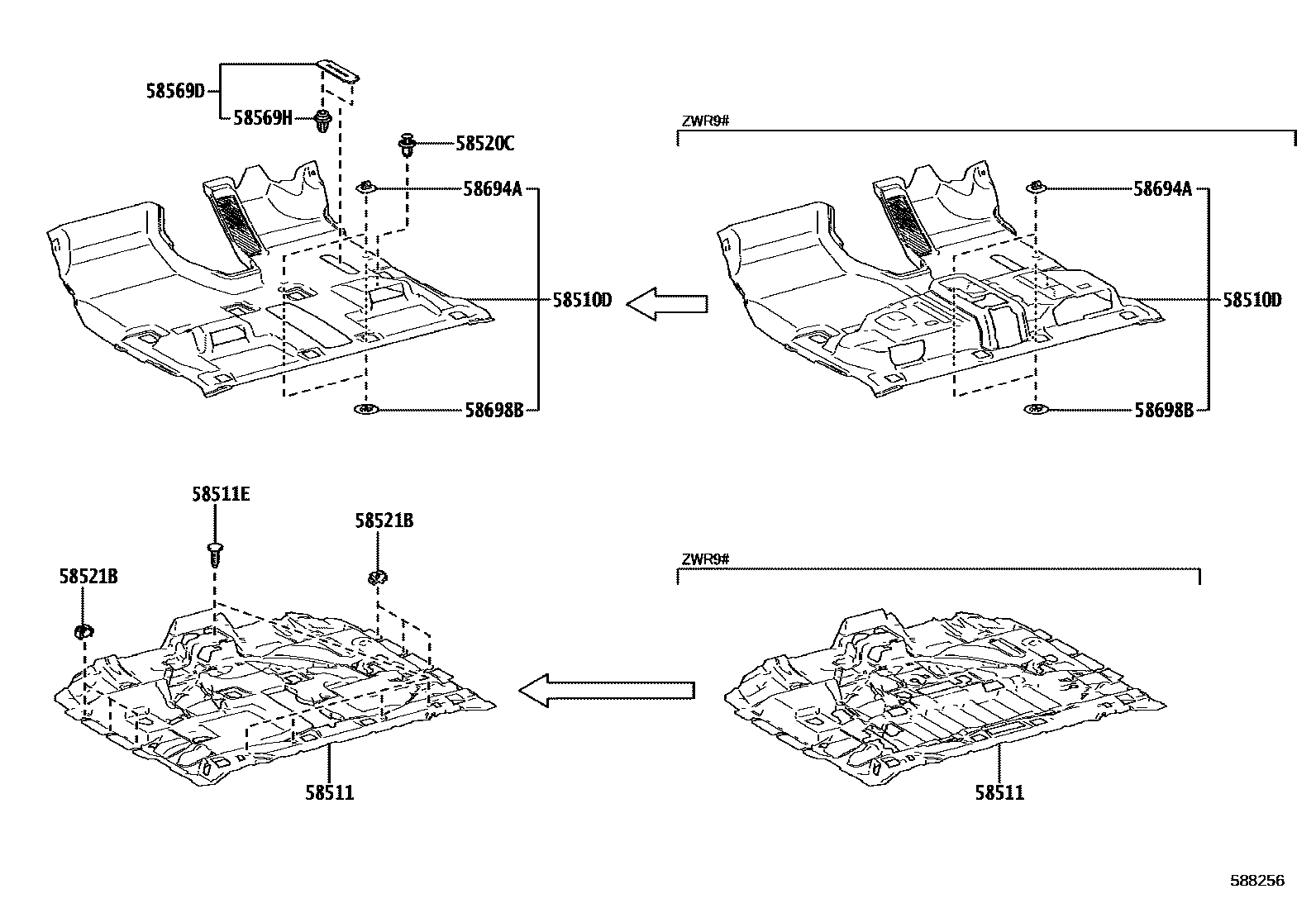

FLOOR MAT & SILENCER PAD

0001 1FRONT 0002 1FRONT (*PAS LIFTUP TILT SEAT)0003 1CENTER 0004 1CENTER (SLOPE TYPE I) 0005 1CENTER (SLOPE TYPE, II) 0006 1CENTER (WELJOIN) 0007 1CENTER (SIDE LIFT UP TILT SEA0008 1REAR 0009 1REAR (SLOPE TYPE)

58510DCARPET ASSY, FLOOR, FRONT

main58510-28J60-C1supersedes 58510-28J50-C1iZWR90,95..SZ202201

main58510-28J70-C1supersedes 58510-28J80-C1iMZRA92..07S..SG202201

main58510-28J80-C1iMZRA92..08S..SG;MZRA95..SG..IV5202201-202501

BLACK,TRIM1#

main58510-28K00-C1iMZRA90..08S..X202201

main58510-28K30-C1supersedes 58510-28K10-C1iMZRA92,97..G202201-202501

main58510-28K50-C1supersedes 58510-28K40-C1iZWR92..X202201

58511MAT, FLOOR, FRONT

main58511-V1010supersedes 58511-V1020iMZRA90,95..Z202201-202501

main58511-V1020iMZRA90,95..(SG,X)..CBU202201

main58511-V1030iZWR9#..SG,X202201

main58511-V1040iZWR90,95..SG,X202201

main58511-V1070iMZRA95..IV5;MZRA92,97..G;MZRA92..08S..SG202201-202501

main58511-V1060iMZRA90..07S..G;MZRA90..08S..SG202201-202501

main58511-V1080iMZRA92..07S..SG202201

58511ECLIP(FOR FRONT FLOOR MAT)

main90467-07049-23×5iMZRA90..08S..X202201

58520CCLIP(FOR FRONT FLOOR CARPET)

main90467-07215iMZRA92..08S..X;MZRA92..07S..(SG,X);MZRA90,95,97,ZWR9#..(SG,SZ,X)..CBU202201

58521BHOOK, FLOOR CARPET

main58521-28390×6iMZRA92..08S..X;MZRA92..07S..(SG,X);MZRA90,95,97,ZWR9#..(SG,SZ,X)..CBU202201

58569DCOVER, FRONT FLOOR CAUTION PLATE

main58569-V1010-C0iMZRA9#,ZWR9#..G202201-202501

BLACK,TRIM1#

58569HCLIP, FRONT FLOOR CAUTION PLATE COVER, NO.1

main90467-10167×2iMZRA92..08S..X;MZRA92..07S..(SG,X);MZRA90,95,97,ZWR9#..(SG,SZ,X)..CBU202201

58694APLATE, MAT SET, UPPER

main58694-76010×2iMZRA92..08S..X;MZRA92..07S..(SG,X);MZRA90,95,97,ZWR9#..(SG,SZ,X)..CBU202201

58698BPLATE, MAT SET, LOWER

main58698-76010×2iMZRA92..08S..X;MZRA92..07S..(SG,X);MZRA90,95,97,ZWR9#..(SG,SZ,X)..CBU202201

9 parts on this diagram · 9 diagrams in section
