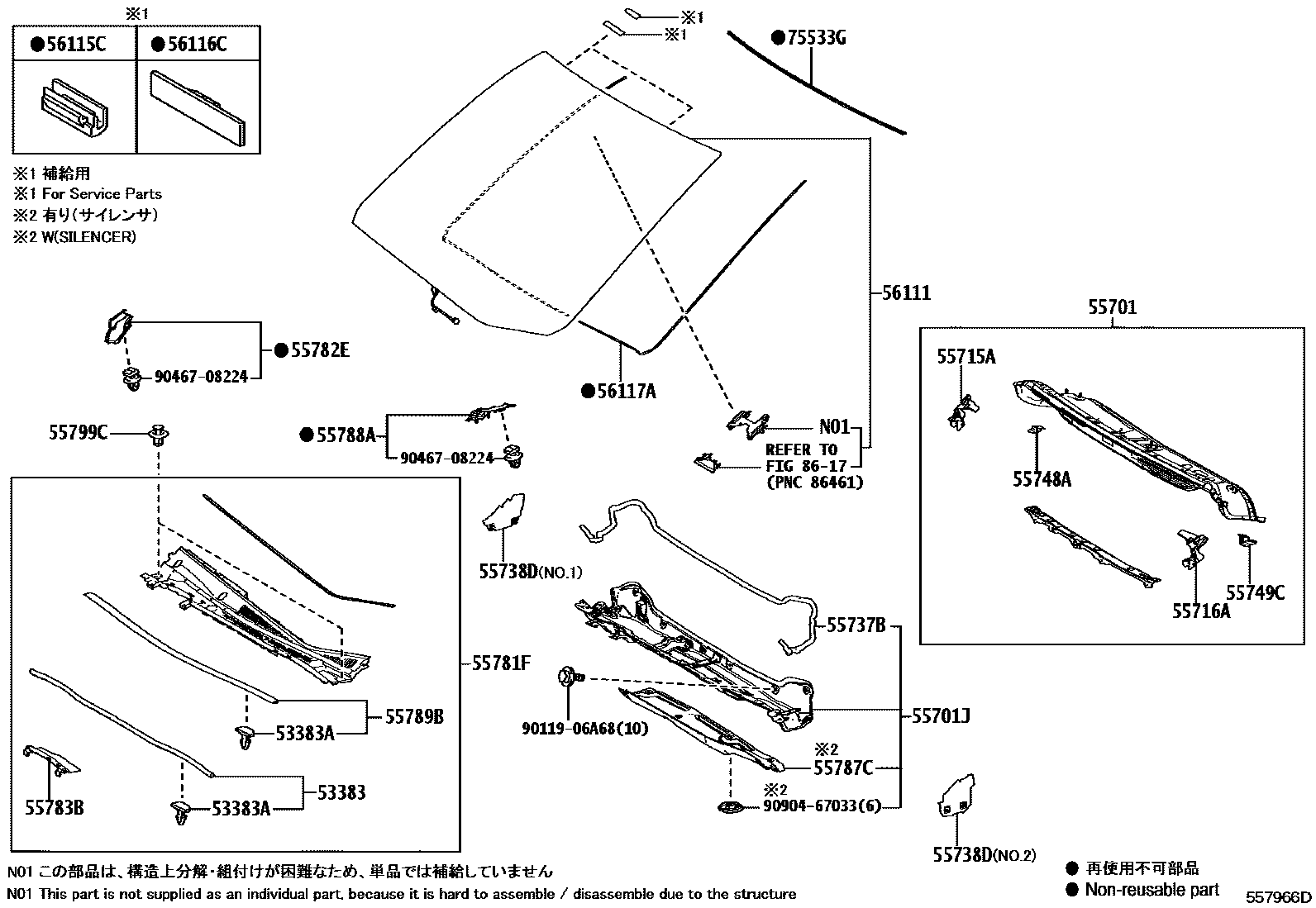

COWL PANEL & WINDSHIELD GLASS

53383SEAL, HOOD TO COWL TOP

main53383-V1010iMZRA95..IV5;MZRA92..08S..SG;MZRA9#,ZWR9#..G,Z202201-202501

53383ACLIP(FOR HOOD TO COWL TOP SEAL)

main67867-48030iMZRA95..IV5;MZRA92..08S..SG;MZRA9#,ZWR9#..G,Z202201-202501

55701PANEL SUB-ASSY, COWL

main55700-V1010iMZRA95..IV5;MZRA92..08S..SG;MZRA9#,ZWR9#..G,Z202201-202605

55701JPANEL SUB-ASSY, COWL TOP, OUTER

main55701-V1010iMZRA95..IV5;MZRA92..08S..SG;MZRA9#,ZWR9#..G202201-202501

main55701-V1020iMZRA90,95,ZWR90,95..SZ202201-202501

55715ABRACE, COWL TOP TO APRON, RH

main55715-V1010iMZRA95..IV5;MZRA92..08S..SG;MZRA9#,ZWR9#..G,Z202201-202605

55716ABRACE, COWL TOP TO APRON, LH

main55716-V1010iZWR9#..SG,SZ202201-202605

55737BSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1

main55737-V1010iMZRA92..08S..X;MZRA92..07S..(SG,X);MZRA90,95,97,ZWR9#..(SG,SZ,X)..CBU202201-202501

55738DSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.2

main55738-V1010iMZRA92..08S..X;MZRA92..07S..(SG,X);MZRA90,95,97,ZWR9#..(SG,SZ,X)..CBU202201-202501

main55738-V1020iMZRA92..08S..X;MZRA92..07S..(SG,X);MZRA90,95,97,ZWR9#..(SG,SZ,X)..CBU202201-202501

55748ABRACE, COWL TOP INNER TO PILLAR

main55748-V1010iZWR9#..SG,SZ202201-202605

55749CBRACE, COWL TOP INNER TO PILLAR, LH

main55749-V1010iZWR9#..SG,SZ202201-202605

55781FLOUVER, COWL TOP VENTILATOR

main55708-V1020iMZRA92..08S..X;MZRA92..07S..(SG,X);MZRA90,95,97,ZWR9#..(SG,SZ,X)..CBU202201

55782EPROTECTOR, COWL TOP VENTILATOR LOUVER

main53823-V1010iMZRA92..08S..X;MZRA92..07S..(SG,X);MZRA90,95,97,ZWR9#..(SG,SZ,X)..CBU202201-202501

55783BLOUVER, COWL TOP VENTILATOR, CENTER NO.1

main55783-V1010iMZRA95..IV5;MZRA92..08S..SG;MZRA9#,ZWR9#..G,Z202201-202501

55787CINSULATOR, COWL TOP PANEL, NO.1

main55787-V1010iMZRA90,95,ZWR90,95..SZ202201-202501

55788APROTECTOR, COWL TOP VENTILATOR LOUVER

main53824-V1010iMZRA95..IV5;MZRA92..08S..SG;MZRA9#,ZWR9#..G,Z202201-202501

55789BPROTECTOR, COWL TOP VENTTINATOR LOUVER, NO.2

main55789-V1010iMZRA95..IV5;MZRA92..08S..SG;MZRA9#,ZWR9#..G,Z202201-202501

55799CCLIP, COWL TOP VENTILATOR LOUVER

main90467-07215iMZRA95..IV5;MZRA92..08S..SG;MZRA9#,ZWR9#..G,Z202201-202501

56111GLASS, WINDSHIELD

main56101-V1900iMZRA90,95..SZ,Z202201-202501

main56101-V1901iMZRA92..08S..X;MZRA92..07S..(SG,X);MZRA90,95,97..(SG,SZ,X)..CBU202201

main56101-V1902iMZRA90,95..SZ,Z202201-202301

sub56101-V1908

main56101-V1904iZWR90,95..SZ202201-202502

main56101-V1905iZWR9#..SG,SZ,X202201

main56101-V1906iZWR90,95..SZ,Z202201-202501

main56101-V1908iMZRA90,95..SZ,Z202301-202501

main56101-V1913iZWR90,95..SZ202501-202502

56115CSTOPPER, WINDSHIELD GLASS

main56115-30120iMZRA95..IV5;MZRA92..08S..SG;MZRA9#,ZWR9#..G,Z202201-202501

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050iMZRA95..IV5;MZRA92..08S..SG;MZRA9#,ZWR9#..G,Z202201-202501

56117ADAM, WINDOW GLASS ADHESIVE

75533GMOULDING, WINDSHIELD, OUTSIDE

main75533-28070iMZRA95..IV5;MZRA92..08S..SG;MZRA9#,ZWR9#..G,Z202201-202501

8617

9011906A68

main90119-06A68

9046708224

main90467-08224

9090467033

main90904-67033

26 parts on this diagram · 1 diagram in section
