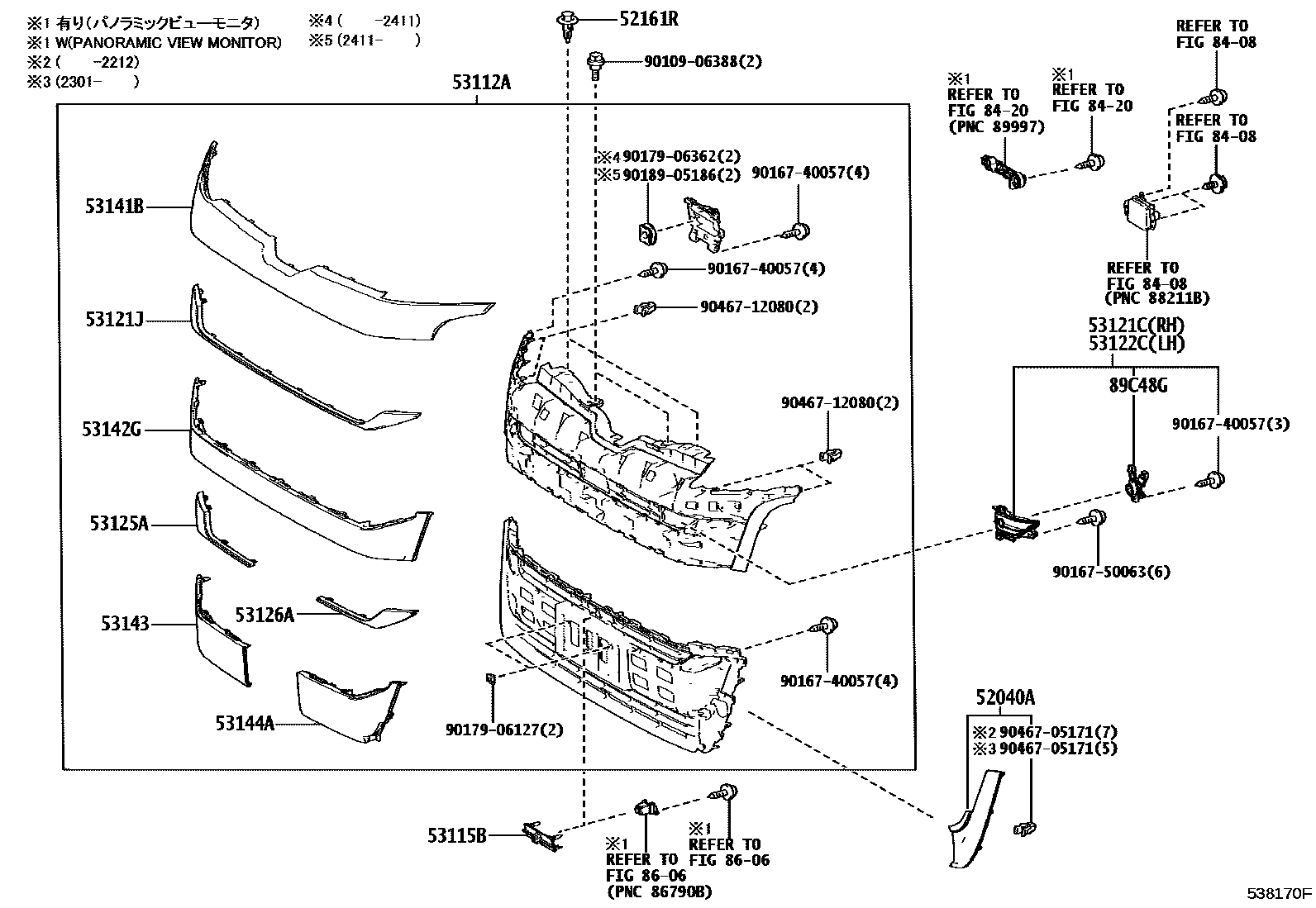

RADIATOR GRILLE

0001 1 0002 1 0003 1 0004 1

52040ACOVER ASSY, FRONT BUMPER HOLE, LH

main52040-V1050-A0iMZRA9#,ZWR9#..G,X,Z202201-202212

WHITE PEARL CS.,070

main52040-V1050-B0iMZRA9#,ZWR9#..G,X,Z202201-202212

METAL STREAM ME,1K0

main52040-V1050-C0iMZRA9#,ZWR9#..G,X,Z202201-202212

ATTITUDE BLACK MC.,218

main52040-V1050-C1iMZRA9#,ZWR9#..G,X,Z202201-202212

SPARKLING BLACK PEARL CS.,220

main52040-V1050-E0iMZRA9#,ZWR9#..G,X,Z202201-202212

STEEL BLONDE ME.,4X1

main52040-V1051-A0iMZRA9#,ZWR9#..X..CBU202301-202502

WHITE PEARL CS.,070

main52040-V1051-B0iMZRA95..X..IV5;MZRA9#,ZWR9#..G,Z202301-202501

METAL STREAM ME,1K0

main52040-V1051-C0iMZRA95..X..IV5;MZRA9#,ZWR9#..G,Z202301-202501

ATTITUDE BLACK MC.,218

main52040-V1051-C1iMZRA9#,ZWR9#..X..CBU202301-202502

SPARKLING BLACK PEARL CS.,220

main52040-V1051-E0iMZRA9#,ZWR9#..X..CBU202301-202502

STEEL BLONDE ME.,4X1

52161RPIECE, FRONT BUMPER

main52161-16010×2iMZRA95..IV5;MZRA92..08S..SG;MZRA9#,ZWR9#..G,Z202201-202501

53112AGRILLE, RADIATOR, LOWER

main53101-V1010-A0iMZRA9#,ZWR9#..X..CBU202201-202502

WHITE PEARL CS.,070

main53101-V1010-B0iMZRA95..X..IV5;MZRA9#,ZWR9#..G,Z202201-202501

METAL STREAM ME,1K0

main53101-V1010-C0iMZRA95..X..IV5;MZRA9#,ZWR9#..G,Z202201-202501

ATTITUDE BLACK MC.,218

main53101-V1010-C1iMZRA9#,ZWR9#..X..CBU202201-202502

SPARKLING BLACK PEARL CS.,220

main53101-V1010-E0iMZRA95..X..IV5;MZRA9#,ZWR9#..G,Z202201-202501

STEEL BLONDE ME.,4X1

main53101-V1020iMZRA92..NOAH..07S..SG;MZRA90,95,ZWR9#..NOAH..(SG,SZ)..CBU202201

main53102-V1020iMZRA92..VOXY..08S;MZRA95..VOXY..IV5202201-202501

main53102-V1030iMZRA90,95,ZWR90,95..VOXY..SZ202201

53115BBRACKET, RADIATOR GRILLE

main53115-V1030iMZRA95..X..IV5;MZRA9#,ZWR9#..G,Z202201-202501

main53115-V1020iMZRA9#,ZWR9#..G,Z202201-202501

main53115-V1040supersedes 53115-V1050iMZRA92..VOXY..07S;MZRA90,95,ZWR9#..VOXY..CBU202201

main53115-V1060supersedes 53115-V1070iMZRA92..NOAH..07S..SG;MZRA90,95,ZWR9#..NOAH..(SG,SZ)..CBU202201

53121CPLATE, RADIATOR GRILLE FINISH, RH

main53121-V1020iMZRA95..X..IV5;MZRA9#,ZWR9#..G,Z202201-202501

main53121-V1050iMZRA92..VOXY..08S;MZRA95..VOXY..IV5202201-202501

53121JMOULDING, RADIATOR GRILLE, NO.1

main53121-V1060iMZRA9#,ZWR9#..X..CBU202201

main53121-V1070iMZRA92..NOAH..07S..SG;MZRA90,95,ZWR9#..NOAH..(SG,SZ)..CBU202201

53122CPLATE, RADIATOR GRILLE FINISH, LH

main53122-V1020iMZRA9#,ZWR9#..X..CBU202201

main53122-V1050iMZRA92..VOXY..07S;MZRA90,95,ZWR9#..VOXY..CBU202201

53125AMOULDING, RADIATOR GRILLE, CENTER RH

main53125-V1010iMZRA95..X..IV5;MZRA9#,ZWR9#..G,Z202201-202501

main53125-V1020iMZRA92..NOAH..07S..SG;MZRA90,95,ZWR9#..NOAH..(SG,SZ)..CBU202201

53126AMOULDING, RADIATOR GRILLE, CENTER LH

main53126-V1010iMZRA95..X..IV5;MZRA9#,ZWR9#..G,Z202201-202501

main53126-V1020iMZRA92..NOAH..08S..SG;MZRA95..NOAH..SG..IV5202201-202501

53141BGARNISH, RADIATOR GRILLE, NO.1

main53141-V1010-A0iMZRA9#,ZWR9#..X..CBU202201-202502

WHITE PEARL CS.,070

main53141-V1010-B0iMZRA95..X..IV5;MZRA9#,ZWR9#..G,Z202201-202501

METAL STREAM ME,1K0

main53141-V1010-C0iMZRA95..X..IV5;MZRA9#,ZWR9#..G,Z202201-202501

ATTITUDE BLACK MC.,218

main53141-V1010-C1iMZRA95..X..IV5;MZRA9#,ZWR9#..G,Z202201-202501

SPARKLING BLACK PEARL CS.,220

main53141-V1010-E0iMZRA95..X..IV5;MZRA9#,ZWR9#..G,Z202201-202501

STEEL BLONDE ME.,4X1

53142GGARNISH, RADIATOR GRILLE, NO.2

main53142-V1010-A0iMZRA95..X..IV5;MZRA9#,ZWR9#..G,Z202201-202501

WHITE PEARL CS.,070

main53142-V1010-B0iMZRA95..X..IV5;MZRA9#,ZWR9#..G,Z202201-202501

METAL STREAM ME,1K0

main53142-V1010-C0iMZRA95..X..IV5;MZRA9#,ZWR9#..G,Z202201-202501

ATTITUDE BLACK MC.,218

main53142-V1010-C1iMZRA9#,ZWR9#..X..CBU202201-202502

SPARKLING BLACK PEARL CS.,220

main53142-V1010-E0iMZRA95..X..IV5;MZRA9#,ZWR9#..G,Z202201-202501

STEEL BLONDE ME.,4X1

53143GARNISH, RADIATOR GRILLE, NO.3

main53143-V1010-A0iMZRA9#,ZWR9#..X..CBU202201-202502

WHITE PEARL CS.,070

main53143-V1010-B0iMZRA9#,ZWR9#..X..CBU202201

METAL STREAM ME,1K0

main53143-V1010-C0iMZRA9#,ZWR9#..X..CBU202201

ATTITUDE BLACK MC.,218

main53143-V1010-C1iMZRA9#,ZWR9#..X..CBU202201-202502

SPARKLING BLACK PEARL CS.,220

main53143-V1010-E0iMZRA9#,ZWR9#..X..CBU202201-202502

STEEL BLONDE ME.,4X1

53144AGARNISH, RADIATOR GRILLE, NO.4

main53144-V1010-A0iMZRA95..X..IV5;MZRA9#,ZWR9#..G,Z202201-202501

WHITE PEARL CS.,070

main53144-V1010-B0iMZRA95..X..IV5;MZRA9#,ZWR9#..G,Z202201-202501

METAL STREAM ME,1K0

main53144-V1010-C0iMZRA9#,ZWR9#..X..CBU202201

ATTITUDE BLACK MC.,218

main53144-V1010-C1iMZRA9#,ZWR9#..X..CBU202201-202502

SPARKLING BLACK PEARL CS.,220

main53144-V1010-E0iMZRA9#,ZWR9#..X..CBU202201-202502

STEEL BLONDE ME.,4X1

8408

8420

8606

89C48GRETAINER, ULTRASONIC SENSOR, FRONT CENTER

main89348-V1010iMZRA95..X..IV5;MZRA9#,ZWR9#..G,Z202201-202501

main89348-V1020iMZRA9#,ZWR9#..X..CBU202201-202605

main89348-V1030iZWR9#..NOAH..(SG,SZ)202201

main89348-V1040iZWR9#..NOAH..(SG,SZ)202201

main89348-V1050iMZRA92..VOXY..08S;MZRA95..VOXY..IV5202201-202501

main89348-V1060iMZRA92..VOXY..07S;MZRA90,95..VOXY..CBU202201-202605

9010906388

main90109-06388

9016740057

main90167-40057

9016750063

main90167-50063

9017906127

main90179-06127

9017906362

main90179-06362

9018905186

main90189-05186

9046705171

main90467-05171

9046712080

main90467-12080

25 parts on this diagram · 4 diagrams in section
