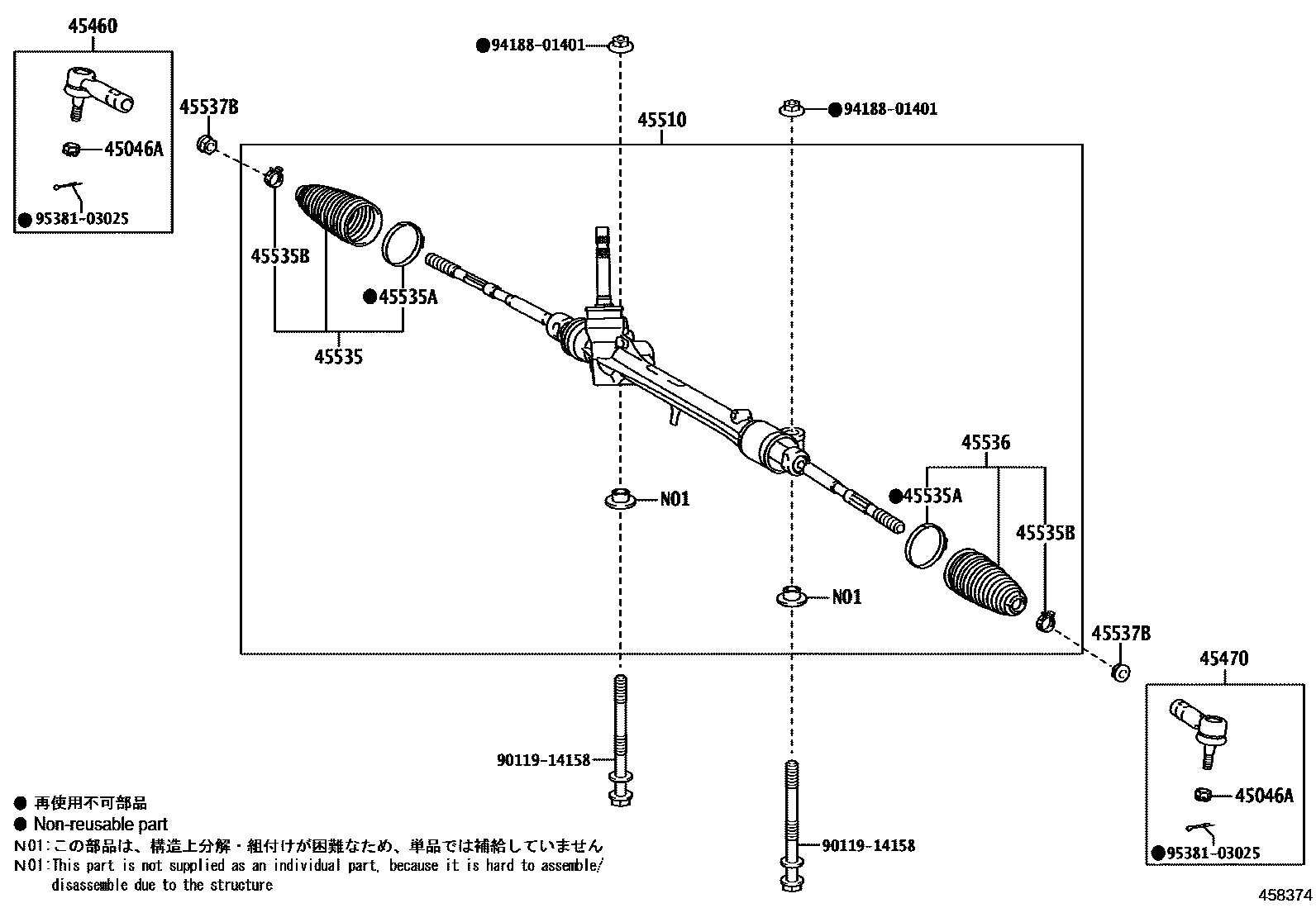

FRONT STEERING GEAR & LINK

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028iMZRA92..08S..X;MZRA92..07S..(SG,X);MZRA90,95,97,ZWR9#..(SG,SZ,X)..CBU202201-202501

45460ROD ASSY, TIE, RH

main45460-29455iMZRA95..IV5;MZRA92..08S..SG;MZRA9#,ZWR9#..G,Z202201-202501

45470ROD ASSY, TIE, LH

main45460-29455iMZRA92..08S..X;MZRA92..07S..(SG,X);MZRA90,95,97,ZWR9#..(SG,SZ,X)..CBU202201-202501

45510GEAR ASSY, STEERING

main45510-28200iMZRA92..08S..SG;MZRA90,92,ZWR90,92..G,Z202201-202501

main45510-28260iMZRA95..IV5;MZRA95,97,ZWR95..G,Z202201-202501

45535BOOT, STEERING RACK, NO.1

main45535-59075iMZRA95..IV5;MZRA92..08S..SG;MZRA9#,ZWR9#..G,Z202201-202501

45535ACLAMP(FOR STEERING RACK BOOT)

main45538-48020iMZRA95..IV5;MZRA92..08S..SG;MZRA9#,ZWR9#..G,Z202201-202501

45535BCLIP(FOR STEERING RACK BOOT)

main90467-19019iMZRA95..IV5;MZRA92..08S..SG;MZRA9#,ZWR9#..G,Z202201-202501

45536BOOT, STEERING RACK, NO.2

main45535-59075iMZRA95..IV5;MZRA92..08S..SG;MZRA9#,ZWR9#..G,Z202201-202501

45537BNUT, RACK END LOCK

main90178-16001iMZRA95..IV5;MZRA92..08S..SG;MZRA9#,ZWR9#..G,Z202201-202501

9011914158

main90119-14158

9418801401

main94188-01401

9538103025

main95381-03025

12 parts on this diagram · 1 diagram in section
