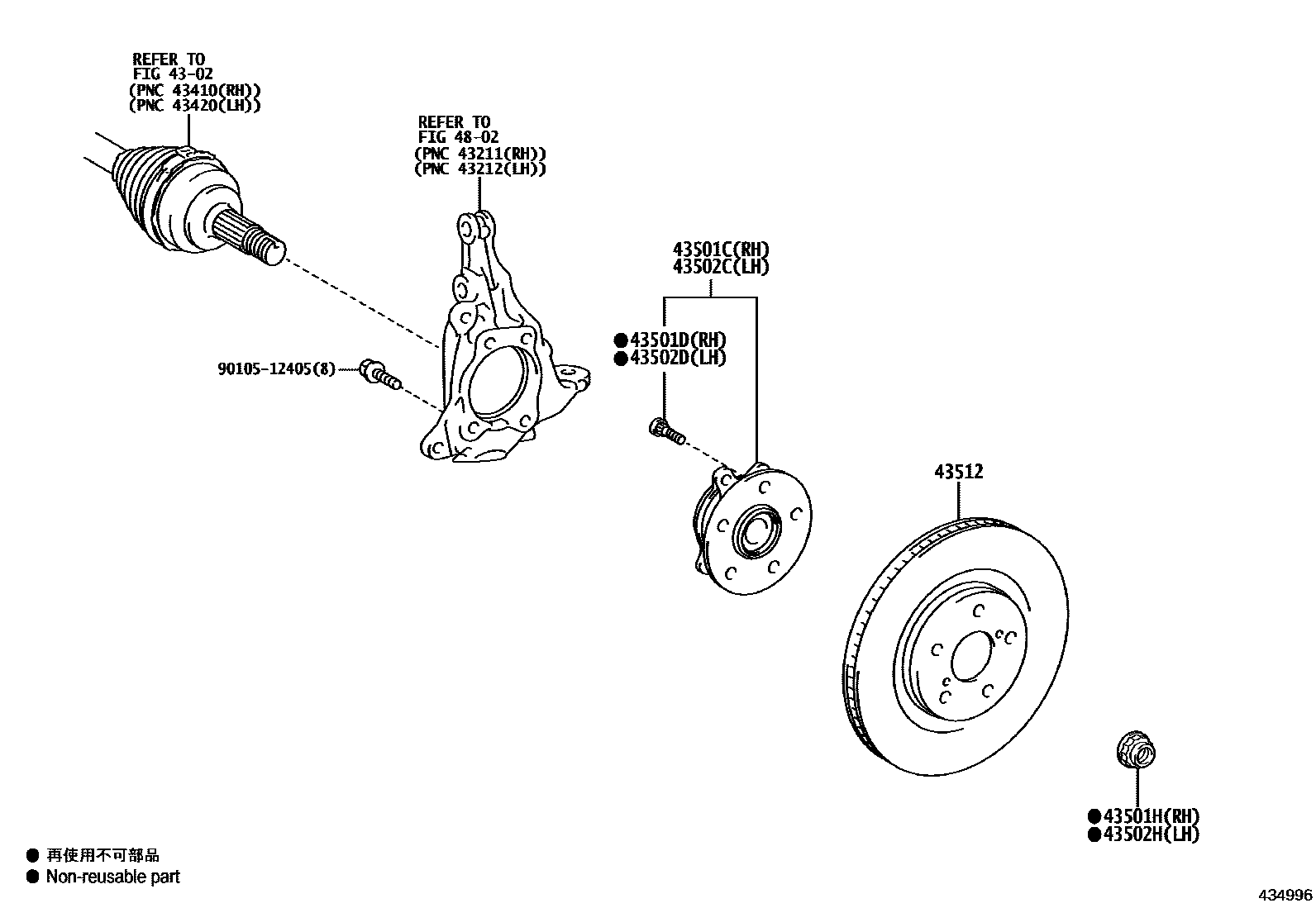

FRONT AXLE HUB

4302

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43550-33020iMZRA95..IV5;MZRA92..08S..SG;MZRA9#,ZWR9#..G,Z202201-202501

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049×5iMZRA95..IV5;MZRA92..08S..SG;MZRA9#,ZWR9#..G,Z202201-202501

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90177-22001iMZRA95..IV5;MZRA92..08S..SG;MZRA9#,ZWR9#..G,Z202201-202501

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43550-33020iMZRA95..IV5;MZRA92..08S..SG;MZRA9#,ZWR9#..G,Z202201-202501

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049×5iMZRA95..IV5;MZRA92..08S..SG;MZRA9#,ZWR9#..G,Z202201-202501

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90177-22001iMZRA95..IV5;MZRA92..08S..SG;MZRA9#,ZWR9#..G,Z202201-202501

43512DISC, FRONT

main43512-33150×2iMZRA95..IV5;MZRA92..08S..SG;MZRA9#,ZWR9#..G,Z202201-202501

4802

9010512405

main90105-12405

10 parts on this diagram · 1 diagram in section
