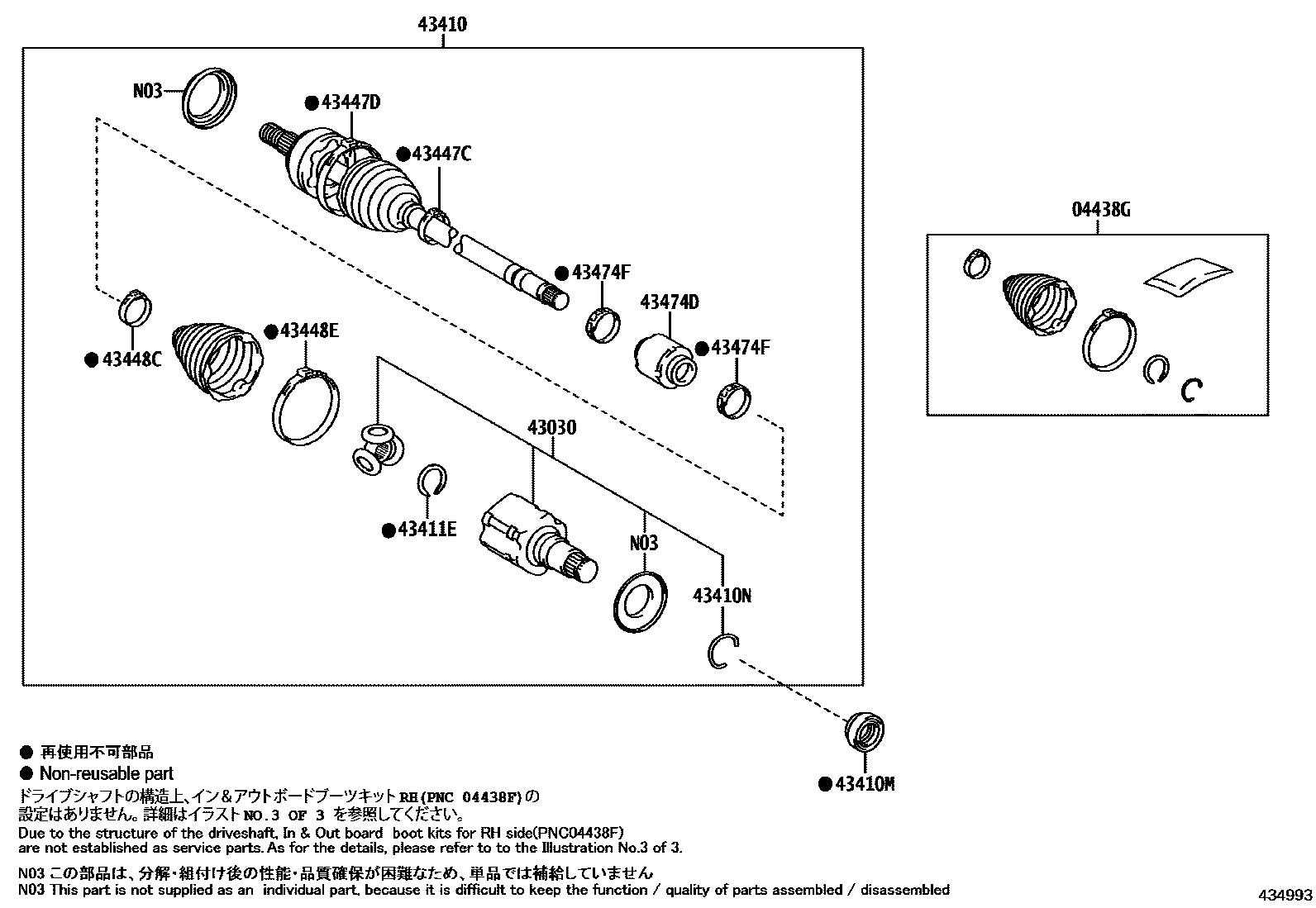

FRONT DRIVE SHAFT

0001 1RH 0002 1RH 0003 1LH 0004 1

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04437-28160iZWR9#..SG,SZ202201-202605

main04437-28170iMZRA95,97..(SG,SZ,X)..CBU202201-202605

43030JOINT ASSY, FRONT DRIVE INBOARD, RH

main43030-28110iMZRA95,97..(SG,SZ,X)..CBU202201-202605

main43040-28050iMZRA92..08S..SG;MZRA90,92,ZWR9#..G,Z202201-202605

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-28190iMZRA90,92,ZWR9#202201-202409

sub43410-28191

main43410-28191iMZRA92..08S..SG;MZRA90,92,ZWR9#..G,Z202410-202605

main43410-28200iMZRA95,97202201-202409

sub43410-28201

main43410-28201iMZRA95..IV5;MZRA95,97..G,Z202410-202605

43410MOIL SEAL, FRONT DRIVE SHAFT, RH

main90311-40047iMZRA90,92..G,Z;MZRA92..08S..SG202201-202605

main90311-40051iZWR9#..G,Z202201-202605

main90316-34001iMZRA95,97..(SG,SZ,X)..CBU202201-202605

43410NRING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)

main90520-33008iMZRA95..IV5;MZRA95,97..G,Z202201-202605

main90521-33002iMZRA92..08S..SG;MZRA90,92,ZWR9#..G,Z202201-202605

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main43425-28010iZWR9#..X;MZRA92..08S..X;MZRA92..07S..(SG,X);MZRA90,95,97..(SG,SZ,X)..CBU202201-202605

43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-28050iMZRA95..IV5;MZRA92..08S..SG;MZRA9#,ZWR9#..G,Z202201-202605

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-78090iZWR9#..SG,SZ202201-202605

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-28050iMZRA95..IV5;MZRA92..08S..SG;MZRA9#,ZWR9#..G,Z202201-202605

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-28040iMZRA95..IV5;MZRA92..08S..SG;MZRA9#,ZWR9#..G,Z202201-202605

43474DDAMPER, FRONT DRIVE SHAFT, RH

main43474-28040iZWR9#..X;MZRA92..08S..X;MZRA90..SG,SZ,X;MZRA92..07S..(SG,X)202201-202605

main43474-28060iMZRA90,92,ZWR9#202404-202411

43474FCLAMP (FOR FRONT DRIVE SHAFT DAMPER RH)

main42345-28030iMZRA92..08S..SG;MZRA90,92,ZWR9#..G,Z202201-202605

12 parts on this diagram · 4 diagrams in section
