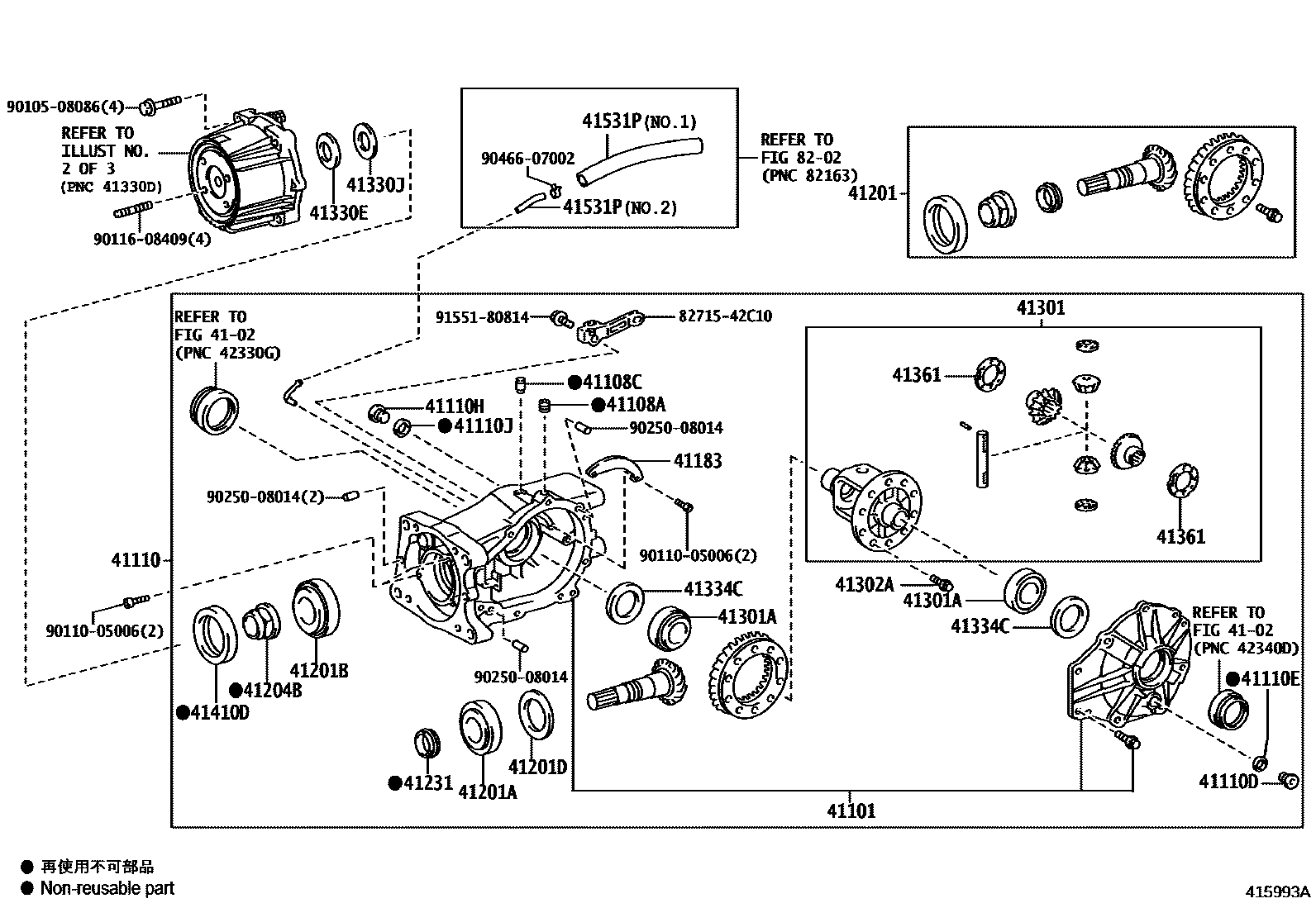

REAR AXLE HOUSING & DIFFERENTIAL

0001 1 0002 1 0003 1 0004 1

4102

41101CARRIER SUB-ASSY, DIFFERENTIAL, REAR

main41101-42022iMZRA95..IV5;MZRA95,97..G,Z202201-202605

41108APLUG (FOR REAR DIFFERENTIAL CARRIER COVER)

main90344-53006iMZRA95..IV5;MZRA95,97..G,Z202201-202605

41108CPLUG, BREATHER (FOR REAR DIFFERENTIAL CARRIER COVER)

main90930-03235iMZRA95..IV5;MZRA95,97..G,Z202201-202605

41110CARRIER ASSY, DIFFERENTIAL, REAR

main41110-42060iMZRA95..IV5;MZRA95,97..G,Z202201-202605

41110DPLUG (FOR REAR DIFFERENTIAL DRAIN)

main90341-18051iMZRA95..IV5;MZRA95,97..G,Z202201-202605

41110EGASKET (FOR REAR DIFFERENTIAL DRAIN PLUG)

main12157-10010iMZRA95..IV5;MZRA95,97..G,Z202201-202605

41110HPLUG (FOR REAR DIFFERENTIAL FILLER)

main90341-18023iMZRA95..IV5;MZRA95,97..G,Z202201-202605

41110JGASKET (FOR REAR DIFFERENTIAL FILLER PLUG)

main12157-10010iMZRA95..IV5;MZRA95,97..G,Z202201-202605

41183DEFLECTOR, REAR DIFFERENTIAL BREATHER PLUG OIL

main41183-52010iMZRA95,97..(SG,SZ,X)..CBU202201-202605

41201FINAL GEAR KIT, DIFFERENTIAL, REAR

main41201-59425iMZRA95..IV5;MZRA95,97..G,Z202201-202605

41201ABEARING (FOR REAR DRIVE PINION REAR)

main90366-35130iMZRA95..IV5;MZRA95,97..G,Z202201-202605

41201BBEARING (FOR REAR DRIVE PINION FRONT)

main90366-30090iMZRA95..IV5;MZRA95,97..G,Z202201-202605

41201DWASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION)

main90564-35041iMZRA95,97..(SG,SZ,X)..CBU202201-202605

main90564-35043iMZRA95,97..(SG,SZ,X)..CBU202201-202605

main90564-35045iMZRA95..IV5;MZRA95,97..G,Z202201-202605

main90564-35047iMZRA95,97..(SG,SZ,X)..CBU202201-202605

main90564-35049iMZRA95..IV5;MZRA95,97..G,Z202201-202605

main90564-35051iMZRA95..IV5;MZRA95,97..G,Z202201-202605

main90564-35053iMZRA95..IV5;MZRA95,97..G,Z202201-202605

main90564-35055iMZRA95..IV5;MZRA95,97..G,Z202201-202605

main90564-35057iMZRA95..IV5;MZRA95,97..G,Z202201-202605

main90564-35059iMZRA95,97..(SG,SZ,X)..CBU202201-202605

main90564-35061iMZRA95..IV5;MZRA95,97..G,Z202201-202605

main90564-35063iMZRA95,97..(SG,SZ,X)..CBU202201-202605

main90564-35065iMZRA95..IV5;MZRA95,97..G,Z202201-202605

main90564-35071iMZRA95..IV5;MZRA95,97..G,Z202201-202605

main90564-35073iMZRA95,97..(SG,SZ,X)..CBU202201-202605

main90564-35075iMZRA95..IV5;MZRA95,97..G,Z202201-202605

main90564-35077iMZRA95,97..(SG,SZ,X)..CBU202201-202605

main90564-35079iMZRA95,97..(SG,SZ,X)..CBU202201-202605

main90564-35081iMZRA95..IV5;MZRA95,97..G,Z202201-202605

main90564-35083iMZRA95..IV5;MZRA95,97..G,Z202201-202605

main90564-35085iMZRA95..IV5;MZRA95,97..G,Z202201-202605

main90564-35087iMZRA95,97..(SG,SZ,X)..CBU202201-202605

main90564-35089iMZRA95..IV5;MZRA95,97..G,Z202201-202605

main90564-35091iMZRA95,97..(SG,SZ,X)..CBU202201-202605

main90564-35093iMZRA95..IV5;MZRA95,97..G,Z202201-202605

main90564-35095iMZRA95,97..(SG,SZ,X)..CBU202201-202605

41204BNUT (FOR REAR DRIVE PINION)

main90178-30001iMZRA95,97..(SG,SZ,X)..CBU202201-202605

41231SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING

main41231-52010iMZRA95..IV5;MZRA95,97..G,Z202201-202605

41301CASE SUB-ASSY, REAR DIFFERENTIAL

main41301-52100iMZRA95..IV5;MZRA95,97..G,Z202201-202605

41301ABEARING(FOR REAR DIFFERENTIAL CASE)

main90366-33003iMZRA95..IV5;MZRA95,97..G,Z202201-202605

41302CASE SUB-ASSY, REAR DIFFERENTIAL

main41302-42050iMZRA95..IV5;MZRA95,97..G,Z202201-202605

41302ABOLT(FOR REAR DIFFERENTIAL CASE)

main90105-11034iMZRA95..IV5;MZRA95,97..G,Z202201-202605

41330EWASHER, CONICAL SPRING (FOR TRANSMISSION COUPLING)

main90208-25001iMZRA95..IV5;MZRA95,97..G,Z202201-202605

41330JSHIM (FOR TRANSMISSION COUPLING)

main90564-25024iMZRA95..IV5;MZRA95,97..G,Z202201-202605

main90564-25025iMZRA95,97..(SG,SZ,X)..CBU202201-202605

main90564-25026iMZRA95,97..(SG,SZ,X)..CBU202201-202605

main90564-25027iMZRA95,97..(SG,SZ,X)..CBU202201-202605

main90564-25028iMZRA95..IV5;MZRA95,97..G,Z202201-202605

main90564-25029iMZRA95,97..(SG,SZ,X)..CBU202201-202605

main90564-25031iMZRA95,97..(SG,SZ,X)..CBU202201-202605

main90564-25032iMZRA95..IV5;MZRA95,97..G,Z202201-202605

main90564-25033iMZRA95,97..(SG,SZ,X)..CBU202201-202605

main90564-25034iMZRA95,97..(SG,SZ,X)..CBU202201-202605

main90564-25035iMZRA95..IV5;MZRA95,97..G,Z202201-202605

main90564-25036iMZRA95..IV5;MZRA95,97..G,Z202201-202605

main90564-25037iMZRA95,97..(SG,SZ,X)..CBU202201-202605

main90564-25038iMZRA95,97..(SG,SZ,X)..CBU202201-202605

main90564-25039iMZRA95,97..(SG,SZ,X)..CBU202201-202605

main90564-25040iMZRA95,97..(SG,SZ,X)..CBU202201-202605

main90564-25041iMZRA95,97..(SG,SZ,X)..CBU202201-202605

main90564-25042iMZRA95,97..(SG,SZ,X)..CBU202201-202605

main90564-25043iMZRA95..IV5;MZRA95,97..G,Z202201-202605

main90564-25044iMZRA95..IV5;MZRA95,97..G,Z202201-202605

41334CWASHER, PLATE (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT)

main90564-37022iMZRA95..IV5;MZRA95,97..G,Z202201-202605

main90564-37023iMZRA95,97..(SG,SZ,X)..CBU202201-202605

main90564-37024iMZRA95..IV5;MZRA95,97..G,Z202201-202605

main90564-37025iMZRA95..IV5;MZRA95,97..G,Z202201-202605

main90564-37026iMZRA95..IV5;MZRA95,97..G,Z202201-202605

main90564-37027iMZRA95..IV5;MZRA95,97..G,Z202201-202605

main90564-37028iMZRA95,97..(SG,SZ,X)..CBU202201-202605

main90564-37029iMZRA95..IV5;MZRA95,97..G,Z202201-202605

main90564-37030iMZRA95,97..(SG,SZ,X)..CBU202201-202605

main90564-37031iMZRA95..IV5;MZRA95,97..G,Z202201-202605

main90564-37032iMZRA95,97..(SG,SZ,X)..CBU202201-202605

main90564-37033iMZRA95,97..(SG,SZ,X)..CBU202201-202605

main90564-37034iMZRA95..IV5;MZRA95,97..G,Z202201-202605

main90564-37035iMZRA95..IV5;MZRA95,97..G,Z202201-202605

main90564-37036iMZRA95,97..(SG,SZ,X)..CBU202201-202605

main90564-37037iMZRA95,97..(SG,SZ,X)..CBU202201-202605

main90564-37038iMZRA95..IV5;MZRA95,97..G,Z202201-202605

main90564-37039iMZRA95,97..(SG,SZ,X)..CBU202201-202605

main90564-37040iMZRA95..IV5;MZRA95,97..G,Z202201-202605

main90564-37041iMZRA95,97..(SG,SZ,X)..CBU202201-202605

main90564-37042iMZRA95,97..(SG,SZ,X)..CBU202201-202605

main90564-37043iMZRA95,97..(SG,SZ,X)..CBU202201-202605

main90564-37044iMZRA95..IV5;MZRA95,97..G,Z202201-202605

main90564-37045iMZRA95,97..(SG,SZ,X)..CBU202201-202605

main90564-37046iMZRA95..IV5;MZRA95,97..G,Z202201-202605

main90564-37047iMZRA95..IV5;MZRA95,97..G,Z202201-202605

main90564-37048iMZRA95..IV5;MZRA95,97..G,Z202201-202605

main90564-37049iMZRA95,97..(SG,SZ,X)..CBU202201-202605

main90564-37050iMZRA95..IV5;MZRA95,97..G,Z202201-202605

main90564-37051iMZRA95..IV5;MZRA95,97..G,Z202201-202605

main90564-37052iMZRA95,97..(SG,SZ,X)..CBU202201-202605

main90564-37053iMZRA95,97..(SG,SZ,X)..CBU202201-202605

main90564-37054iMZRA95..IV5;MZRA95,97..G,Z202201-202605

main90564-37055iMZRA95,97..(SG,SZ,X)..CBU202201-202605

main90564-37056iMZRA95,97..(SG,SZ,X)..CBU202201-202605

main90564-37057iMZRA95,97..(SG,SZ,X)..CBU202201-202605

41361WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1

main41361-52180iMZRA95..IV5;MZRA95,97..G,Z202201-202605

main41361-52190iMZRA95,97..(SG,SZ,X)..CBU202201-202605

main41361-52200iMZRA95..IV5;MZRA95,97..G,Z202201-202605

main41361-52210iMZRA95..IV5;MZRA95,97..G,Z202201-202605

main41361-52220iMZRA95..IV5;MZRA95,97..G,Z202201-202605

main41361-52230iMZRA95..IV5;MZRA95,97..G,Z202201-202605

main41361-52240iMZRA95..IV5;MZRA95,97..G,Z202201-202605

main41361-52250iMZRA95,97..(SG,SZ,X)..CBU202201-202605

41410DSEAL, OIL DIAPHRAGM

main90311-54006iMZRA95,97..(SG,SZ,X)..CBU202201-202605

41531PHOSE, REAR DIFFERENTIAL VACUUM

main90999-92002iMZRA97..G;MZRA95..IV5202201-202605

main90999-92002iMZRA95..IV5;MZRA95,97..G,Z202201-202605

main95412-04061iMZRA95..(SG,SZ,X)..CBU202201-202605

8202

8271542C10BRACKET,WIRING HARNESS CLAMP

main82715-42C10

9010508086

main90105-08086

9011005006

main90110-05006

9011608409

main90116-08409

9025008014

main90250-08014

9046607002

main90466-07002

9155180814

main91551-80814

34 parts on this diagram · 4 diagrams in section
