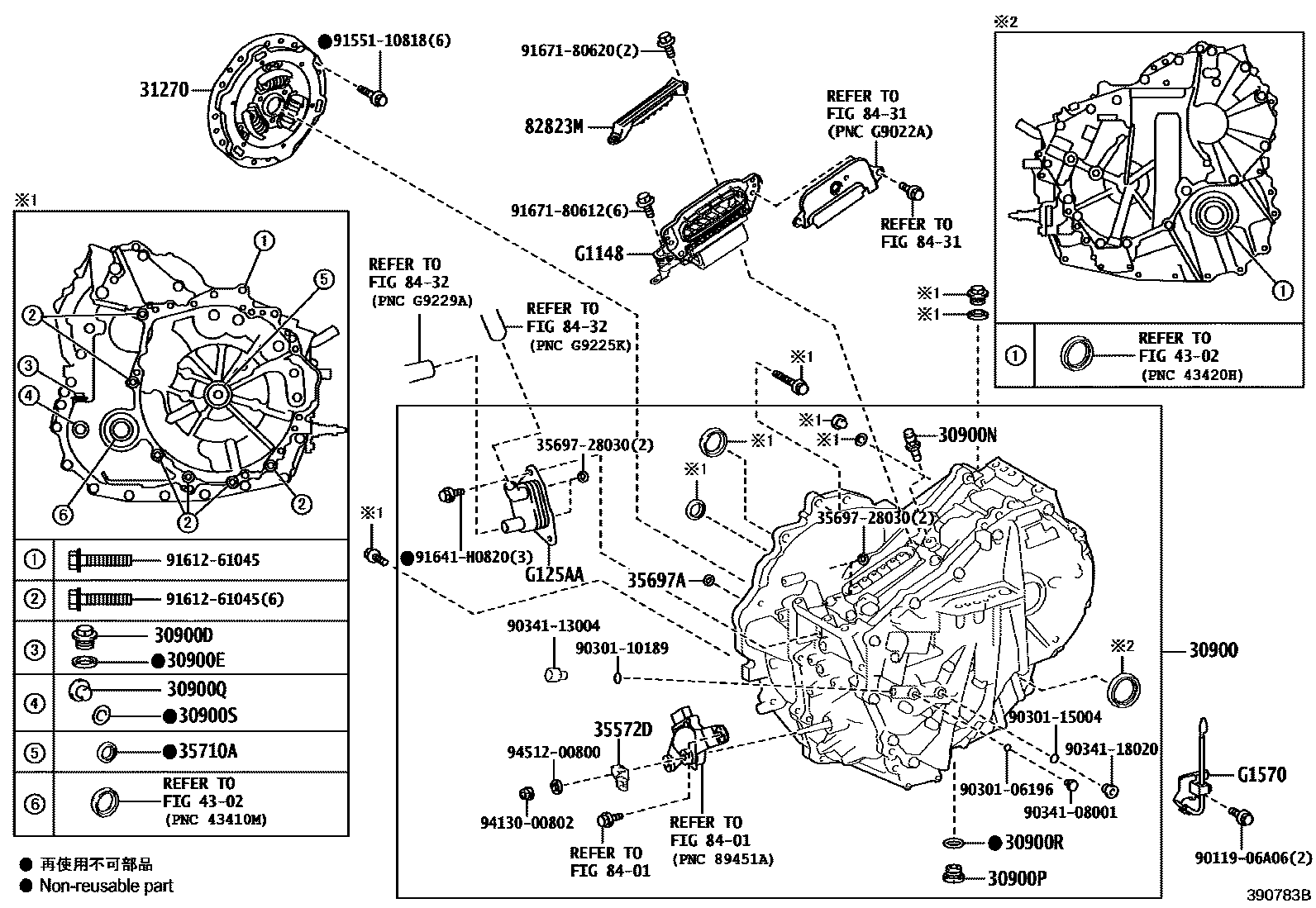

TRANSAXLE ASSY(HEV OR BEV OR FCEV)

0001 1WITHOUT(PANORAMIC VIEW MONITO0002 1WITH(PANORAMIC VIEW MONITOR) 0003 1REAR TRACTION MOTOR 0004 1REAR TRACTION MOTOR MOUNTING

30900TRANSAXLE ASSY, HYBRID VEHICLE

main30900-28060iZWR9#..G,Z202201-202605

30900DPLUG, W/HEAD STRAIGHT SCREW(FOR TRANSAXLE HOUSING & CASE)

main90341-18060iZWR9#..G,Z202201-202605

30900EGASKET(FOR TRANSAXLE HOUSING & CASE)

main90430-18008iZWR9#..G,Z202201-202605

30900NPLUG, BREATHER(FOR TRANSAXLE)

main90930-03201iZWR9#..G,Z202201-202605

30900PPLUG, DRAIN(HEV)

main90341-18016iZWR9#..G,Z202201-202605

30900QPLUG, FILLER(HEV)

main90341-18090iZWR9#..G,Z202201-202605

30900RGASKET, DRAIN PLUG(HEV)

main90430-18008iZWR9#..G,Z202201-202605

30900SGASKET, FILLER PLUG(HEV)

main90430-18008iZWR9#..G,Z202201-202605

31270DAMPER ASSY, TRANSMISSION INPUT

main31270-28020iZWR9#..G,Z202201-202605

35572DLEVER, TRANSMISSION CONTROL SHAFT

main35572-28140iZWR9#..G,Z202201-202605

35697ARING, TRANSAXLE OIL SEAL

main35697-52030iZWR9#..G,Z202201-202605

35710ASEAL, TYPE T OIL(FOR INPUT SHAFT)

main90311-25035iZWR9#..G,Z202201-202605

4302

82823MCAP, TERMINAL

main82823-28110iZWR9#..G,Z202201-202605

8401

8431

8432

G1148CABLE, MOTOR

mainG114828040iZWR9#202201-202409

mainG114828041iZWR9#..G,Z202410-202605

G125AACOOLER, MOTOR COOLING

mainG125A28010iZWR9#..G,Z202201-202605

G1570CABLE ASSY, REAR TRACTION MOTOR BOND

mainG157028010iZWR95..G,Z202201-202605

3569728030RING, TRANSAXLE OIL SEAL

main35697-28030

9011906A06

main90119-06A06

9030106196

main90301-06196

9030110189

main90301-10189

9030115004

main90301-15004

9034108001

main90341-08001

9034113004

main90341-13004

9034118020

main90341-18020

9155110818

main91551-10818

9161261045

main91612-61045

91641H0820

main91641-H0820

9167180612

main91671-80612

9167180620

main91671-80620

9413000802

main94130-00802

9451200800

main94512-00800

35 parts on this diagram · 4 diagrams in section
