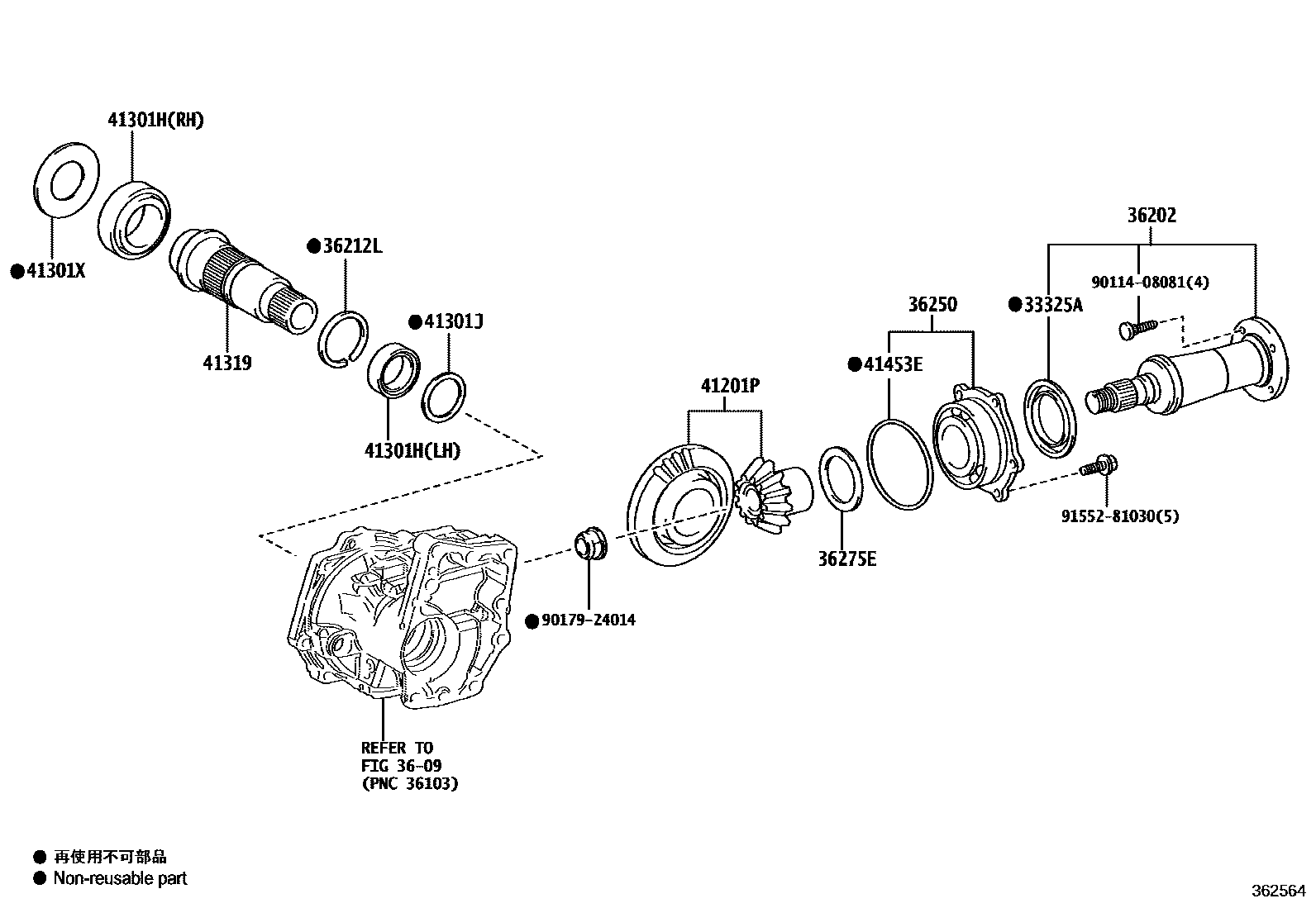

TRANSFER GEAR

33325ADEFLECTOR, DUST (FOR TRANSFER OUTPUT REAR SHAFT)

main33325-52010iMZRA95,97..(SG,SZ,X)..CBU202201-202605

3609

36202SHAFT SUB-ASSY, TRANSFER OUTPUT, REAR

main36202-16010iMZRA95..IV5;MZRA95,97..G,Z202201-202501

36212LRING, SHAFT SNAP

main90520-51003iMZRA95..IV5;MZRA95,97..G,Z202201-202501

36250BEARING ASSY, TRANSFER

main36250-42030iMZRA95..IV5;MZRA95,97..G,Z202201-202501

36275EWASHER, TRANSFER OUTPUT SHAFT

main36275-52010iMZRA95,97..(SG,SZ,X)..CBU202201-202605

main36275-52020iMZRA95,97..(SG,SZ,X)..CBU202201-202605

main36275-52030iMZRA95..IV5;MZRA95,97..G,Z202201-202501

main36275-52040iMZRA95..IV5;MZRA95,97..G,Z202201-202501

main36275-52050iMZRA95,97..(SG,SZ,X)..CBU202201-202605

main36275-52060iMZRA95..IV5;MZRA95,97..G,Z202201-202501

main36275-52070iMZRA95..IV5;MZRA95,97..G,Z202201-202501

main36275-52080iMZRA95,97..(SG,SZ,X)..CBU202201-202605

main36275-52090iMZRA95,97..(SG,SZ,X)..CBU202201-202605

main36275-52100iMZRA95,97..(SG,SZ,X)..CBU202201-202605

main36275-52110iMZRA95,97..(SG,SZ,X)..CBU202201-202605

main36275-52120iMZRA95,97..(SG,SZ,X)..CBU202201-202605

main36275-52130iMZRA95..IV5;MZRA95,97..G,Z202201-202501

main36275-52140iMZRA95..IV5;MZRA95,97..G,Z202201-202501

main36275-52150iMZRA95,97..(SG,SZ,X)..CBU202201-202605

main36275-52160iMZRA95,97..(SG,SZ,X)..CBU202201-202605

main36275-52170iMZRA95..IV5;MZRA95,97..G,Z202201-202501

main36275-52180iMZRA95..IV5;MZRA95,97..G,Z202201-202501

main36275-52190iMZRA95..IV5;MZRA95,97..G,Z202201-202501

main36275-52200iMZRA95,97..(SG,SZ,X)..CBU202201-202605

main36275-52210iMZRA95..IV5;MZRA95,97..G,Z202201-202501

main36275-52220iMZRA95..IV5;MZRA95,97..G,Z202201-202501

main36275-52230iMZRA95,97..(SG,SZ,X)..CBU202201-202605

main36275-52240iMZRA95,97..(SG,SZ,X)..CBU202201-202605

main36275-52250iMZRA95..IV5;MZRA95,97..G,Z202201-202501

main36275-52260iMZRA95..IV5;MZRA95,97..G,Z202201-202501

main36275-52270iMZRA95..IV5;MZRA95,97..G,Z202201-202501

main36275-52280iMZRA95..IV5;MZRA95,97..G,Z202201-202501

41201PGEAR KIT, TRANSFER

main41201-52010iMZRA95..IV5;MZRA95,97..G,Z202201-202501

41301HBEARING(FOR RING GEAR MOUNTING CASE)

main90366-45038iMZRA95..IV5;MZRA95,97..G,Z202201-202501

main90366-56004iMZRA95..IV5;MZRA95,97..G,Z202201-202501

41301JWASHER, PLATE(FOR RING GEAR MOUNTING CASE)

main36265-42010iMZRA95..IV5;MZRA95,97..G,Z202201-202501

main36265-42020iMZRA95..IV5;MZRA95,97..G,Z202201-202501

main36265-42030iMZRA95..IV5;MZRA95,97..G,Z202201-202501

main36265-42040iMZRA95..IV5;MZRA95,97..G,Z202201-202501

main36265-42050iMZRA95..IV5;MZRA95,97..G,Z202201-202501

main36265-42060iMZRA95..IV5;MZRA95,97..G,Z202201-202501

main36265-42070iMZRA95,97..(SG,SZ,X)..CBU202201-202605

main36265-42080iMZRA95..IV5;MZRA95,97..G,Z202201-202501

main36265-42090iMZRA95,97..(SG,SZ,X)..CBU202201-202605

main36265-42100iMZRA95..IV5;MZRA95,97..G,Z202201-202501

main36265-42110iMZRA95,97..(SG,SZ,X)..CBU202201-202605

main36265-42120iMZRA95,97..(SG,SZ,X)..CBU202201-202605

main36265-42130iMZRA95,97..(SG,SZ,X)..CBU202201-202605

main36265-42140iMZRA95..IV5;MZRA95,97..G,Z202201-202501

main36265-42150iMZRA95..IV5;MZRA95,97..G,Z202201-202501

main36265-42160iMZRA95..IV5;MZRA95,97..G,Z202201-202501

main36265-42170iMZRA95,97..(SG,SZ,X)..CBU202201-202605

main36265-42180iMZRA95..IV5;MZRA95,97..G,Z202201-202501

main36265-42190iMZRA95,97..(SG,SZ,X)..CBU202201-202605

main36265-42200iMZRA95,97..(SG,SZ,X)..CBU202201-202605

main36265-42210iMZRA95..IV5;MZRA95,97..G,Z202201-202501

main36265-42220iMZRA95,97..(SG,SZ,X)..CBU202201-202605

main36265-42230iMZRA95..IV5;MZRA95,97..G,Z202201-202501

main36265-42240iMZRA95,97..(SG,SZ,X)..CBU202201-202605

main36265-42250iMZRA95,97..(SG,SZ,X)..CBU202201-202605

main36265-42260iMZRA95..IV5;MZRA95,97..G,Z202201-202501

main36265-42270iMZRA95,97..(SG,SZ,X)..CBU202201-202605

main36265-42280iMZRA95,97..(SG,SZ,X)..CBU202201-202605

main36265-42290iMZRA95..IV5;MZRA95,97..G,Z202201-202501

main36265-42300iMZRA95,97..(SG,SZ,X)..CBU202201-202605

main36265-42310iMZRA95,97..(SG,SZ,X)..CBU202201-202605

main36265-42320iMZRA95,97..(SG,SZ,X)..CBU202201-202605

main36265-42330iMZRA95,97..(SG,SZ,X)..CBU202201-202605

main36265-42340iMZRA95,97..(SG,SZ,X)..CBU202201-202605

main36265-42350iMZRA95,97..(SG,SZ,X)..CBU202201-202605

main36265-42360iMZRA95,97..(SG,SZ,X)..CBU202201-202605

main36265-42370iMZRA95,97..(SG,SZ,X)..CBU202201-202605

main36265-42380iMZRA95..IV5;MZRA95,97..G,Z202201-202501

main36265-42390iMZRA95..IV5;MZRA95,97..G,Z202201-202501

main36265-42400iMZRA95..IV5;MZRA95,97..G,Z202201-202501

41301XWASHER, TRANSFER RING GEAR MOUNTING CASE, NO.2

main36266-52010iMZRA95..IV5;MZRA95,97..G,Z202201-202501

main36266-52020iMZRA95..IV5;MZRA95,97..G,Z202201-202501

main36266-52030iMZRA95,97..(SG,SZ,X)..CBU202201-202605

main36266-52040iMZRA95..IV5;MZRA95,97..G,Z202201-202501

main36266-52050iMZRA95,97..(SG,SZ,X)..CBU202201-202605

main36266-52060iMZRA95..IV5;MZRA95,97..G,Z202201-202501

main36266-52070iMZRA95..IV5;MZRA95,97..G,Z202201-202501

main36266-52080iMZRA95..IV5;MZRA95,97..G,Z202201-202501

main36266-52090iMZRA95,97..(SG,SZ,X)..CBU202201-202605

main36266-52100iMZRA95,97..(SG,SZ,X)..CBU202201-202605

main36266-52110iMZRA95,97..(SG,SZ,X)..CBU202201-202605

main36266-52120iMZRA95,97..(SG,SZ,X)..CBU202201-202605

main36266-52130iMZRA95..IV5;MZRA95,97..G,Z202201-202501

main36266-52140iMZRA95,97..(SG,SZ,X)..CBU202201-202605

main36266-52150iMZRA95,97..(SG,SZ,X)..CBU202201-202605

main36266-52160iMZRA95,97..(SG,SZ,X)..CBU202201-202605

main36266-52170iMZRA95..IV5;MZRA95,97..G,Z202201-202501

main36266-52180iMZRA95,97..(SG,SZ,X)..CBU202201-202605

main36266-52190iMZRA95,97..(SG,SZ,X)..CBU202201-202605

main36266-52200iMZRA95..IV5;MZRA95,97..G,Z202201-202501

main36266-52210iMZRA95,97..(SG,SZ,X)..CBU202201-202605

main36266-52220iMZRA95..IV5;MZRA95,97..G,Z202201-202501

main36266-52230iMZRA95..IV5;MZRA95,97..G,Z202201-202501

main36266-52240iMZRA95..IV5;MZRA95,97..G,Z202201-202501

main36266-52250iMZRA95,97..(SG,SZ,X)..CBU202201-202605

main36266-52260iMZRA95..IV5;MZRA95,97..G,Z202201-202501

main36266-52270iMZRA95..IV5;MZRA95,97..G,Z202201-202501

main36266-52280iMZRA95..IV5;MZRA95,97..G,Z202201-202501

main36266-52290iMZRA95,97..(SG,SZ,X)..CBU202201-202605

main36266-52300iMZRA95..IV5;MZRA95,97..G,Z202201-202501

main36266-52310iMZRA95..IV5;MZRA95,97..G,Z202201-202501

main36266-52320iMZRA95,97..(SG,SZ,X)..CBU202201-202605

main36266-52330iMZRA95..IV5;MZRA95,97..G,Z202201-202501

main36266-52340iMZRA95,97..(SG,SZ,X)..CBU202201-202605

main36266-52350iMZRA95..IV5;MZRA95,97..G,Z202201-202501

main36266-52360iMZRA95,97..(SG,SZ,X)..CBU202201-202605

main36266-52370iMZRA95..IV5;MZRA95,97..G,Z202201-202501

main36266-52380iMZRA95..IV5;MZRA95,97..G,Z202201-202501

main36266-52390iMZRA95,97..(SG,SZ,X)..CBU202201-202605

main36266-52400iMZRA95..IV5;MZRA95,97..G,Z202201-202501

main36266-52410iMZRA95,97..(SG,SZ,X)..CBU202201-202605

main36266-52420iMZRA95..IV5;MZRA95,97..G,Z202201-202501

main36266-52430iMZRA95..IV5;MZRA95,97..G,Z202201-202501

41319CASE, TRANSFER RING GEAR MOUNTING

main41319-42011iMZRA95..IV5;MZRA95,97..G,Z202201-202501

41453ERING, O

main90301-98005iMZRA95..IV5;MZRA95,97..G,Z202201-202501

9011408081

main90114-08081

9017924014

main90179-24014

9155281030

main91552-81030

15 parts on this diagram · 1 diagram in section
