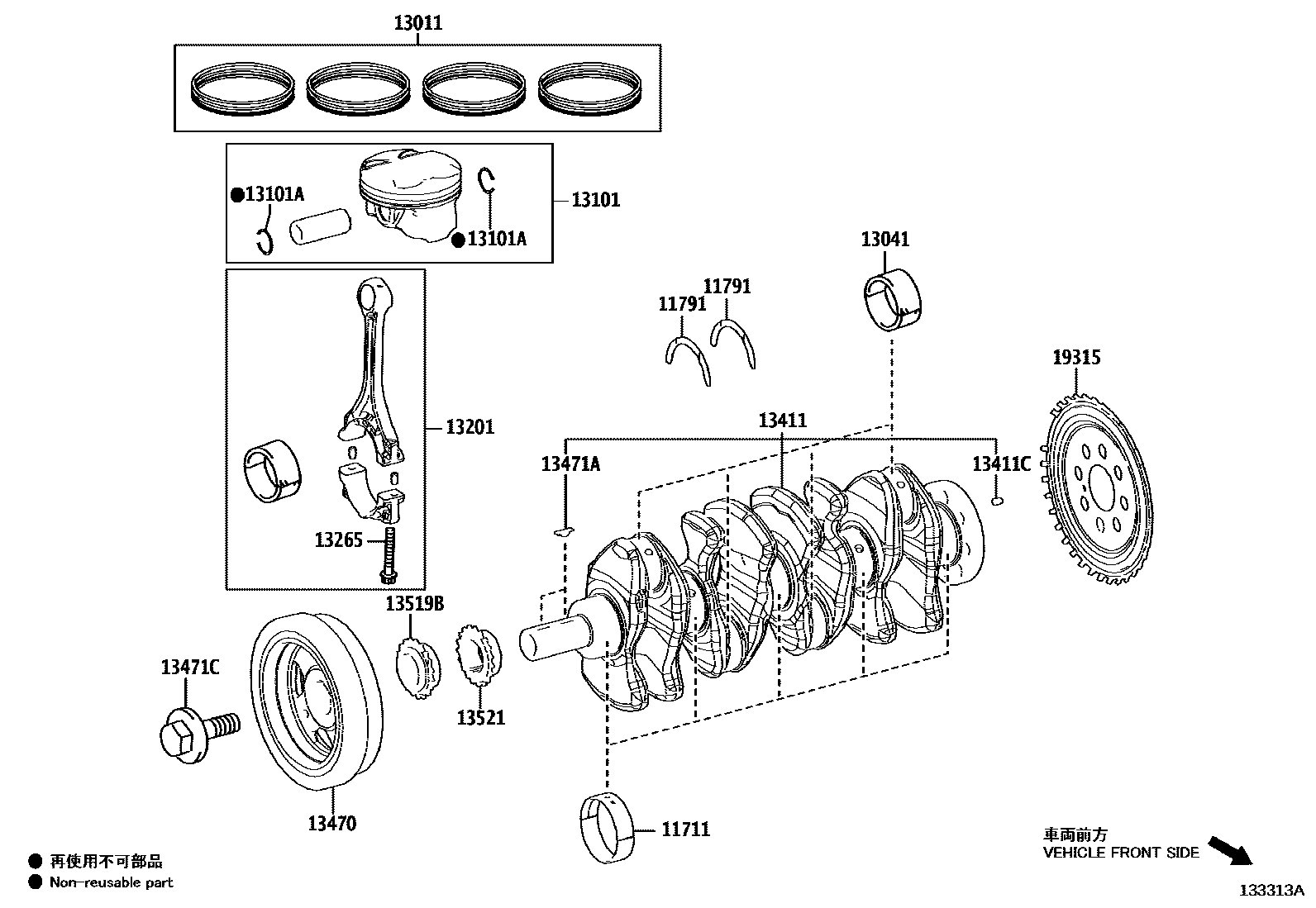

CRANKSHAFT & PISTON

0001 1 0002 1

11711BEARING, CRANKSHAFT

main11701-24010-01iM20AFKS..MZRA9#202201-202303

MARK 1,�C�����Q��

sub11701-24011¥1,960

main11701-24010-02iM20AFKS..MZRA9#202201-202303

MARK 2,�C�����Q��

sub11701-24011¥1,960

main11701-24010-03iM20AFKS..MZRA9#202201-202303

MARK 3,�C�����Q��

sub11701-24011¥1,960

main11701-24010-04iM20AFKS..MZRA9#202201-202303

MARK 4,�C�����Q��

sub11701-24011¥1,960

main11701-24010-05iM20AFKS..MZRA9#202201-202303

MARK 5,�C�����Q��

sub11701-24011¥1,960

main11701-24010-06iM20AFKS..MZRA9#202201-202303

MARK 6,�C�����Q��

sub11701-24011¥1,960

main11701-24011-01iM20AFKS..MZRA9#..G,Z;M20AFKS..MZRA95..IV5;M20AFKS..MZRA92..08S..SG202303-202605

MARK 1,�C�����Q��

main11701-24011-02iM20AFKS..MZRA92..08S..X;M20AFKS..MZRA92..07S..(SG,X);M20AFKS..MZRA90,95,97..(SG,SZ,X)..CBU202303-202605

MARK 2,�C�����Q��

main11701-24011-03iM20AFKS..MZRA92..08S..X;M20AFKS..MZRA92..07S..(SG,X);M20AFKS..MZRA90,95,97..(SG,SZ,X)..CBU202303-202605

MARK 3,�C�����Q��

main11701-24011-04iM20AFKS..MZRA9#..G,Z;M20AFKS..MZRA95..IV5;M20AFKS..MZRA92..08S..SG202303-202605

MARK 4,�C�����Q��

main11701-24011-05iM20AFKS..MZRA9#..G,Z;M20AFKS..MZRA95..IV5;M20AFKS..MZRA92..08S..SG202303-202605

MARK 5,�C�����Q��

main11701-24011-06iM20AFKS..MZRA9#..G,Z;M20AFKS..MZRA95..IV5;M20AFKS..MZRA92..08S..SG202303-202605

MARK 6,�C�����Q��

main11701-37050-01i2ZRFXE..ZWR9#..G,Z202201-202501

MARK1,�C�����Q��

main11701-37050-02i2ZRFXE..ZWR9#..G,Z202201-202501

MARK2,�C�����Q��

main11701-37050-03i2ZRFXE..ZWR9#..G,Z202201-202501

MARK3,�C�����Q��

main11701-37050-04i2ZRFXE..ZWR9#..G,Z202201-202501

MARK4,�C�����Q��

11791WASHER, CRANKSHAFT THRUST, UPPER

main11791-15030iM20AFKS..MZRA92..08S..X;M20AFKS..MZRA92..07S..(SG,X);M20AFKS..MZRA90,95,97..(SG,SZ,X)..CBU¥460202201-202605

�r�s�c

main11791-22020i2ZRFXE..ZWR9#..G,Z¥1,740202301-202501

�r�s�c

main11791-37010i2ZRFXE..ZWR9#¥1,740202201-202301

�r�s�c

13011RING SET, PISTON

main13011-24040iM20AFKS..MZRA9#..G,Z;M20AFKS..MZRA95..IV5;M20AFKS..MZRA92..08S..SG¥11,400202201-202605

�r�s�c

main13011-37270i2ZRFXE..ZWR9#..SG,SZ,X¥10,500202201-202501

�r�s�c

13041BEARING, CONNECTING ROD

main13041-24020-01iM20AFKS..MZRA92..08S..X;M20AFKS..MZRA92..07S..(SG,X);M20AFKS..MZRA90,95,97..(SG,SZ,X)..CBU202201-202605

MARK 1,�C�����Q��

main13041-24020-02iM20AFKS..MZRA92..08S..X;M20AFKS..MZRA92..07S..(SG,X);M20AFKS..MZRA90,95,97..(SG,SZ,X)..CBU202201-202605

MARK 2,�C�����Q��

main13041-24020-03iM20AFKS..MZRA9#..G,Z;M20AFKS..MZRA95..IV5;M20AFKS..MZRA92..08S..SG202201-202605

MARK 3,�C�����Q��

main13041-37040-01i2ZRFXE..ZWR9#..G,Z202201-202501

MARK1,�C�����Q��

main13041-37040-02i2ZRFXE..ZWR9#..SG,SZ,X202201-202501

MARK2,�C�����Q��

main13041-37040-03i2ZRFXE..ZWR9#..SG,SZ,X202201-202501

MARK3,�C�����Q��

13101PISTON SUB-ASSY, W/PIN

main13101-24040iM20AFKS..MZRA9#..G,Z;M20AFKS..MZRA95..IV5;M20AFKS..MZRA92..08S..SG¥3,910202201-202605

�r�s�c

main13101-37440i2ZRFXE..ZWR9#..G,Z¥3,910202201-202501

�r�s�c

13101ARING, HOLE SNAP(FOR PISTON PIN)

main90520-19019iM20AFKS..MZRA9#..G,Z;M20AFKS..MZRA95..IV5;M20AFKS..MZRA92..08S..SG¥70202201-202605

13201ROD SUB-ASSY, CONNECTING

main13201-09C10i2ZRFXE..ZWR9#..G,Z¥7,800202201-202501

�i�k�j

main13201-29835-A0iM20AFKS..MZRA9#..G,Z;M20AFKS..MZRA95..IV5;M20AFKS..MZRA92..08S..SG202201-202605

MARK A,�C�����Q��

main13201-29835-B0iM20AFKS..MZRA92..08S..X;M20AFKS..MZRA92..07S..(SG,X);M20AFKS..MZRA90,95,97..(SG,SZ,X)..CBU202201-202605

MARK B,�C�����Q��

main13201-29835-C0iM20AFKS..MZRA9#..G,Z;M20AFKS..MZRA95..IV5;M20AFKS..MZRA92..08S..SG202201-202605

MARK C,�C�����Q��

main13201-39295i2ZRFXE..ZWR9#..G,Z¥7,800202201-202501

�i�i�j

13265BOLT, CONNECTING ROD

main13265-22040i2ZRFXE..ZWR9#..SG,SZ,X¥300202201-202501

main13265-25020iM20AFKS..MZRA9#..G,Z;M20AFKS..MZRA95..IV5;M20AFKS..MZRA92..08S..SG¥310202201-202605

13411CRANKSHAFT

main13401-0T061i2ZRFXE..ZWR9#..G,Z202201-202501

�i�k�j

main13401-24010iM20AFKS..MZRA9#..G,Z;M20AFKS..MZRA95..IV5;M20AFKS..MZRA92..08S..SG¥62,900202201-202605

main13401-37021i2ZRFXE..ZWR9#..G,Z¥58,700202201-202501

�i�i�j

13411CPIN, STRAIGHT(FOR CRANKSHAFT)

main90250-06035iM20AFKS..MZRA9#..G,Z;M20AFKS..MZRA95..IV5;M20AFKS..MZRA92..08S..SG¥70202201-202605

13470PULLEY ASSY, CRANKSHAFT

main13470-24010iM20AFKS..MZRA9#..G,Z;M20AFKS..MZRA95..IV5;M20AFKS..MZRA92..08S..SG¥9,900202201-202605

13471PULLEY, CRANKSHAFT

main13470-37060i2ZRFXE..ZWR9#..G,Z¥10,400202201-202501

13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)

main90280-04001iM20AFKS..MZRA9#..G,Z;M20AFKS..MZRA95..IV5;M20AFKS..MZRA92..08S..SG¥80202201-202605

13471CBOLT(FOR CRANKSHAFT PULLEY SET)

main90119-14106i2ZRFXE..ZWR9#..G,Z¥360202201-202501

main90119-16020iM20AFKS..MZRA92..08S..X;M20AFKS..MZRA92..07S..(SG,X);M20AFKS..MZRA90,95,97..(SG,SZ,X)..CBU¥490202201-202605

13519GEAR, OIL PUMP DRIVE

main13519-37010i2ZRFXE..ZWR9#..SG,SZ,X¥570202201-202501

13519BSPROCKET, OIL PUMP DRIVE

main13519-24010iM20AFKS..MZRA9#..G,Z;M20AFKS..MZRA95..IV5;M20AFKS..MZRA92..08S..SG¥680202201-202605

13521GEAR OR SPROCKET, CRANKSHAFT TIMING

main13521-24010iM20AFKS..MZRA9#..G,Z;M20AFKS..MZRA95..IV5;M20AFKS..MZRA92..08S..SG¥1,300202201-202605

main13521-37011i2ZRFXE..ZWR9#..G,Z¥800202201-202501

19315PLATE, CRANK ANGLE SENSOR, NO.1

main19315-24010iM20AFKS..MZRA9#..G,Z;M20AFKS..MZRA95..IV5;M20AFKS..MZRA92..08S..SG¥2,110202201-202605

main19315-37030i2ZRFXE..ZWR9#..G,Z¥740202201-202501

18 parts on this diagram · 2 diagrams in section
