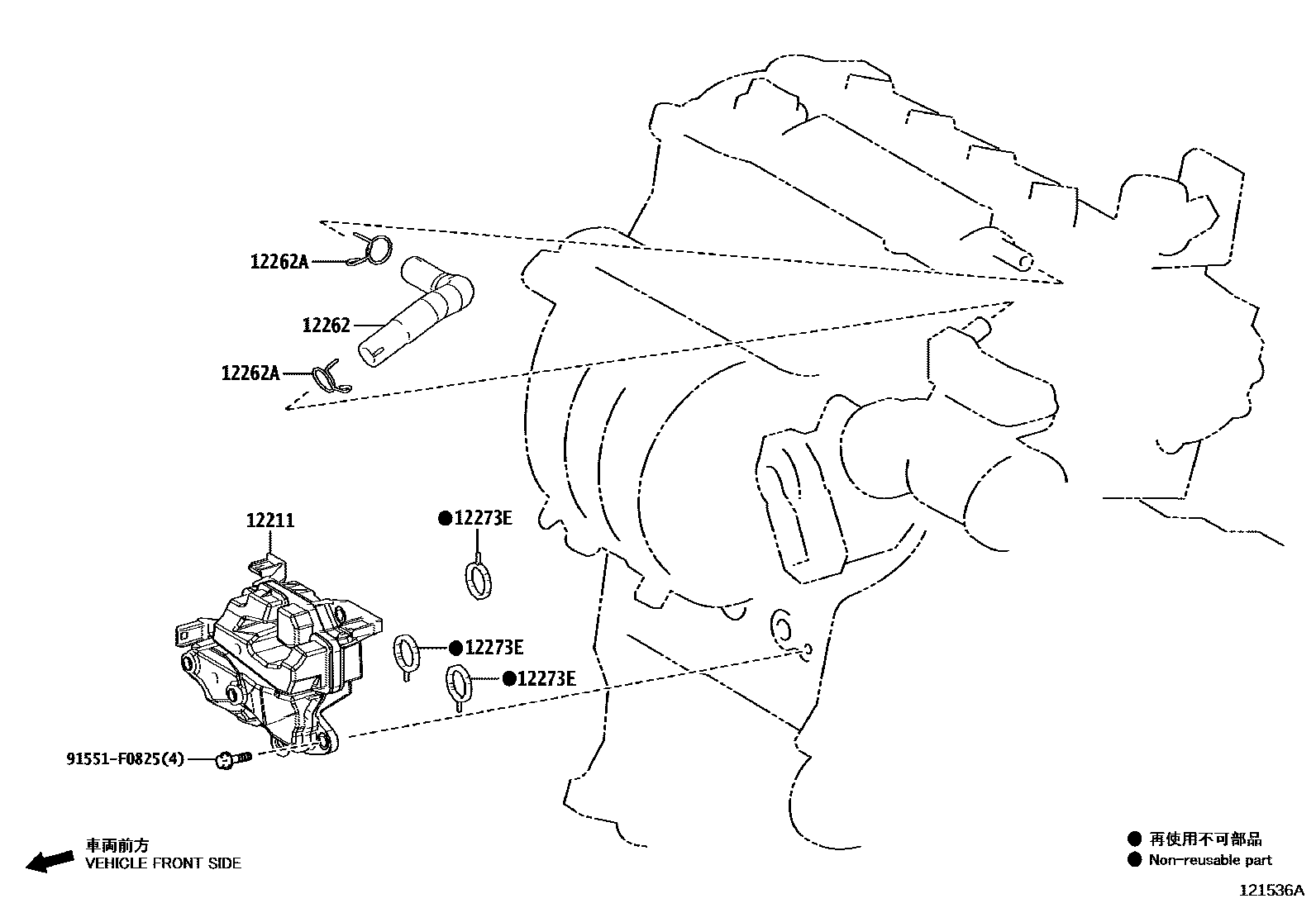

VENTILATION HOSE

0001 1 0002 1

12211CASE, VENTILATION, NO.1

main12211-24010iM20AFKS..MZRA9#202201-202208

main12211-24020iM20AFKS..MZRA92..08S..X;M20AFKS..MZRA92..07S..(SG,X);M20AFKS..MZRA90,95,97..(SG,SZ,X)..CBU202208-202605

main12211-37010i2ZRFXE..ZWR9#..SG,SZ,X202201-202501

12262HOSE, VENTILATION, NO.2

main12262-24020iM20AFKS..MZRA92..08S..X;M20AFKS..MZRA92..07S..(SG,X);M20AFKS..MZRA90,95,97..(SG,SZ,X)..CBU202201-202501

main12262-37060i2ZRFXE..ZWR9#..G,Z202201-202501

12262ACLIP(FOR VENTILATION HOSE NO.2)

main90467-21004i2ZRFXE..ZWR9#..G,Z202201-202501

12273EGASKET(FOR VENTILATION CASE)

main12273-24010iM20AFKS..MZRA9#..G,Z;M20AFKS..MZRA95..IV5;M20AFKS..MZRA92..08S..SG202201-202605

91551F0825

main91551-F0825

5 parts on this diagram · 2 diagrams in section
